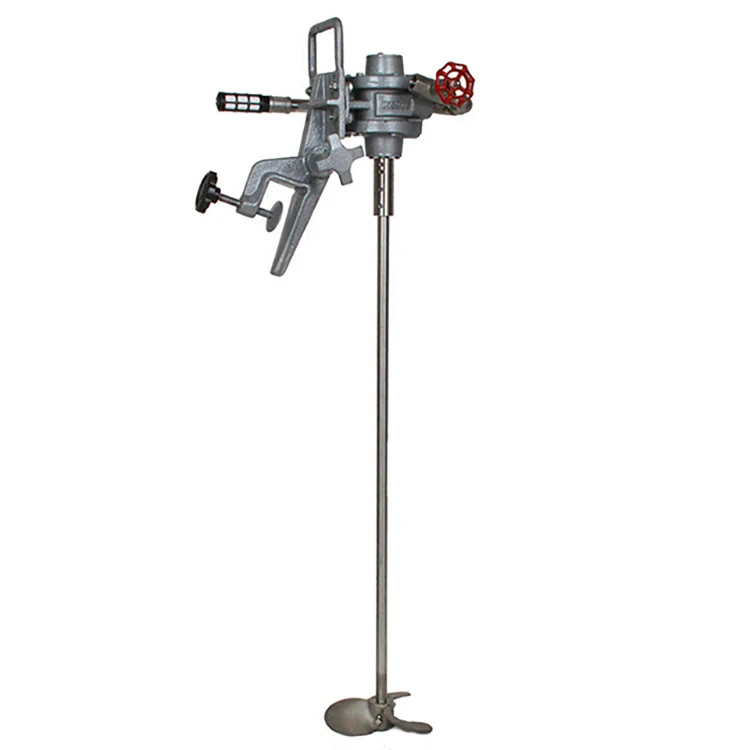

Пневматический миксер ADM128 2 HP с прямым приводом и зажимным
- Категория: Mixing Equipment >>>
- Поставщик: Rudong,Hongxin,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 387.70 $* | 395.8 $* |
| Jul-15-2025 | 314.12 $* | 320.21 $* |
| Jun-15-2025 | 381.95 $* | 389.11 $* |
| May-15-2025 | 378.29 $* | 386.78 $* |
| Apr-15-2025 | 302.38 $* | 308.92 $* |
| Mar-15-2025 | 372.63 $* | 379.93 $* |
| Feb-15-2025 | 369.78 $* | 376.85 $* |
| Jan-15-2025 | 366.70 $* | 373.18 $* |
Характеристики
Description
Hongxin air mixers have been designed,engineered and built to provide long life and trouble free service in a wide variety of blending/mixing operations.
All air mixers can be clamp or base mounted on beams,tank walls or other supports.Angle of entry may be adjusted to meet specific mixing requirements.
Hongxin air mixers find use in a variety of different industrial applications,e.g.waste treatment,water treatment and batch chemical preparation.These are also ideal for mixing paints,varnishes,polymers,textile sizes and dyes,pharmaceuticals,soaps and countless other materials from 1 to over 25,000 cps viscosity.
Full Range Of Air Mixers Specifications
Model | Description | Motor Type | Mixer Power | 316SS Shaft Dia. (in) | 316SS Shaft Length (in) | Impeller Dia.(in) | Air motor in/out thread | Recommended Speed (rpm) | Recommended Air Pressure and Consumption | N.W (KG) |
ADM122 | Open Drum Air Mixer | 2AM vane air motor | 1/4 to 1/2 HP | 5/8" | 35" | 4",3 blade | NPT1/4 | 500 to 2000 | 20 to 40 PSI / 12 to 20 CFM | 9.00 |
ADM123 | Bung Entering Drum Air Mixer | 4AM vane air motor | 1/2 HP | 5/8" | 32" | 3 3/4",2 blade | NPT1/4 | 500 to 2000 | 20 to 40 PSI / 10 to 20 CFM | 13.00 |
ADM124 | Bung Entering Drum Air Mixer | 2AM vane air motor | 1/4 to 1/2 HP | 5/8" | 32" | 3 3/4",2 blade | NPT1/4 | 500 to 2000 | 20 to 40 PSI / 10 to 20 CFM | 10.00 |
ADM125 | IBC Air Mixer With Gear Reducer | 4AM vane air motor | 1/2 HP | 3/4" | 40" | 9",2 blade | NPT1/4 | 50 to 430 | 40 PSI / 20 CFM | 27.00 |
ADM126 | Tank Air Mixer With Gear Reducer | 4AM vane air motor | 1/2 HP | 3/4" | 50" | 12",3 blade | NPT1/4 | 70 to 350 | 20 to 40 PSI / 10 to 20 CFM | 40.00 |
ADM127 | 1HP Tank Air Mixer | 4AM vane air motor | 1 HP | 5/8" | 36" | 6",3 blade | NPT1/4 | 500 to 2000 | 70 PSI / 16 CFM | 12.00 |
ADM128 | 2HP Tank Air Mixer | 6AM vane air motor | 2 HP | 3/4" | 36” | 8",3 blade | NPT1/2 | 500 to 2000 | 70 PSI / 20 CFM | 19.00 |
ADM129 | Air Mixer | 2AM vane air motor | 1/2 HP | 1/2" | 12”/16”/20”/24" | 4",3 blade | NPT1/4 | 500 to 2000 | 50 to 80 PSI / 10 to 17 CFM | 15.00 |
ADM130 | Handheld Air Mixer | 2AM vane air motor | 1/2 HP | 1/2" | 20.5" | 5" | NPT1/4 | 500 to 1000 | 50 to 80 PSI / 14 to 17 CFM | 6.00 |
ADM131 | Minitype Air Mixer | 1AM vane air motor | 1/3 HP | 1/2" | 12" | 4" | NPT1/8 | 500 to 2000 | 50 to 80 PSI / 14 to 17 CFM | 2.50 |
ADM132 | Air Mixer | 2AM vane air motor | 1/2 HP | 1/2" | 32" | 4 1/2" & 5" | NPT1/4 | 350 to 2000 | 50 to 80 PSI / 15 to 22 CFM | 7.00 |
Full Range Of Air Mixers Photoes

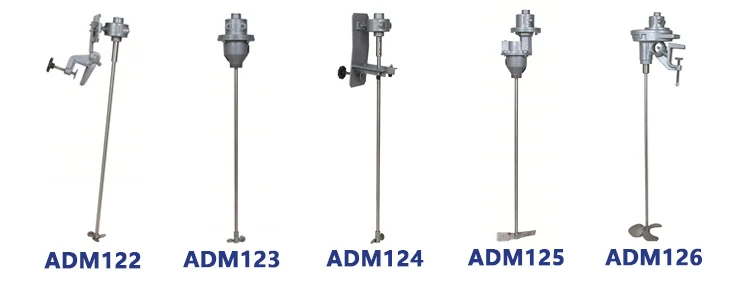

ADM122 ADM123 ADM124
Direct Drive Clamp Mount Direct Drive NPT2 2inch Bung Mount Direct Drive Clamp Mount
ADM125 ADM126
Gear Drive NPT2 2inch Bung Mount Gear Drive Clamp Mount

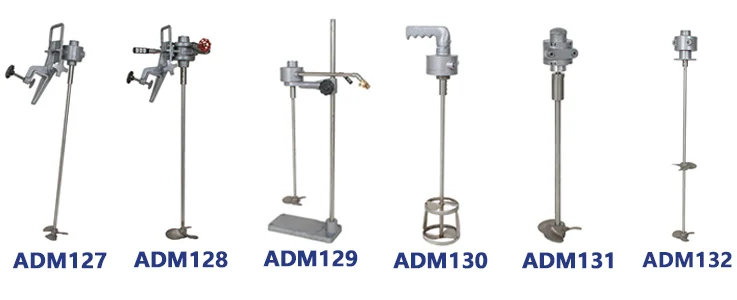

ADM127 ADM128 ADM129
1HP Direct Drive Clamp Mount 2HP Direct Drive Clamp Mount Direct Drive with Stand
ADM130 ADM131 ADM132
Direct Drive Handheld Direct Drive Minitype Direct Drive Bracket Mount
