Лучшая цена автомобиля краска покрытие толщиномер

Лучшая цена автомобиля краска покрытие толщиномер

Категория: Приборы >>>
Поставщик: Shenzhen,TDC,Technology,Co.,Ltd.

Цена:75,00 $ - 81,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-15-2025	95.11 $*	97.70 $*
Jul-15-2025	77.23 $*	79.76 $*
Jun-15-2025	94.98 $*	96.39 $*
May-15-2025	93.4 $*	95.85 $*
Apr-15-2025	74.12 $*	75.43 $*
Mar-15-2025	92.98 $*	94.32 $*
Feb-15-2025	91.86 $*	93.52 $*
Jan-15-2025	90.72 $*	92.80 $*

Характеристики

Product Description

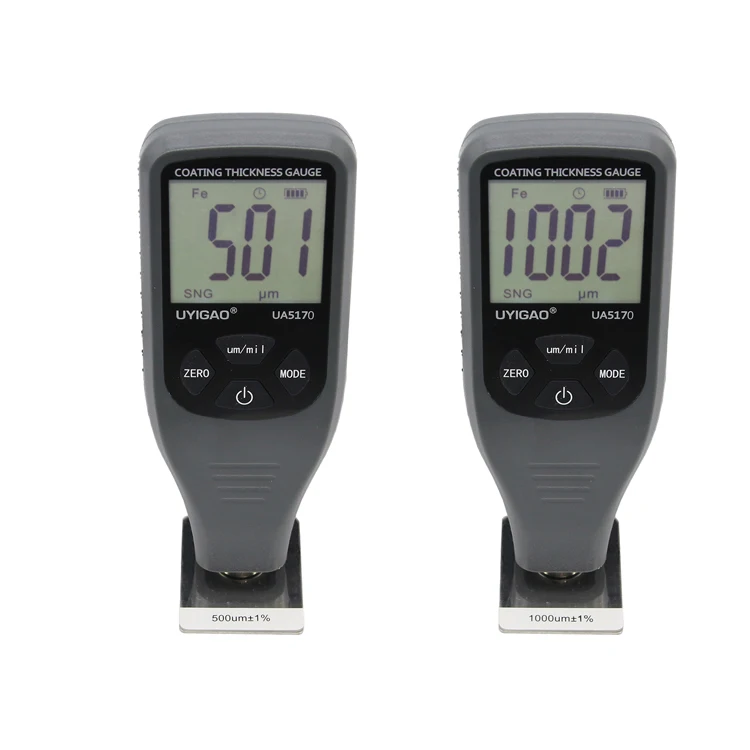

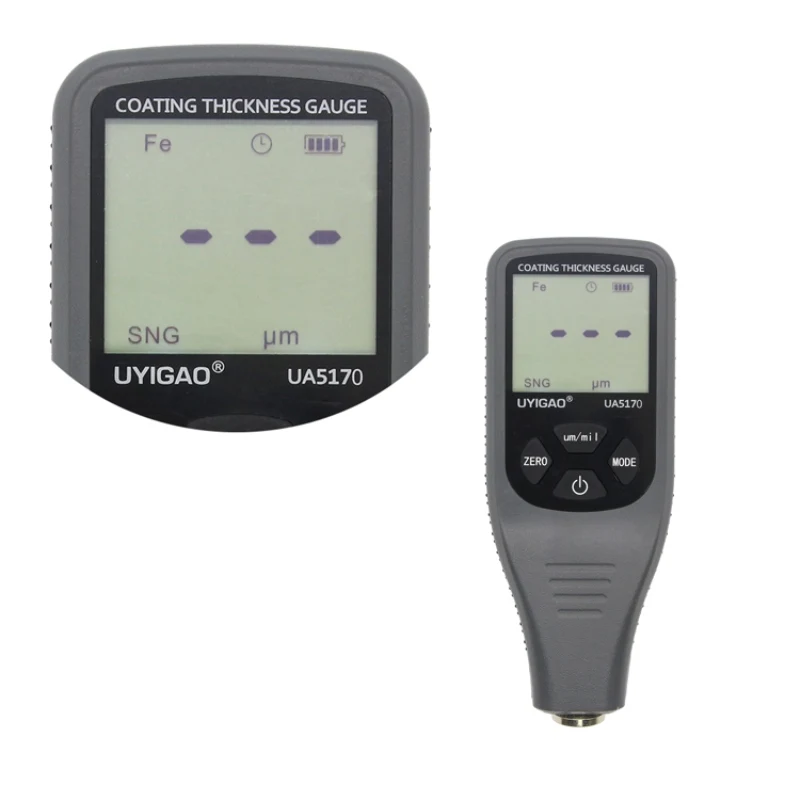

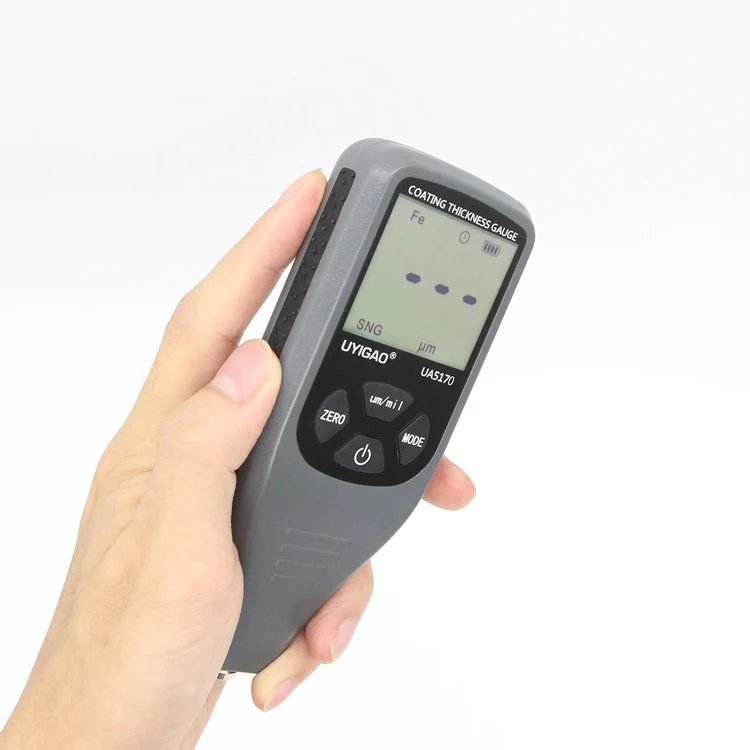

Portable digital magnetic coating thickness gauge car paint tester

Specifications:

	Probe F	Probe N
Principle	Magnetic Induction	Eddy Current
Range	0~1300um 0~51.2mil	0~1300um 0~51.2mil
Accuracy	±(2.5%+1um) ±(2.5%+0.04mil)	±(2.5%+1um) ±(2.5%+0.04mil)
Resolution	0.1um/0.01mil	0.1um/0.01mil
Calibration	Points: ZERO/50/100/250/500/1000um
Units	um, mil
minimum curvature radius convex: 1.5mm
minimum curvature radius concave: 25mm
minimum measuring area: Diameter 6mm
minimum thickness of substrate	0.5mm(0.02”)	0.3mm(0.012”)
Power	4 x AAA batteries
Operation Environment	Temperature:0~40℃(32~104℉) Humidity:20%~90%RH
Size	155mm x 62mm x 35mm (6.10” x 2.44” x 1.38”)

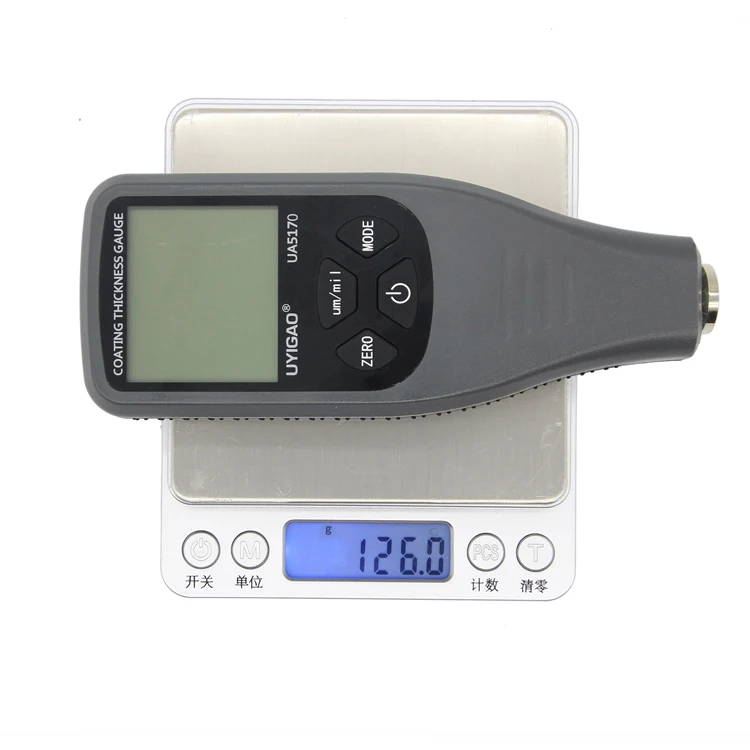

Weight	125g(4.41oz)

Best price car paint coating thickness gauge meter

1. Measuring principle: Magnetic induction (F-probe) and eddy current (N-probe);

2. Measuring range: 0 to 1300um

3. Accuracy: ± (2.5% of readings+1um);

± (3% of readings+0.078mils);

4. Resolution: 0um~900um (1um), 900um~1300um (0.01mm);

5. Calibration: One to four point calibration, zero calibration;

6. Data Group: One direct group (readings not be stored to memory), four general group (readings can be stored), and each group have individual statistics, alarm settings and calibration;

7. Statistics: No. of readings, mean, minimum, maximum and standard deviation;

8. Units: um, mm and mils;

9. Alarm: User can set the high/low alarm, and alarm icon displayed on LCD when over the limit;

10. Minimum curvature radius: convex 1.5mm(59mils) and concave 25mm(984mils);

11. Minimum measuring size: Diameter 6mm(236mils);

12. Minimum thickness of substrate: F-probe: 0.5mm(0.02"), N-probe: 0.3mm(0.012");

13.Computer interface: Download data via USB interface;

14. Power supply: Two 1.5v AAA battery;

15. Operation temperature: 0°C to 40°C(32°F to 104°F);

16. Storage temperature: -20°C to 70°C(-4°F to 158°F);

17. Size: 110mm*53mm*24mm (4.33"*2.09"*0.94");

18. Weight: 100g ;

NOTE: not included batteries.

Description :

The coating thickness gauge is designed for non-destructive, fast and precise coating thickness measurement. It works either on the magnetic induction principle or on the eddy current principle, depending on the type of probe used. This gauge has internal F probe and N probe.

F probe can be used for non-magnetic coatings such as aluminium, chrome, copper, zinc, paint and varnish,enamel, rubber etc., on an iron or steel substrate; It is also suitable foralloyed and hardened magnetic steel(however, not suitable for austenic steel).

N probe can be used for insulating coatings e.g. paint, anodizing,ceramics, etc., on all non-ferrous metals such as aluminium, copper, zinc die casting, brass etc. and on austenitic stainless steels.

It is ideal for manufacturers and their customers, for offices and specialist advisers, for paint shops and electroplaters, for the chemical, automobile, ship building and aircraft industries and for heavy engineering. It is suitable for laboratory, workshop and outdoor use.

Features:

1. 128*128 dot matrix LCD display, standard menu operations;

2. Two measure mode: single and continuous;

3. Two group mode:direct(DIR) and general(GEN), readings will be lost when power off in direct mode, and not be lost in general mode. 80 readings can be stored for each group;

4. Zero point calibration and multi-point calibration(up to 4 points) for each group;

5. User can recall, delete specified readings, or delete group readings;

6. Statistics display: mean, minimum, maximum and standard deviation;

7. Three probe mode:auto, magnetic and eddy current;

8. User can set high or low limit alarm for each group;

9. Power off automatically;

10. USB interface to data transmission;

11. Low battery and error indication.

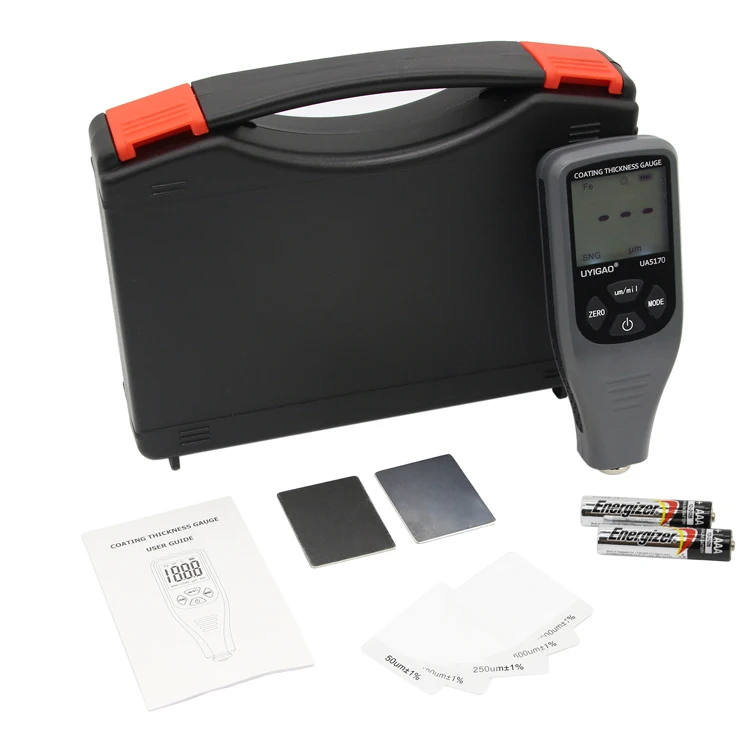

Package Include:
