PowMr MCY Солнечная фотогальваническая панель адаптер Кабельный соединитель 4 ветки Y Тип параллельное соединение
- Категория: Разъемы >>>
- Поставщик: Shenzhen,Hehejin,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 45.39 $* | 47.97 $* |
| Aug-16-2025 | 45.61 $* | 47.72 $* |
| Jul-16-2025 | 38.45 $* | 40.44 $* |
| Jun-16-2025 | 44.18 $* | 46.69 $* |
| May-16-2025 | 38.11 $* | 40.67 $* |
| Apr-16-2025 | 43.32 $* | 45.23 $* |
| Mar-16-2025 | 43.38 $* | 45.71 $* |
| Feb-16-2025 | 43.44 $* | 45.40 $* |
| Jan-16-2025 | 42.38 $* | 44.50 $* |
Характеристики

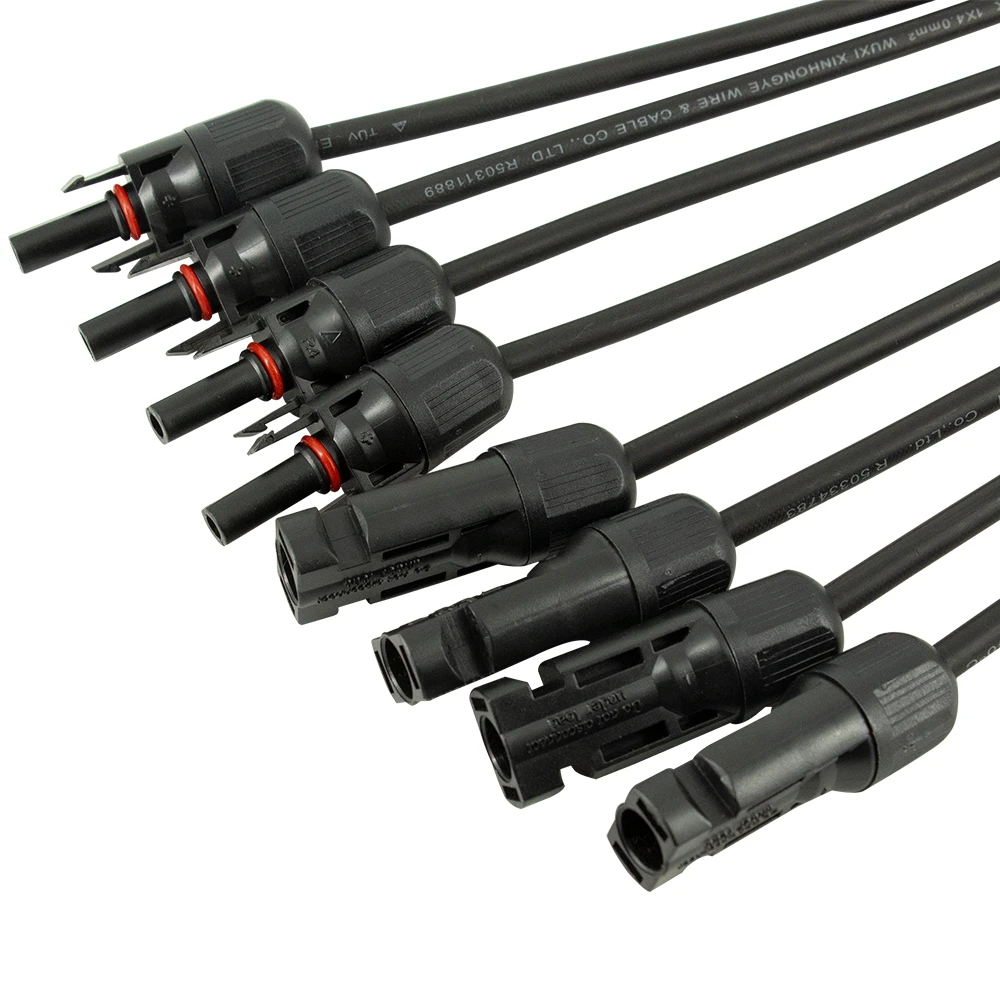

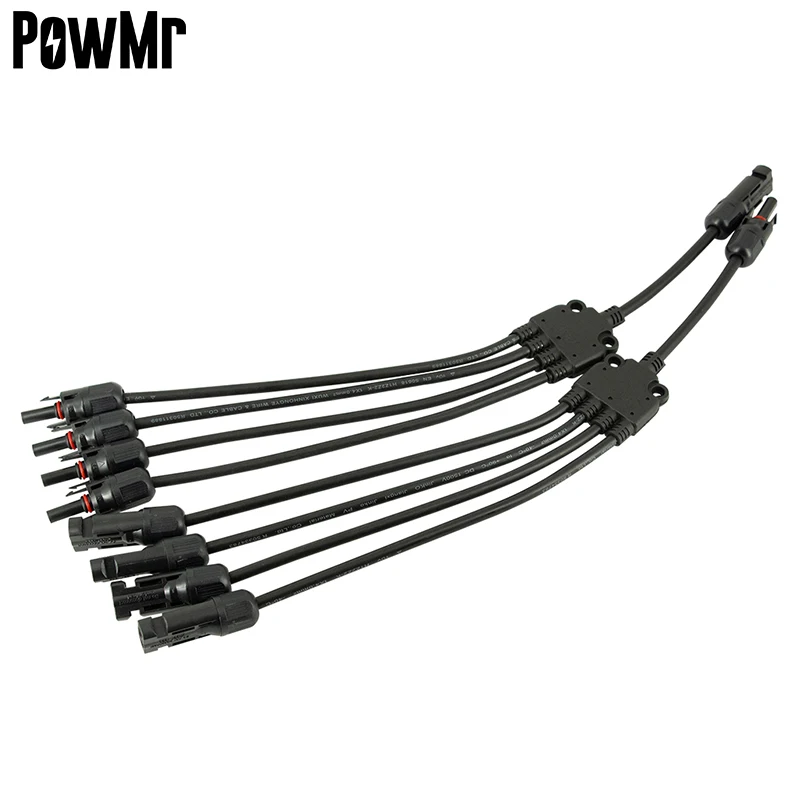

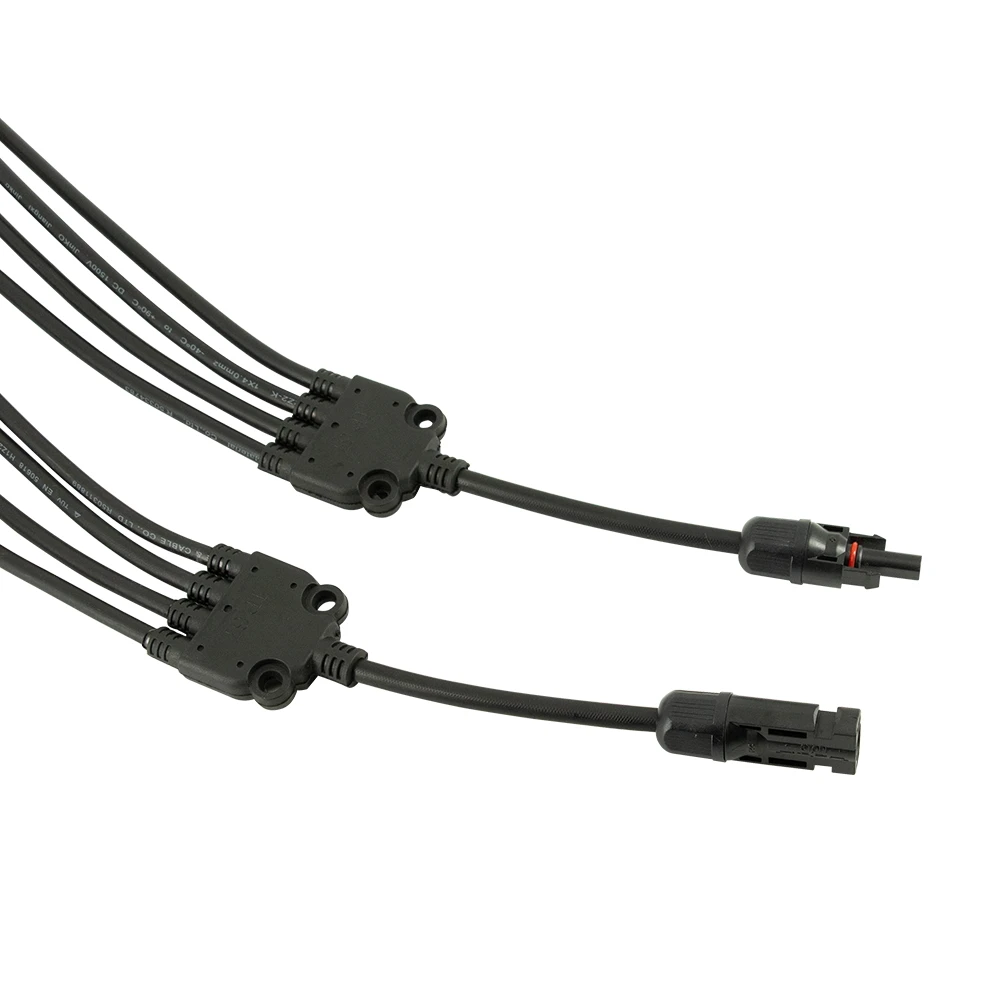

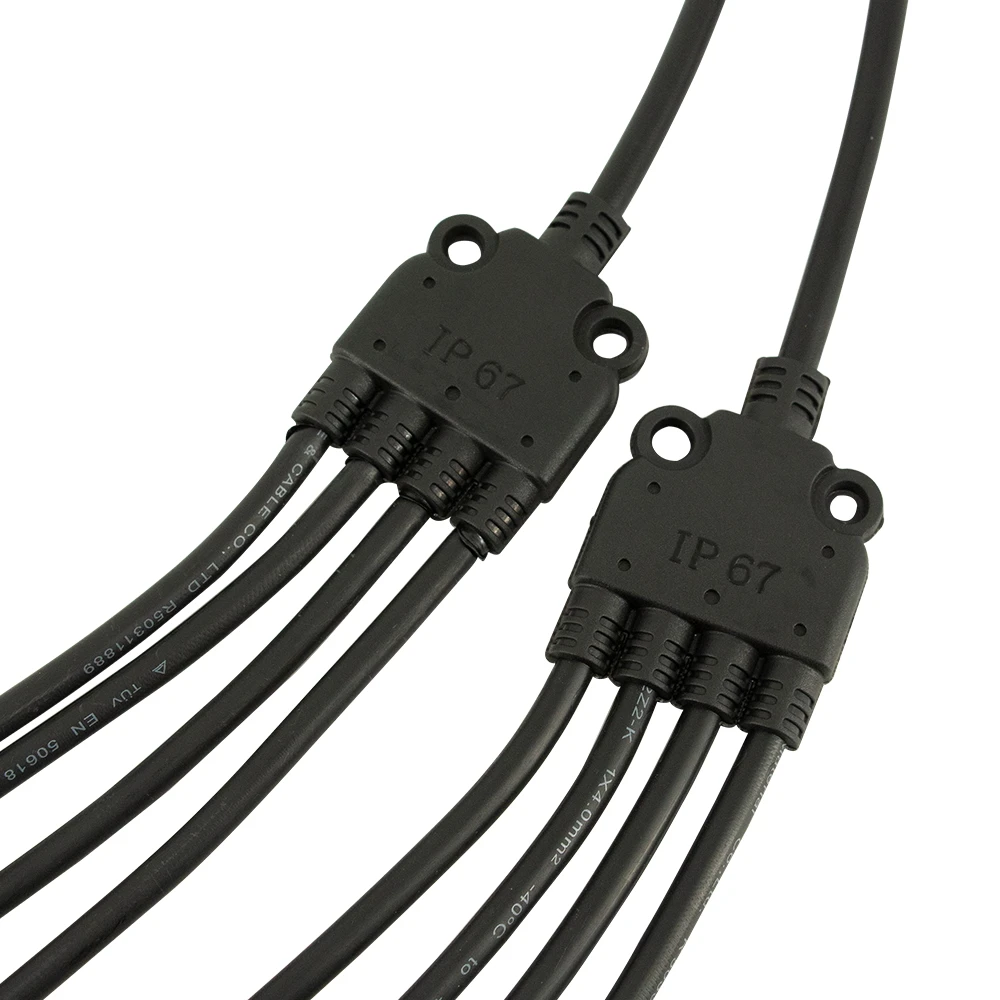

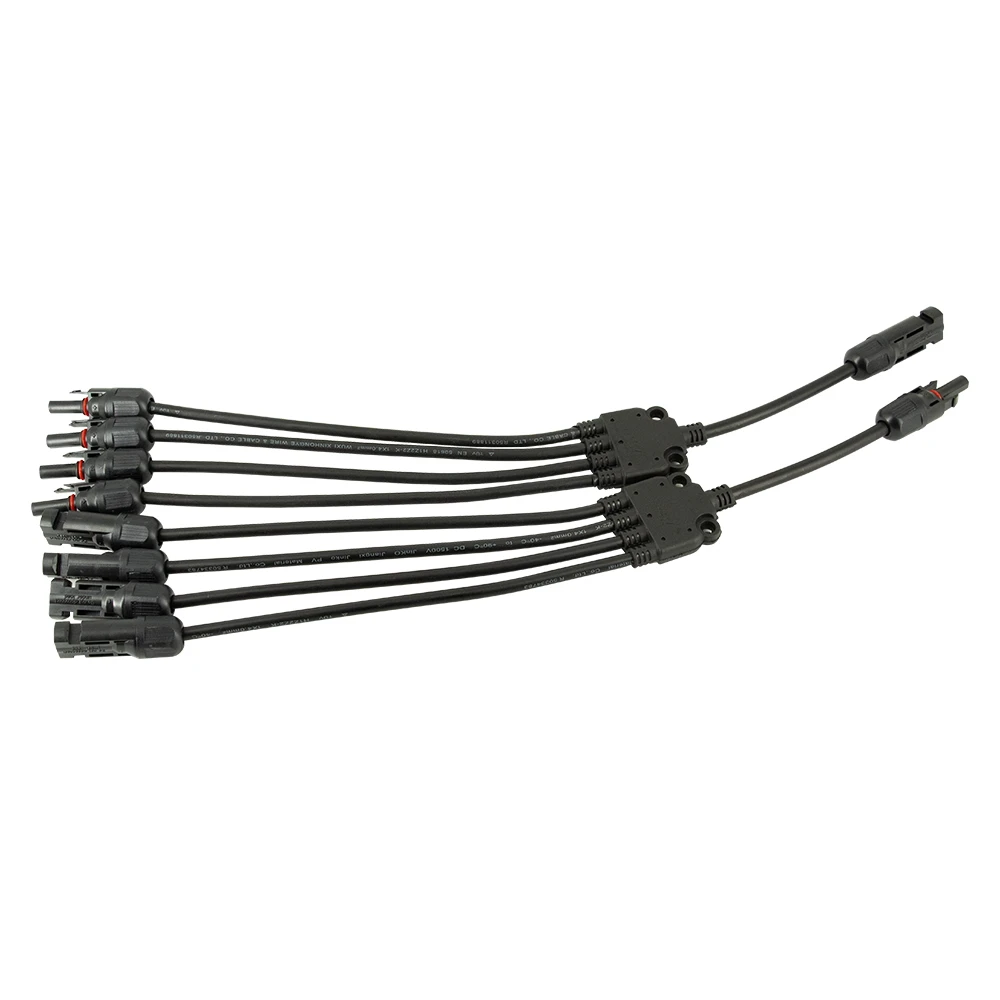

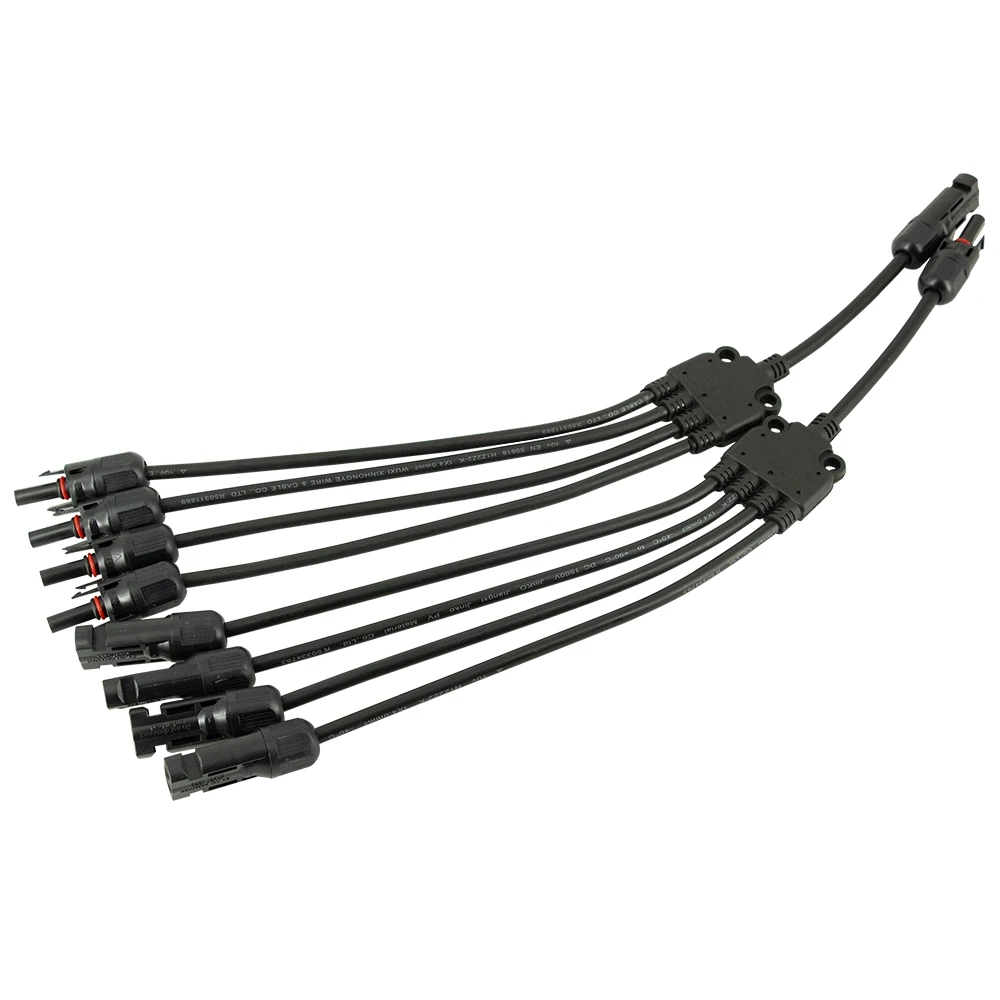

PowMr MCY Solar Photovoltaic Panel Adaptor Cable Connector BN4 4 branch 4to 1 Y Type Parallel Connection
Product Description
1. Photovoltaic branch for safe and simple parallel or series-parallel connection of PV-Module.
2. Due to highly robustness, UV resistance, the touch protection a high grade connection is guaranteed for many years.
3. Acc. To DIN V VED 012-3/12.6, U L1703 standard.
4.Removal will not cause any harm to plugs.
5.Load capability with big current and high voltage
6.Good ability of resistance and machine shocking
7.Lower contact resistance
Feature
1.low power loss
2.solar connector for solar power system
3.all the connection made by double fixed connection
4.with the capacity of anti-aging and resistance to ultraviolet radiation on the out cover
with convenient installation, strong commonality
5.to meet the using requirement under bad outdoor condition
Data Sheet
| Rated voltage | TUV1000VDC/U L600VDC |
| Rated current | 20A~30A |
| Suitable cable | 2.5mm2/4mm2/6mm2(AWG14/12/10) |
| Terminal specifications | Φ4.0mm |
| Test voltage | TUV6000VDC(1min)/U L2200VDC(1min) |
| Safe class | 2 |
| Protection class | Class II |
| Contact Material | Copper sliver plated |
| Contact resistance of plug connectors | ≤ 5mΩ |
| Insulation material | PPO |
| Protect degree | IP68(IEC 60529) |
| Withdrawal Force | ≥ 50N |
| Insertion Force | ≤50N |
| Operating temperature | (-40℃~+85℃) |
| Flame Class | U L94V - 0 |
Images
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
