Высококачественная система очистки CIP из

Описание и отзывы

Трекер стоимости

Характеристики



Currently, the intelligent CIP cleaning system is widely applied in industries that have high requirements for cleaning such as biological fermentation, pharmacy, etc, so as to achieve the sanitary and aseptic effect.



2.Work Principle

The cleaning liquid is automatically prepared by the CIP cleaning system through setting the program (adjustable program). The whole cleaning process including the conveying of cleaning liquids, return flow and circulation cleaning, discharging and recovery is completed through the pneumatic control valve, liquid conveying pump and liquid return pump. Automatic cleaning in place is realized through the control system consisting of the conductivity detector and PLC touch screen.



3.System Composition

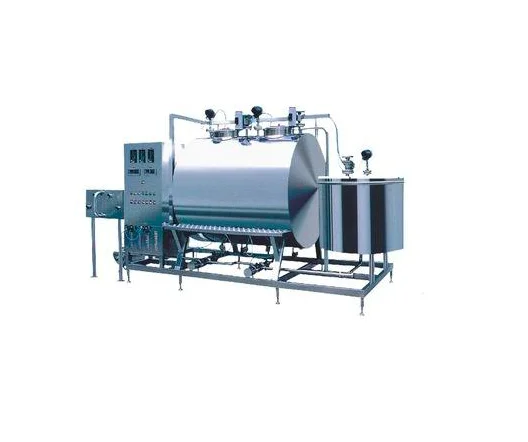

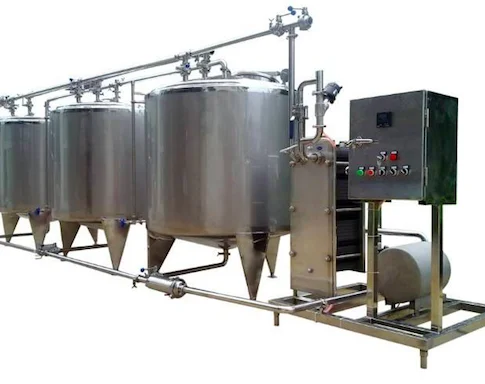

The intelligent CIP system is a central integration system that includes the injection water tank, CIP tank, plate heat ex-changer, pipe filter, liquid conveying pump, liquid return pump, temperature controller, liquid level controller, conductivity detector, PLC touch screen, control cabinet, system pipe and valve, etc.
