Высокоскоростная супер тонкая машина для волочения медной
- Категория: >>>
- Поставщик: Jiangsu,Jiacheng,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5950.97 $* | 6248.89 $* |
| Aug-16-2025 | 5900.3 $* | 6195.29 $* |
| Jul-16-2025 | 4950.46 $* | 5198.93 $* |
| Jun-16-2025 | 5800.38 $* | 6090.69 $* |
| May-16-2025 | 5050.6 $* | 5303.46 $* |
| Apr-16-2025 | 5700.9 $* | 5985.11 $* |
| Mar-16-2025 | 5650.52 $* | 5933.67 $* |
| Feb-16-2025 | 5600.69 $* | 5880.65 $* |
| Jan-16-2025 | 5550.48 $* | 5828.34 $* |
Характеристики
high speed super fine copper wire drawing machine
Company Information
| |||||||||||||||

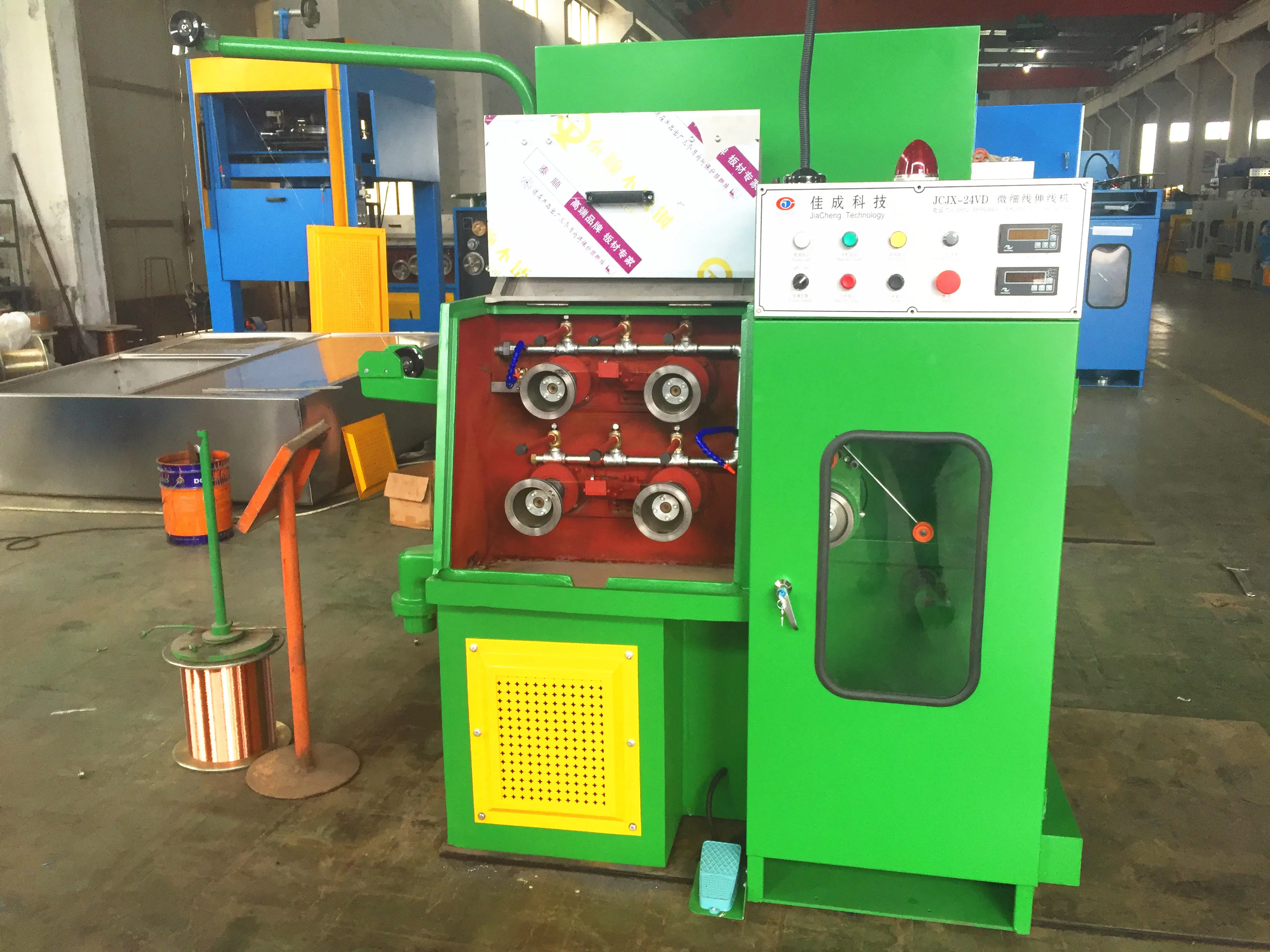

High speed super fine copper wire drawing machine
Main usage: It is used for drawing copper wire from 0.08~0.16mm to 0.03-0.06mm
Main feature:
1:Double motor inverter ,small slip high quality
2:Tension auto control system
3:High tension durably flat belt gain convenient replacement and low nosie in operating
Technical parameter:
Machine type | JCJX-24VD |
Inverter Control | double inverter control |
inlet dia(mm) | 0.08-0.16 |
outlet dia.(mm) | 0.03-0.06 |
max.dia no | 24 |
max. line speed(m/min) | 1500 |
body structure | welded by steel plate |

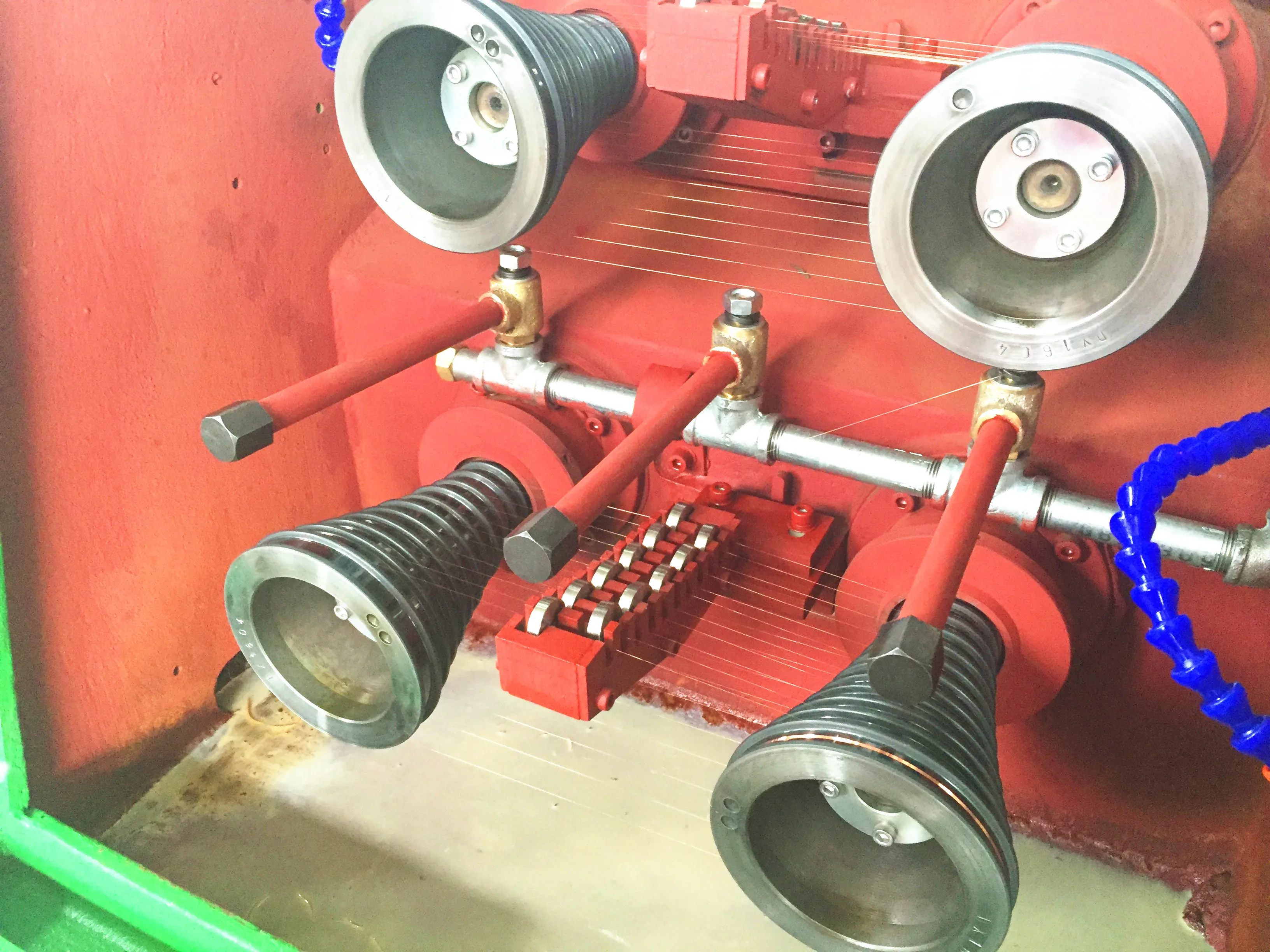

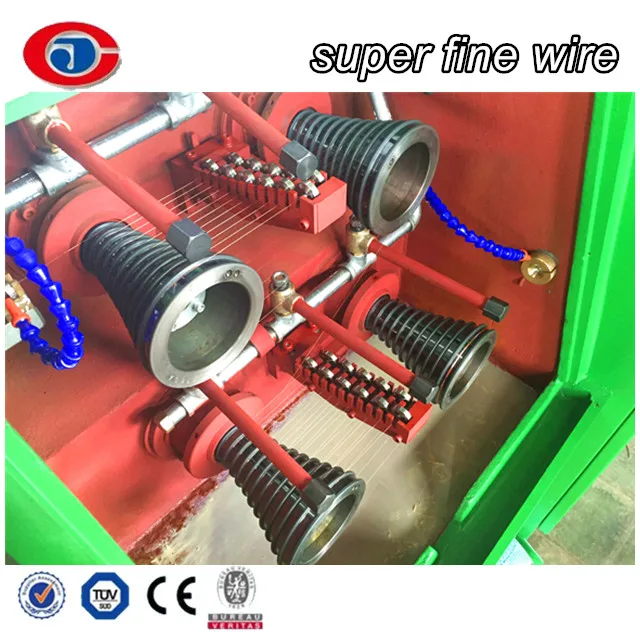

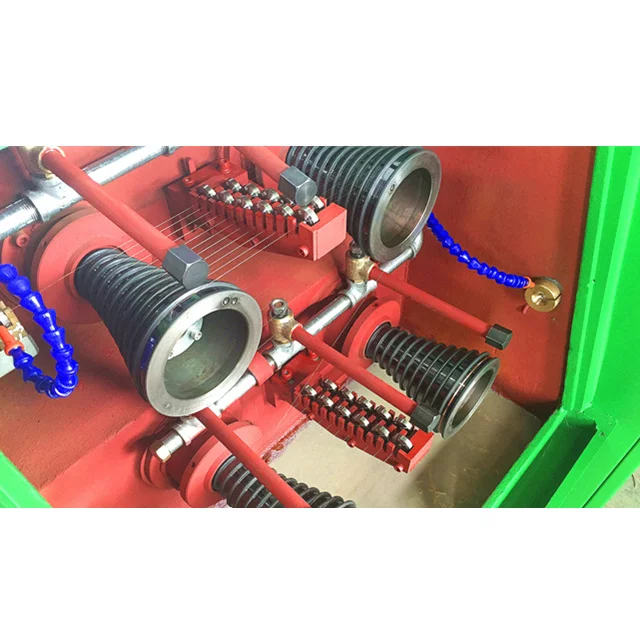

drawing capstan | ceramic plasma capstan |
slip ratio of machine(%) | 8 |
fix speed capstan ratio(%) | 6 |
main motor power(kw) | 4 |
take-up motor(kw) | 2.2 |
capstan dia.(max)(mm) | 120 |
fix speed capstan dia(mm) | 100 |
take-up type | by flat belts |
take-up bobbin size(mm) | 160(aperture76) |
traversing type | shaft move type |
take-up type: | shaft type |
tension control | weight blance type |
lubrication type | spray |
brake | magnetic break |
dimension(mm) | 1900*1200*1600 |
weight(kg) | 1450 |
main accessories brand:
Using high quality special material:
1.Tungsten capstan or other special material
2.Bearing is NSK from Japan
3.Transmission type is used Synchronous belt quality.
4.Motors is high quality from China.
we can also offer you the bobbin,cable mold,ect.
Packaging & Shipping
why choose us?
FAQ
A:I just get into this industry, I don't know how to plan?
Q : Every salesman of us can tell you how to plan the workshop ,how to install the equipment,how to save the costs and so on.
A: How can i install my machine when it arrives?
Q: We will send our engineers to your factory to install the machines and train your staff how to operate the machines
A:How about the spare part?
Q: We can offer you a spare parts list for your reference.
A : Which industries are mainly targeted at JIACHENG's equipment?
Q : Wire and cable, enameled wire, electron beam, cutting line, magnetic wire,and S.S.wire etc.
