Factory made Compact Plasma Sputter/Evaporation Coater, lab plama sputter coater/
Product Description
The brief introduction
It is specially designed for preparing and EDAX sample for micro structure and micro-area
composition analysis in material analysis at low cost to coat various materials, including carbon,Al, Li,Mg.
which can be applied on a sample up to 40 mm diameter with 300 Angstrom thickness.Especially for coating conductive gold film for sample. The plasma sputtering coater is shipped with all necessary accessories for immediate use, including one sputtering head with gold sputtering target (gold cathode), Vacuum
pump, stainless steel bellows, quick clamps and vapor trap.
Techinque sepecification
Input Voltage | 208 - 240 VAC, single phase, 50/60 Hz 110V version is available with a transformer.
|
Input Power | < 2000W |
Output Power | Plasma Sputtering: 1600VDC and 50mA max. Evaporation: 10VAC and Max.Current 20A (for tungsten wire baskets). |

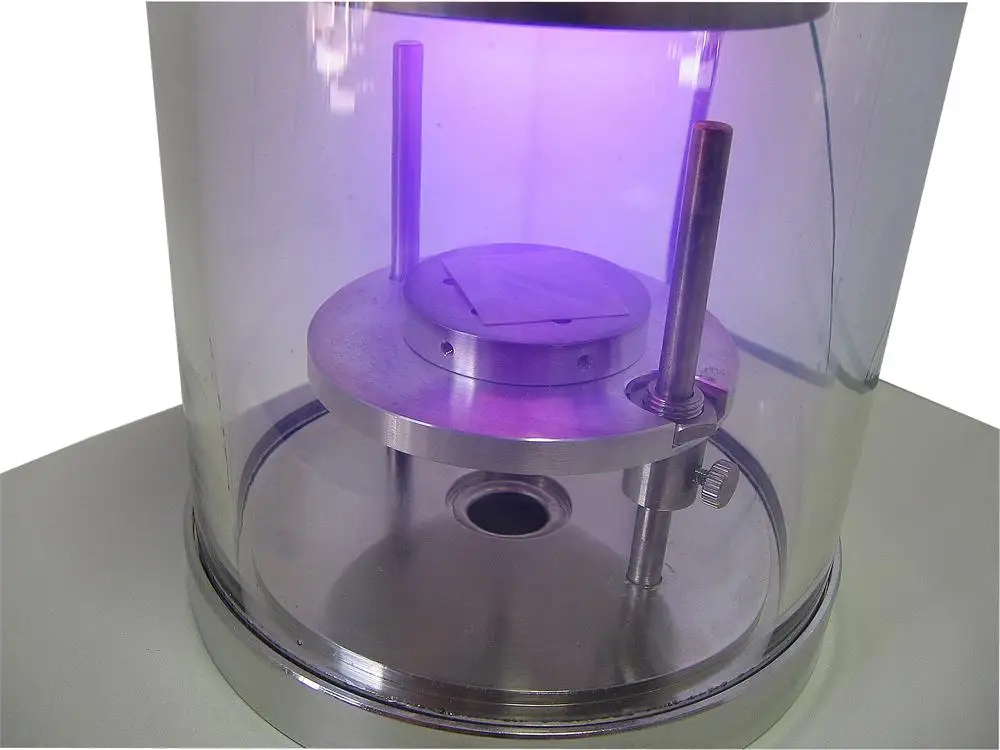

Specimen chamber | Fused glass tube, 160 mm Dia. x 110mm Height |
Coating Head | Two coating heads are included: DC sputtering head (2" target) Thermal evaporation via tungsten wire baskets |
Specimen stage | One 50 mm Dia. sample stage, Max. coating area: 45 mm Dia Evaporating fixture is included for coating lightweight metallic material, such as Al, Li, Mg |
Accessories included
| Double Step Rotary Vane Vacuum Pump (external) with Pirani gauge and Vapor trap eliminates the oil mist, which can reach vacuum up to 10-2 torr One solenoid valve is included for automatic air bleed. For better carbon evaporation, suggest use molecular pump at extra cost, which can reach vacuum up to 10-5 torr. |
Gas atmosphere | One needle valve installed to allow Ar gas inlet to achieve better plasma coating |
Target & Evaporating source | One Au target: 50 mm Dia. x 0.12 mm, 1pcs is included. Optional Targets are available One 3ft carbon fiber(yarn) is included for carbon evaporation(can not use carbon rod for carbon coating ) |
Overall dimension | L360mm x W300mm x H380mm |
Net Weight | 50 kg |
Warranty & Certificate | One year limited with lifetime support CE certified |

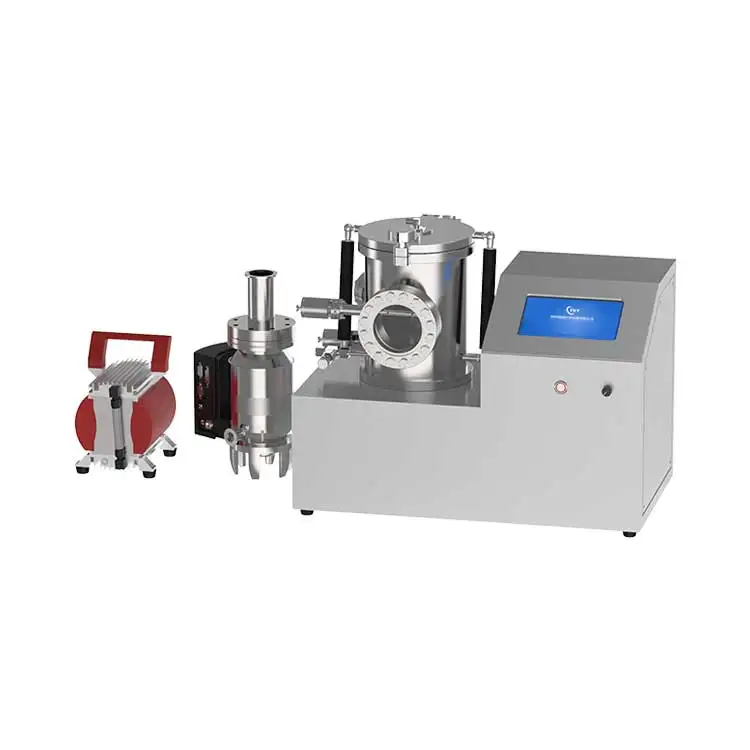

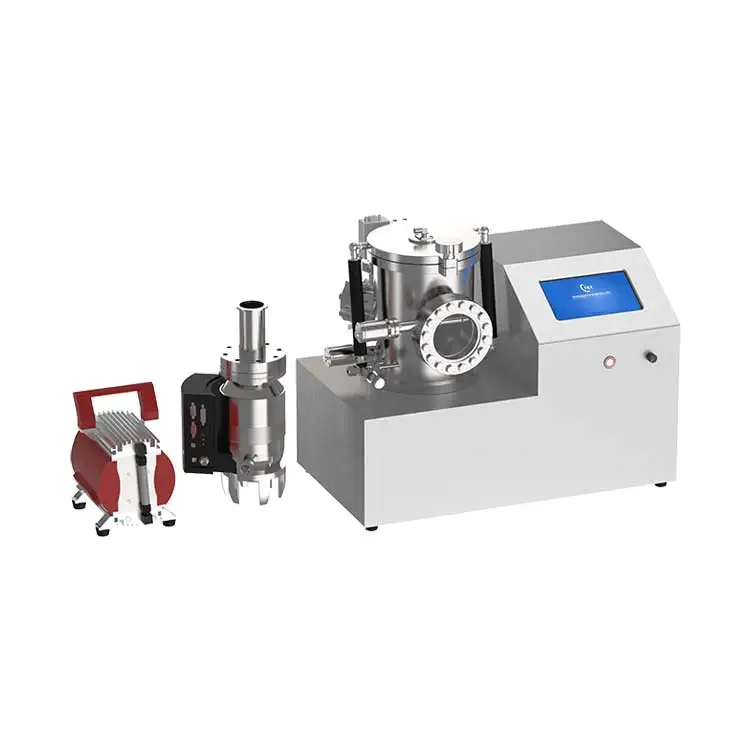

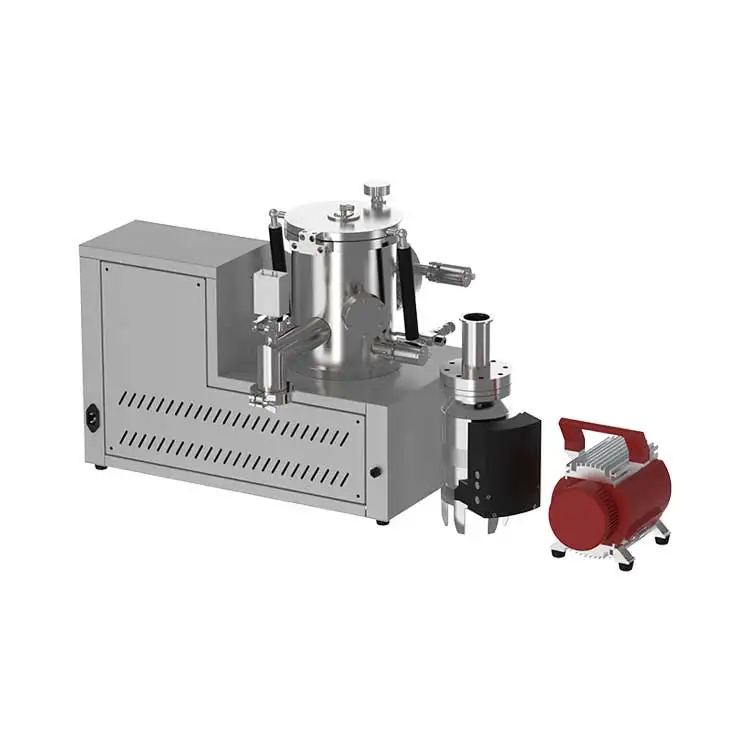

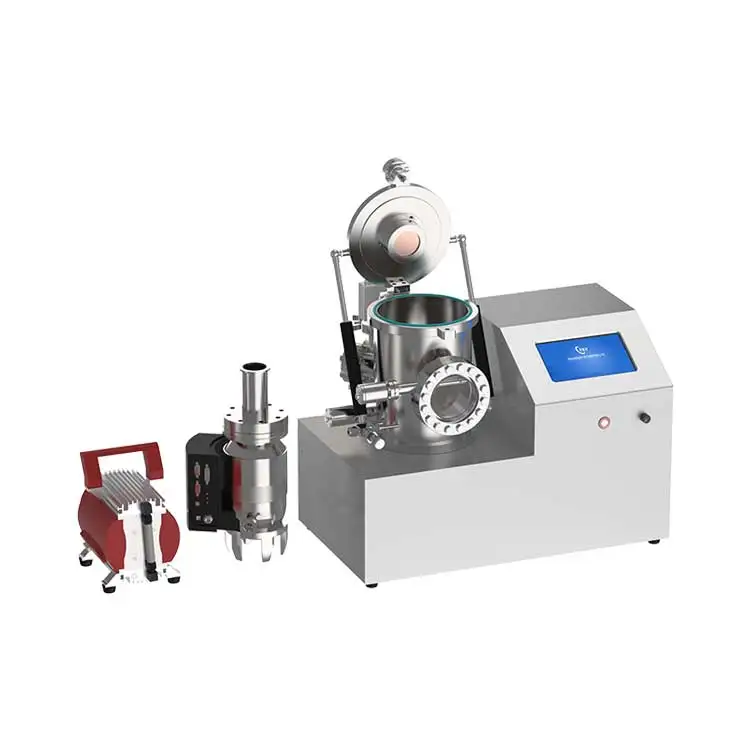

Magnetron Plasma Sputtering Coater
Pictures Show
For better carbon evaporation, suggest use molecular pump at extra cost, which can reach vacuum up to 10-5 torr.
