Инвертор постоянного тока в переменный Тип 3000 Вт Чистая синусоида 3000W 24VDC для
- Категория: Inverters & Converters >>>
- Поставщик: Suzhou,Cosuper,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.99 $* | 0.91 $* |
| Aug-16-2025 | 0.99 $* | 0.37 $* |
| Jul-16-2025 | 0.48 $* | 0.84 $* |
| Jun-16-2025 | 0.87 $* | 0.33 $* |
| May-16-2025 | 0.9 $* | 0.70 $* |
| Apr-16-2025 | 0.44 $* | 0.42 $* |
| Mar-16-2025 | 0.77 $* | 0.63 $* |
| Feb-16-2025 | 0.69 $* | 0.81 $* |
| Jan-16-2025 | 0.44 $* | 0.22 $* |
Характеристики

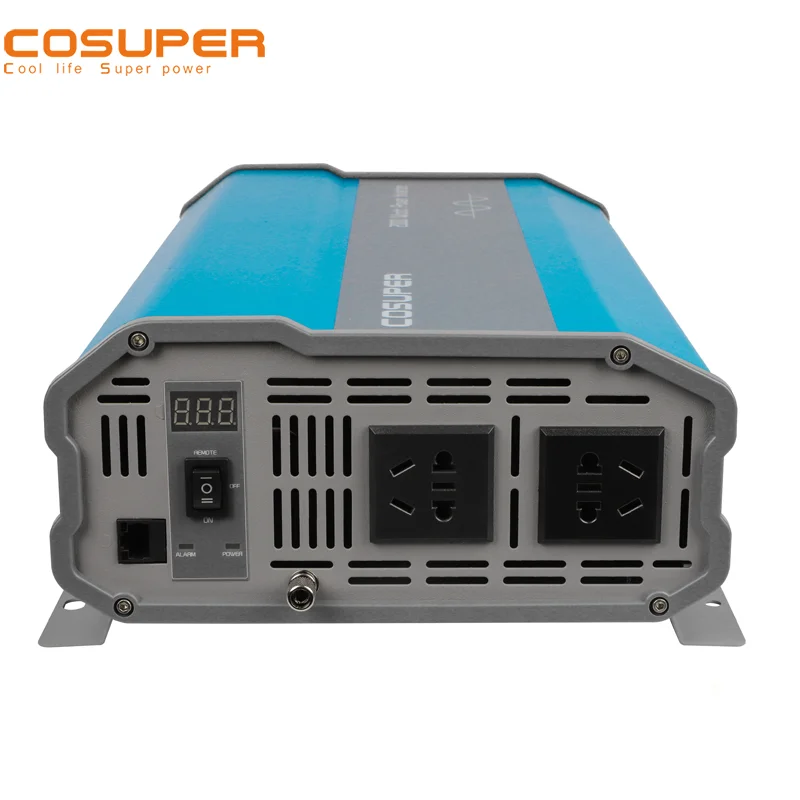

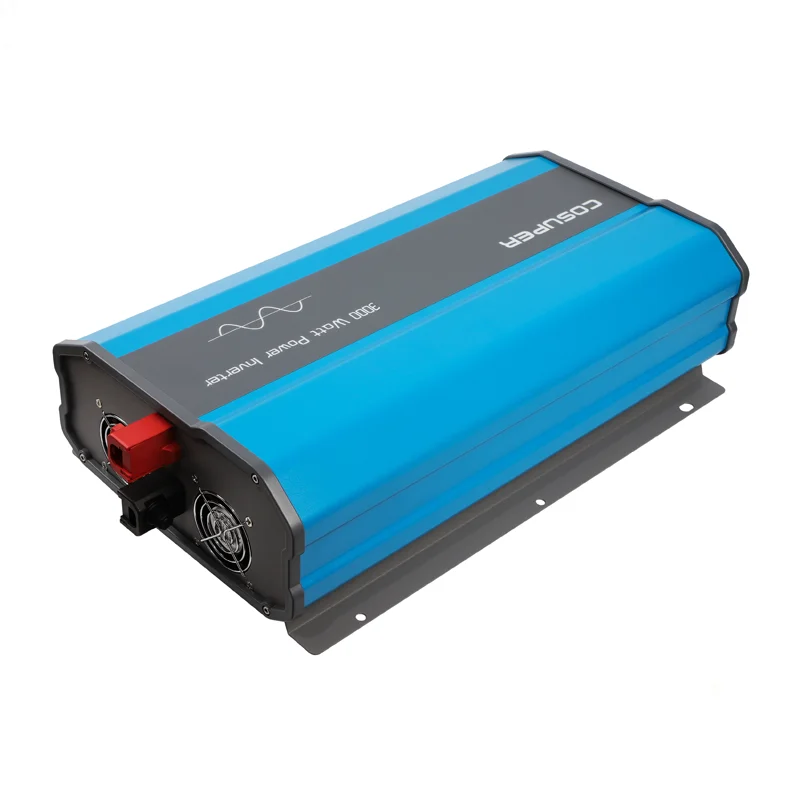

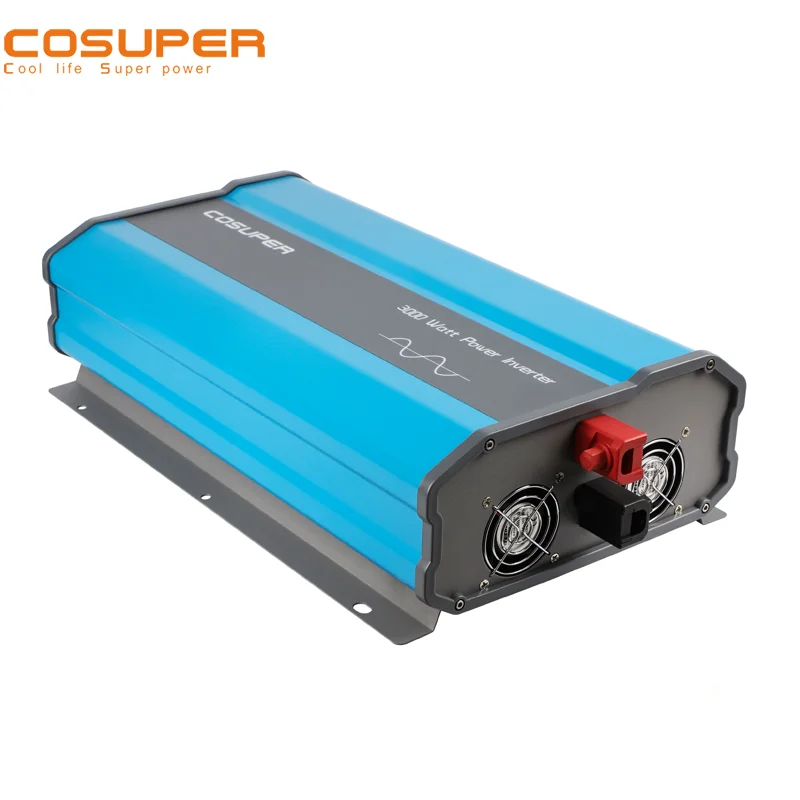

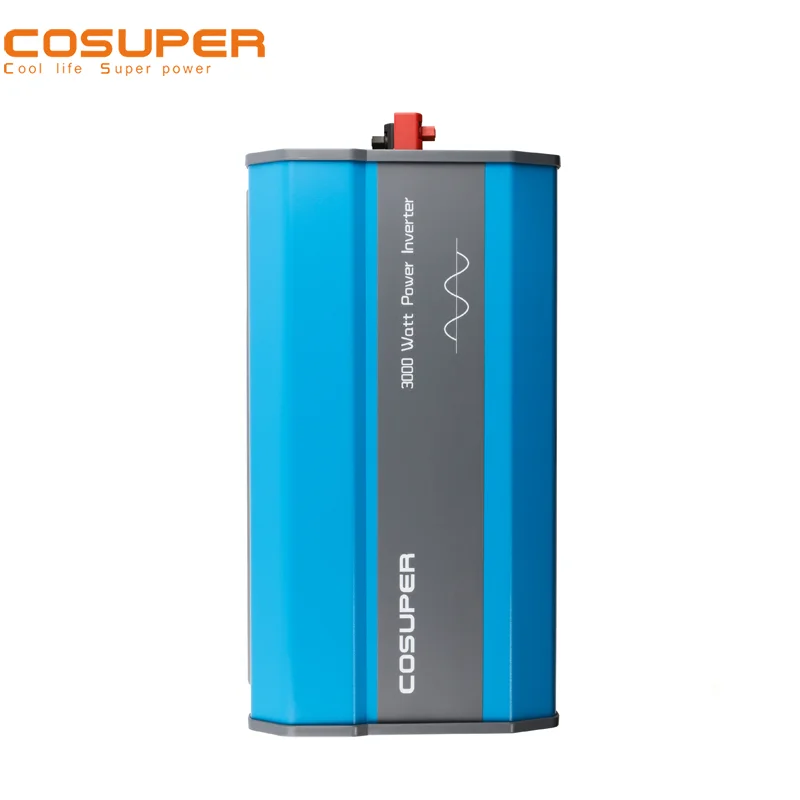

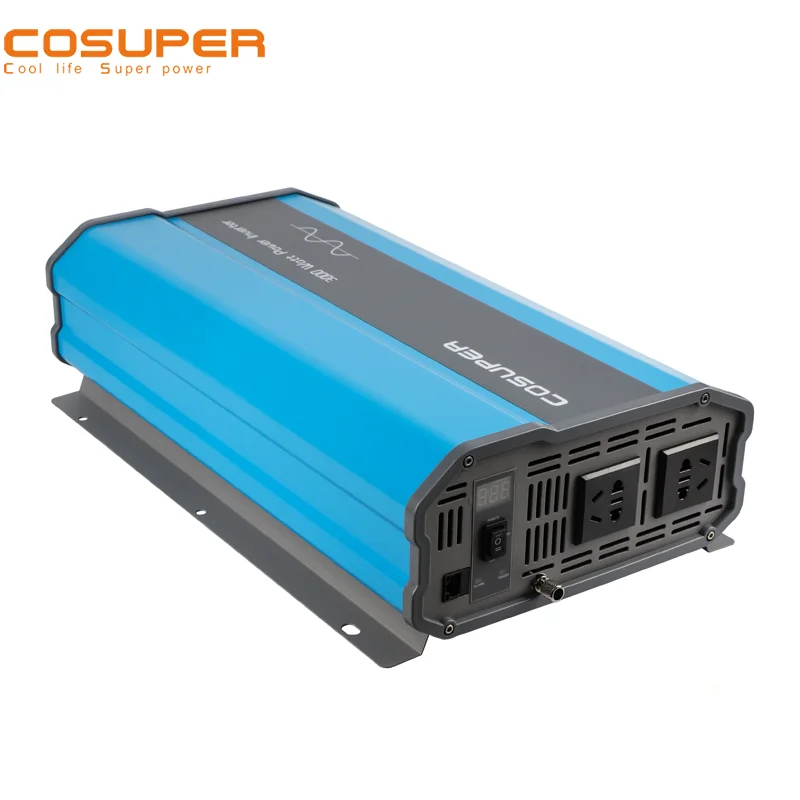

DC AC type 3000 w pure sine wave inverter 3000 w 24 v 220 v
Product Description
Electrical Performance
Inverter: Full bridge topology
SCH series inverter surges 2×rated power to support the induction loads such as air compressor, residential refrigerator, blender or coffee maker.
When operating the heater blower and microwave, it would draw more than the rated power to boost the appliances. With the strong inside building and fast cooling fans, SCH inverter gives the excellent performance of operating.
The peak efficiency of SCH series is 93.5%
Applications
Power tools- circular saws, drills, grinders, sanders, buffers, weed and hedge trimmers, air compressor and etc.
Office equipment- computers, printers, monitors, facsimile machines, scanners and etc.
Household appliances- vacuum, fans, lights, TV, refrigerator, microwave, coffee machine, toaster, blender and etc.
Industrial equipment- metal halide lamp, high-pressure sodium lamp and etc.
NOTE, The inverter working time with 100% loads cannot over 90 minutes.
Remote controller
The SCH600, SCH1000, SCH1500, SCH2000 and SCH3000 can connect to an optional remote (P/No. CR10) which will allow the inverter to be turned on/off remotely. Ideal for use in caravans, motor homes, and boats.
How to Connect this Inverter:
1. Prepare all cable ends with cable lugs.
2. Install a circuit breaker or high current fuse and fuse holder in the positive line as close to the battery as possible.
3. Make sure the inverter On/Off switch is turned OFF.

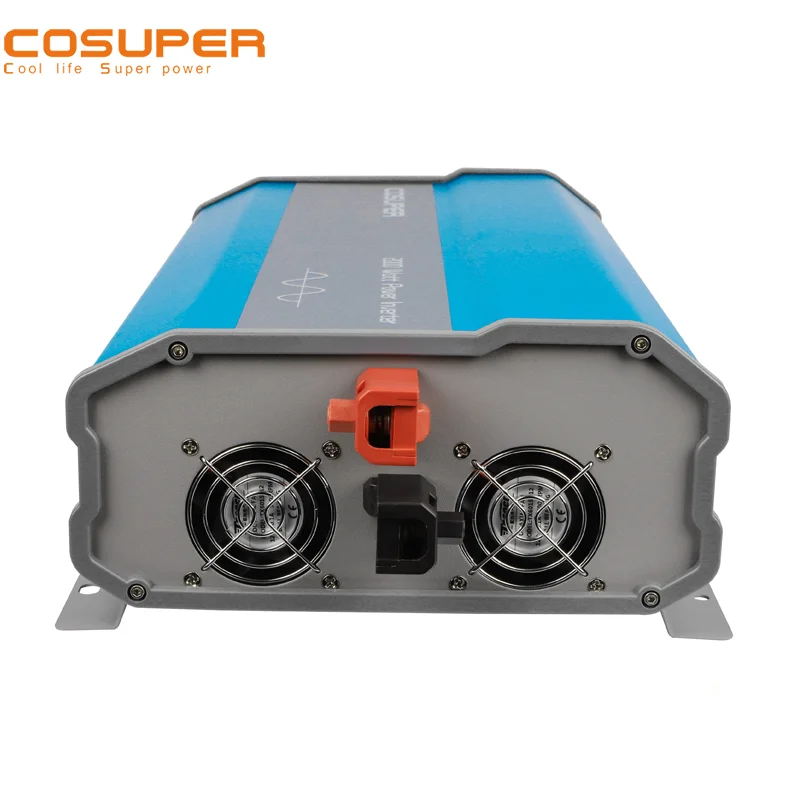

4. Connect the cables to the DC input terminals on the rear of the inverter. The red terminal is positive (+) and the black terminal is negative (-).
a. Connect the positive cable to the inverter and battery positive terminals.
b. Connect the negative cable to the inverter and battery negative terminals.
e. Connect an insulated wired from the chassis-ground terminal at the front panel of the inverter to the vehicle’s chassis or any other ground point
| Power input & Output | SCH3000 |
| Output Power | 3000W |
| Surge Power | 6000W |
| Idle power | 15W |
| DC Input Voltage | 12/24/48VDC |
| DC Input Regulation | 10.5-15 VDC(*2 for 24vdc,*4 for 48vdc) |
| Output Voltage | 100/110/120VAC +/- 3%; 220/ 230/ 240VAC +/- 5% |
| Output Frequency | 50/60HZ +/- 0.05% |
| Output Waveform | True sine wave THD<3% |
| Power Factor | 0.8-1 |
| Efficiency | 110V 92% |
| 220V 93% | |
| Control & Signal indicates | |
| Fault indication | Red LED light and buzz alarm |
| Work Indication | Green LED light |
| Remote Control | CR10 or CR11 (work with DBS battery isolator) |
| Battery type | AGM, Seal lead acid, Gel, Open lead acid, LiFe04 |
| Protection | Overload,Over/under input voltage, Over temperature, Short circuit |
| Safety | AS/NZS 4763:2011, UL458, LVD(EN60950) |
| General parameter | |
| Operating Temp | -5-40℃ |
| Working Humidity | 20-90% RH |
| Storage Temp | -30-70 ℃ |
| Cooling | Automatic temp-control fans |
| Weight (kg) | 5.5 |
| Size (mm) | 242*463*118 |
More Products
Packaging & Shipping
Packing: All Cosuper products are well packed to avoid any damages that may occur during the transportation to protect the inverter or inverter/charger well and safe. The standard packing is carton with protective foam and wooden case will be applied according to the specification of different products.
Shipping: Cosuper products will be shipped out on time by express, air, or sea according to customer's requirements.
Our Services
Timely reply:
1)Any inquiries will be replied within 24 hours
2)Well-trained and experienced staffs to answer all your enquires in fluent English.
OEM and ODM available:
1)Print logo on our products.
2)Customized Specification.
3)Customized Color Package box.
4)Any your idea on our products, we can help you to design and put it into production
Before and After-sale service:
1)All products will have been quality checked strictly in the test house before packing
2)All products will be well packed before shipping
3)All our products have 2-5 years warranty
and we are sure the product will be free from maintenance within the warranty period
Payment term:
T/T, Western Union, Paypal, MoneyGram, L/C are available.
Shipping and delivery:
1)We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS and so on. You can also choose your own shipping forwarder.
2)normal products need About 15-25 days, customized products need about 30-45 days.
Company Information
Suzhou Cosuper Energy Technology Co., Ltd. (www.cosuper.com) specializes in the R&D and manufacturing of electrical & electronics products, and it is a new energy company, which commits to the application of solar power. Its main products are inverters, inverter/chargers, batteries, theyare used in a variety of applications in the RV, marine, military, solar system, EMS, bus, work service vehicle and commercial truck markets. Cosuper ensures its products are put through extensive reliability testing and certifies its products to comply with various regulatory standards to meet or exceed the applicable requirements for safety, quality, efficiency and environment. With more than ten years of designing, engineering and manufacturing experience, Cosuper offers an enviable mix of advanced technology and unmatched service to our customers.
Most of our products are certified to CE, PSE, FCC, ROHS, ETL, standards and Cosuper also operates under a management system that is certified to IS0 9001:2008.
FAQ
Q 1. How's the delivery time?
A. usually it will take about 15 days for production
Q 2. Tell me the standard of the package?
A. For the small capacity, it uses carton, but for big capacity, we should use strong wooden case for protection.
Q 3. What kind of material of the transformer?
A. 100% copper
Q 4.Would you accept to use our logo?
A. If you have a good quantity, it absolutely no problem to do OEM.
Q 5. We want to know month capacity.
A. It depends on which model. For example for relay type small capacity, month capacity can reach near 20000pcs and big capacity near 3000pcs.
Q 6. Does the inverter connect with the solar system?
A.Yes.Because of the unique feature which combines inverter, charger and AC auto-transfer switch into one complete system, made inverter not only connect with the solar system, also could be used in& officer equipment, household items, power tools and etc..
Q7. what kind of certificate you have?
A. Our company already achieve CE FCC PSE RHOS.
