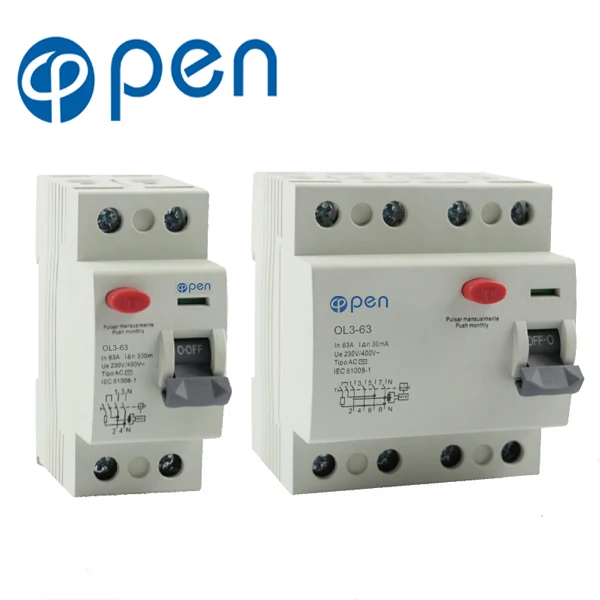

Открытый Электрический OL3-63 автомат защити цепи утечки земли RCCB 1P + N
- Категория: Выключатели >>>
- Поставщик: Yueqing,Open,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 4.88 $* | 4.91 $* |
| Jul-18-2025 | 3.61 $* | 3.93 $* |
| Jun-18-2025 | 4.14 $* | 4.12 $* |
| May-18-2025 | 4.51 $* | 4.88 $* |
| Apr-18-2025 | 3.96 $* | 3.4 $* |
| Mar-18-2025 | 4.2 $* | 4.16 $* |
| Feb-18-2025 | 4.39 $* | 4.94 $* |
| Jan-18-2025 | 4.75 $* | 4.64 $* |
Характеристики
OL3-63 earth leakage circuit breaker
OL3-63 is applicable to AC 50HZ rated voltahe bipolar 240V ,quadrupole 415V ,rated current up to 63A line ,when the human body electric shock ,electric leakage current exceeds the set value ,residual current operated circuit breaker to within a very short period of time quickly cut off the power failure ,human body and safely of the electric equipment ,but also as a line of less frequent conversion starting with protection.
Application circuit breaker is suitable for all kind of places ,such as industry ,commenrce, high rise and civil residence.
| Technical parameter | Parameter values |
| Rated voltage Un(V) | 240V 1P+N 415V 3P+N |
| Rated current In(A) | 16A 20A 25A 30A 40A 63A |
| Rated residual operating current In(A) | 0.03 0.1 0.03 |
| The number of poles | 1P+N 3P+N |
| According to the working status of DC shunt | Type A type AC |
| Delay Type | Type S |
| Rated short circuit current Inc(A) | 6000 |
| Rated residual short-circuit current I c(A) | 6000 |
| Rated connection and breaking capacity Im(A) | 500(In≤50A), 630(In=63A) |
| Rated remaining on and breaking capaciy Im(A) | 500(In≤50A), 630(In=63A) |
| Rated residual non operating current I no | 0.5In |
| Tightening orgue(N.m) | 2.5~4 |
| Outline and installation dimensions: | TH35-7.5 type installation guide rail |
| 36°-0.42(1P+N),72°-0.46(3P+N) | |
| Class of pollution | II class |
| protection level | 2level |
| Installation category | IP20 |
