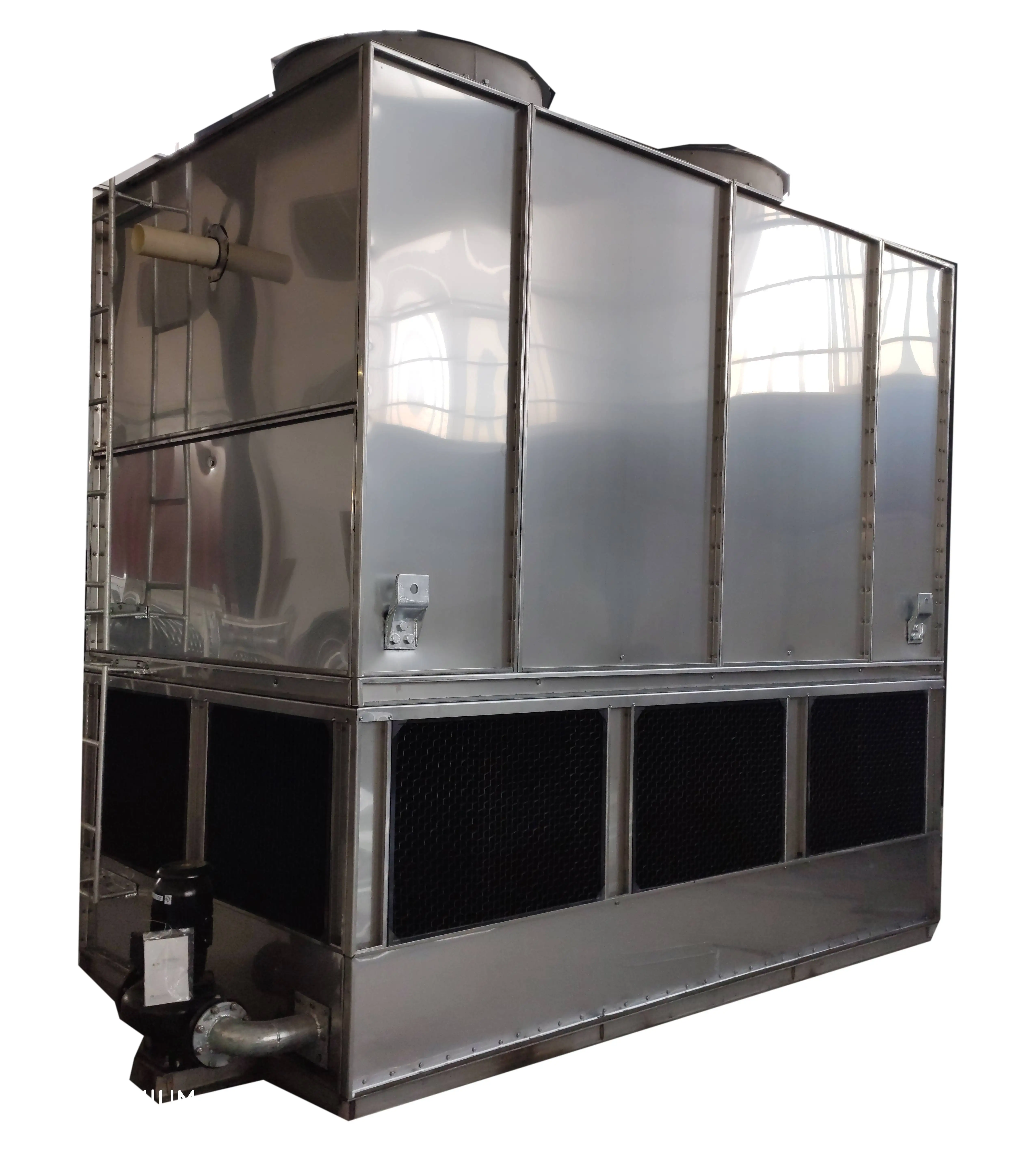

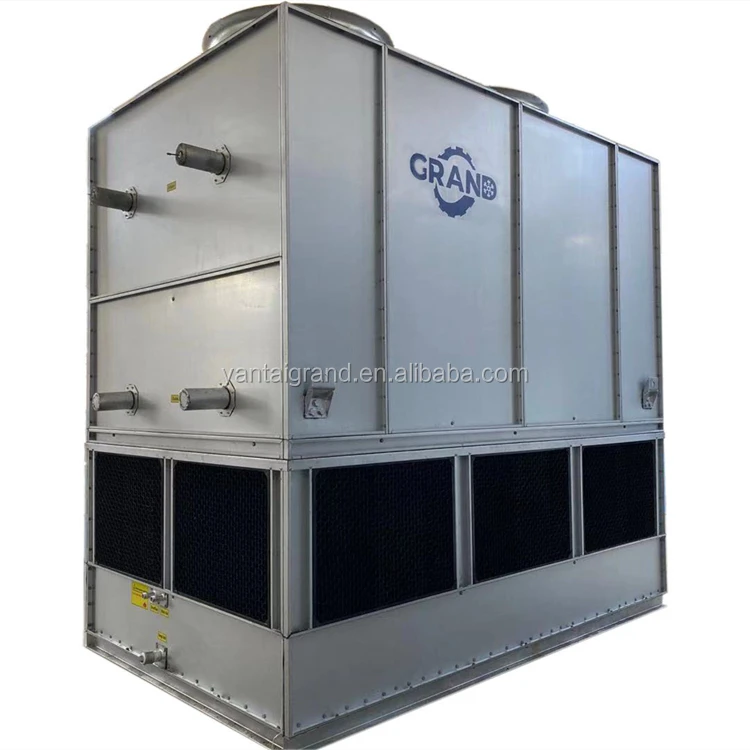

Power and Water saving evaporative

Категория: Cooling Tower >>>
Поставщик: Yantai,Grand,Machinery,Engineering,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.52 $*	0.54 $*
Aug-16-2025	0.6 $*	0.69 $*
Jul-16-2025	0.94 $*	0.78 $*
Jun-16-2025	0.60 $*	0.90 $*
May-16-2025	0.32 $*	0.56 $*
Apr-16-2025	0.53 $*	0.42 $*
Mar-16-2025	0.90 $*	0.80 $*
Feb-16-2025	0.56 $*	0.13 $*
Jan-16-2025	0.61 $*	0.98 $*

Характеристики

Product Description

Application:

Poultry slaughter house,Multi-purpose cold storage,Cooling and refrigeration system,Beer and beverage industry,

Industrial ice/ staking rink ,Ice cream factory ,Fish processing industry, Chemical Medicine industry

Inter-cooling of methanol / methanol synthetic ammonia compressor

Methanol distillation process cooling condensation

Purification process as well as cooling condensation,Steam condensation of turbine

Ethyl acetate condensation

Evaporative Condenser Working Principle

Heat exchange takes place between the high-temp Gaseous refrigerant in pipe coil and water sprayed onto it. The high-temp Gaseous refrigerant turns into liquid during the process.

The fresh air travels from the bottom to the top of the condenser, taking away the vapor of the heated spay water. The vapor water will be stopped by the water fender board and flows into the collection basin through pipe coils, and then pumped back into the circulation system. The lost water can be re-supplied with the water level regulator

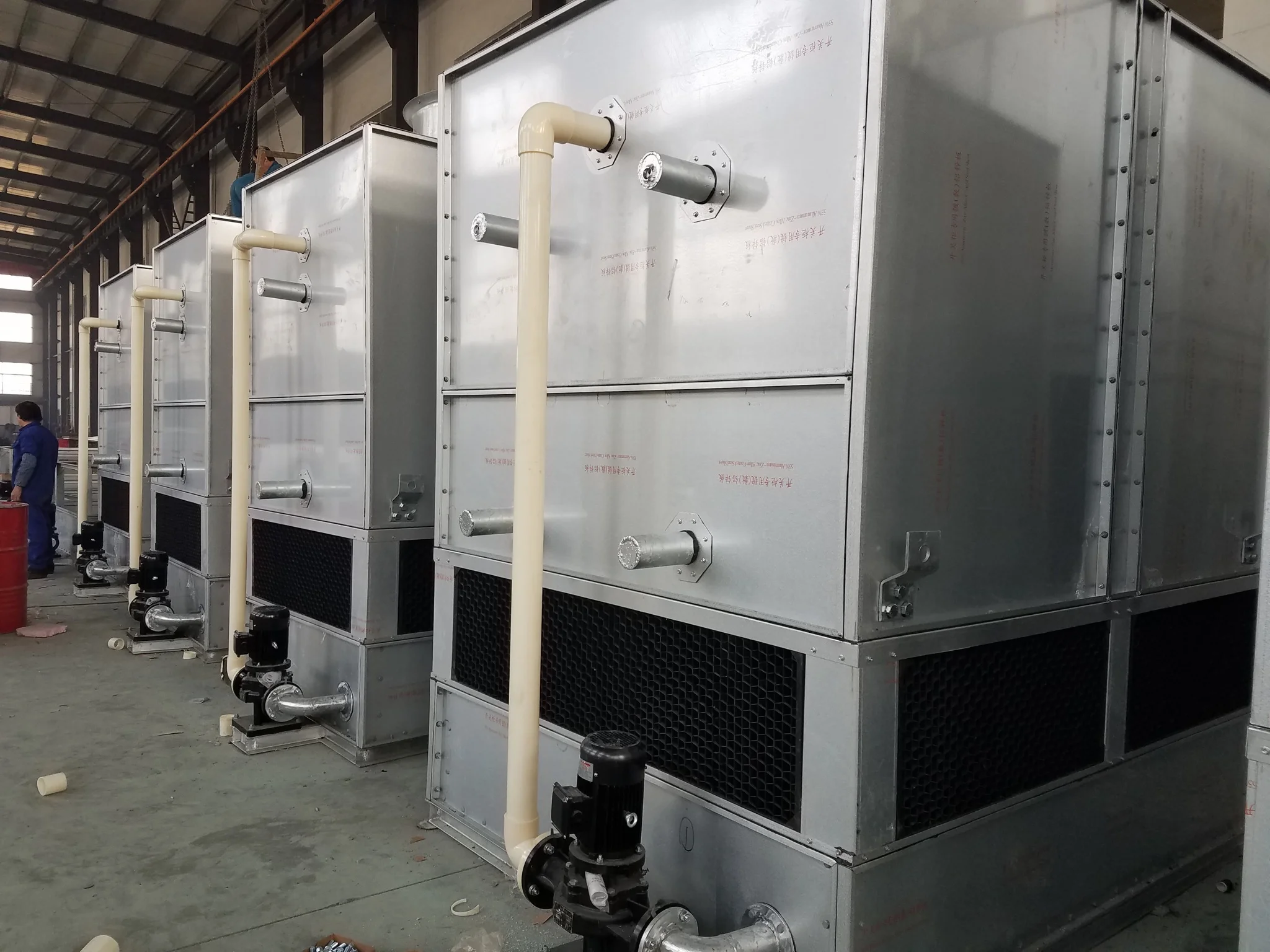

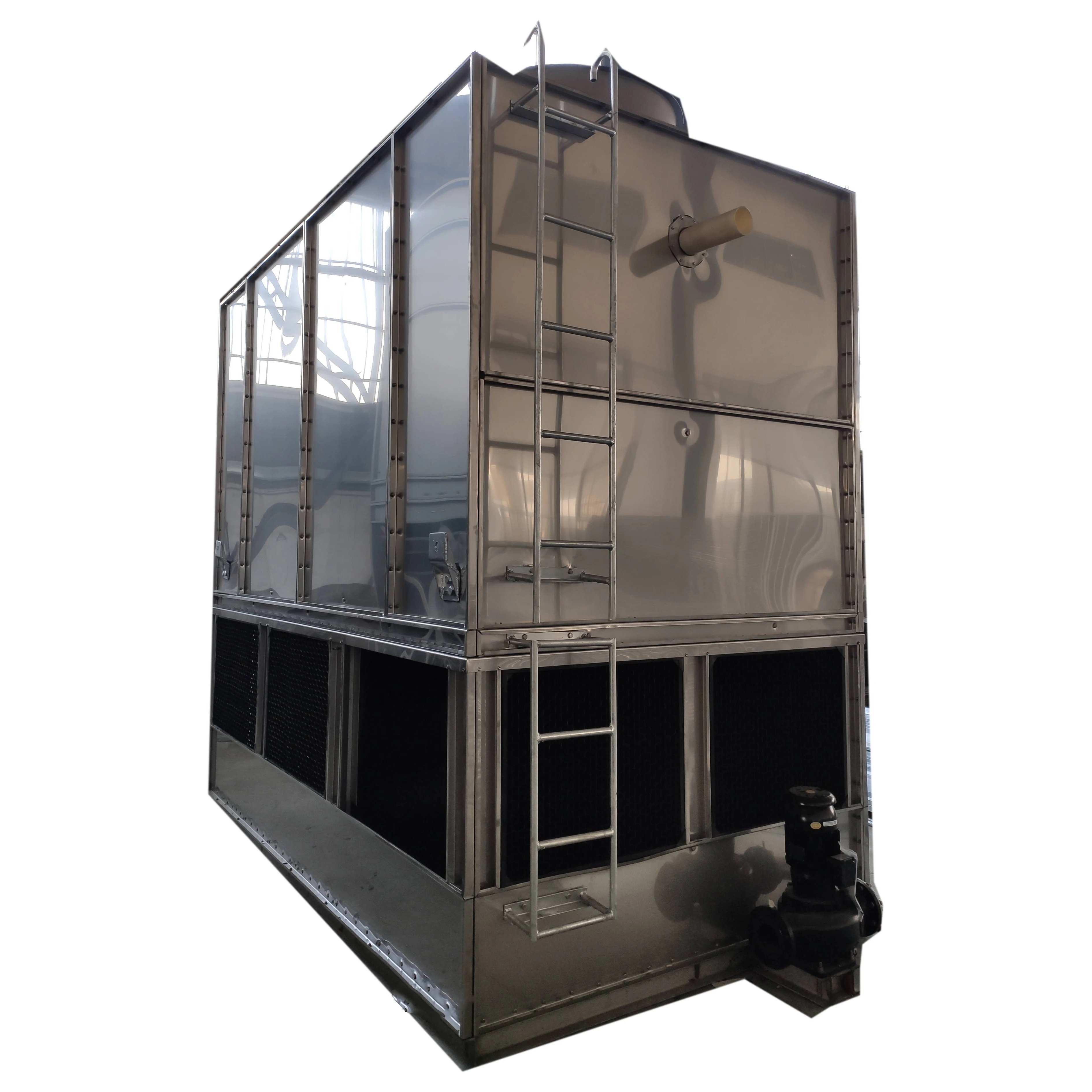

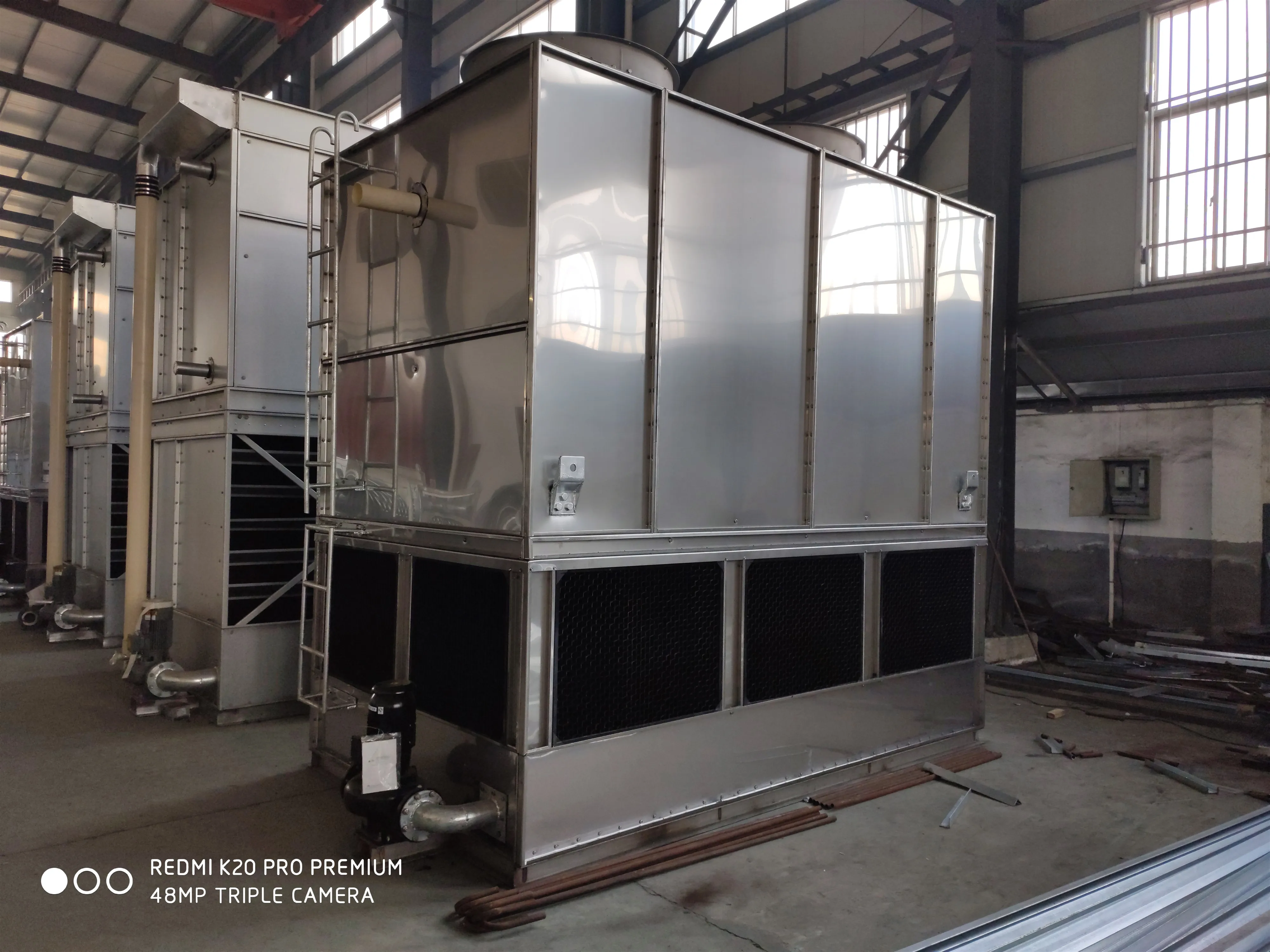

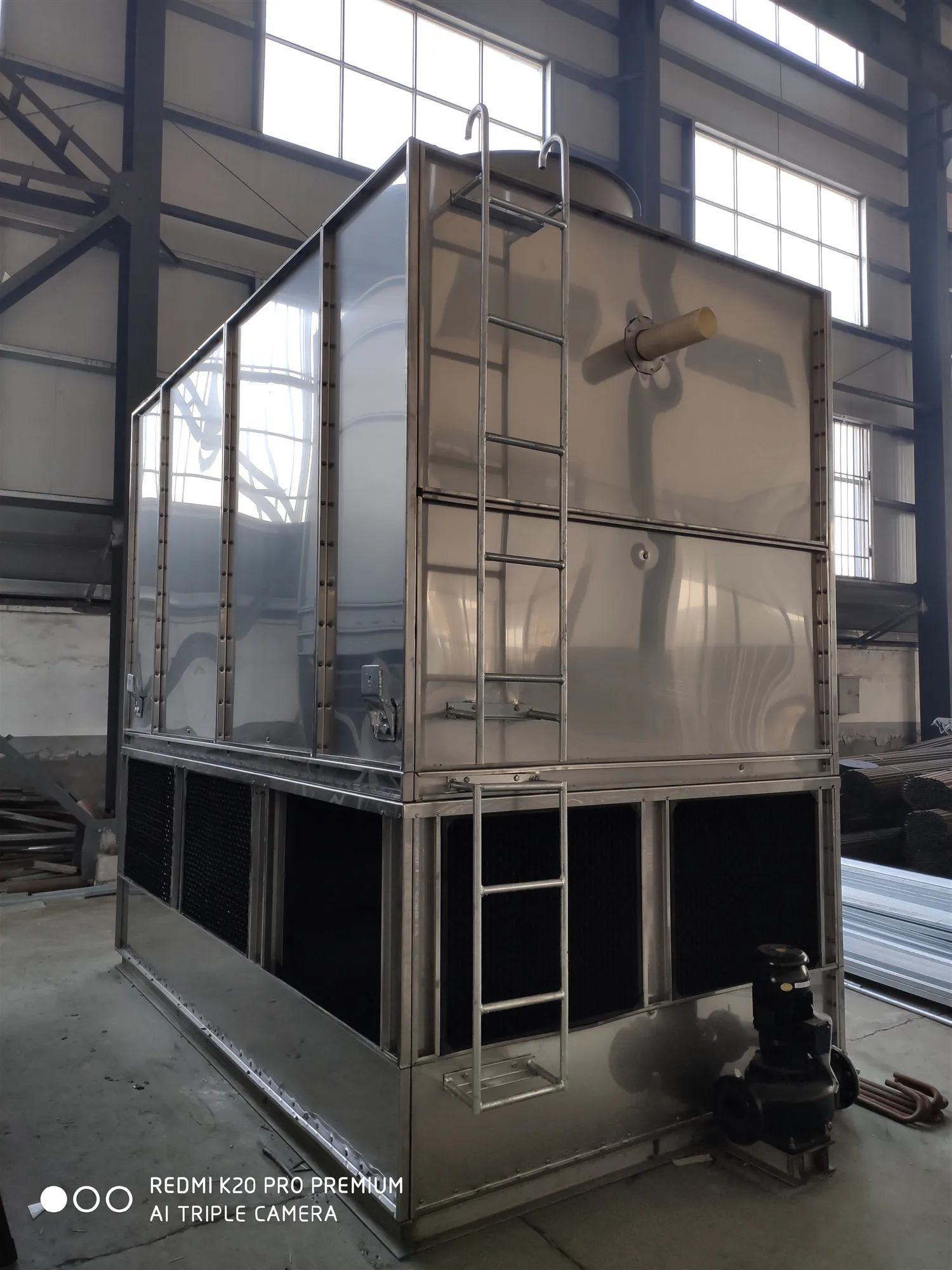

Detailed Images

Pipe coil:

Continuous bend coil pipe, with long flow path, few weld joint and leakage points;

Hot dipped galvanized technology adopted to improve the corrosion prevention performance;

Tube Diameter 26.7 mm

Axial flow fan

Our product adopt special axial fan with aluminum alloy blade. The structure design of tilting type wind page, streamline inlet air duct, no pulley drive, and adopts the fully enclosed self-cooled low noise special motor. It has the advantage of small size, light weight, good start-up performance, reliable operation and durability.

Water Pump

The water pump adopts high-quality mechanical seals that are not restricted by steering, it has characteristics such as no leakage, long lifetime, less power consumption,large flow, low noise, high efficiency etc. The water pump motor we use famous brand such as Siemens.

Removable dehydrator

Evaporation condenser original removable dehydrator is made of corrosion-resistant PVC material. Its structure makes the air flow direction change can effectively remove the moisture from the coil, so that the water drift rate reaches 0.001%. When the water eliminator or packing is cleaned, the eliminator can be removed easily .

PVC filler heat exchange layer

The specially designed PVC honeycomb cross-flow packing and the shortcut cross-wind structure can maximize the heat exchange between water and air and improve the water cooling effect. It has the advantage of good fire resistance, small drag coefficient, anti-aging, and hard to deform.

Technical Parameters
