Блок УФ-экспозиции для экранного

Категория: Другие принтеры >>>
Поставщик: Guangdong,Hengjin,Intelligent,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.90 $*	0.88 $*
Aug-15-2025	0.66 $*	0.34 $*
Jul-15-2025	0.67 $*	0.88 $*
Jun-15-2025	0.82 $*	0.74 $*
May-15-2025	0.59 $*	0.40 $*
Apr-15-2025	0.30 $*	0.16 $*
Mar-15-2025	0.18 $*	0.51 $*
Feb-15-2025	0.5 $*	0.80 $*
Jan-15-2025	0.75 $*	0.23 $*

Характеристики

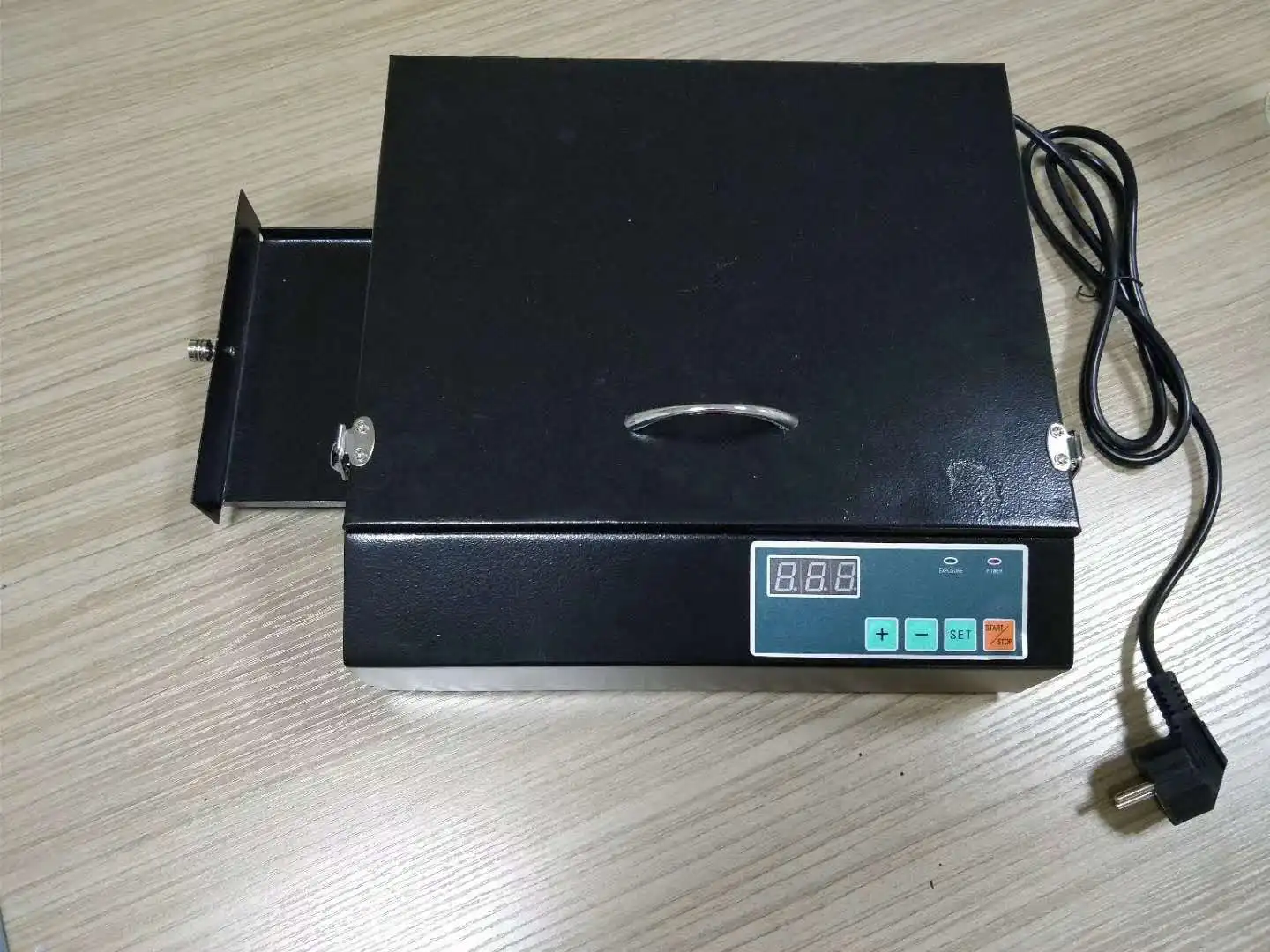

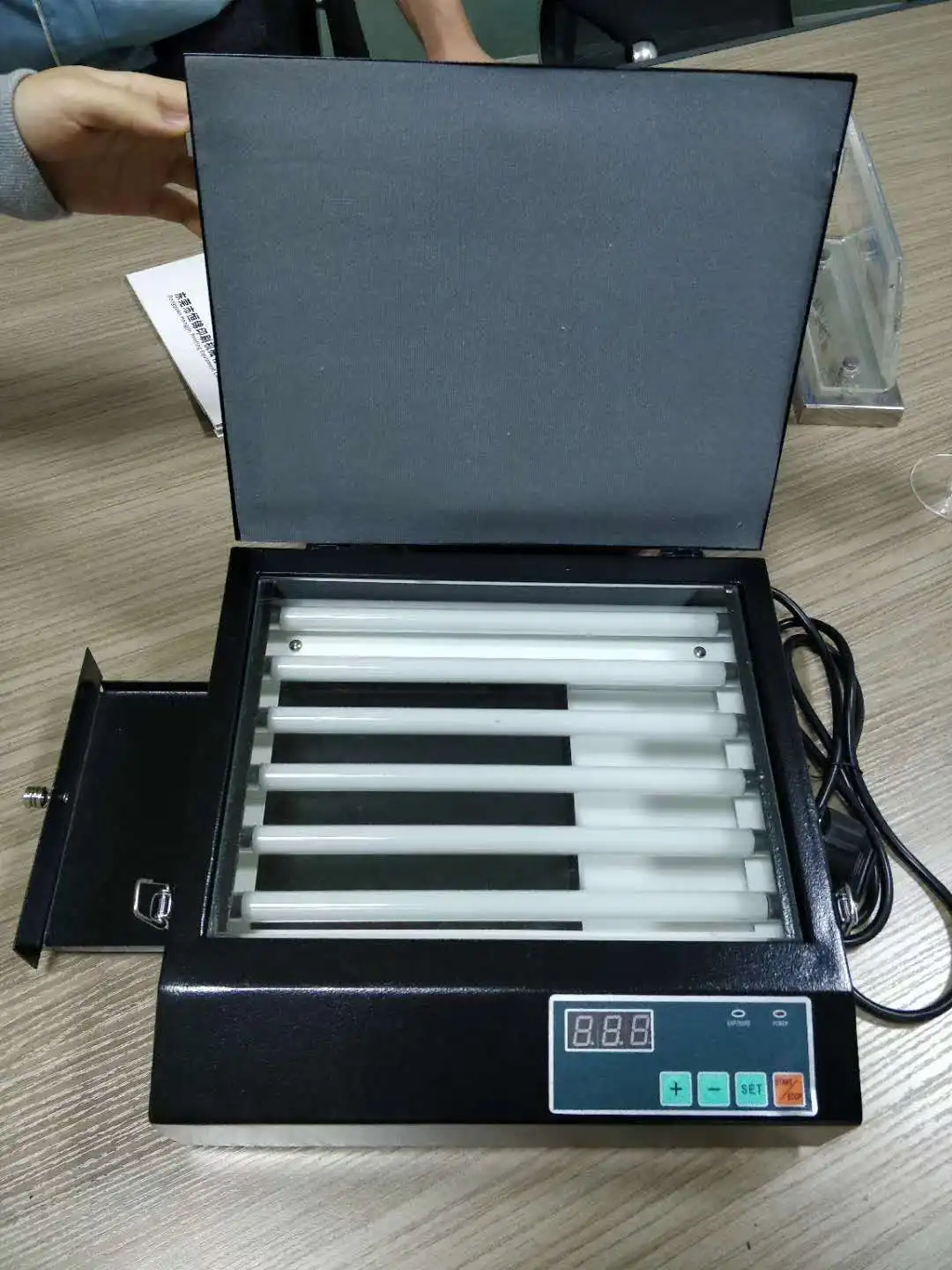

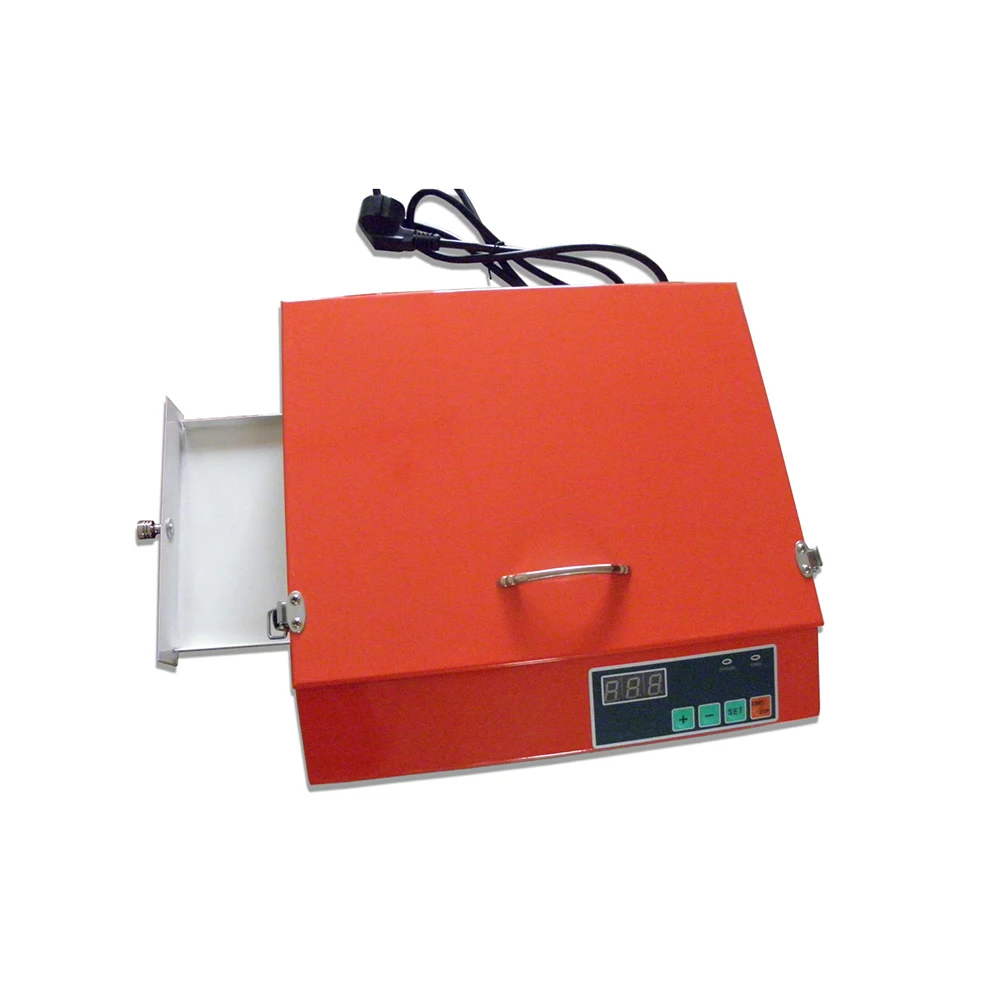

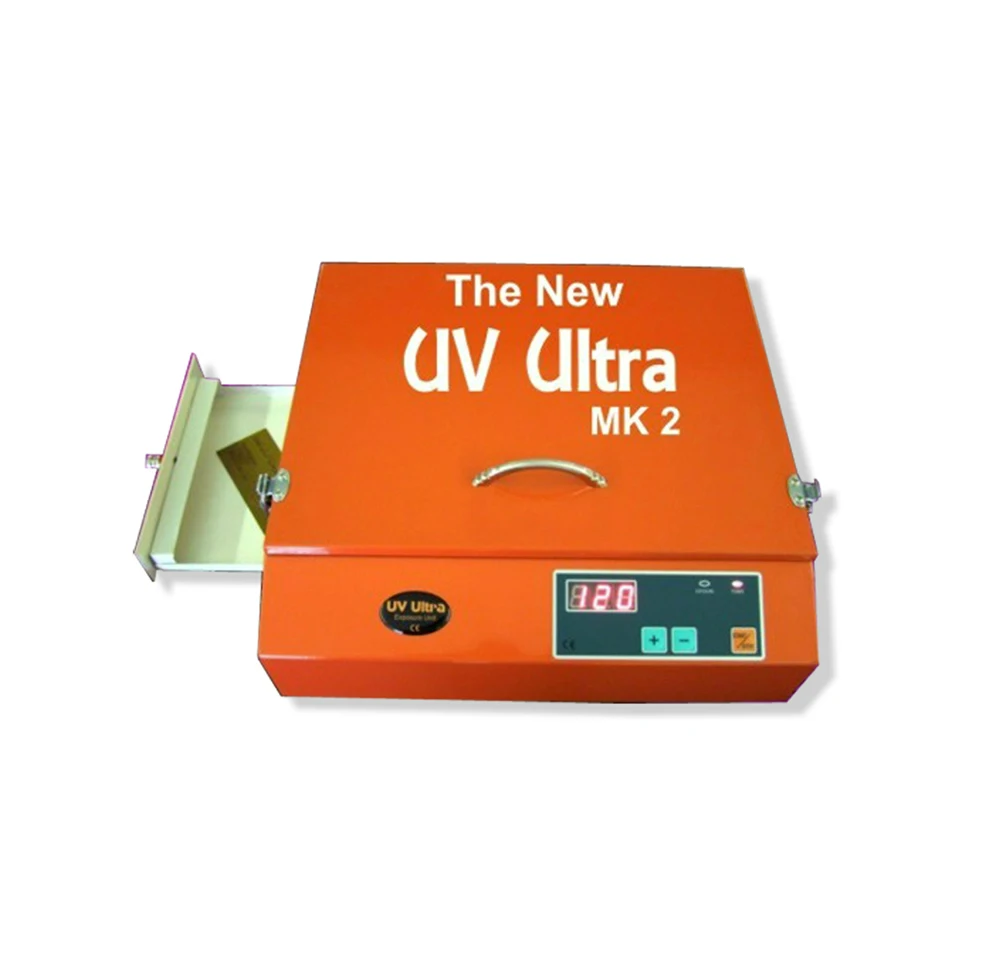

UV Exposure Unit Portable Film Exposure Machine for polymer plate

LT-280S Screen Printer Vacuum UV Exposure Unit

1.max exposure size 210*260mm

2.easy operate

3.CE certification

1,Function & Application

This machine is smalland ompact, ligher source is stable,low voltage can start, the wavelength in good agreement with the polymer plate, which can get the plate with text, image clarity, high resistance to printing characteristics. Which suitale to printing kind of brands, business cards, invitations, small tables and other printing units.

2,Main technical parameters

Power: 110v~60HZ /50W

Light source:UV light

Lamp power: 8W*6

Wavelength: 3500*4599 angstrom

Time of exposure: 0~5.5mins continuous and adjustment

Exposure area: 210*260mm

Valume: 320*310*90mm

G-weight: 5kg

3,The brief overview of the process:

1),Remove the cover film.

2),The artwork,on overhead transparency film,is placed on top of the plate.During exposure,the black areas in the artwork block out the UV light and the plate underneath will remain soft,the clear areas will let UV light through and will harden the plate below.

3),Scrub the plate in warm water washes away the soft parts of the plate

4),Dry the plate and post-exposure.
