Характеристики



Product Description

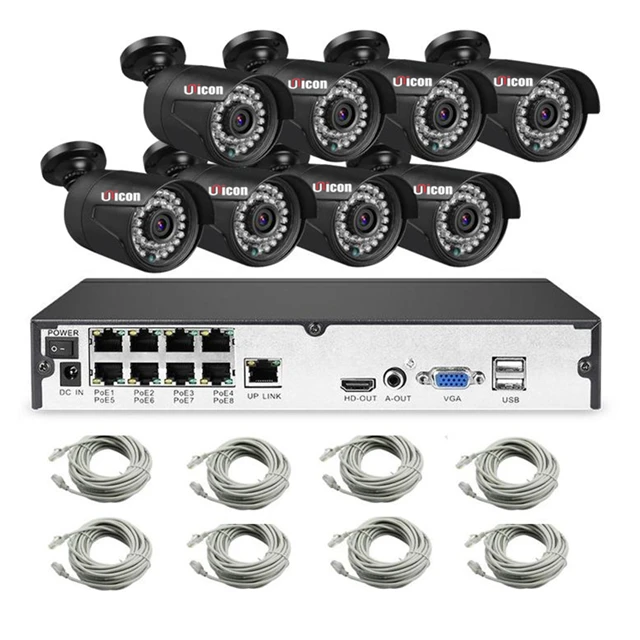

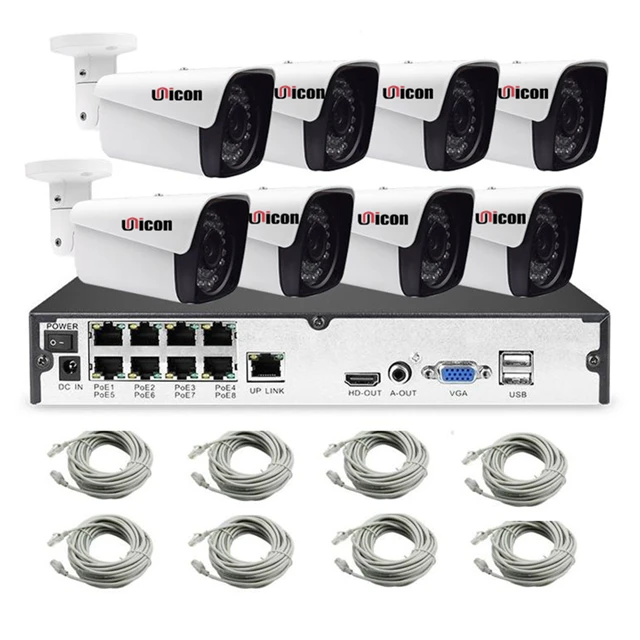

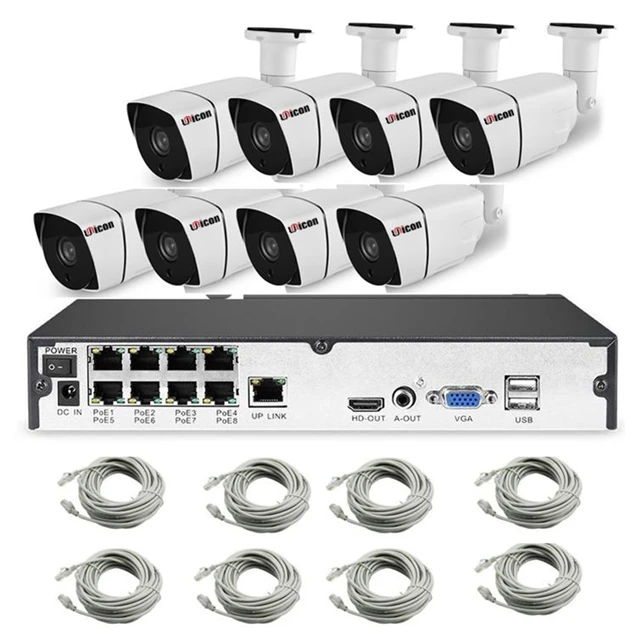

1pcs 8ch HD POE NVR H.265
Video quality: 1080P/5MP ,Support VGA, HDMI
Accessories contains: 8pcs*2MP IP bullet cameras


8pcs*20m Internet cable


1pc*NVR power adaptor


1pc* mouse





Weatherproof IR bullet Camera 36pcs IR-LED,IR Range 20M
Waterproofing Criterion:IP66
Built-in 3.6mm Lens
IP66





























































































































































OS



Embedded Linux



master chip



Hi3535



Access Bandwidth



48M



Video&Audio input



Bidirectional Talk



1CH,BNC(Line in,2Vp-p,1Kohms)



IPC Input



up to 4ch 1080P/3MP/4MP/5MP



Video&Audio output



CVBS Output



1CH,BNC(1.0Vp-p,75ohms)



VGA



1CH,Resolution 1920×1080,1280×1024, 1280×720,1024×768,800×600



HDMI



Standard 1.3a



Resolution 1920×1080, 1280×1024,1280×720,1024×768,800×600



Audio Output



1CH,BNC(Line out,2Vpp,300ohms)



Video&Audio encoding



Audio Compression



G711A



Audio Bit Rate



64Kbps



Video&Audio decoding



IP Resolution



Main stream:up to 5632x4224
Sub stream: no more than D1



Video bitrate



2Mbps@D1, 4Mbps@720P, 8Mbps@1080P



Video decoding



H.265/H.264 adaptive



Synchronous Playback



Up to 4CH



Elligent Analysis



1CH Face detection or 2CH Perimeter detection



resource capacity



Play back



4CH 1080P real time/4CH 3MP@25fps/3CH 4MP@25fps/2CH 5MP@25fps playback



Other Function



Bidirectional Talk



Two-way voice intercom function



Motion Detection



Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)



Picture Capture



Local Capture&Web Capture



HDD Interface



SATA



1 SATA Interfaces



ESATA



0



External Interface



Network Interface



1 RJ45 10M/100M/1000M adaptive Ethernet interface



USB



2 USB 2.0 Interfaces



POE port



4ch POE port (IEEE80 2.3af)



Alarm



N/A



RS-232



N/A



RS-485



N/A



General



Dimensions



215x235x50mm(W×D× H)



Weight



1.5Kg(without HDD)



Power Supply



DC 48V /1.35A



Working Temperature



-10℃--+55℃



Working Humidity



10%--90%



Consumption



6W(without HDD and POE)












Product Overviews





outdoor bullet


AHD CAMERA


kit details


poe kit connection





POE NVR KIT


NVR KIT Face Detection


nvr kit








Company Information





Unicon Vision Technology Co.,Ltd. is a professional HD security products provider. Experienced team devote all of our energy to developing better security products for society and customers.


Unicon Vision specialized in Multi-sensor Stitching Panoramic IP Camera, 4 lens 180 degree, 5/8 lens 360 degree Panoramic in high resolution 10MP, 15MP, 24MP and 100MP.


The latest technology we combined 8 lens Panoramic camera with 30X optical zoom PTZ camera to build the world first Vehicle Pano & PTZ System.





factory





Packaging & Shipping


 IMG_2855_








Certifications


 certification











Our Services





OEM Services: Customized (Silk print/metal) LOGO, Label, Packing box, Manual printing for customers.


Technical Support: With an outstanding CCTV professional team, we offer 24 hours / 7 working days ONLINE technical support before & after sales.


Fast Delivery: Sample Order delivery within 3-5 days; Mass production with raw material in stock.


Quick Response: Your any question & inquiry will be responsed promptly within 12 hours.


Warranty: Three years warranty for all products. Moreover, we are pleased to repair products out of warranty with less charges.
