2020 Defrosting electric self regulating heating pipe MSR cable

Introduction

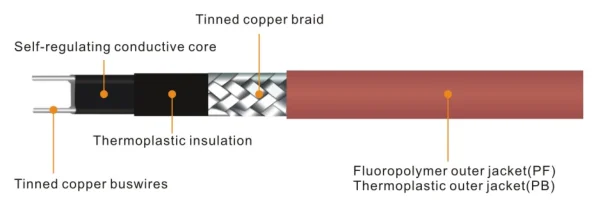

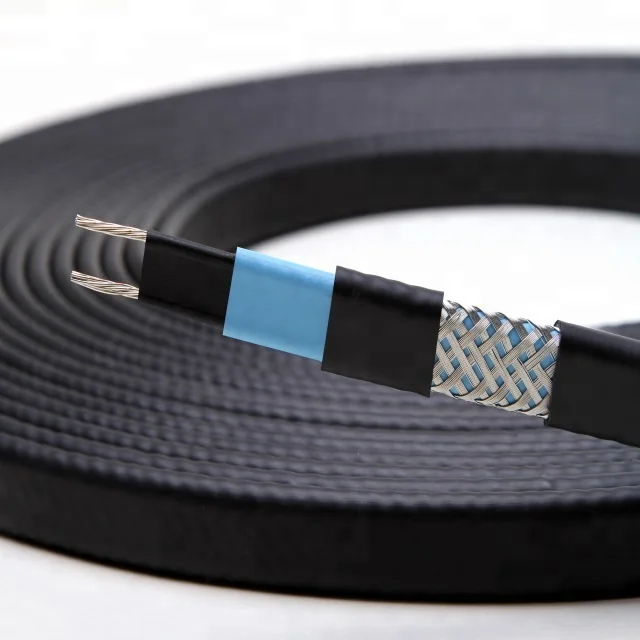

MSR electric self regulating pipe heating systems provide the most versatility in heat trace designs and applications. Constructed of a semiconductive heater matrix extruded between parallel bus wires, a self-regulating cable adjusts its output to independently resond to ambient temperatures all along its length. As temperature increasing, the heating resistance increases which lower the output wattage. Conversely, the temperature decreasing, the resistance decreases and the cable produces more heat. So it does not need thermostat in some applications. It will never overheat or burnout even when wrapped by itself (overlapped). It can also be cut to any length. The result -- an energy efficient heating cable.

Applications





Technical Summary

Part number	Output power@+10℃ (W/m)	Maximum maintain temperature (℃)	Max length@+10℃ 16/25A (m)	Max length@+0℃ 16/25A (m)	Max length@-20℃ 16/25A (m)	Dimension (mm)	Weight (kg/100m)
10MSR-PB	10	65	60/80	54/70	40/60	8.3*5.4	6.6
10MSR-PF	10	65	60/80	54/70	40/60	8.0*5.1	6.0
15MSR-PB	15	65	51/68	51/68	38/55	8.3*5.4	6.6
15MSR-PF	15	65	51/68	51/68	38/55	8.0*5.1	6.0
25MSR-PB	25	65	38/50	38/50	33/49	8.3*5.4	6.6
25MSR-PF	25	65	38/50	38/50	33/49	8.0*5.1	6.0
30MSR-PB	30	65	37/45	35/43	30/39	8.3*5.4	6.6
30MSR-PF	30	65	37/45	35/43	30/39	8.0*5.1	6.0
