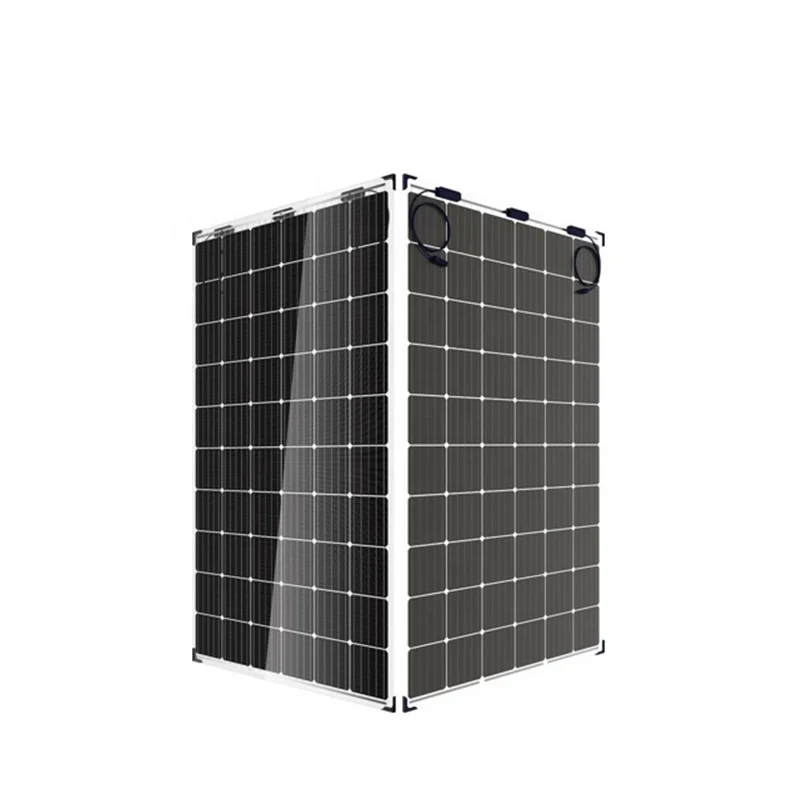

PERC 60 ячеек с двойным стеклом подойдет как для повседневной носки так 325w 320w 315w 310w 300w панели солнечных

Описание и отзывы

Трекер стоимости

Характеристики





Model	300DM	315DM	320DM	325DM
Rate Maximum Powe at STC	300W	315W	320W	325W
Maximum Power Voltage (Vmp)	31.2V	31.5V	31.8V	32.2V
Maximum Power Current (Imp)	9.61A	10.0A	10.06A	10.09A
Open Circuit Voltage (Voc)	38.36V	38.74V	39.1V	39.6V
Short Circuit Current (Isc)	10.28A	10.7A	10.75A	10.8A
Module Efficiency	18.3%	19.24%	19.55%	19.86%
Power Tolerance	0~+3%	0~+3%	0~+3%	0~+3%
STC	Irradiance 1000w/m2,module temperature 25℃,air mass 1.5



Mechanical Parameters
Cell Type	Mono-crystalline 156*156mm(6 inch)
No.of Cells	60(6×10)
Dimension	1658*992*6mm
Glass	3.2mm,high transmission,low iron,tempered glass
Junction Box	IP65 & IP67 Rated
Output Cable	Section size:4mm2,length:300mm
Frame	anodized aluminum alloy
No.of Bypass Diodes	3
Connector	MC4 compatible
Weight	23kgs





















By sea	From Tianjin Seaport
By air	From Beijing Airport
By express	By DHL or others

















Related Products



FAQ



1. Q: Do you have your own factory?

    A: Yes, we have. Our factory located in Tangshan city, Hebei province.Near Beijing and Tianjin.

2. Q: How can I visit your factory?

    A: Before you take off from your country, please let us know. We will arrange time to pick you up.

3. Q: Do you provide free sample?
    A: Sorry, we can supply the sample,but it is not free charge.

4. Q: Could you print our company LOGO on the nameplate and package?
    A: Yes, we can do OEM.

5. Q: How about the package?

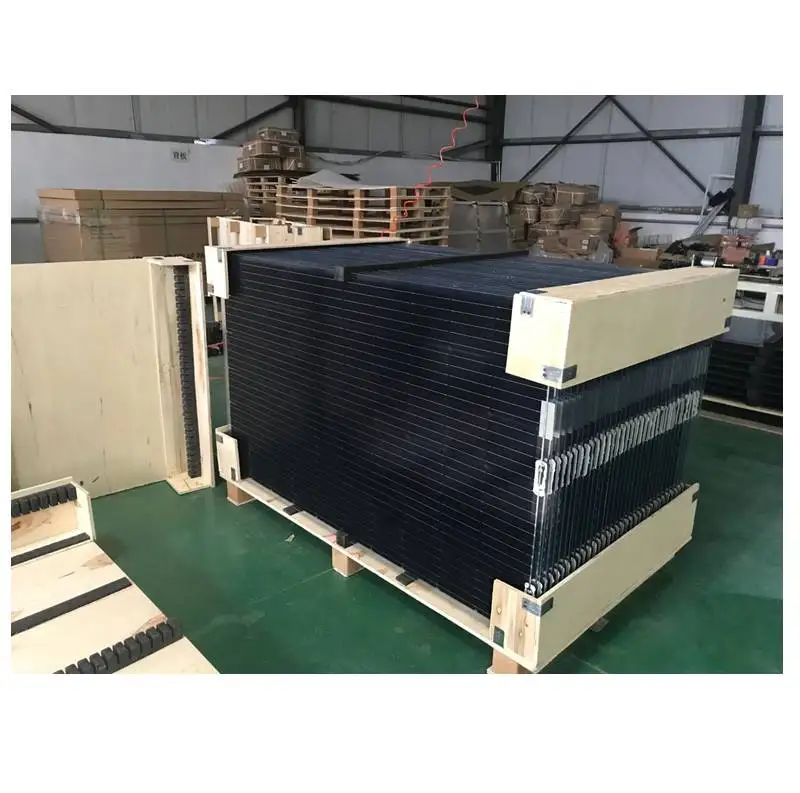

    A: Plywooden box pallet or carton box pallet.

6. Q: Do you accept custom design on size and package?
    A: Yes, if the size and package are reasonable.
