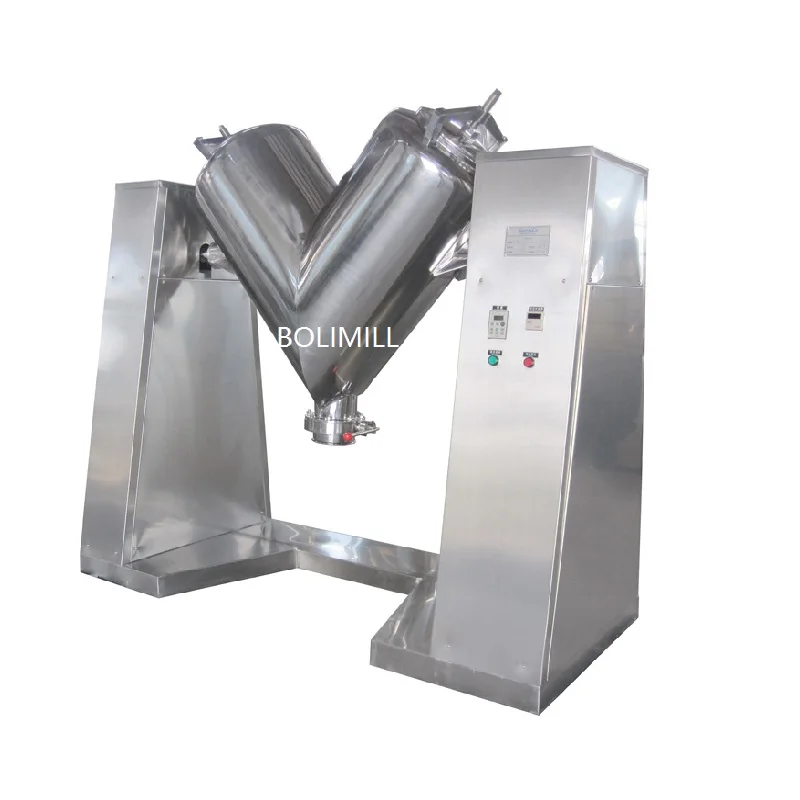

Industrial dry Powder high efficient V mixer / oster blender

Main Usage:

JB V type mixer  mixs dry granules or powder material for pharmacy,food, chemical or other relative industries.

Specialty:

High mixing efficiency,

free of dead corner,

even mixing.





Technical Data of JB V type  mixer

Model	Main Structural Dimensions(mm)							Capacity	Maximum mixing amount	speed	Machine weight	Total power
	L	W1	W2	H1	H2	H3	DN	L	KG	Rpm/min	KG	KW
JB-180	1780	800	1220	1700	650	1870	150	180	90	3--12	300	1.5
JB-300	1900	900	1450	1850	650	2100	150	300	150	3--12	500	2.2
JB-500	2500	1220	1600	2250	650	2250	200	500	250	3--12	800	3
JB-1000	3050	1650	2190	2500	650	2840	200	1000	500	3--12	1200	4
JB-1500	3350	1650	2350	2980	650	3000	200	1500	750	3--12	1500	5.5
JB-2000	3800	1900	2600	3050	650	3250	200	2000	1000	3--12	1900	7.5
JB-2500	3990	1900	2850	3200	650	3500	250	2500	1250	3--12	2400	11
JB-3000	4650	2200	3050	3400	650	3700	250	3000	1500	3--12	3100	15
JB-4000	4950	2200	3250	3600	650	3900	250	4000	2000	2--8	4200	18.5

Factory look:





If you want to send inquriy to me about our JB powder mixing machine, could you please tell me?



1)  What material you want to mix?

2)  What capacity you expect ? (kg/batch or litre/batch )

3)  What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...

     (We only provide 3P, because our machines are all for industrial use,not for family.)

4)  What material of the equipment you want? usually we adopt all stainless steel 304.

     You can also choose  A all carbon steel

                                       B contact part SS304, other parts carbon steel

                                      C all SS 316

                                      D contact part SS 316, other parts SS 304

 Then our communication will be more efficient.
