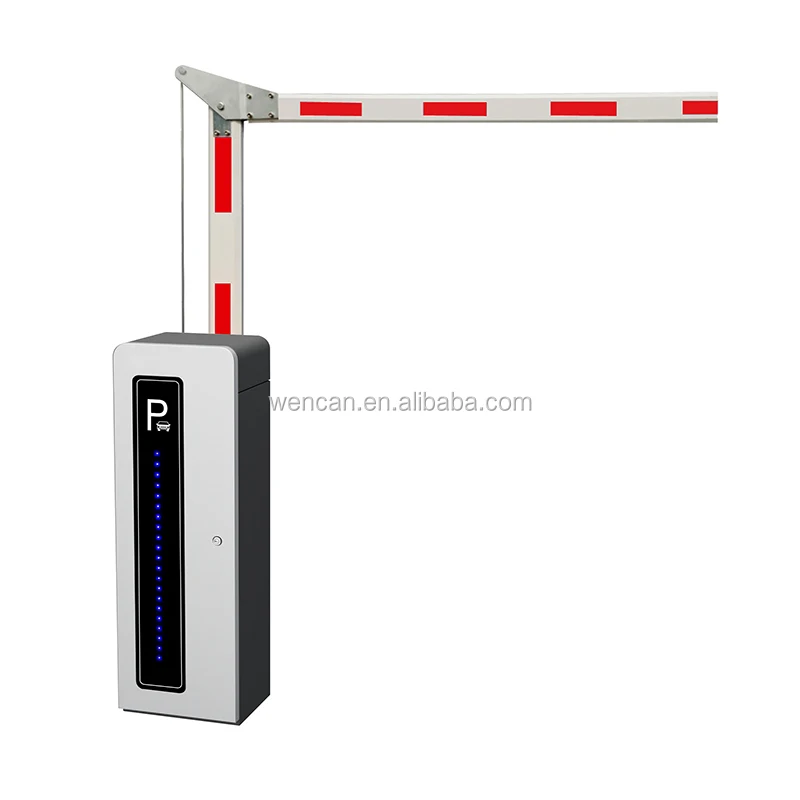

Automatic Parking Barrier Gate



WENCAN parking management system is the smartest and most popular vehicle parking access control systems for pay-to-park parking lot management. They are widely used in worldwide parking occasions like commercial building, shopping center, exhibition center, hospital, airport, real estate, public parking lot etc.



Barriers are un automatic traffic stopping equipments that apply to server control technology and digital whole circuit contactless logic circuit technology. The functions are: circuit self-detecting, anti-hitting and temperature management. The main material is cold-rolled steel plate.



Product Description
1).Intelligent:Auto-detects opening and closing position in high accuracy by both mechanical and electrical limit detector.Combination of special inner working design and smart motor ensures swift and smooth arm movement in falling and lifting to reduce bouching.



2).Durable:Extension spring is more durable than compressed spring in heavy-duty site where barrier gate will open and close continously.AC motor can support long-lasting working of barrier gates.Cooling Fan processor is for decreasing working temperature.



3).Secure:Arm will be self-locked in any position to avoid unauthorized person to manually operate arm.



4).Safe:Arm will reversed back when it meets any obstacle in its movement.Optional rubber arm can avoid any damage when arm touches anything.Additonal photobeam further ensures safety.



5).Nice-looking:2.5mm thickness mild steel for housing,good polishing and finishing and further with plastic color coating 10 colors are available.



6) .User friendly:Interfaces for photocell,loop detector,arm light,ect are reserved.No need to change spring if arm is changed(Eg.Arm is changed from 3m to 6m,the same spring can support.)

 Specifications:

Housing material	2.0mm Cold roll plated steel
Housing Szie	400×360×900mm
Arm material	aluminum alloy
Arm type	straight arm
Arm length	max 6m
Arm Rail up or own time	4-6s
Power	Turbine vortex pole motor 80W
Housing color keeping	3-5 years
Voltage	110V~220V/50Hz~60Hz
Working temperature	-45~80
Protection grade	IP65
Net weight	49KG
Arm direction	Left installation/right installation(optional)



Applications:
Control and management of parking lots, toll gates, goods yards, railway crossings, highway toll station, commercial premises, and apartment block access etc.



Competitive Advantage:
We will provide the anti-bumping functional adhesive tape and pressure waves





Advantages:



1.International general icon, real-time distinguish system working condition is normal or not



2.High brightness LED information display, in strong light can still clearly shows.



3.The panel material is the toughened glass with new technique, and are impacting-proof, scratching proof, with thorough rainproof design.



4. Big panel structure, easy installation, maintain, debugging



5.Industrial-class electronic component, can stably operate in bad environment.



6.The panel mouth can be inserted at two sides and water-proof.



7. With night background lighting system, this system can create unique beautiful shining prompt in night view



8. Readable IC card (charge fee off-line ),readable ID card(including close and long distance)



9.Vehicle detecting signal can be read when receiving signal from vehicle or without signal by manual work



10.Communicate with computer online or offline.



11.Deputy communication can connect with display, and voice system, and has the ability of turning the barrier off or on, and detecting the statement of the barrier.



12. The system can control the shining prompt pole, and connect with the card machine or paper machine, and full seat light box. It also can be using in nested parking lot
