API 6A сверление psi 15000 дроссель трубопровода/дроссель трубопровода Нефтяное Оборудование для
- Категория: Нефтяная буровая установка >>>
- Поставщик: Luoyang,Runcheng,Petrochemical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 35700.88 $* | 37485.4 $* |
| Aug-20-2025 | 35400.45 $* | 37170.32 $* |
| Jul-20-2025 | 29700.89 $* | 31185.10 $* |
| Jun-20-2025 | 34800.57 $* | 36540.38 $* |
| May-20-2025 | 30300.21 $* | 31815.79 $* |
| Apr-20-2025 | 34200.65 $* | 35910.40 $* |
| Mar-20-2025 | 33900.33 $* | 35595.78 $* |
| Feb-20-2025 | 33600.30 $* | 35280.39 $* |
| Jan-20-2025 | 33300.17 $* | 34965.73 $* |
Характеристики
API 6A drilling psi 15000 choke manifold / choke manifold petroleum equipment for sale
Product Description

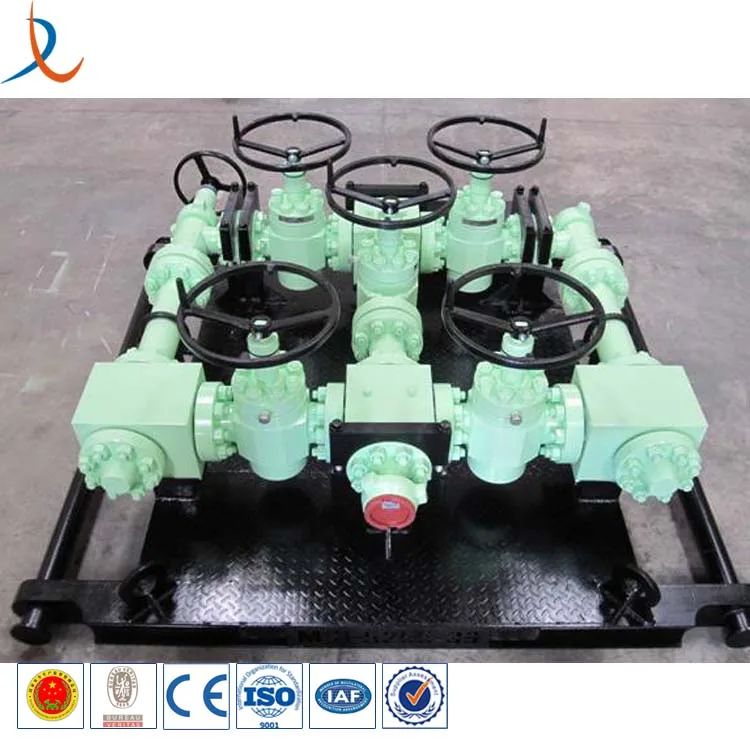

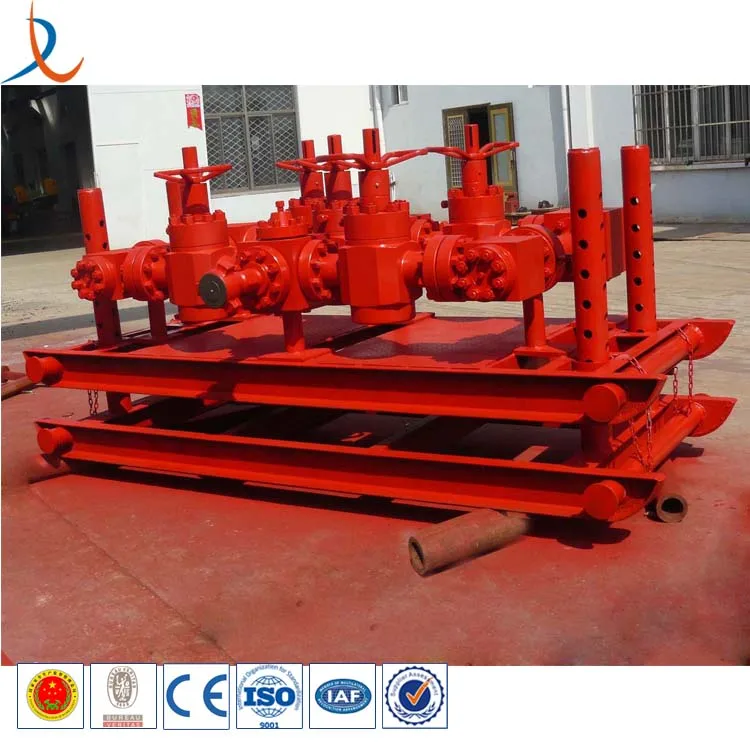

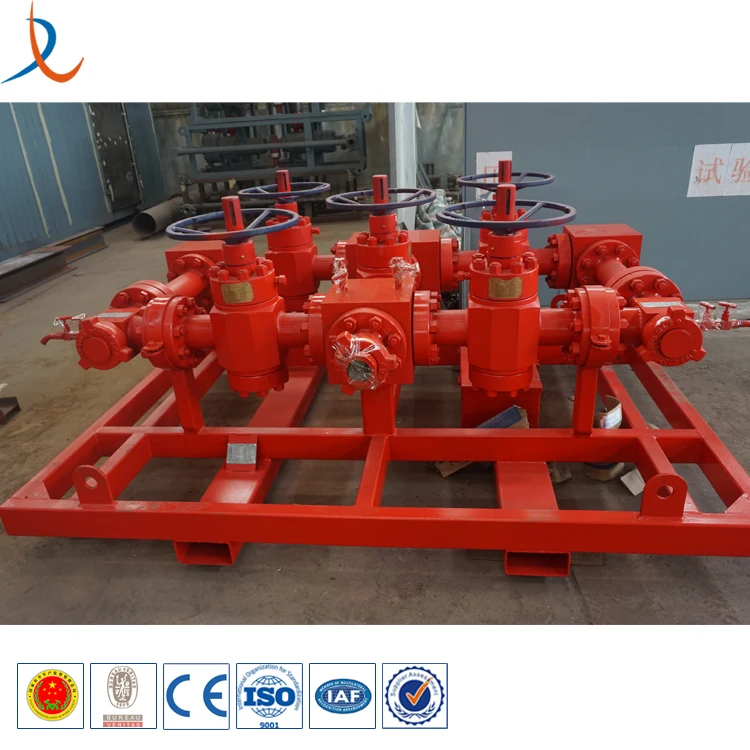

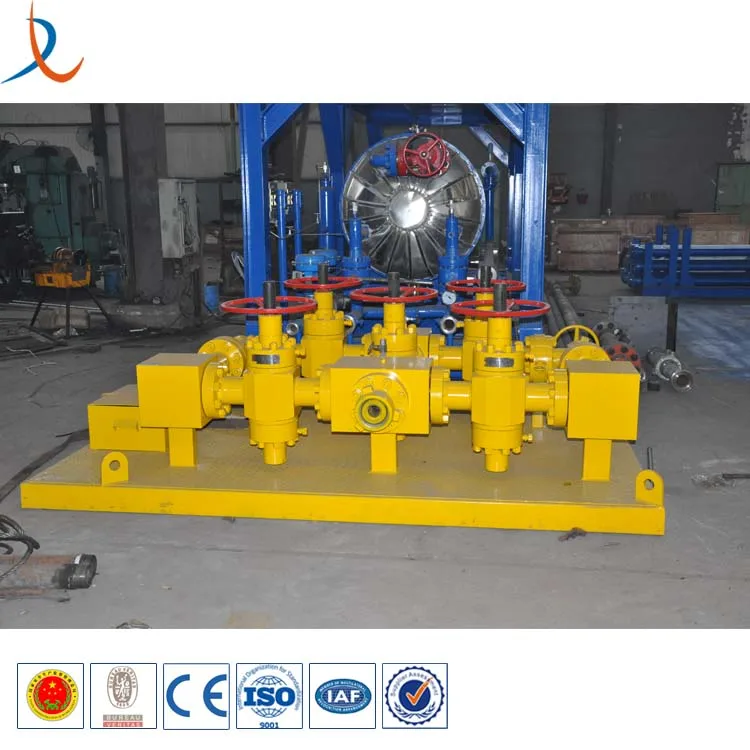

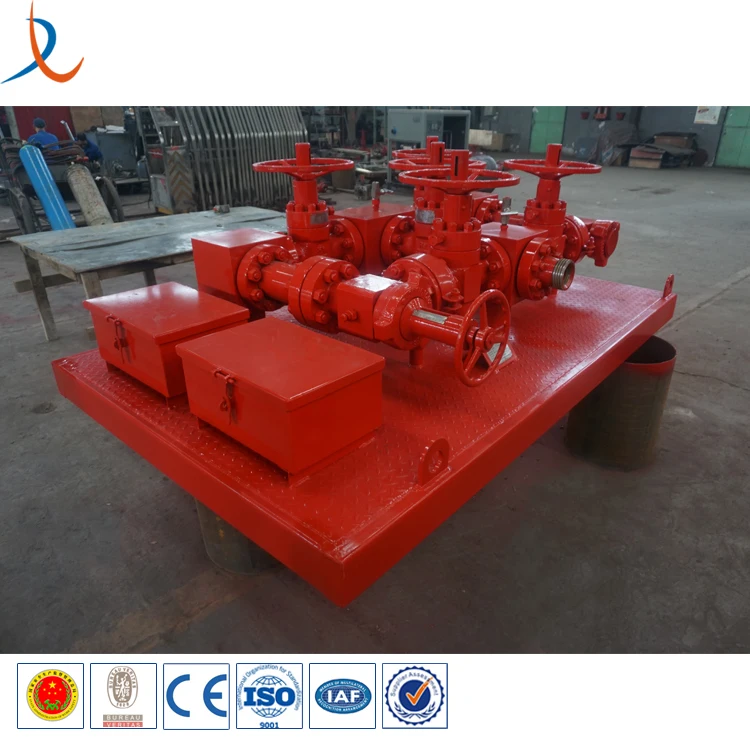

Choke manifold consists of four manual gate valves (five gate valves if a bypass valve is included). It is the necessary equipment to control the flow rate and reduces well pressure before the flow enters the processing equipment for protecting the well. It can be equipped with hydraulic control panel for remote control.
The thchnical paramerers about our API 6A drilling psi 15000 choke manifold / choke manifold petroleum equipment for sale :
| Pressure | 35MPa(5000psi) | 70MPa(10000psi) | 105MPa(15000psi) |
| Color | Blue | Yellow | Red |
| Model | JG/S52-35 | JG/S78-70 | JG/S78-105 |
| Design Pressure | 35MPa | 70MPa | 105MPa |
| Weight | 2530kg(5578lb) | 3580kg(7892.5lb) | 4630kg(10260lb) |
| Dimension(L×W×H) | 1802×1339×680mm | 2516×1824×799mm | 3270×2371×1038.7mm |
| Material Level | EE | EE | EE |
| Product specification level | PRL3 | PRL3 | PRL3 |
| Working Temperature | PU(-29℃~121℃) | PU(-29℃~121℃) | PU(-29℃~121℃) |
| Product performance level | PR1 | PR1 | PR1 |
| Nozzle | Fixed and adjustable nozzle | Fixed and adjustable nozzle | Fixed and adjustable nozzle |
| Characteristics | Five gate design | Five gate design | Five gate design |
| work medium | Mud,oil and drilling fluid | Mud,oil and drilling fluid | Mud,oil and drilling fluid |
| Connection type | Flange | Flange | Flange |
Main features of our API 6A drilling psi 15000 choke manifold / choke manifold petroleum equipment for sale as below:
1.Control the well fluid flow
2.Built-in Cameron style gate valves which can be redressed on pipeline
3.Standard two flow system: one through a positive choke and the other through an adjustable choke that can be converted into a positive choke
4.Provides a means for fluid sampling, real-time pressure and temperature monitoring, and chemical injection
5.Metal-to-metal, double seal to ensure reliability in harsh environments
Company Information
Why choose us ?
1. Own factories in China mainland
2. Engaged in the industry for over 17 years
3. Achieve patents for intellectual property protection
4.QUALITY SESTEM to make sure the superior high quality
5.Large product series for one-stop service
6.Consulting, suggesting, help find perfect solution
Certifications
Customer Visit
