Китайский производитель Высококачественная портативная Термографическая инфракрасная тепловизионная камера
- Категория: Test Instruments >>>
- Поставщик: Shenzhen,Xeast,Technology,Co.,ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 264.4 $* | 277.39 $* |
| Aug-18-2025 | 262.52 $* | 275.57 $* |
| Jul-18-2025 | 220.15 $* | 231.10 $* |
| Jun-18-2025 | 258.70 $* | 271.85 $* |
| May-18-2025 | 224.69 $* | 235.1 $* |
| Apr-18-2025 | 253.59 $* | 266.94 $* |
| Mar-18-2025 | 251.99 $* | 264.41 $* |
| Feb-18-2025 | 249.9 $* | 261.46 $* |
| Jan-18-2025 | 246.36 $* | 258.26 $* |
Характеристики

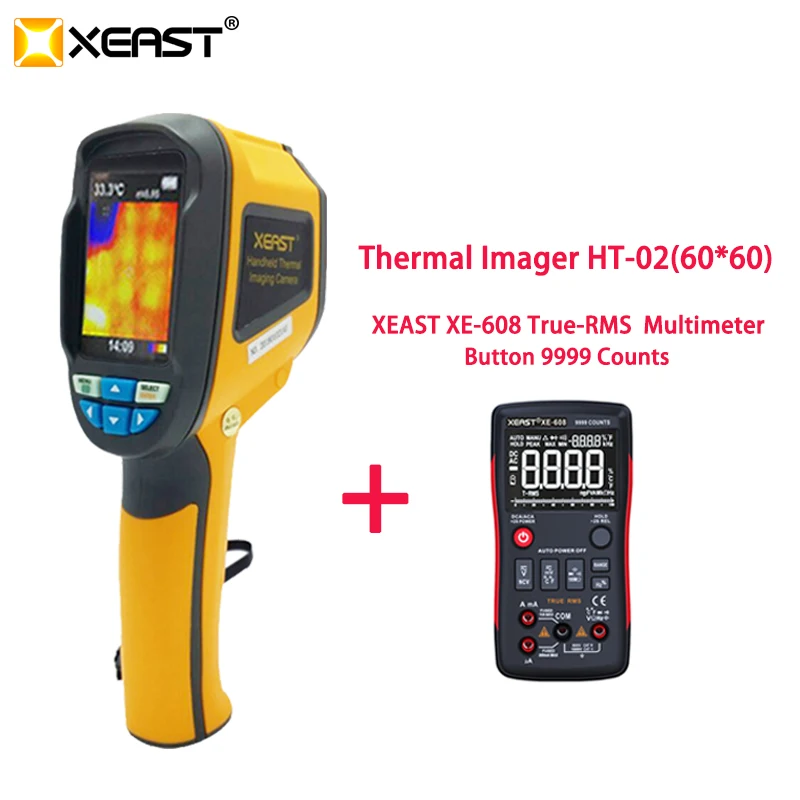

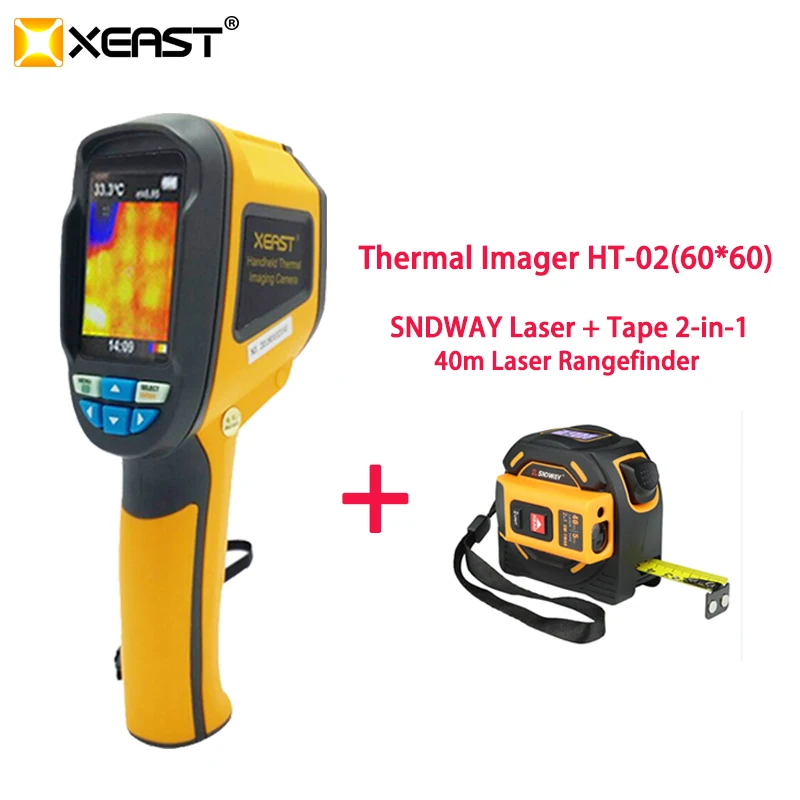

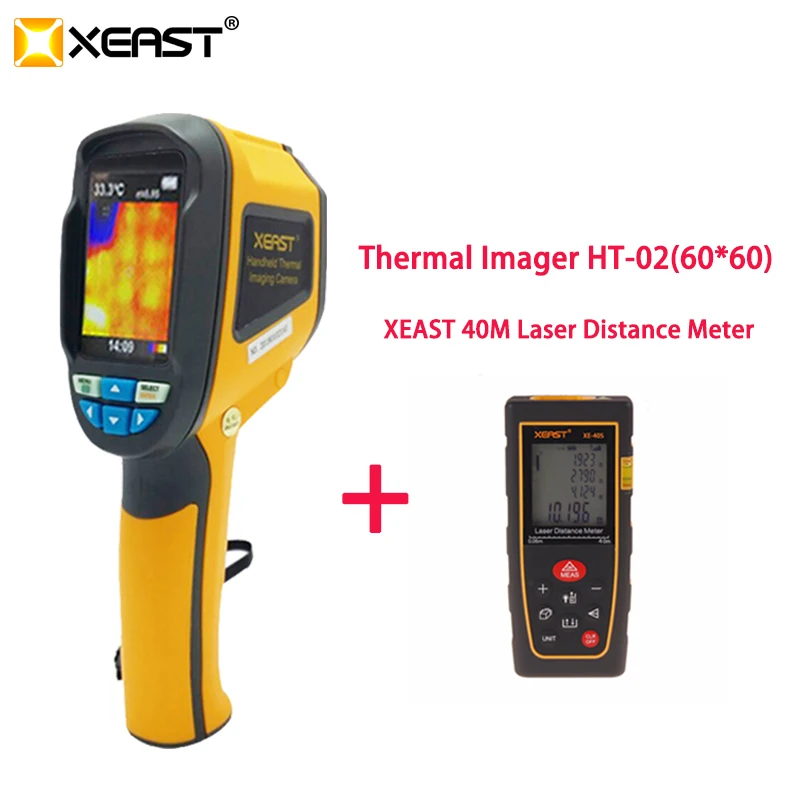

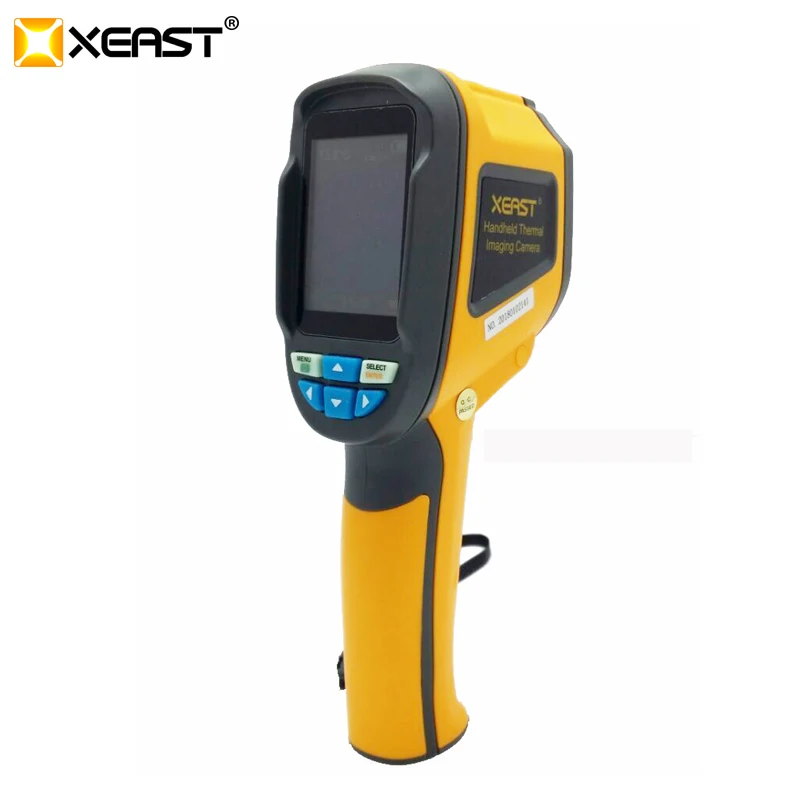

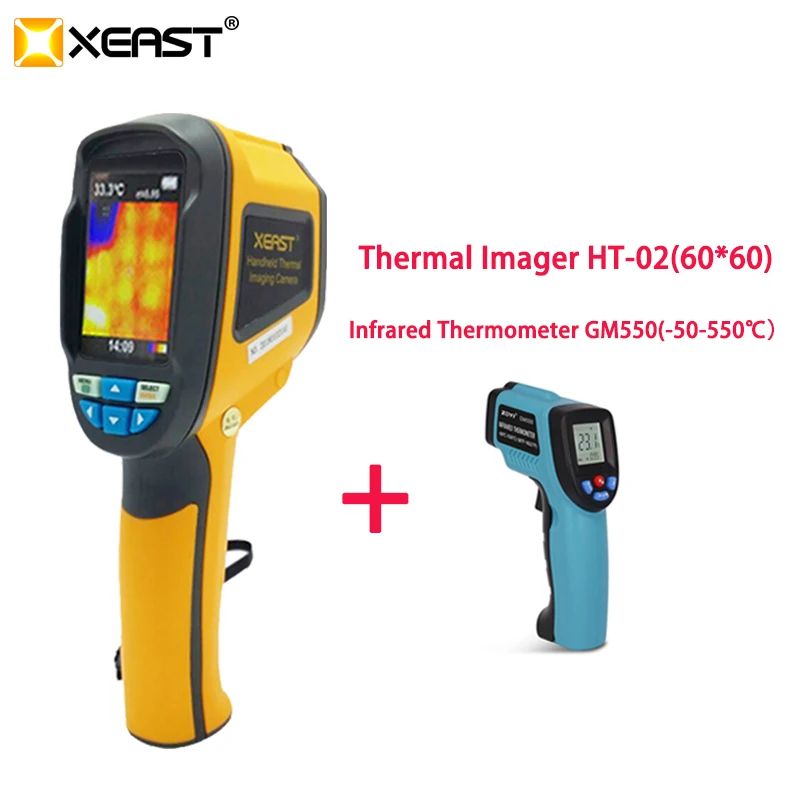

China Manufacturer High Quality Portable Thermographic Infrared Thermal Imaging Camera HT-02
HT-02 is a thermal Imaging Camera which combines the functions of surface temperature measurement and real-time thermal imaging the traditional thermal imaging Camera shall measure each component one by one but this instrument does not need to.Therefore,it helps to save our customers'time.Even the potential problems can be clearly displayed on the color screen which helps customers quickly locate the central point to measure cursor and temperature
Specifications:
Display | 2.4 inch full viewing angle high-resolution color screen |
Resolution: | 60 * 60 |
Total Pixel | 3600 pixels |
Resolution of visible image | 0.3 mega pixels. |
Temperature range | -20℃ to 300℃(-4℉ to 572℉) |
Measuring Accuracy | ±2% or ±2℃(±4℉) |
FOV/Shortest Focal Length | 20× 20/0.5m |
Thermal Sensitivity | 0.5℃ |
Wavelength Range | 8-14μm |
Emissivity | 0.1-1.0 Adjustable |
Image Frequency | 6HZ |
Focus Mode | Fixed |
Palette | Iron red,rainbow,rainbow high contrast,gray scale(white glow) and gray scale(black glow) |
Vision Option | 5 kinds of full infrared to the full visual, mixing visible and infrared. |
Image Storage | SD card(4G) |
File Format | bmp |
Set Control | Unit Adjustment/Language/Date Time Format/automatic shut down |
Battery Type | 4 * 1.5V AA battery (Not Included) |
Battery Life | 6 Hours |
Auto Power-off Time | 12 Minutes |
Authentication | CE, RoHS |
Operating Temperature | -5℃ to 40℃ (23℉ to 104℉) |
Storage Temperature | -20℃ to 50℃ (-4℉ to 122℉) |
Relative Humidity | 10%RH to 80%RH |
Item Size | 21.2 * 9 * 6.2cm / 8.3 * 3.5 * 2.4in |
Item Weight | 231.2g / 8.2oz |
Package Size | 27 * 19 * 11cm / 10.6 * 7.5 * 4.3in |
Package Weight | 927g / 32.7oz |
Package Lists | 1 * Thermal Infrared Imager |
