 12 Inch 1000W 260 V1 Electric Motorcycle Brushless DC Wheel Hub Motor

QS Motor Specification

• Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
• Brand: QS Motor,QSMOTOR
• Motor Design: Double axle with 12inch moped rim (integrated)
• Rim size:12x2.15inch(Narrow Tire as default), Matched tire:2.5-12,3.5-12 etc
• 12x3.5inch(Wide Tire)
• Magnet Height: 50mm, 16 pole pairs
• Stator: Aluminum Core
• Rated Power: 7000W
• Speed(customizable):
• 48v 21km/h~70km/h 300-900RPM
• 60v 26km/h~95km/h 300-1100RPM
• 72v 32km/h~110km/h 300-1350RPM
• Max Torque approx 295.0N.m
• KV: Depends on the customer's top speed request (optional)
• Thermic Probe: KTY83-122 (as default, optional)
• Max Efficiency approx 88%
• Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
• Drop-outs: 200mm
• Dual Halls with waterproof connectos(One for spare, in case of damage)
• 16mm² Phase Wire
• Waterproof Grade: IP54
• Color: Black (as default), Yellow or White/Luminous

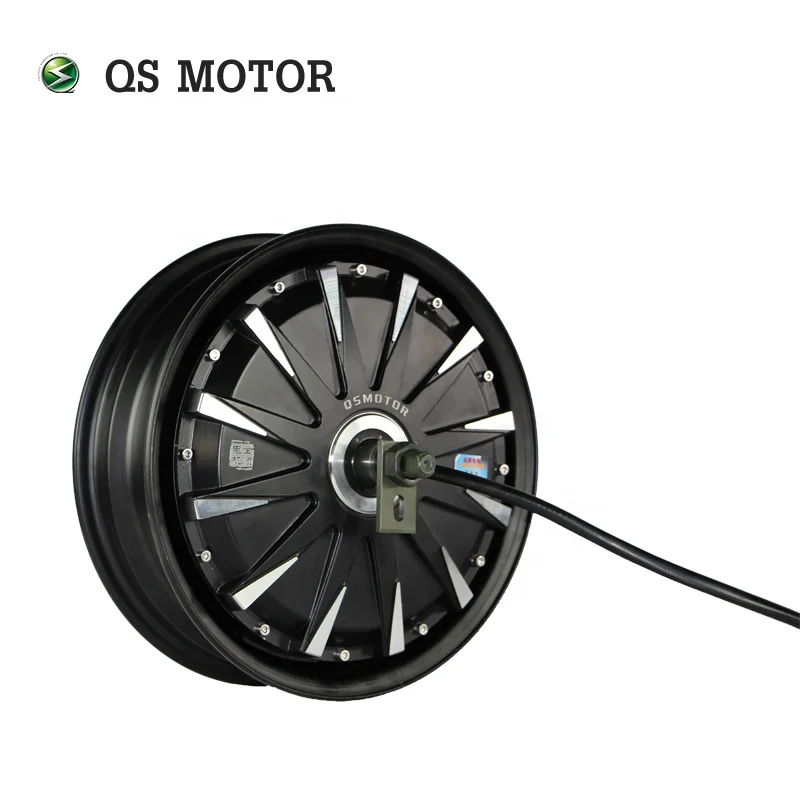

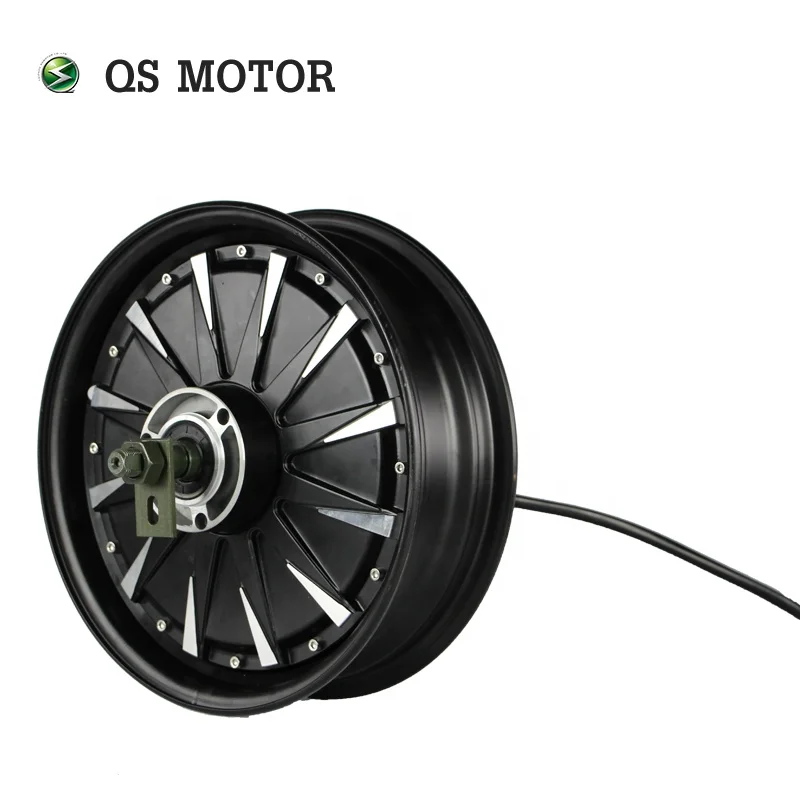

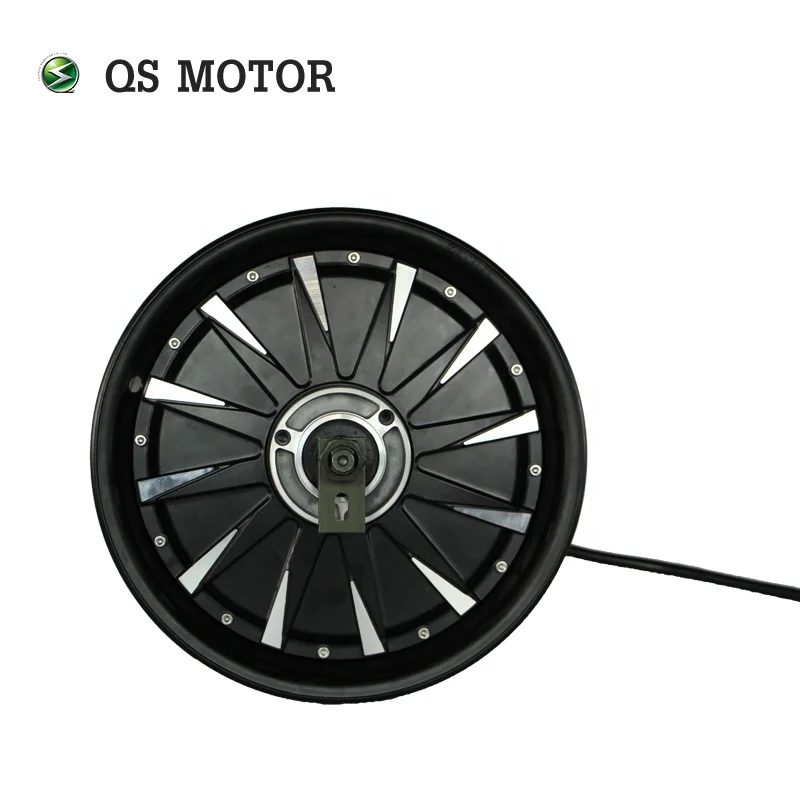

Pictures Show

Size 12*3.5inch



Drawing





QS Motor 12inch 260 E-Scooter Hub Motor Price List



Note for 12X5.0inch 260 detachable wheel Motor(Electroplating design): Normal 12inch 260 Motor+ USD: 15.0/PCS.

Only electroplating wheel rim (not side cover).



How to Recommend you suitable motors?

Firstly, To customize a suitable electric hub motor for your vehicle, could you please inform the points in below?

1. E-bike, E-scooter, E-tricycle or E-car?

2. Weight of vehicle with battery, loading weight (weight with load only)?

3. Tire model/diameter?

4. Rated voltage and wattage of motor, nominal speed/top speed, and climb angle or torque @ what speed?

5. Battery nominal voltage, peak voltage, capacity and vehicle range?

6. What's the drop-outs/rear fork width of your frame?

Within your details information, we could make assessment and calculation accordingly for your project
