Высококачественный керамический датчик давления OEM и ODM 4-20


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 0.8 $* 0.75 $*
Aug-18-2025 0.26 $* 0.87 $*
Jul-18-2025 0.12 $* 0.7 $*
Jun-18-2025 0.33 $* 0.86 $*
May-18-2025 0.42 $* 0.20 $*
Apr-18-2025 0.22 $* 0.7 $*
Mar-18-2025 0.12 $* 0.4 $*
Feb-18-2025 0.81 $* 0.7 $*
Jan-18-2025 0.68 $* 0.74 $*

Характеристики

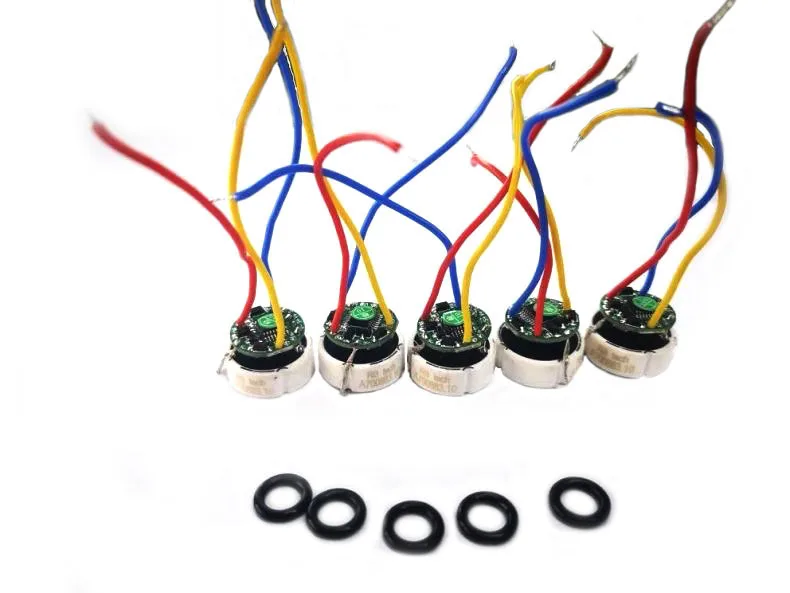

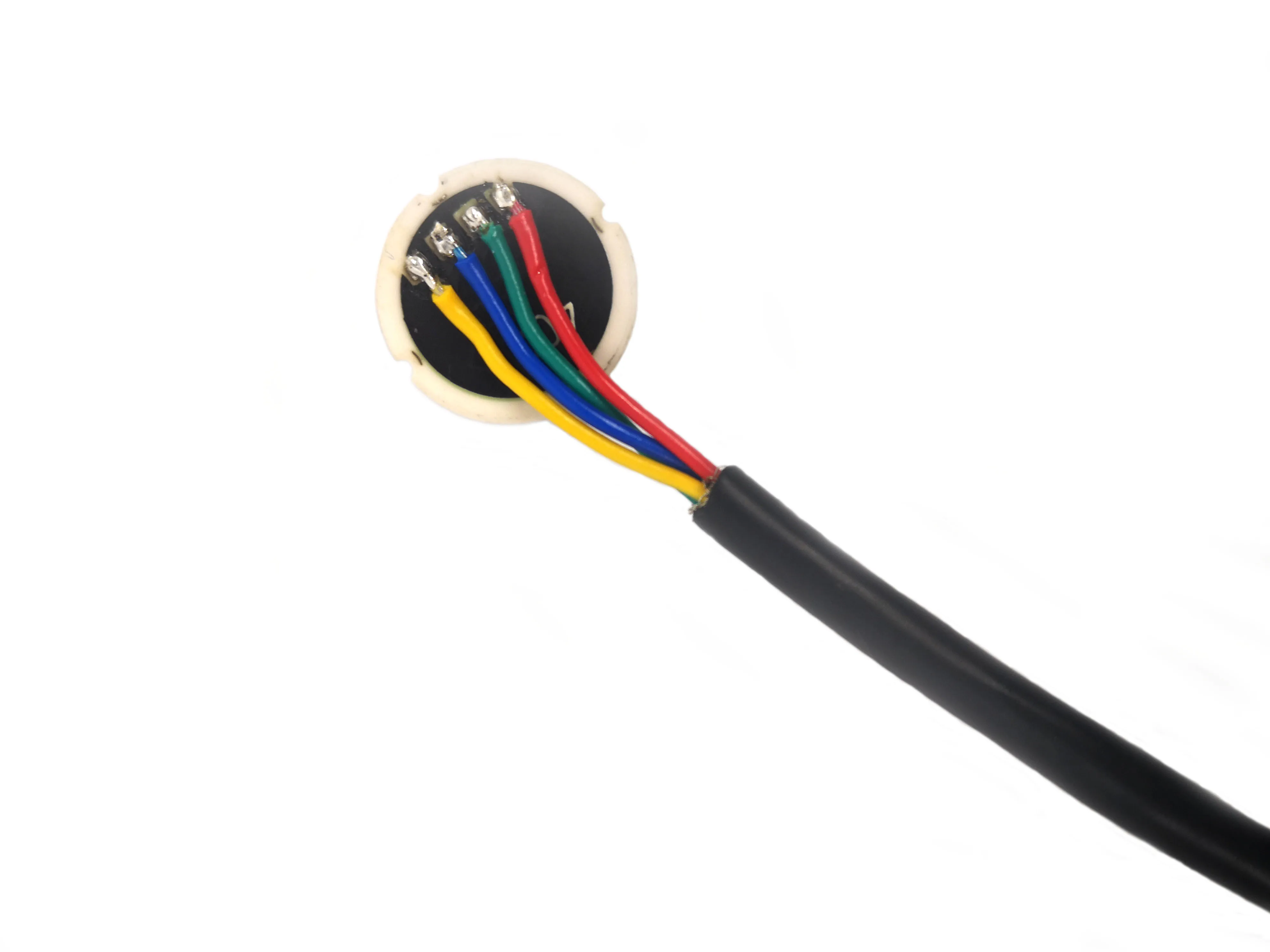

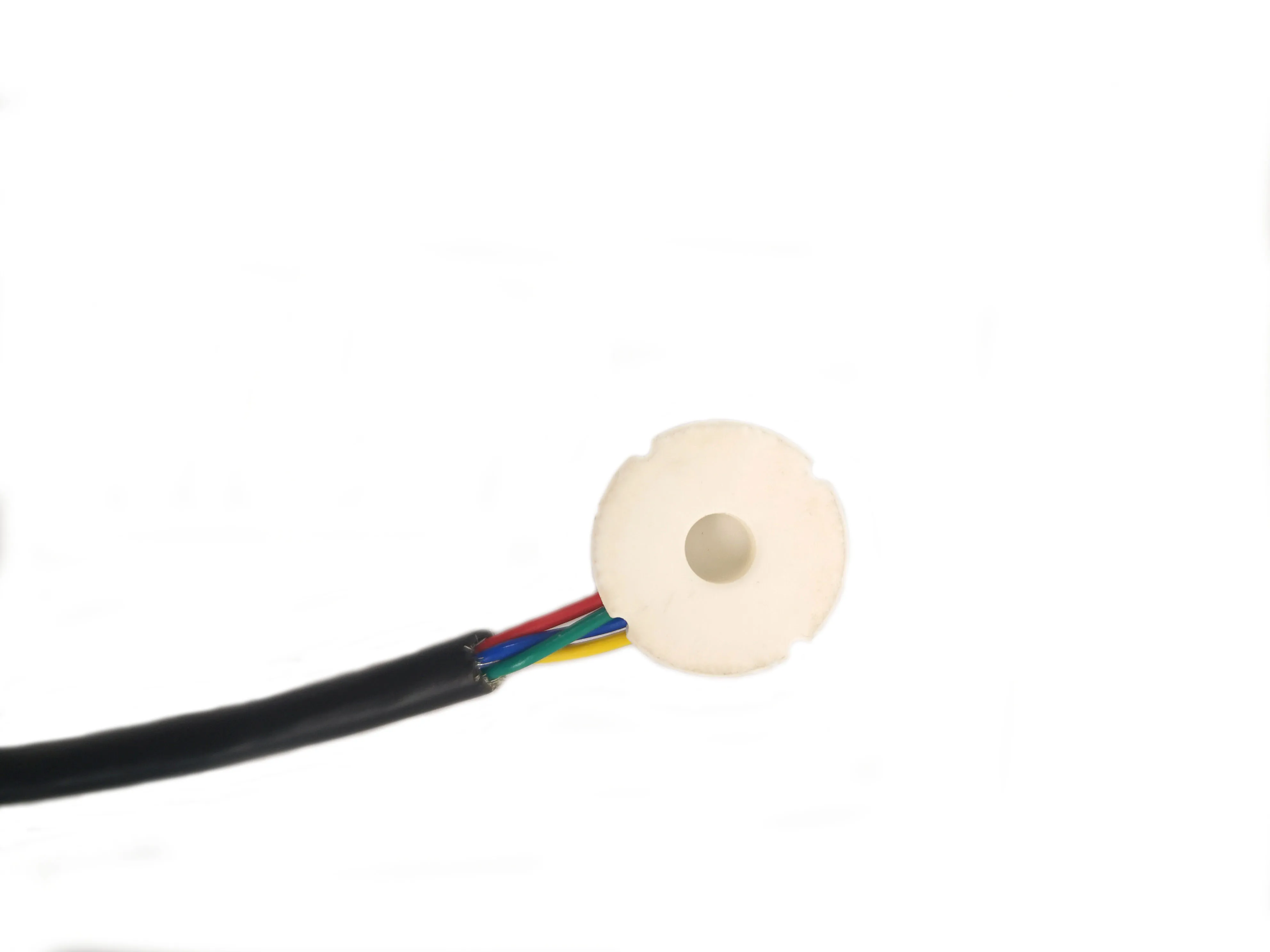

High Quality OEM and ODM 4-20ma Ceramic Pressure Sensor Pressure Transmitter



Company Information


.jpg




Baoji XingYuTeng Measure and Control Instruments Co., Ltd was founded in 2007, is located in Baoji, Shaanxi Province,China.
As a well-known manufacturer, XingYuTeng specializes in High-tech R&D, focuses on self-developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow.
XingYuTeng can offer an extensive variety of the highest quality pressure transmitter as well as digital pressure gauge and level transmitter and temperature transmitter. Recognized for their accuracy and long-term reliability, our products are the sensor of choice for diverse markets such as hydroelectricity, public waterworks, chemical engineering,mechanical engineering, petroleum industry, Industrial Controls, Medical industry and Food Handling.


With the implementation of ISO9001, CMC (China Metrology Certification), EX(Explosion-proof certification),our company has adopted programs to ensure compliance with the necessary directives for quality control and product safety.
At present, our products have been accepted and exported to Europe, America, Southeast Asia, Africa and other regions all over the world. Based on the purpose of satisfying customers, we keep improving our product development capability and processing technic to offer a better product.


We sincerely hope that we can be one of your dependable and trust-able cooperators!





Product Description












ed09432d-13



Specification

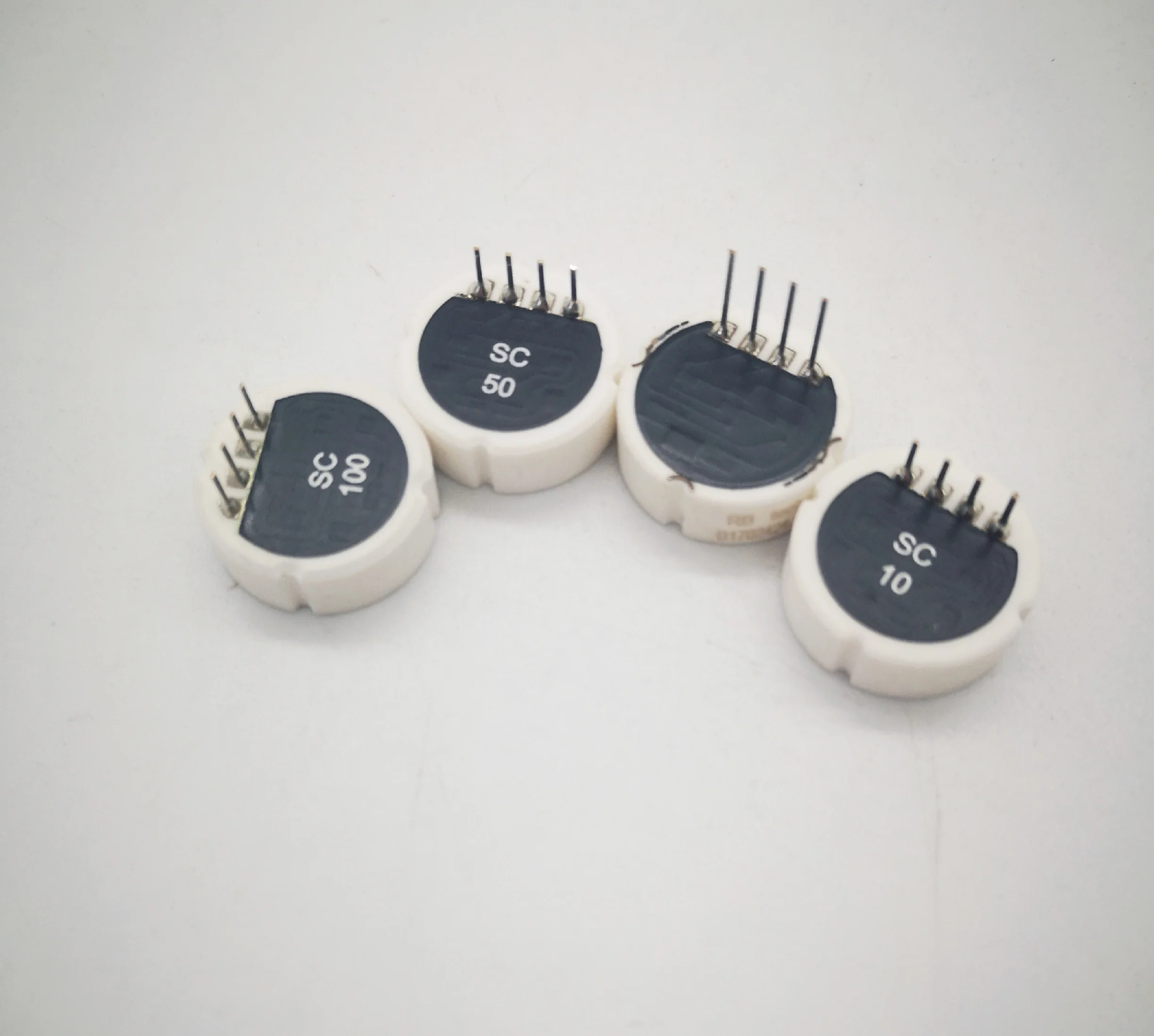

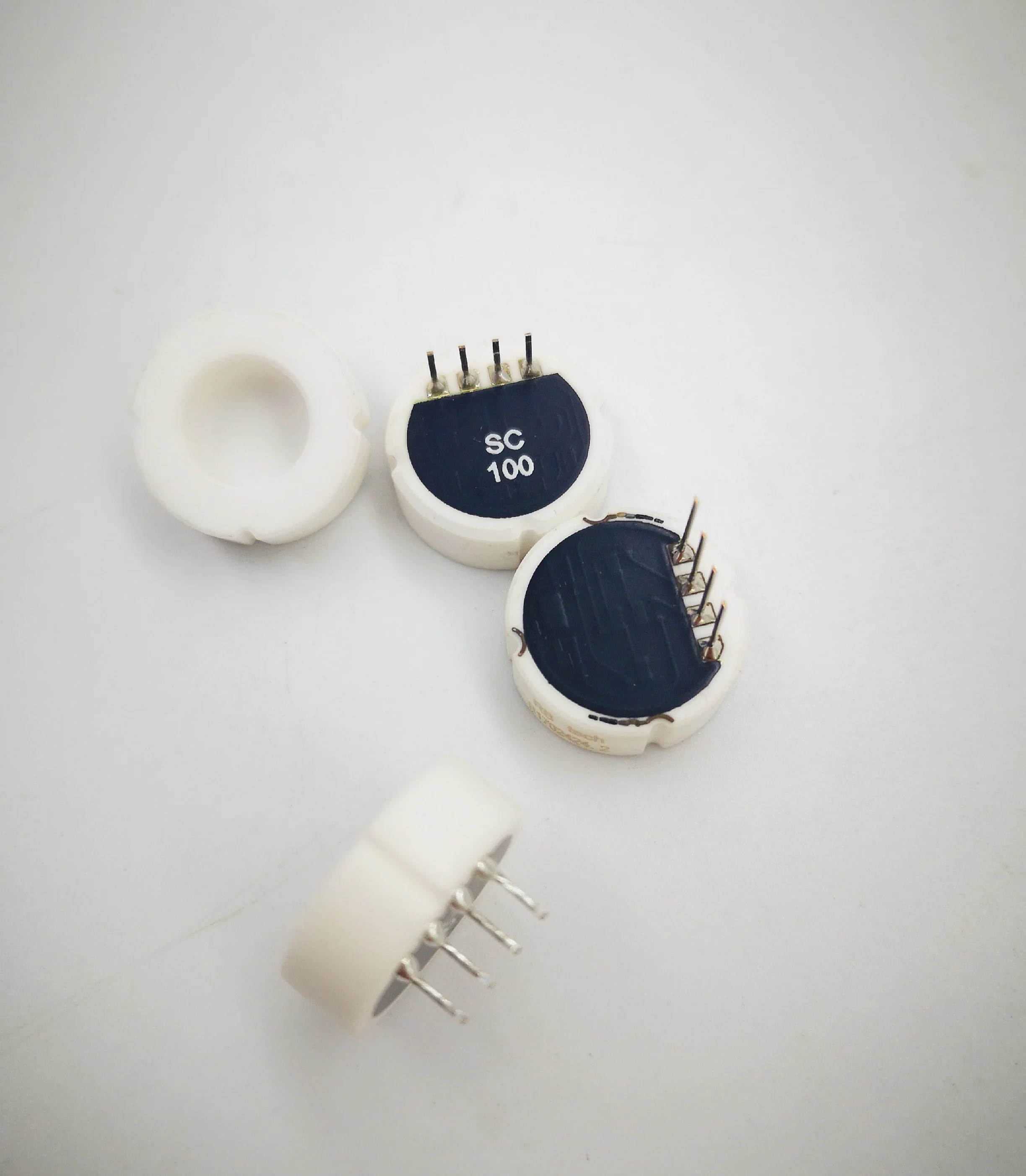

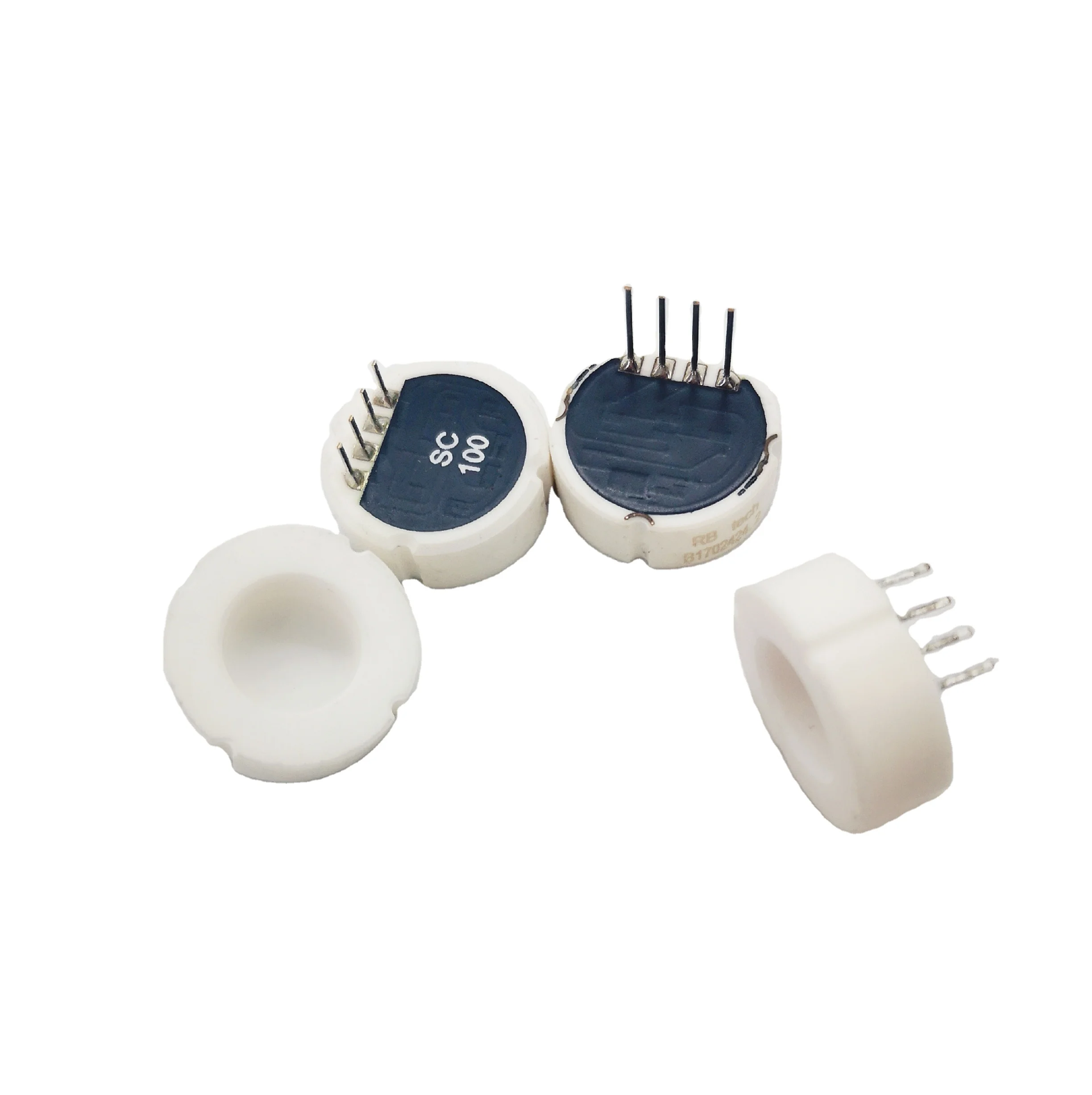

The sensors are piezoresistive pressure sensors based on ceramic. The measuring bridge is printed directly on one side of the ceramic diaphragm by means of thick film technology. The rear part of the diaphragm can be exposed directly to the medium to be measured. Because of the excellent chemical resistance no additional protection is normally required.

Thanks to the reinforced outer area (monolithic structure)the sensor can be mounted directly in a case by using an O-ring or else it can be mounted to a metal fitting. The sensors are designed in such a way so that temperature changes and overloading do not cause any loss in reliability. The use of ceramic ensures high linearity across the entire range of measurement and reduces effects of hysteresis to a minimum.




Pressure range: 5bar, 10bar, 20bar, 25bar, 30bar, 50bar, 100bar, 300bar

Sensitivity: 2.2-3.5mv / v

Non-linearity: ≤ ± 0.2% fso

Zero temperature drift ≤ ± 0.3% fso

Zero output: ± 0.5mv

Diving voltage: 5… .30vDC

Working temperature: -40… 120 (compensated -20… 80 )

Safety overload: 150% fs

Ultimate overload: 300% FS (2-50bar) 250% FS (100-250bar) 150%FS(400-600bar)

Comprehensive accuracy (non-linear + hysteresis): ≤ ± 0.3% fs

Repeatability: ≤ ± 0.2% fs

Material: al2o3







Packaging & Shipping


 .jpg





Exhibition











Certifications


 BSL_1548125078162_





FAQ


 1. How long will you reply me?
Normally in 1 hours, no more than  12 hours.
2. How can I get the quotation?
Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium, electronic connection, shell material etc. More details, more accurate quotation and earlier response.
3. Can I get sample?
Contact with our staff online directly and they would check stock for you.
4. Can I visit your factory?
You are warmly welcomed, our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
Yes, we provide OEM/ODM service.
6. How long is your warranty period?
Warranty period from the date of acceptance of 12 months.
7. What is your terms of payment?
We could accept T/T, L/C, Western union, PayPal, credit Assurance.
