SIEMENS датчиков давления

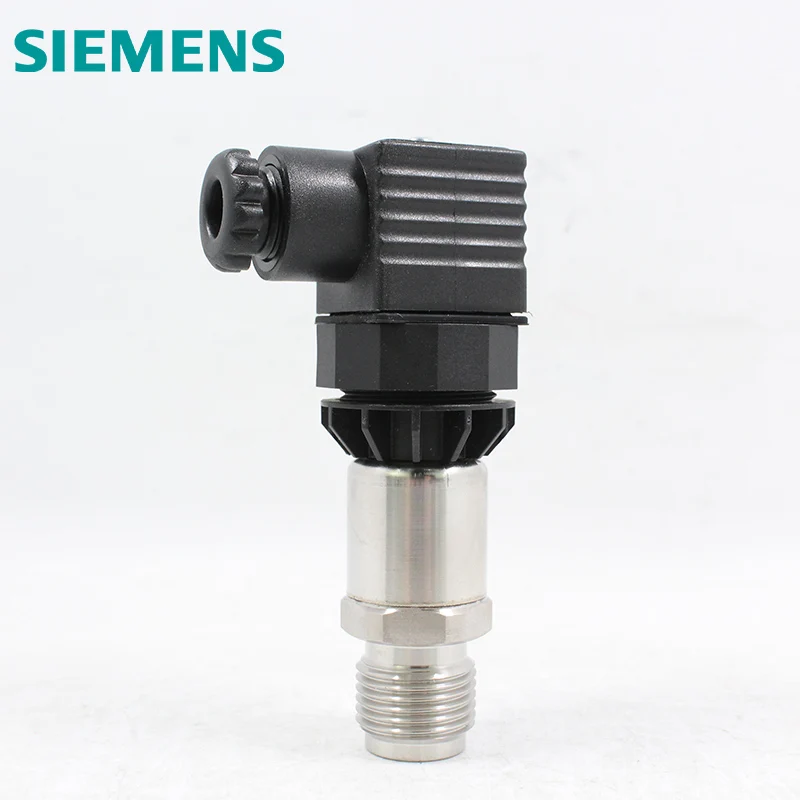

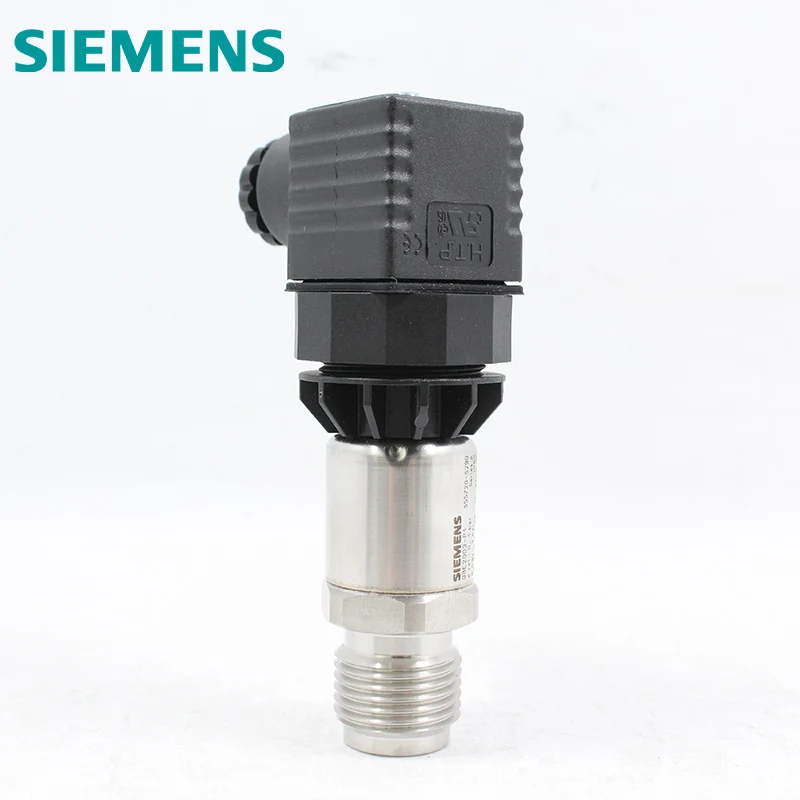

Pressure Sensors

for neutral and slightly aggressive liquids and gases

• High-precision measuring
• Measuring range 0 to 60 bar relative
• Supply voltage AC 24 V / DC 12...33 V or DC 7…33 V
• DC 0 ...10 V or DC 4…20 mA output signal
• Measurement unaffected by changes in temperature
• High temperature stability

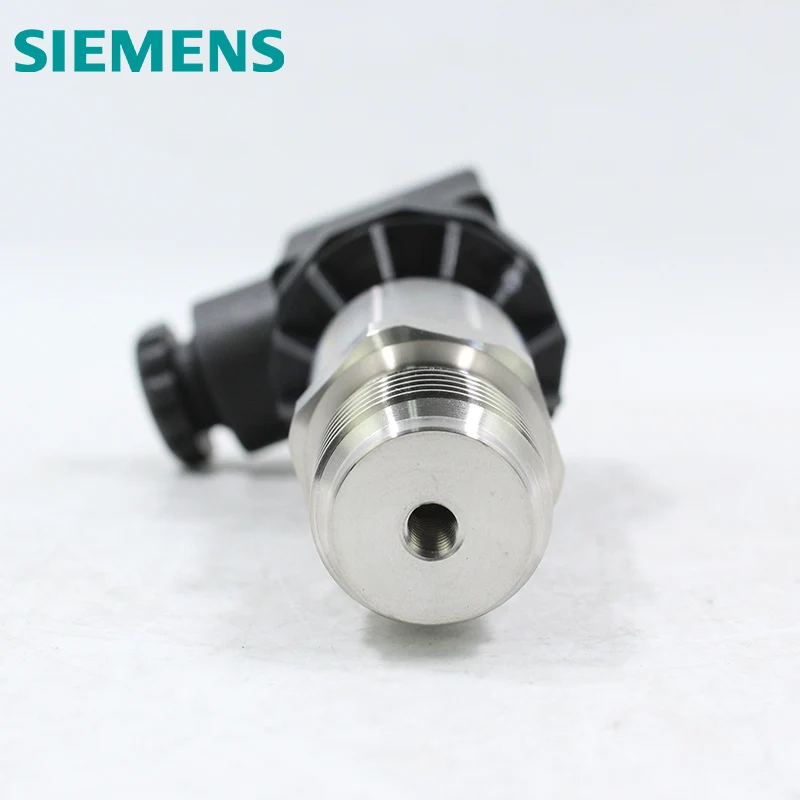

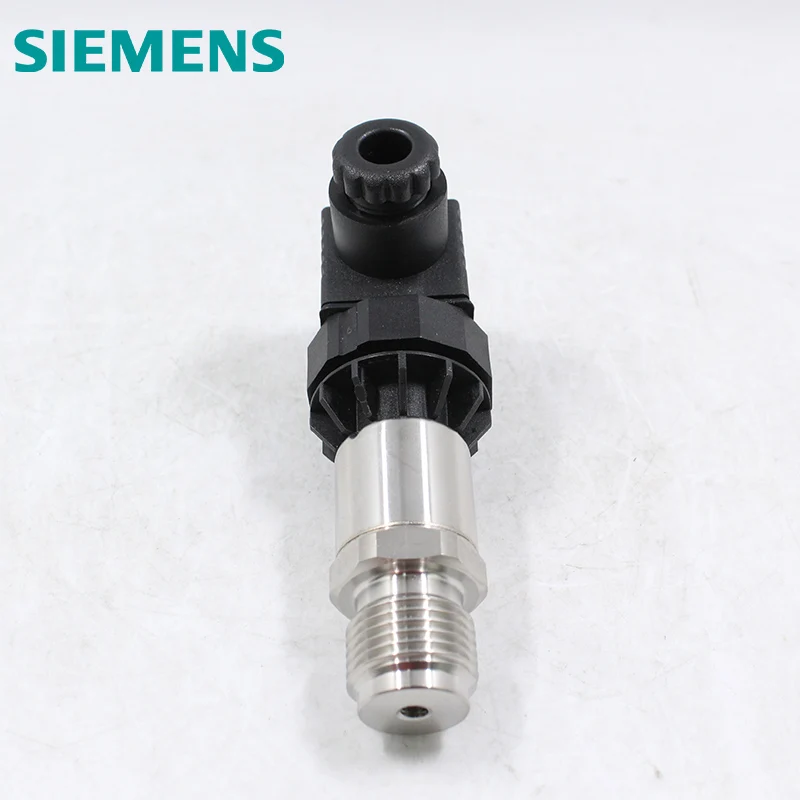

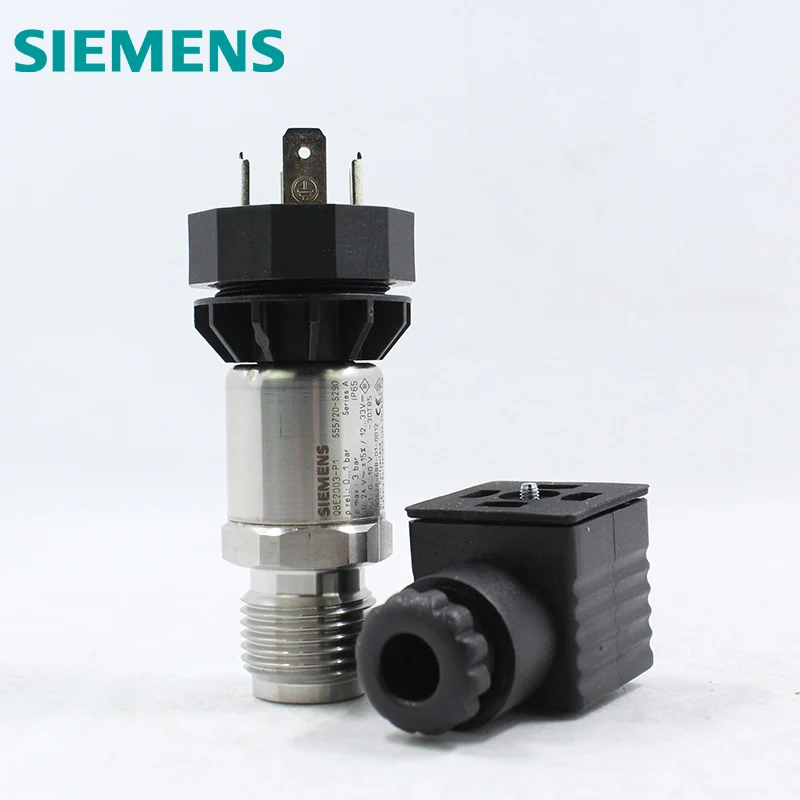

• Connection: external thread G ½", inside thread M5
• Maintenance free thanks to outstanding long-term stability
• High overload resistance
• Robust and compact construction

Use

The pressure sensors are suitable for the measurement of relative pressure in HVAC plant, particularly in hydraulic and pneumatic systems using liquid or gaseous media(steam applications).

Type summary

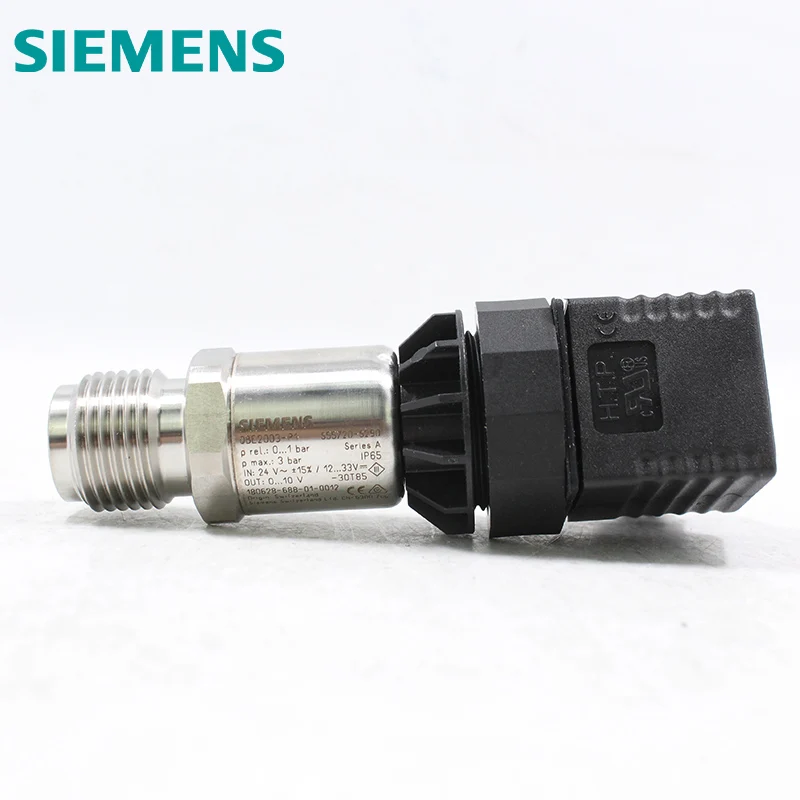

Technical data

Electrical interface         Power supply    : Protection by extra low voltage (SELV, PELV)

                                       Supply voltage (QBE2003…)   : AC 24 V ±15%, 50...60 Hz or DC 12...33 V

                                       Current consumption    : <7 mA, < 0.5 VA

                                       Output signal QBE2003…   : DC 0 ...10 V, load >10 kΩ, < 100 nF, 3-wire

                                       Insulation voltage  500V   : 500V

Measuring accuracy          Characteristic curve  1)   : ±0.3 % FS
FS = Full scale                 Resolution   : 0.1 % FS

                                       Temperature response  : <±0.2 % FS/10 °C (-15…85°C)

                                       Long-term stability (as per IEC EN60770-1)   : <±0.25 % FS

                                       Admissible temperature of medium   : −15...+125 °C

Materials                          Pressure connection    : Stainless steel 1.4404 / AISI 316L

                                       Plug housing    : Polyarylamide 50 % GF VO

Internal diagram

Dimensions
