Микро-бессердечный Вибрационный Мотор постоянного тока 3 в 7x16 мм 10000 об/мин для управления

Микро-бессердечный Вибрационный Мотор постоянного тока 3 в 7x16 мм 10000 об/мин для управления

Категория: Vibration Motor >>>
Поставщик: Shenzhen,Xinhailong,Electronic,Technology,Co.,Ltd.

Цена:0,85 $ - 0,90 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.23 $*	0.56 $*
Aug-16-2025	0.65 $*	0.64 $*
Jul-16-2025	0.96 $*	0.21 $*
Jun-16-2025	0.62 $*	0.68 $*
May-16-2025	0.63 $*	0.89 $*
Apr-16-2025	0.98 $*	0.79 $*
Mar-16-2025	0.46 $*	0.89 $*
Feb-16-2025	0.91 $*	0.45 $*
Jan-16-2025	0.3 $*	0.21 $*

Характеристики

Product Description

Product Application

0716 is a well balanced vibration motor with 7mm diameter.
Based on a coreless design with brush communication and permanent magnet construction,
it offers a strong vibration amplitude at 3v with low noise, the rated speed is 10000 rpm.
It's widely applied to operator controls, sex toy, electric toothbrush, face massager, etc.

\t SPECIFICATIONS FOR BEST QUALITY FOR 1.3V DC MICRO VIBRATION MOTOR (0716)
\t Model Size	\t Counter weight	\t mm	\t R 5.0*3.0
	\t Motor diameter	\t mm	\t 7
	\t Body length	\t mm	\t 16.0
\t Main performance parameters	\t Rated voltage	\t v	\t 3V
	\t Speed (max. & min.)	\t r/min	\t 10000
	\t Rated current	\t mA	\t 90
\t Customize parts	\t Counter weight	\t mm	\t Customise
	\t Wire length/Colour	\t mm/Red,Black,White	\t Customise
	\t Rotation	\t CW/CCW	\t CW/CCW

Main Features

1) Energy-saving:High energy conversion efficiency,more than 70%.
2) Reliable Operational Stability: Operates quietly and quickly with high efficiency and low resistance.
3) Low Noise : Starting and braking quietly, running with low noise.
4) High Speed : The rpm can reach 4500~51000±10%.
5) Fast Response:Rapid starting and braking with fast response, mechanincal time constant is less than 28 milliseconds. Some can reach 10ms or less.

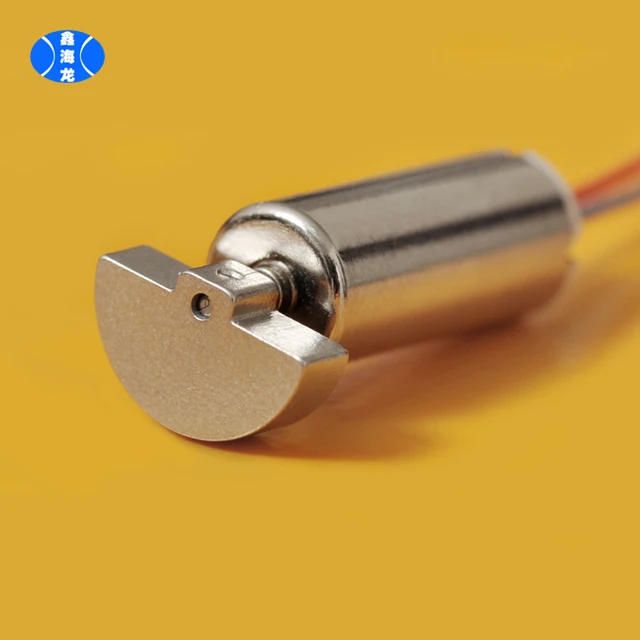

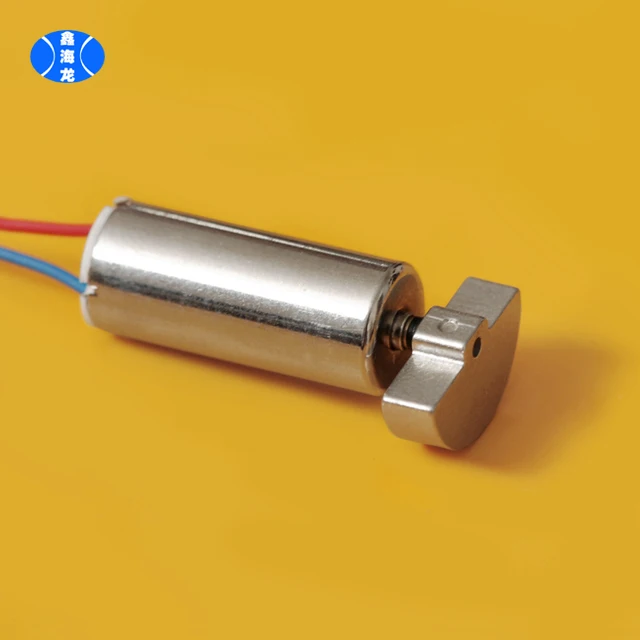

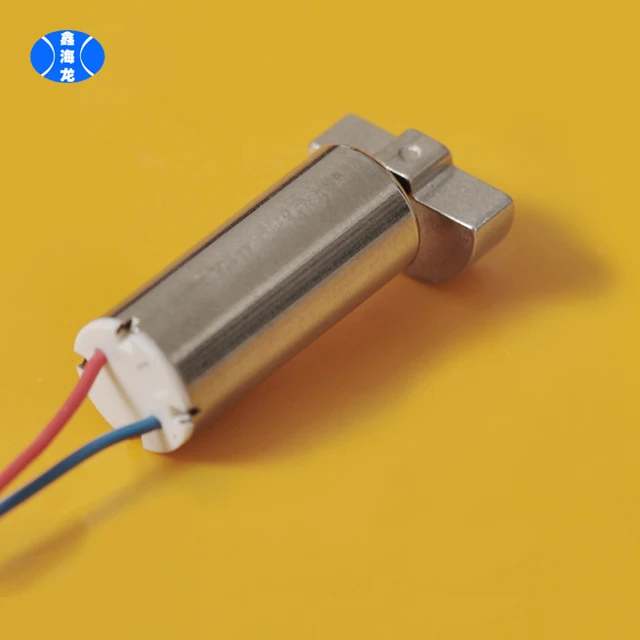

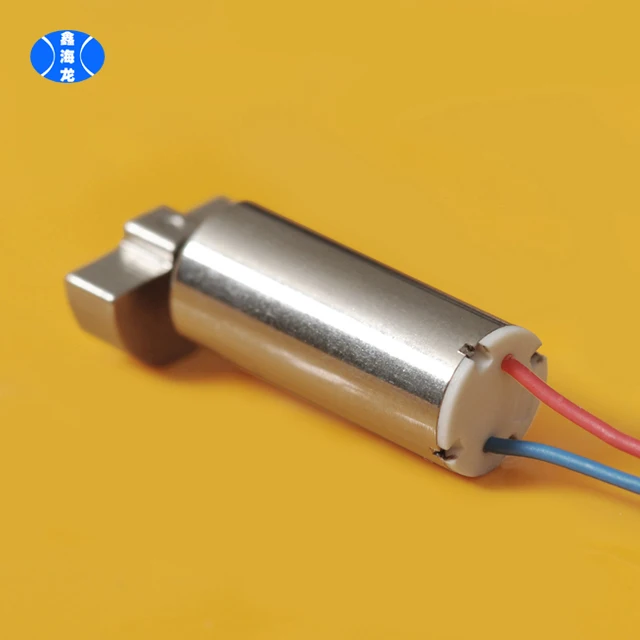

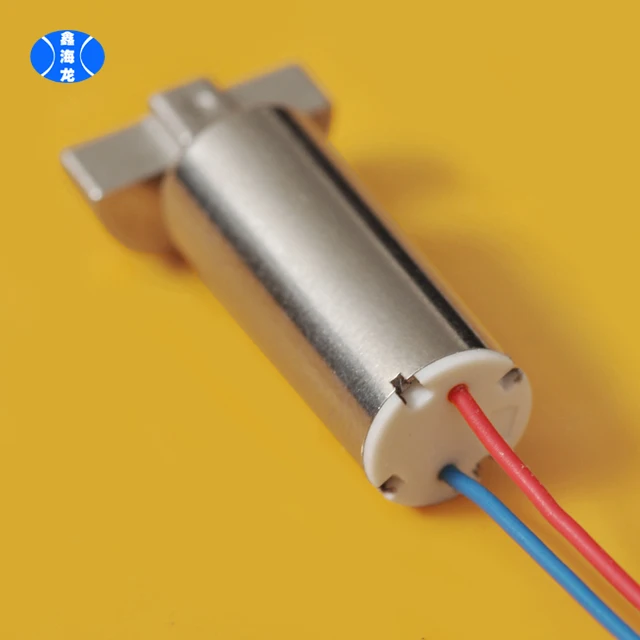

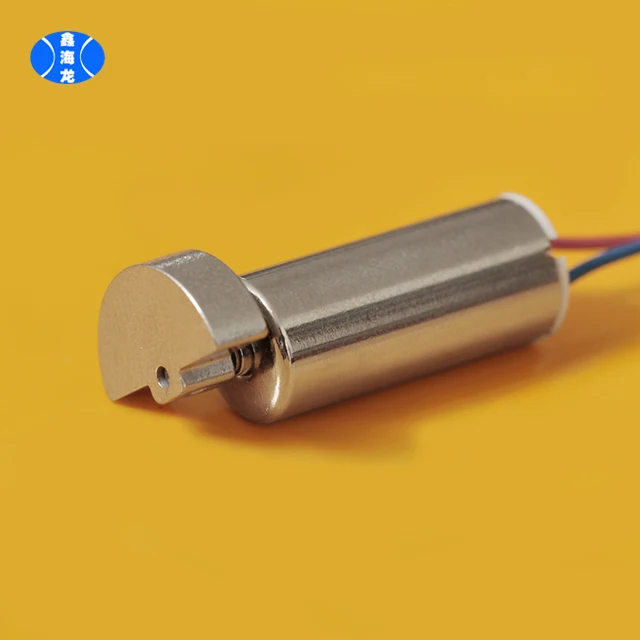

Detailed Images
