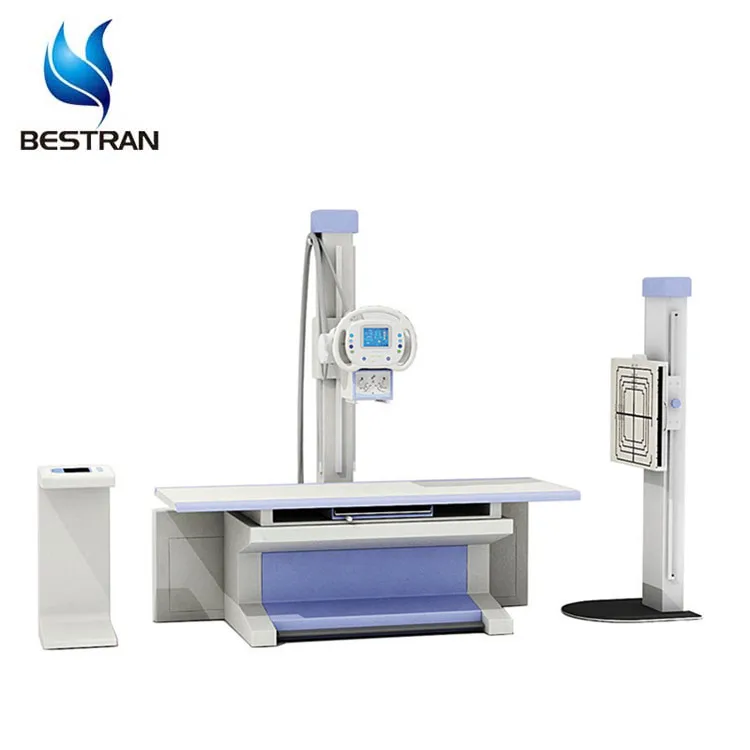

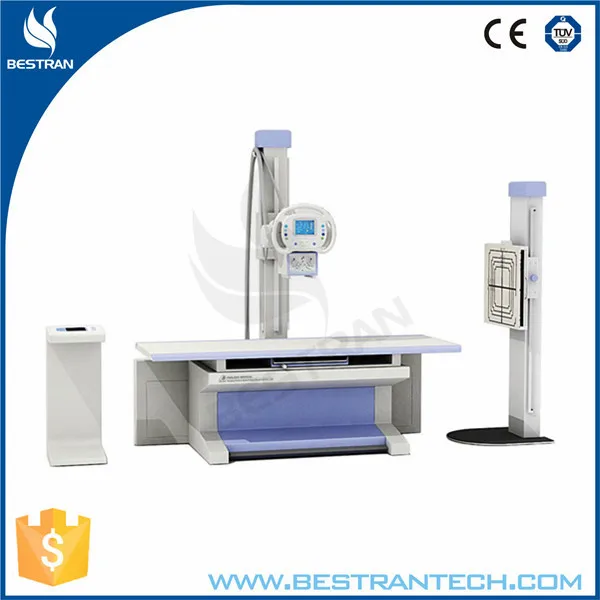

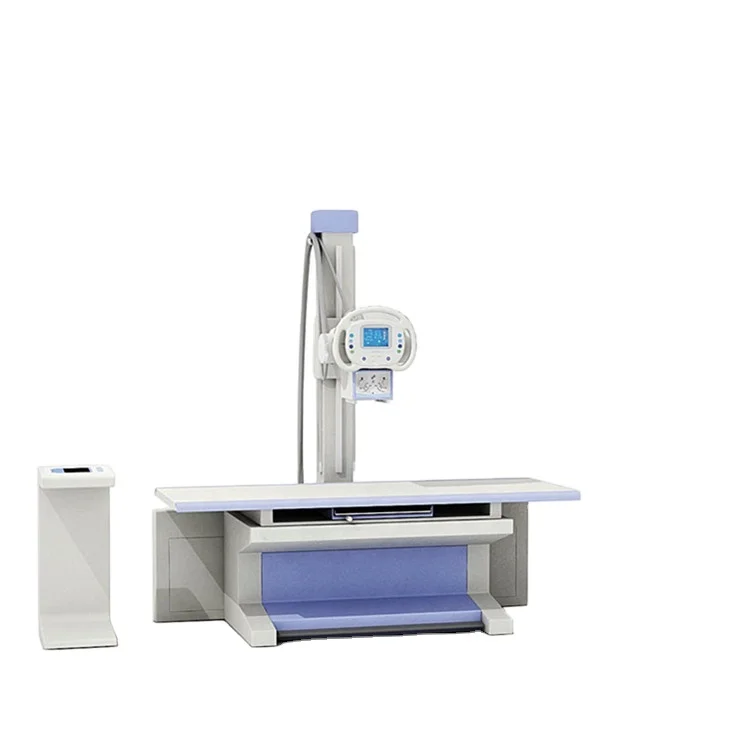

BT-XR04 Дешевое медицинское радиографические устройства 55 кВт 500ma цифровой высокочастотный рентгеновский оборудование/x-ray машина

Item

content

Output power

55kW

Main inverter frequency

60kHz

X-ray tube

(Toshiba)

Rotary anode, dual-focus

Large/ Small focus

1.2mm/ 0.6mm

Power of large/ small focus

75kW/ 27kW.

Anode thermal capacity

210kJ

Tube thermal capacity

900kJ

Rotary anode speed

9700rpm

Anode target surface angle

12°

mA range

10mA-500mA

Tube voltage

40kV-150kV

Exposure Time

0.001s-12.5s

mAs

0.1-630mAs

Table radiography grids

Grid density: 103L/inch

Grid ratio: 10:1;

Focusing Distance: 120cm

Stationary type: 18"×18"

Cassette

Film size: 356*432mm(14”*17*)

Longitudinal movement: 560mm

Mechanical Movement

SID:

450-1200mm

X-ray tube Longitudinal movement

1370mm

X-ray tube Rotation range around transverse axis

±90°

X-ray tube Rotation range around X-ray tube axis

35°

X-ray tube Rotation range around pillar

4* 90°

Table

Table size

2000×760mm

Table height

≤700mm

Table transverse movement

≥220mm

Table longitudinal movement

≥900mm

Power supply

380/400VAC three phase

50Hz

Operation method

1. Close-table graphic program controlled LCD touchable screen operation

2. Wireless remote control exposure
