MAH шламовый гравийный песочный насос центробежный грязевой для золотодобывающего шламового
- Категория: Насосы и запчасти >>>
- Поставщик: Depump,Technology,Shijiazhuang,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.86 $* | 0.91 $* |
| Aug-17-2025 | 0.59 $* | 0.66 $* |
| Jul-17-2025 | 0.6 $* | 0.21 $* |
| Jun-17-2025 | 0.0 $* | 0.29 $* |
| May-17-2025 | 0.52 $* | 0.77 $* |
| Apr-17-2025 | 0.66 $* | 0.98 $* |
| Mar-17-2025 | 0.53 $* | 0.50 $* |
| Feb-17-2025 | 0.71 $* | 0.53 $* |
| Jan-17-2025 | 0.85 $* | 0.63 $* |
Характеристики
Products Description

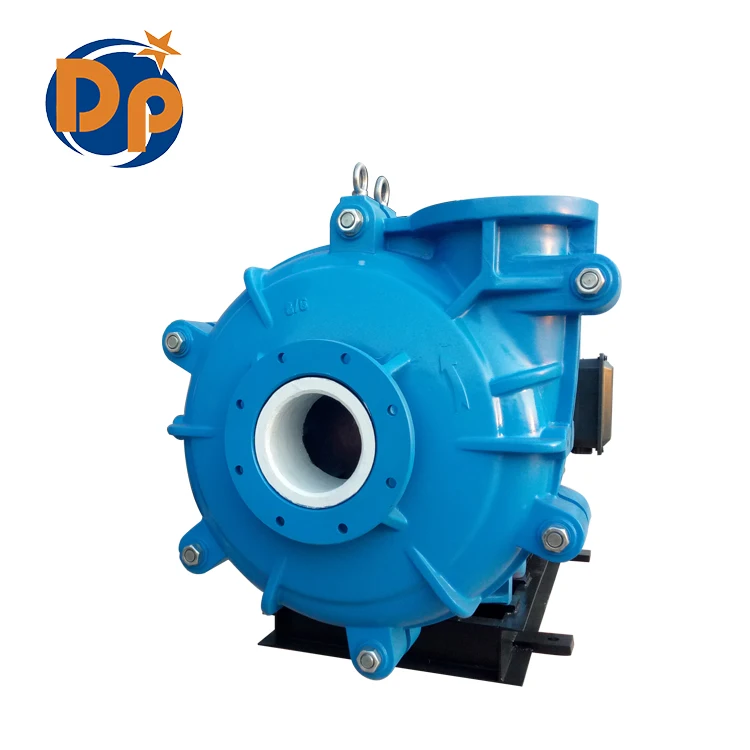

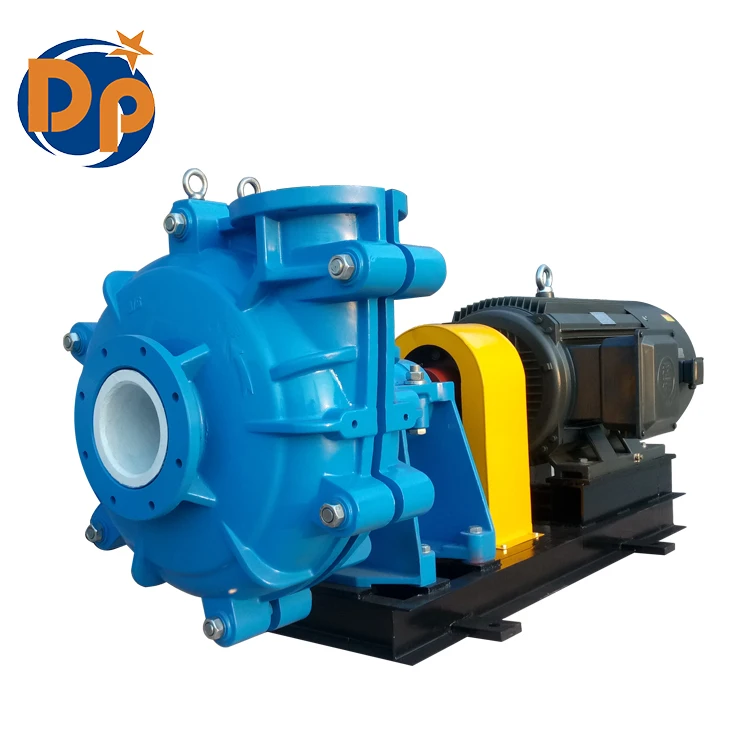

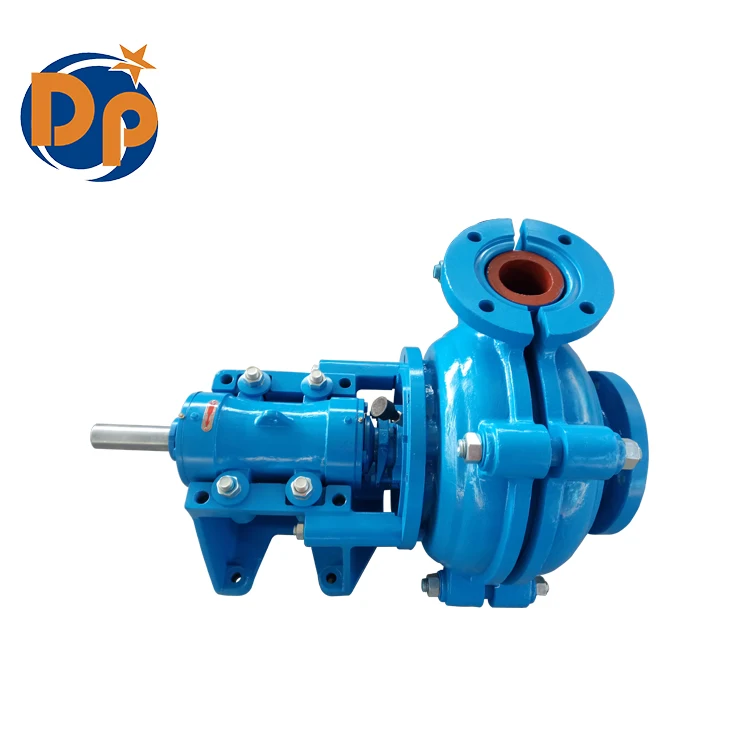

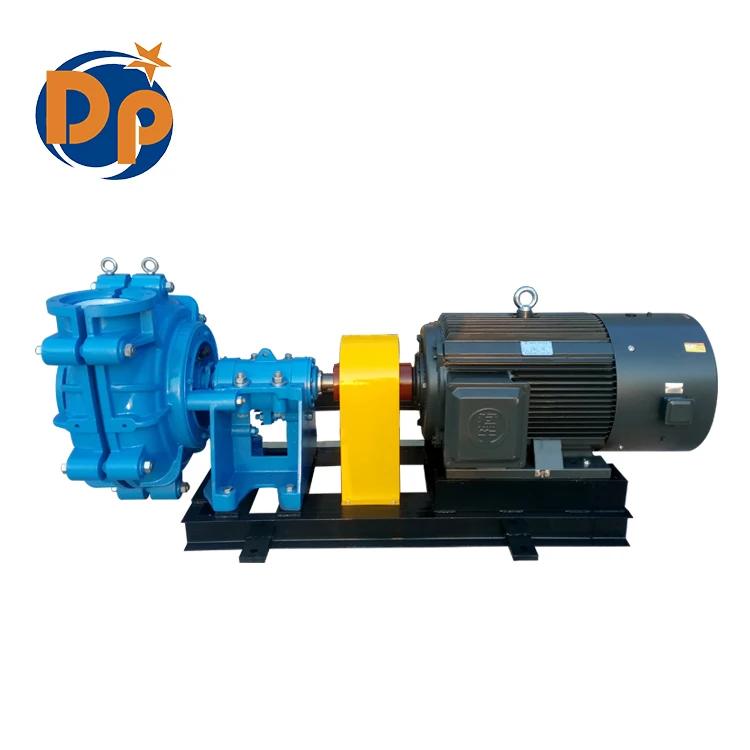

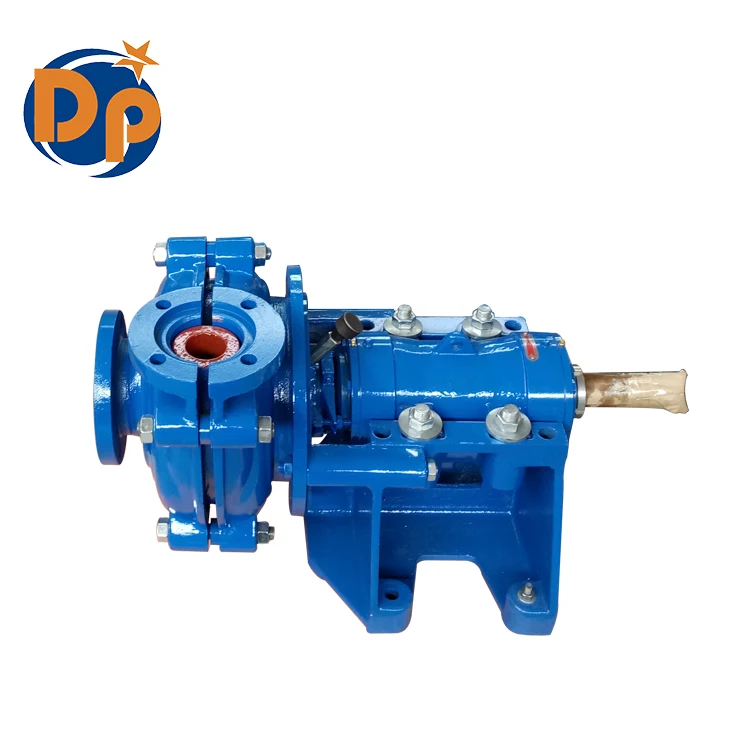

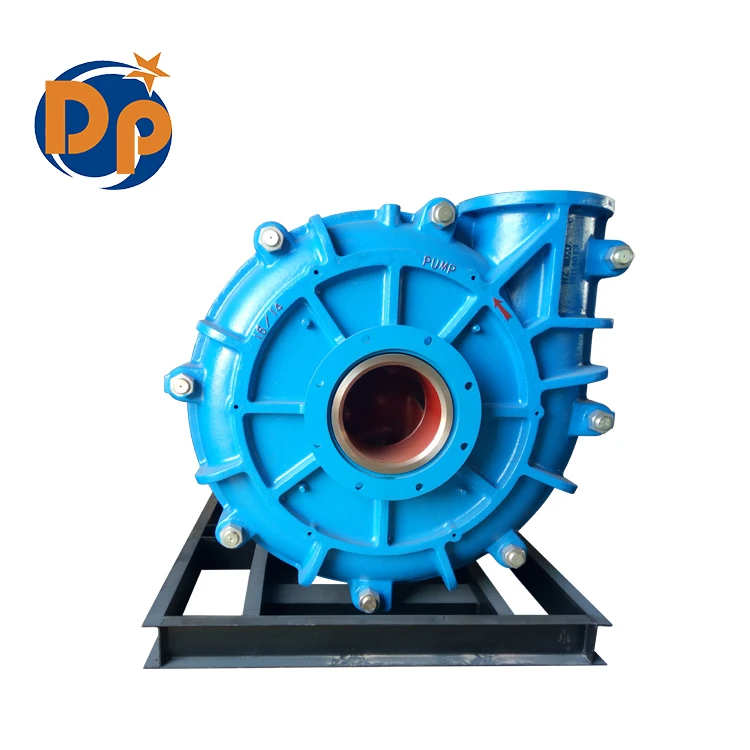

MAH Horizontal Slurry Pump
The Depump® slurry pump is the world’s standard for the most difficult mill duties. A wide variety of
impellers and shaft seals provide a perfect fit for a wide range of applications. The Depump® slurry pump provides excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost.
impellers and shaft seals provide a perfect fit for a wide range of applications. The Depump® slurry pump provides excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost.
Slurry Pump High Chrome (Cr27%) Material
CRz Driven Slurry Pump, for Mining use, solids dredging
MZJ Slurry Pump, for power plant, Aluminum plant, etc.
Material: High chrome(Cr27%), Rubber lined, Ceramic, Polyurethane
Details Images
Features
· Bearing assembly- large diameter shaft with short overhang contributes to long bearing life.
· Liners – easily replaceable liners are bolted, not glued to the casing for positive maintenance.
· Casing – Casing halves of cast or ductile iron provide high operating pressure capabilities.
· Impeller – front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
· Throatbush – wear is reduced and maintenance simplified by the use of tapered.
· Liners – easily replaceable liners are bolted, not glued to the casing for positive maintenance.
· Casing – Casing halves of cast or ductile iron provide high operating pressure capabilities.
· Impeller – front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
· Throatbush – wear is reduced and maintenance simplified by the use of tapered.
Product Paramenters
Performance Of DP-MAH | ||||||||||||||
Type | Max. power | Capacity | Head | Impeller | Max. particle size | |||||||||
Quantity of vanes | ||||||||||||||
kw | (m³/h) | (m) | (mm) | |||||||||||
1.5x1B-MAH | 15 | 3.6-21.6 | 6-65 | 5 | 14 | |||||||||
1.5x2B-MAH | 15 | 7.2-48.6 | 5-62 | 5 | 19 | |||||||||
2x3C-MAH | 30 | 21.6-88.56 | 15-40 | 5 | 21 | |||||||||
4x3C-MAH | 30 | 28.8-158.4 | 7-53 | 5 | 28 | |||||||||
6x4D-MAH | 60 | 72-331.2 | 11-64 | 5 | 44 | |||||||||
8x6E-MAH | 120 | 126-720 | 6-62 | 5 | 63 | |||||||||
10x8ST-MAH | 560 | 216-1051.2 | 9-64 | 5 | 76 | |||||||||
12x10ST-MAH | 560 | 316.8-1620 | 10-66 | 5 | 86 | |||||||||
14x12ST-MAH | 560 | 504-2455.2 | 10-75 | 5 | 90 | |||||||||
Company Profile
DEPUMP TECHNOLOGY is professional manufacturer in all kinds of centrifugal pumps, mainly slurry pump, water pump, chemical pump etc, and kinds of high quantity high head pumps are all available. The pumps are widely used in Mining, Metallurgy,Pro-environment, Construction, Papermaking, Aluminum, Power Plant, Irrigation and other industries.
Hope to cooperate with the world wide friends.After accumlation and development of 15 years, we have formed a complete system of pump design, selection,application, manufacture, marketing and maintenance. We still adhere technological innovation, top quality, service society, and propose unite, forward-looking, pragmatic, push. Our customers are at home and abroad.
Production Process
Application
Recommend Products
Why Choose Us
Our Services
1. Processing with supplied drawing
2. Processing with supplied samples
3. Produce all kinds of anti abrasive spare parts except for pump
4. Product warranty:lifetime, no matter how long to use,if there is air hole in the flow parts,please return it,will give you a new one to replace.
1. Processing with supplied drawing
2. Processing with supplied samples
3. Produce all kinds of anti abrasive spare parts except for pump
4. Product warranty:lifetime, no matter how long to use,if there is air hole in the flow parts,please return it,will give you a new one to replace.
FAQ
Q: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance.
Q: Which shipping terms are available?
A: By sea, air, Express
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
Q: What's your warranties?
A: 1 year after delivery
Q: Can I buy parts separately?
A: Yes, all of the pump spare parts can buy separately.
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance.
Q: Which shipping terms are available?
A: By sea, air, Express
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
Q: What's your warranties?
A: 1 year after delivery
Q: Can I buy parts separately?
A: Yes, all of the pump spare parts can buy separately.
