Комплект электродвигателя автомобиля для преобразования Автомобиля 15 кВт цена гидравлического

Комплект электродвигателя автомобиля для преобразования Автомобиля 15 кВт цена гидравлического

Категория: Двигатель переменного тока >>>
Поставщик: Foshan,Uni,Technology,Co.,Ltd.

Цена:650,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	774.47 $*	813.74 $*
Aug-16-2025	767.42 $*	805.41 $*
Jul-16-2025	644.53 $*	676.98 $*
Jun-16-2025	754.45 $*	792.21 $*
May-16-2025	657.97 $*	690.5 $*
Apr-16-2025	741.31 $*	778.73 $*
Mar-16-2025	735.21 $*	772.39 $*
Feb-16-2025	728.5 $*	764.59 $*
Jan-16-2025	722.59 $*	758.96 $*

Характеристики

Recommend Products

Tracked Chassis Undercarriage

Electric Motorcycle Conversion Kit

5kW PMSM System

30kW PMSM System

About Us

Uni Technology Co., Ltd. cooperates with such universities in China as Nanjing University of Science and Technology, Jiangnan University, Sichuan International Studies University to develop cost-effective powertrain systems with high power density, high reliability, matching ISO26262 for different models (tricycles, logistics cars, commercial vehicles and passenger vehicles) based on the their requirements and future markets, at the same time, we also work with automobile manufacturers like Jiangling, Marshell Green Power, China FAW Group Corporation.

Our team members:
1. Managers with a comprehensive understanding of the market
2. Experienced engineers who have engaged in electric vehicle industry for more than 10 years with full proficiency in technology
3. Energetic and motivated colleagues
After years of development, the supply & sales chain was adjusted and improved constantly and now became a completed system. We can provide comprehensive service from pre-sales introduction to after-sales technical support.

Our products:
1. AC driving system (3kw-15kw): AC motor and controller
2. PMSM driving system (3kw-50kw): PMSM motor and controller
3. Transmission assembly: rear axle, front live shaft, reducer and rear/front drive assembly

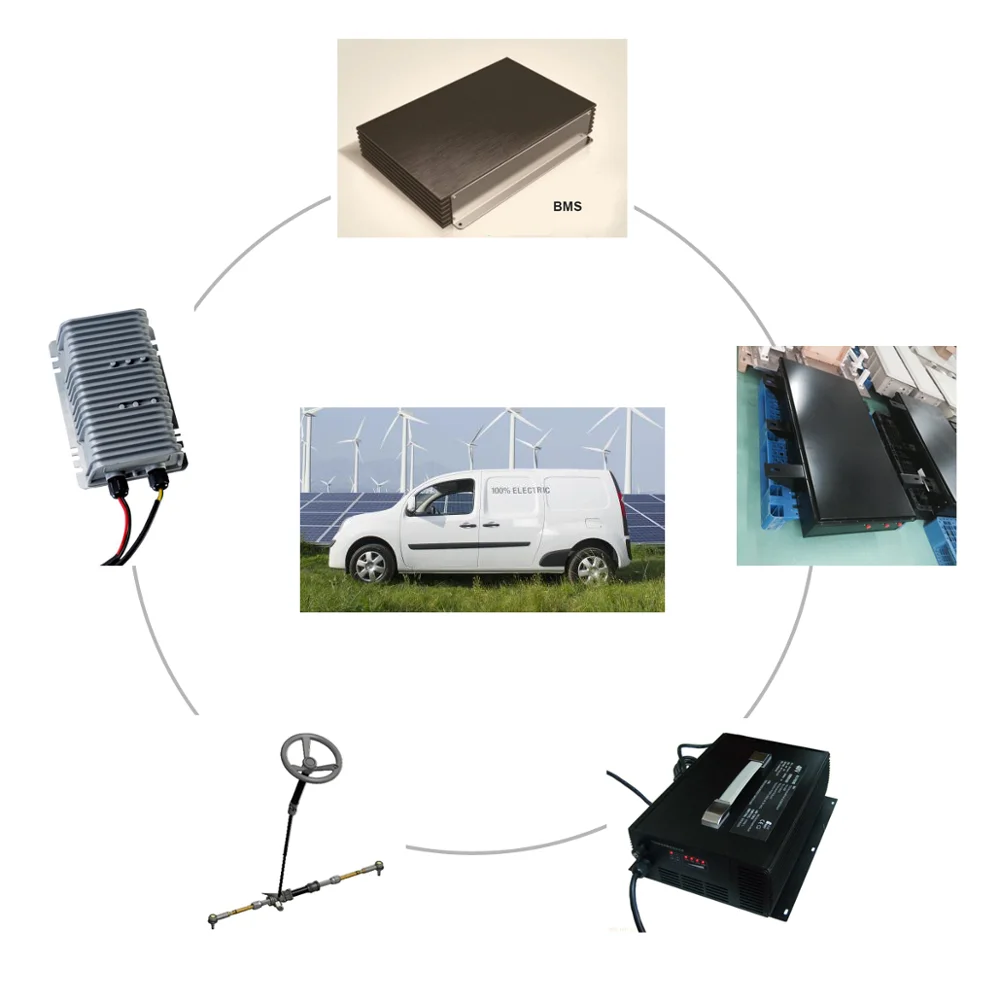

4. Power supply system: battery charger and Lithium battery

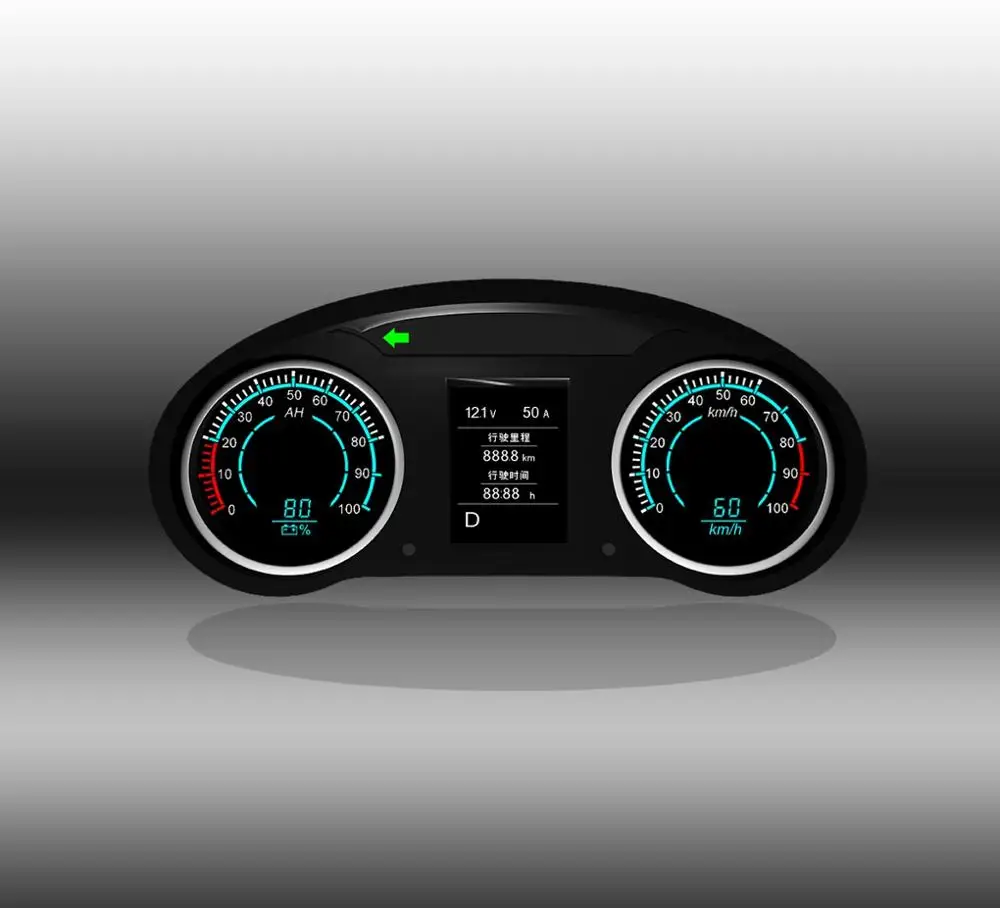

5. Other components: DC-DC converter, dashboard, pedal, encoder and brake

Both AC motor system and PMSM motor system have their advantages and disadvantages. Through continuous experimentation and practice, we found that PMSM motor is more energy-saving comparing with AC motor, but the latter is also irreplaceable in some places or occasion (see FAQ Q1 for more information about the differences between AC motor and PMSM motor). If you are not sure what type of motor and what power to be used in your equipment, fee free to contact us. We have a whole team to give you support.

Product Description

Specification

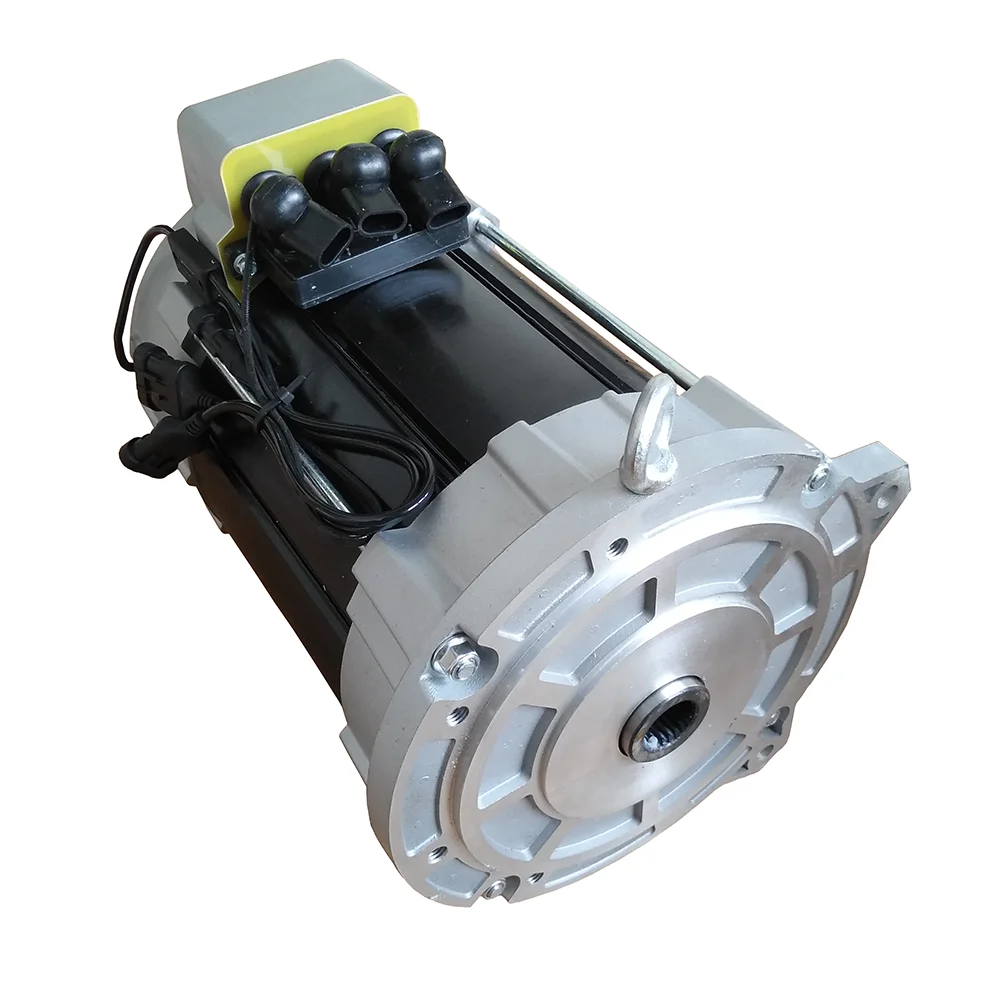

AC Motor	Rated Power: 3kW-15kW	Rated Voltage: 48V-96V	Max. Torque: 60N.m-140N.m
PMSM Motor	Rated Power: 3kW-50kW	Rated Voltage: 48V-576V	Max. Torque: 60N.m-1000N.m

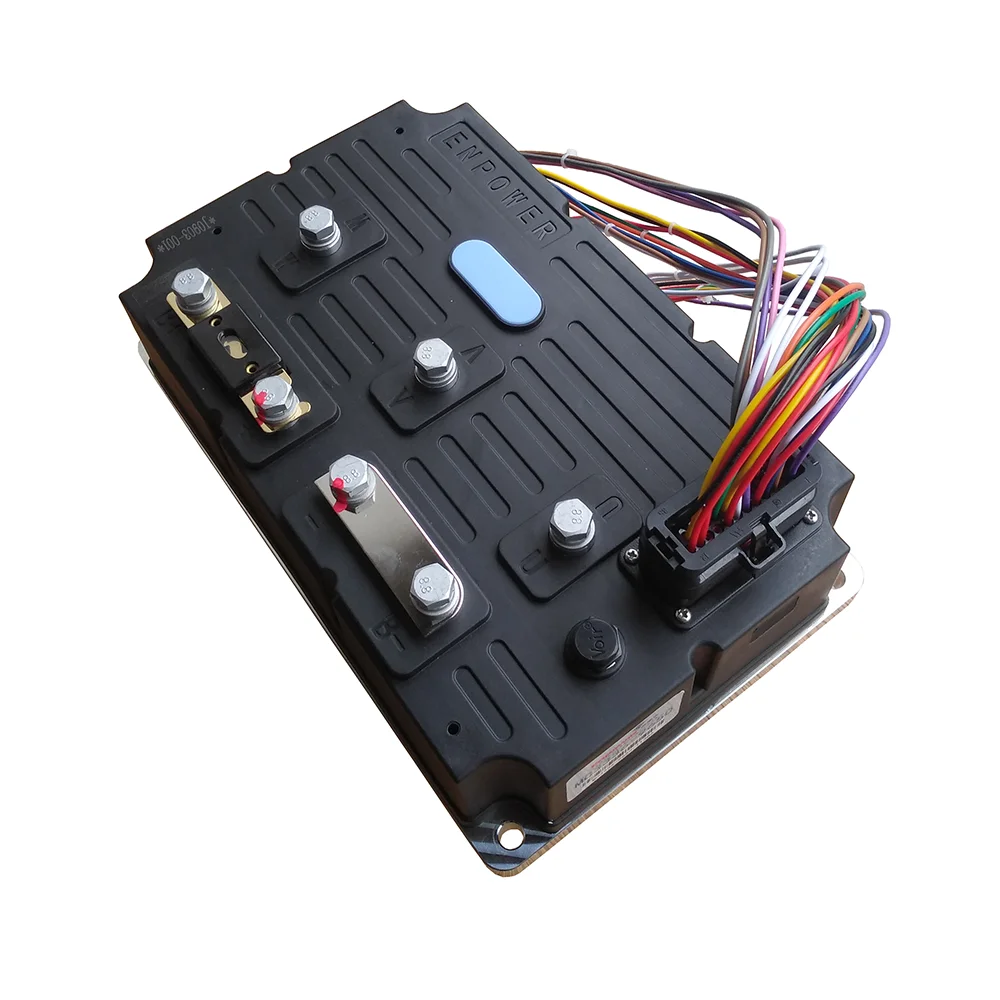

AC Motor Controller	Rated Power: 3kW-15kW	Rated Voltage: 48V-96V	Max. Current: 250-500A
PMSM Motor Controller	Rated Power: 3kW-50kW	Rated Voltage: 48V-576V	Max. Current: 300-500A
Gearbox	Ratio:6:1/8:1/10:1/12:1	Torque Capacity:180N.m	Net Weight:15~30kg

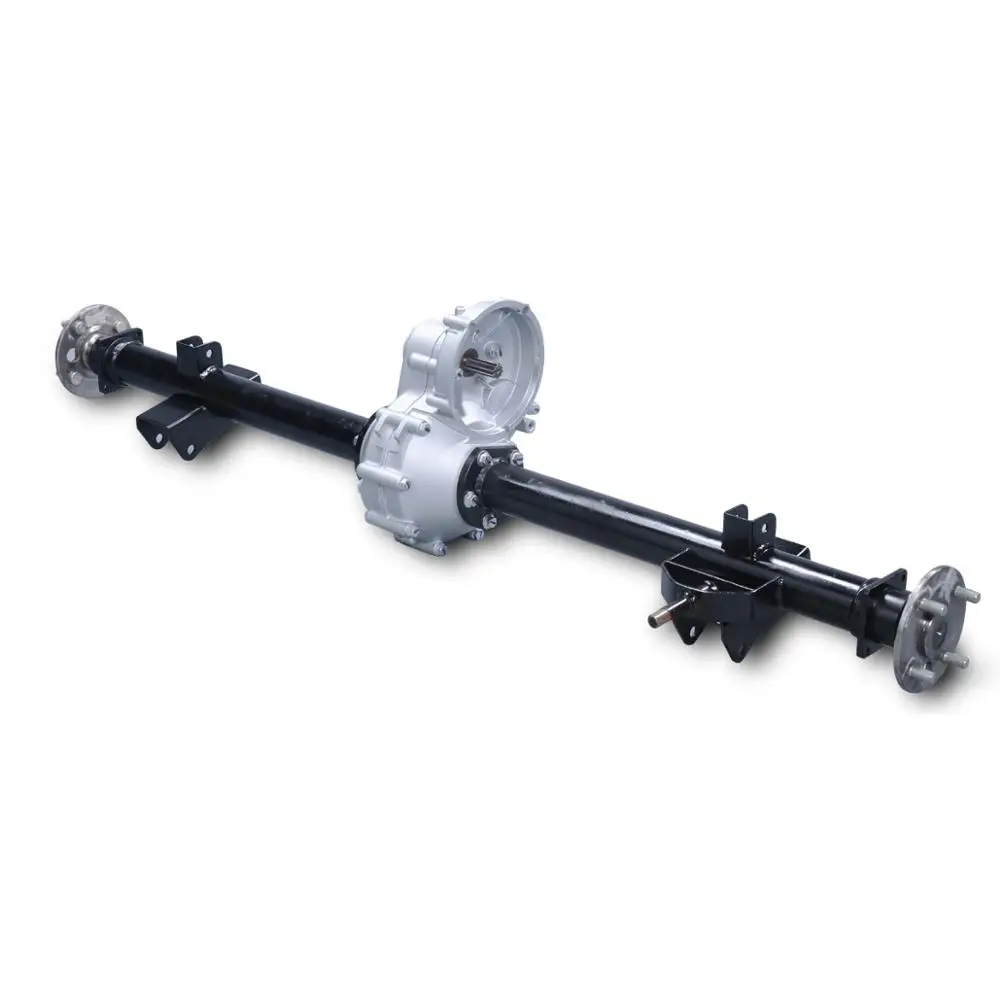

Rear Axle	Ratio:6.5/8.6/10.5/12.31/14.5/16.9/18.6	Standard Length: 850mm/950mm	Break Type: drum/disc hydraulic pressure

Electric Vehicle Power System Training Platform

Cases

15kW Electric Car Conversion Kit

After calculation, we use the following driving system.

Motor Power	15/45	Max. Torque (N.m)	140
Speed (rpm)	3000/6500	Rated Voltage (V)	DC108

The max. speed is 110km/h.

Production & Service

R&D Department

We have a strong R&D team with many years of experience in areas such as electrical, electronics, software, machinery, automation, etc.

Production Center

A full set of processing equipment can guarantee the accuracy;

Advanced automatic wire embedding system is to ensure the consistency;

Semi-automatic production line will improve the productivity.

Motor Production

Semi-automatic production line: more than 80% automation
60 sets in a single shift; annual production: 15,000; max. annual production: 45,000 sets

Controller Production

Semi-automatic controller production line: more than 80% automation
100 units in a single shift

Quality Management

The quality assurance department will supervise the production process and the test equipment can insure the product quality.

Certifications

Packing & Delivery

Normal package is wooden box and it will be fumigated. Sometimes cartons will be chosen if by air. If there are any special requirements, please talk to our sales person.
