Product Description

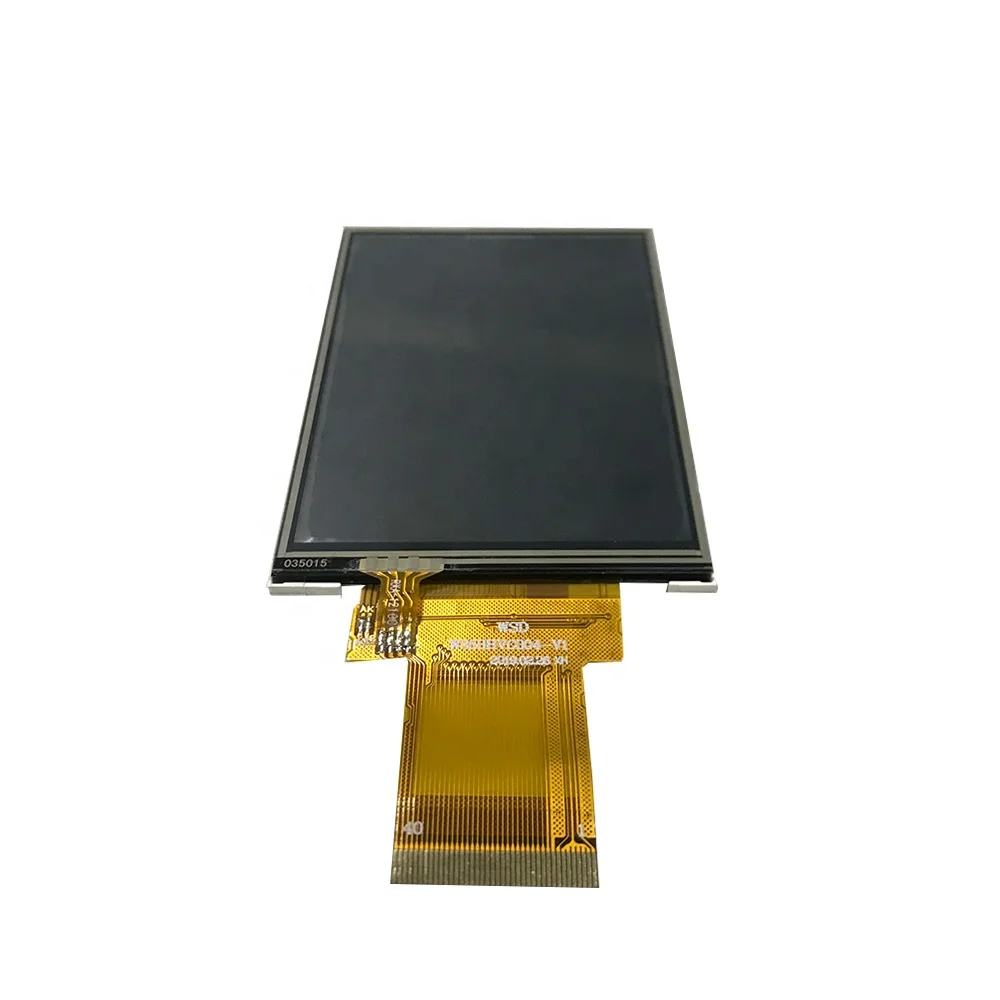

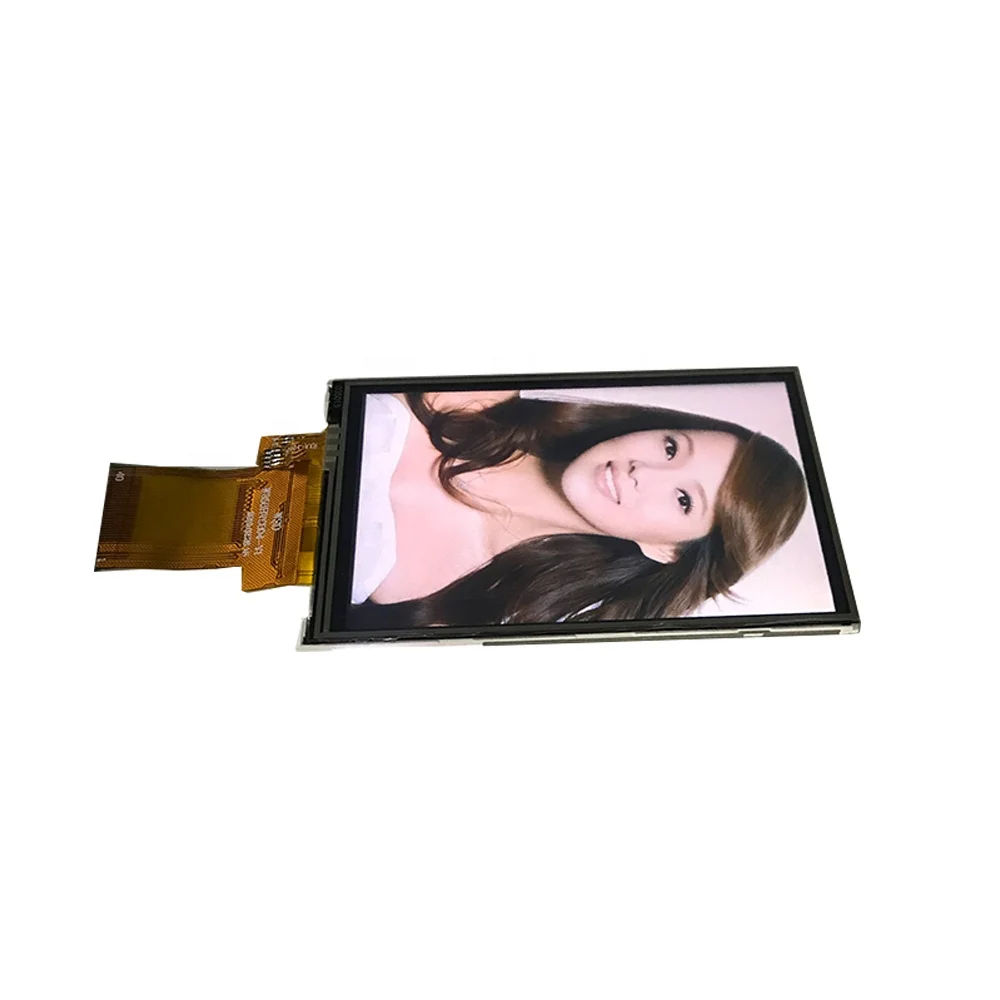

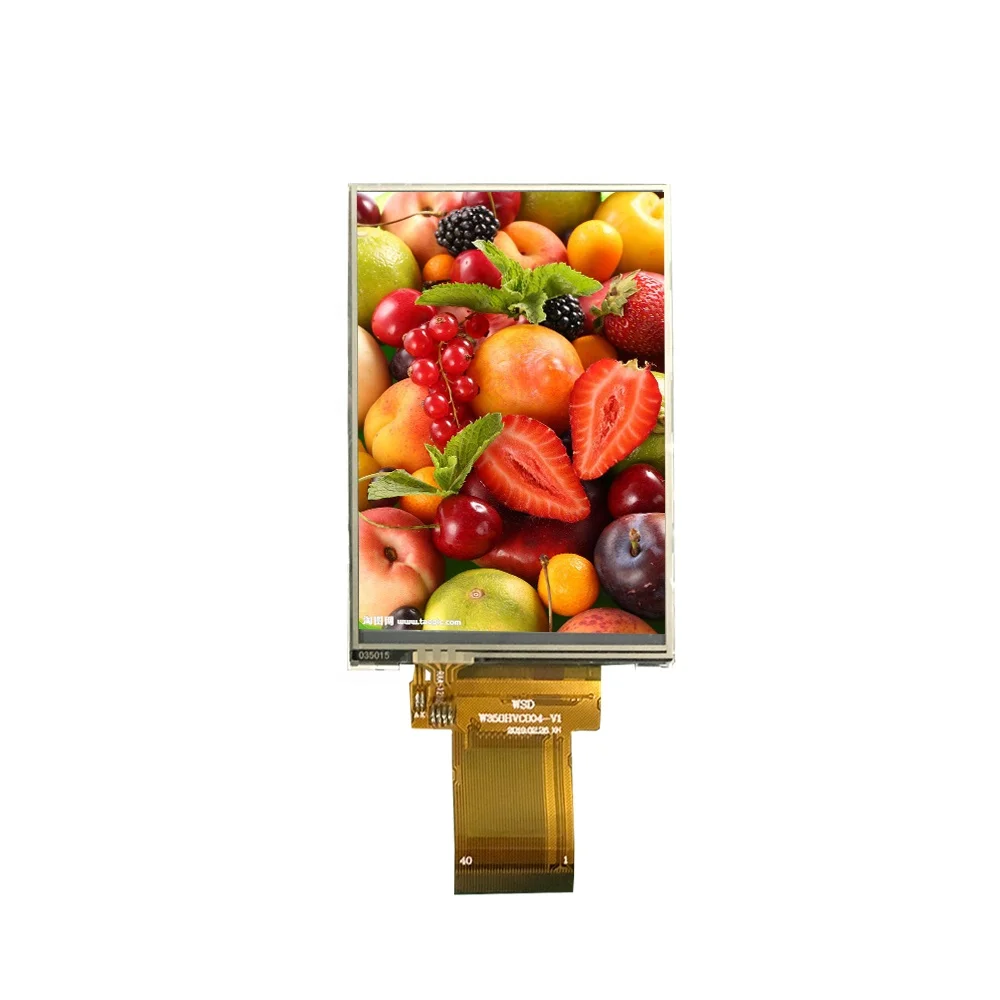

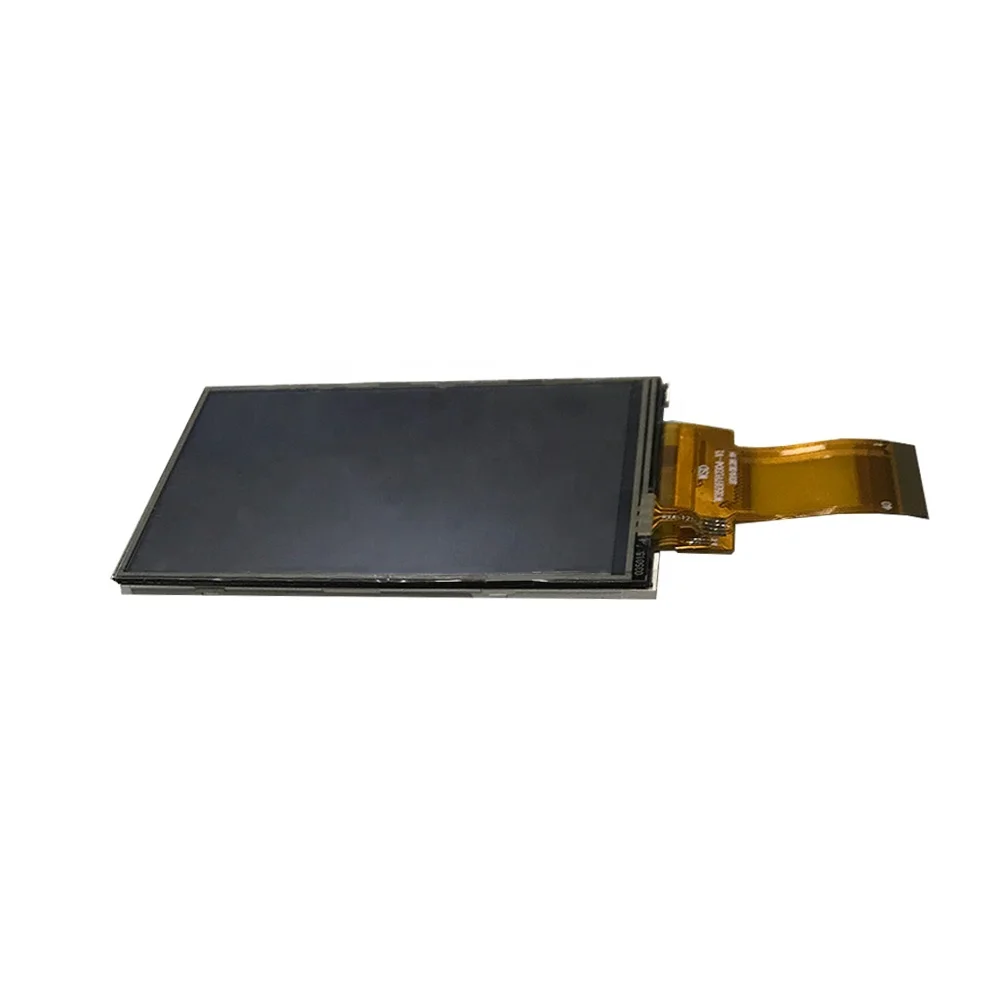

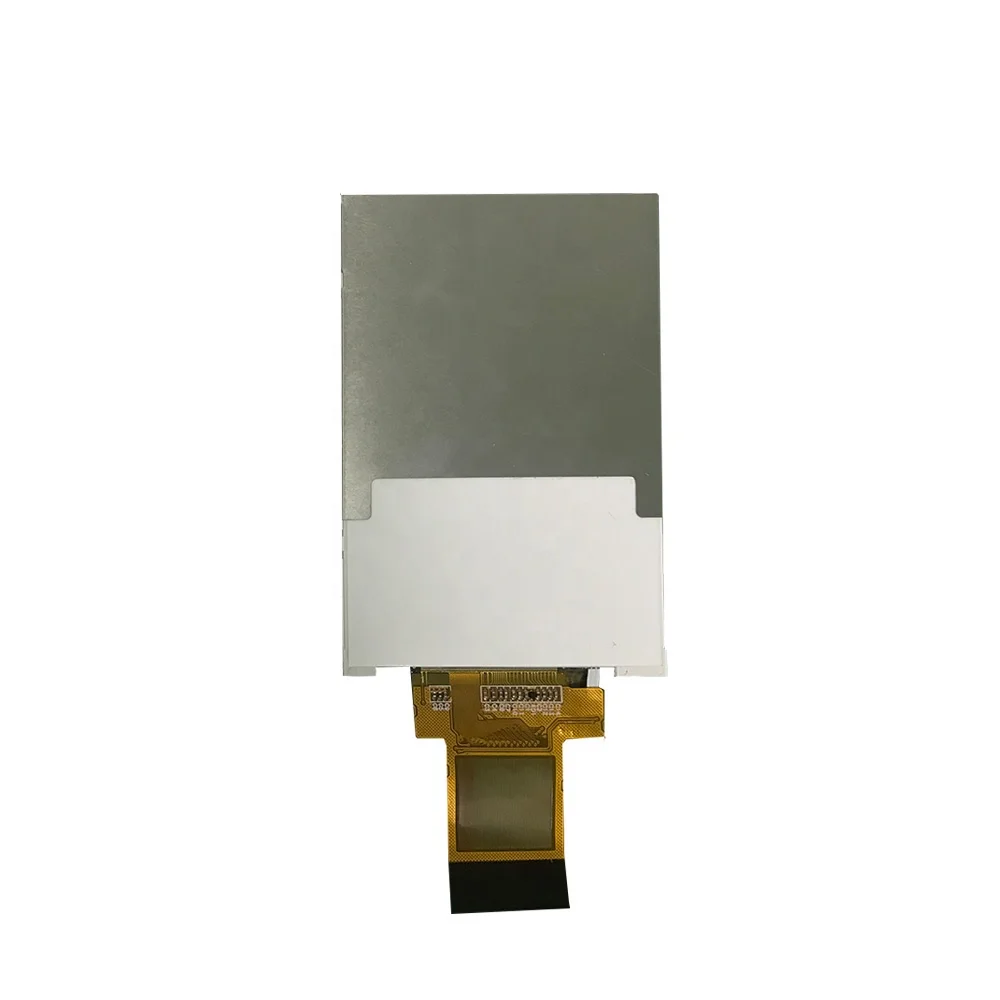

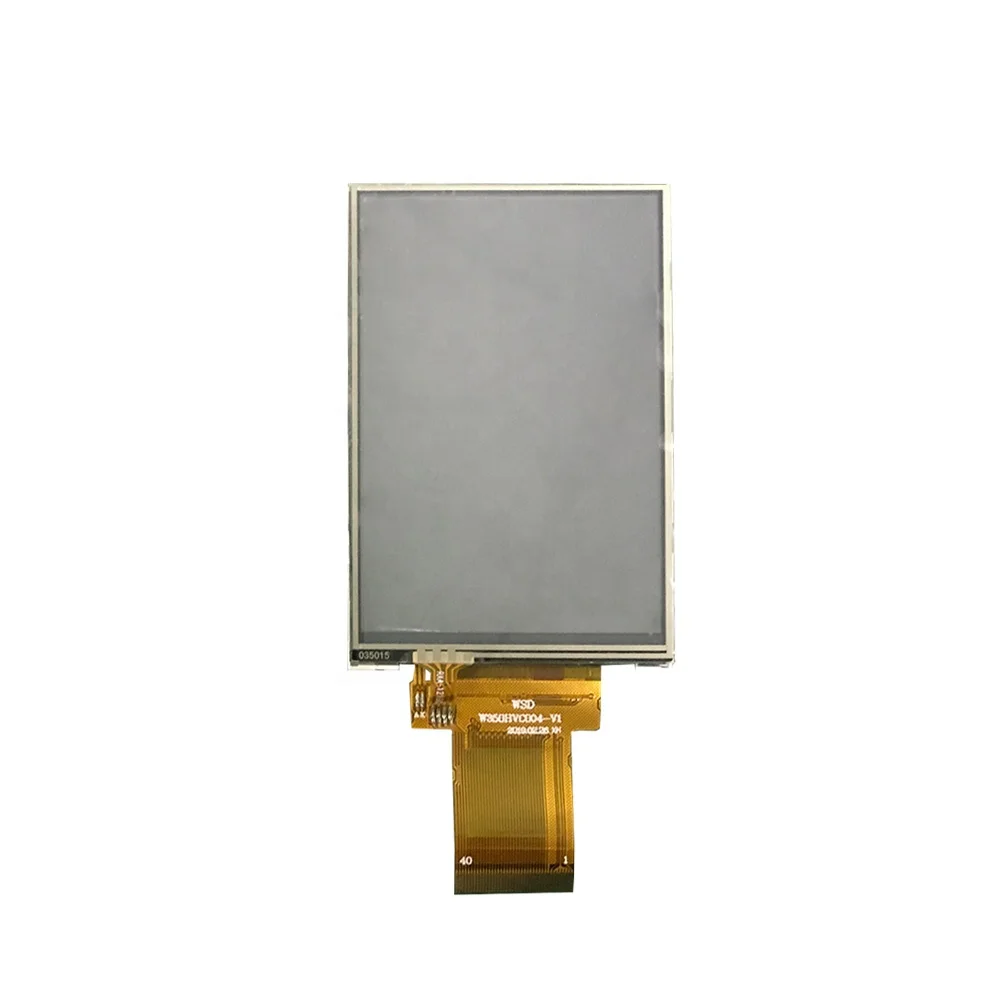

3.5 inch 320*480 resolution 40 pin tft lcd touch display ILI9488 driver IC lcd with RTP
Parameters
Item | Specification |
Display Mode | Normally White,Transmissive |
Display Technology | α-Si TFT active matrix |
Outline Dimension | 54.5(H) X 83.0(V) X 2.1(T)mm |
Active Area | 48.96 (H) X 73.44 (V)mm |
Resolution | 320X(RGB)X480dots |
Pixel Pitch | 0.153X0.153mm |
Pixel Configuration | RGB Stripe |
Backlight | White LED |
Luminance | (350)(Typ.)cd/m2 |
Surface Treatment | Anti-Glare |
Driver IC | ST7796S |
Viewing Direction | 12o’clock |
Pin
| Interface NO. | Symbol | I/O or connect to | Description | When not in use |
| 1 | LEDA | LED DRIVER | Backlight anode. | - |
| 2-7 | LEDK1-K6 | LED DRIVER | Backlight cathode. | - |
| 8 | RESET | I/O | Reset pin. | - |
| 9 | GND | PWR SUPPLY | GROUND. | - |
| 10 | VCC | PWR SUPPLY | Power supply for analog and booster circuits, 2.3V~3.3V. | - |
| 11 | DE | I/O | Data enable signal for RGB interface operation. | GND/IOVCC |
| 12 | DOTCLK | I/O | Dot clock signal for RGB interface operation. | GND/IOVCC |
| 13 | HSYNC | I/O | Horizontal synchronizing input signal for RGB interface operation. | GND/IOVCC |
| 14 | VSYNC | I/O | Vertical synchronizing input signal for RGB interface operation. | GND/IOVCC |
| 15-20 | R5-R0 | I/O | R.G.B Green Data bus. | GND/IOVCC |
| 21-26 | G5-G0 | I/O | R.G.B Red Data bus. | GND/IOVCC |
| 27-32 | B5-B0 | I/O | R.G.B Blue Data bus. | GND/IOVCC |
| 33 | SDI | I/O | SPI interface data input pin. | GND/IOVCC |
| 34 | SCL | I/O | SPI interface clock signal. | GND/IOVCC |
| 35 | CS | I/O | Chip selection pin. Low-active. | - |
| 36 | SDO | I/O | SPI interface data output pin. | - |
| 37 | XR | - | RTP right control signal | - |
| 38 | YD | - | RTP down control signal | - |
| 39 | XL | - | RTP left control signal | - |
| 40 | YU | - | RTP up control signal | - |
Drawing
