Product Details

Alloy cement pneumatic butterfly valve

1. Description of Alloy cement pneumatic butterfly valve

Butterfly valve is a valve which can be used for isolating or regulating flow. The closing mechanism takes the form of a disk.When the valve is closed, the disc is turned so that it completely blocks off the passageway. When the butterfly valve is fully open, the disc is rotated a quarter turn so that it allows an almost unrestricted passage of the fluid. The butterfly valve may also be opened incrementally to throttle flow.

Cement butterfly valve is the company developed specifically for powder, granular materials for industrial products. Die-cast body with lightweight aluminum alloy, the disc is lined with wear-resistant steel core polymer material, soft and wear-resistant rubber ring seal makes it very suitable for the formation of various interest powder, granular materials application, especially for the strong abrasive materials. In need of gravity blanking or pneumatic conveying powder, granular material handling systems, butterfly valve are often installed in the hopper, silo, screw conveyor outlet and a gas delivery pipeline.

\t Product name	\t Alloy cement pneumatic butterfly valve
\t Material	\t Aluminum alloy
\t Color	\t Customized
\t Working temp	\t -20~150℃
\t Drive Type	\t Manual /Worm Gear /Pneumatic Actuator
\t Working medium	\t Cement, Slurry, Dust
\t Size	\t DN100-DN400
\t Advantage	\t Durable but easy for installation and maintenance.
\t Delivery time	\t 10 days after payment
\t Payment terms	\t L/C, T/T, CASH
\t Port	\t Shanghai,China
\t MOQ	\t 10Pieces

2. Main Performance Specification of Alloy cement pneumatic butterfly valve

\t Single Flange Butterfly Valve	\t Included one piece up flange and down is equipped with a projecting connecting ring for mounting a soft cannula
\t Double Flange Butterfly Valve	\t Included up and down two pieces same flange

\t Valve Name	\t Alloy cement pneumatic butterfly valve
\t Nominal Diameter	\t DN100~DN400
\t Nominal Pressure	\t PN(MPa)	\t 0.6	\t 1.0	\t 1.6
\t Test Pressure	\t Strength Test	\t 0.9	\t 1.5	\t 2.4
	\t Seal Test	\t 0.66	\t 1.1	\t
	\t Low-pressure Gas Seal Test	\t 0.5~0.7
\t Applicable Medium	\t Cement Slurry Dust
\t Applicable Temperature	\t Aluminum alloy:-19°C~640°C

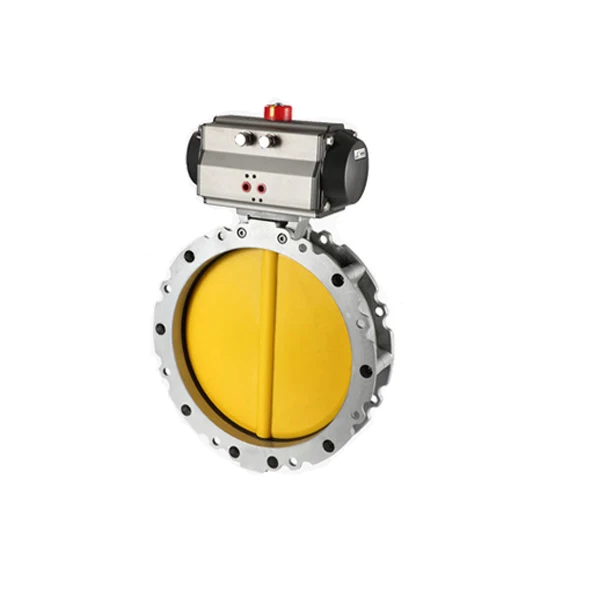

Product Picture

Alloy cement pneumatic butterfly valve

Dimension
