  Detailed Images:

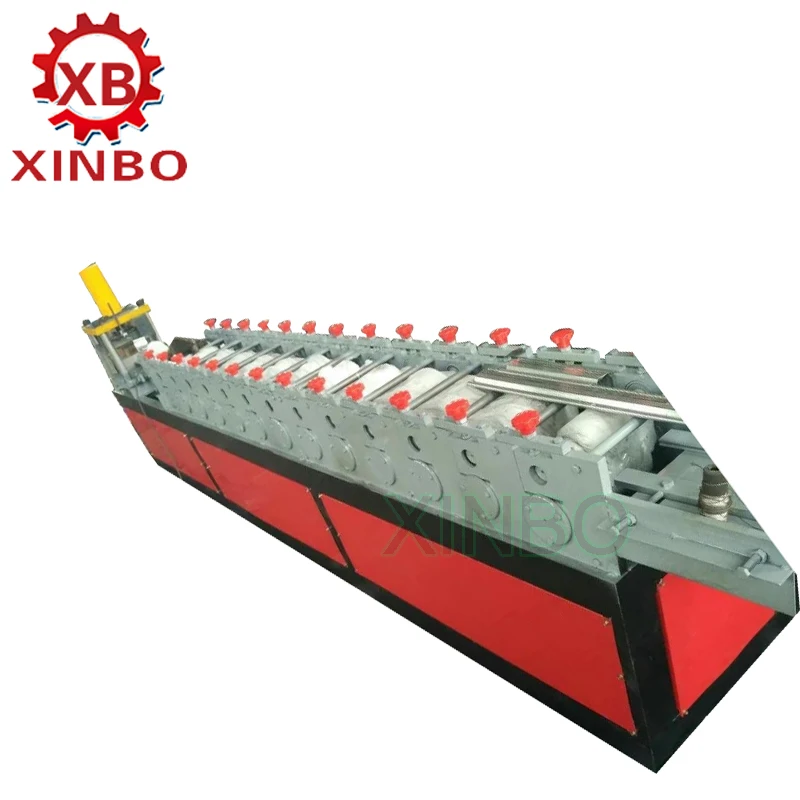

Rollers

In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.

Roller Station:11-18rows

Or custome an customer's requirements Thickness of feeding material:0.3-0.8mm

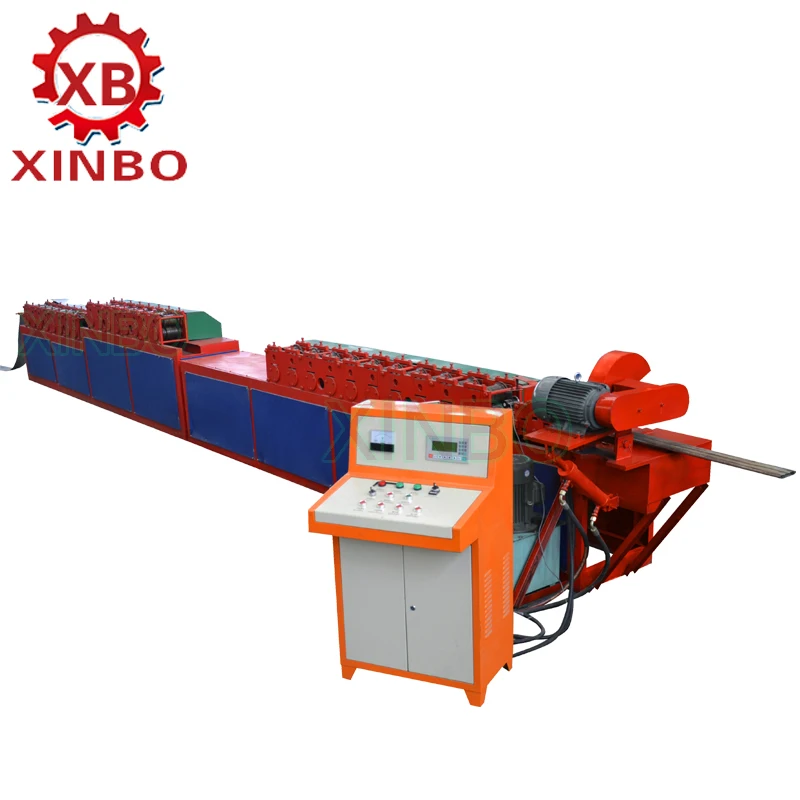

Computer Control Cabinet

It adopts PLC to control. The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.

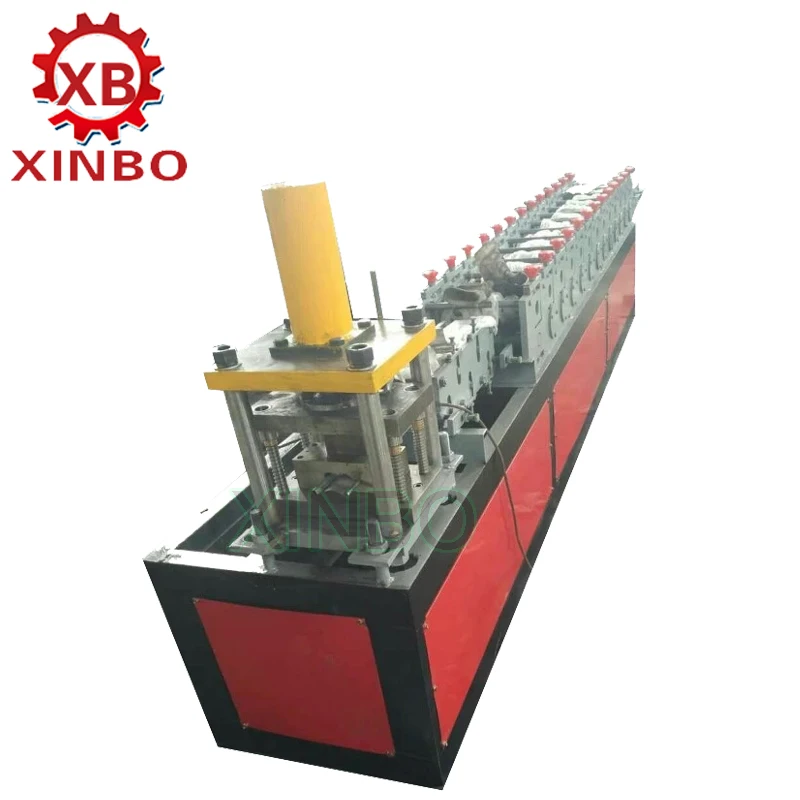

Hydraulic Station:

It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.

Power of The Pump:4kw

Hydraulic oil :40#





Material of the cutting:Cr12Mov with quenched treatment.

It can decide cut panel dimension acoording to the hydraulic drive and PLC computer control system.

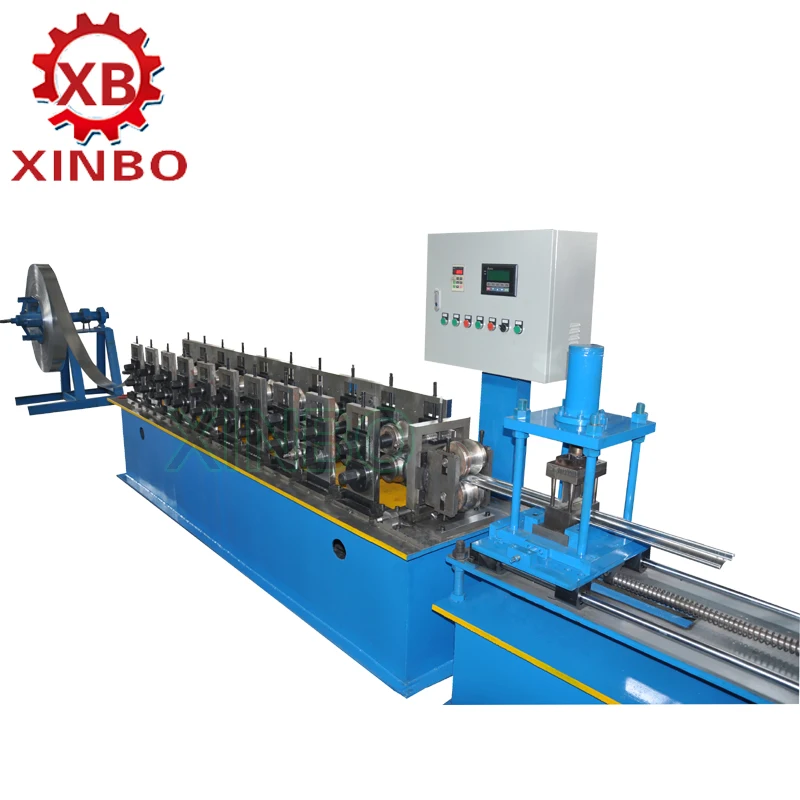

It is used to support the steel coil and uncoil it in a turnable way.

Loading capacity:1-2T

Inner diameter: 450-508mm



Packing:

Main machine is nude, the computer control box is packed with wooden frame.

Main machine is nude in the container, the computer control box is packed with wooden packaging.







 Our service:





This producing line is maintained free of charge for 18 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug.

Company Information:





Botou Xinbo Machine Making Company mainly produce and sell All kinds of machines and cnc machining services. roll forming machines,C Z purlin machine, deck floor machines,stud &track light keel machine, T grid machine, downpipe machine,EPS and Rockwool sandwich panel machines for the building structure and all kinds of CNC machining services.

FAQ

Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name components.

Q: What size decoiler can you supply us with?

A: From 5-ton decoiler to a 25-ton motorized hydraulic decoiler

 Q: How to visit your company?

A:a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.

    b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

 Q: What can you do if the machine broken?

A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
