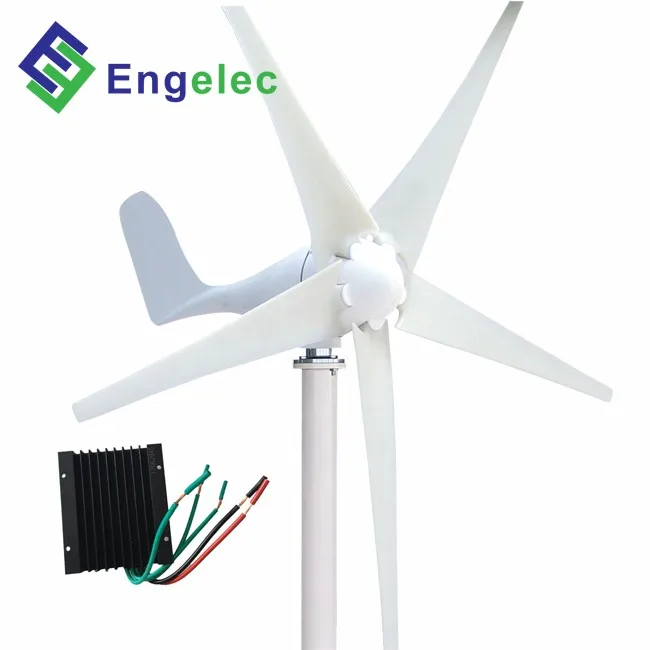

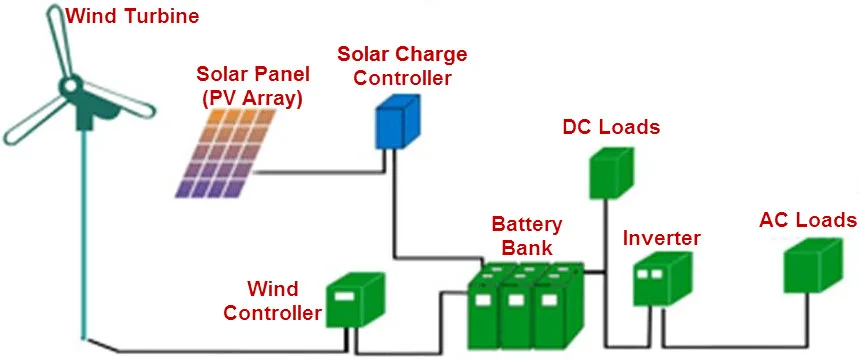

Wind turbine home use wind solar hybrid road light system 12V/24V/48V,100% full power 100W-1000W wind tubine generator

 The price on page for 300w 3pcs blades only, if you need other types, welcome to send me inquiry.

Specification Sheet

Model	EN-100W-S	EN-200W-S	EN-300W-S	EN-400W-S
Rated power	100W	200W	300W	400W
Max power	130W	220W	310W	410W
Nominal voltage	12V/24V	12V/24V	12V/24V	24V
Start-up wind speed	2.0m/s	2.0m/s	2.0m/s	2.0m/s
Rated wind speed	10m/s	11.5m/s	13m/s	13m/s
Survival wind speed	55m/s	55m/s	50m/s	50m/s
Top net weight	6kg	6.2kg	6.5kg	6.8kg
Wind wheel diameter	1.2m	1.3m	1.35m	1.4m
Number of blades	3/5pcs
Blades material	Nylon Fiber
Generator	Three phase ac permanent magnet generator
Controller system	Electromagnetic
Speed regulation	The wind Angle automatically
Working temperature	-40°C~80°C

wind tubine generator






Model	EN-400W-M2	EN-500W-M2	EN-600W-M2
Rated power	400W	500W	600W
Max power	420W	52W	610W
Nominal voltage	12V/24V	24/48V	24/48V
Start-up wind speed	2.5m/s	2.5m/s	2.5m/s
Rated wind speed	11m/s	11.5m/s	12m/s
Survival wind speed	45m/s	45m/s	45m/s
Top net weight	14.5kg	15kg	15.5kg
Wind wheel diameter	1.75m	1.75m	1.75m
Number of blades	3/5pcs
Blades material	Nylon Fiber
Generator	Three phase ac permanent magnet generator
Controller system	Electromagnetic
Speed regulation	The wind Angle automatically
Working temperature	-40°C~80°C





Model	EN-600W-M4	EN-700W-M4	800W-M5	EN-1000W-M5
Rated power	600W	700W	800W	1000W
Max power	630W	720W	820W	1050W
Nominal voltage	24V/48V	24V/48V	24V/48V	48V
Start-up wind speed	2.5m/s	2.5m/s	2.5m/s	2.5m/s
Rated wind speed	11m/s	11m/s	12m/s	12.5m/s
Survival wind speed	45m/s	45m/s	40m/s	40m/s
Top net weight	20kg	21kg	29kg	30kg
Wind wheel diameter	1.85m	1.85m	2.2m	2.4m
Number of blades	3/5pcs
Blades material	Nylon Fiber
Generator	Three phase ac permanent magnet generator
Controller system	Electromagnetic
Speed regulation	The wind Angle automatically
Working temperature	-40°C~80°C





Feature

• Low starting wind speed, wind energy utiilization rate is high, 5 blade fan effectis more obvious; samll volume and beautiful shp.
• easy installation and using humani*/zd design, equipment installation, maintenance and overhaul.
• Rotor blade adopts nylon fiber material, and uses the aluminum alloy die-casting forming, with the optimization of aerodynamic design and structural design, high wind energy utilization coefficient, increase the power generating capacity.
• Generator adopts the patent technology of permanent magent rotor ac generator, the stator with special design, effectively reduce the resistance torque of the generator, at the same time make wind turbines and generators have bettery machine characteristic, the raliability of unit operation.
• The design of interior fuselage with double bearing, effective guarantee the stability of the fan type, security, low vibration.
• Install screw, flange ... are all stainless steel material, and is equipped with insulation paper, copper cap, secuity, stability, spare parts, etc.
• The fuselage, the wheel hub, and other products are plastic coloring, anti-corrosioin, fade, rust prevention, long service life.



wind tubine generator







wind tubine generator

Packing

wind tubine generator

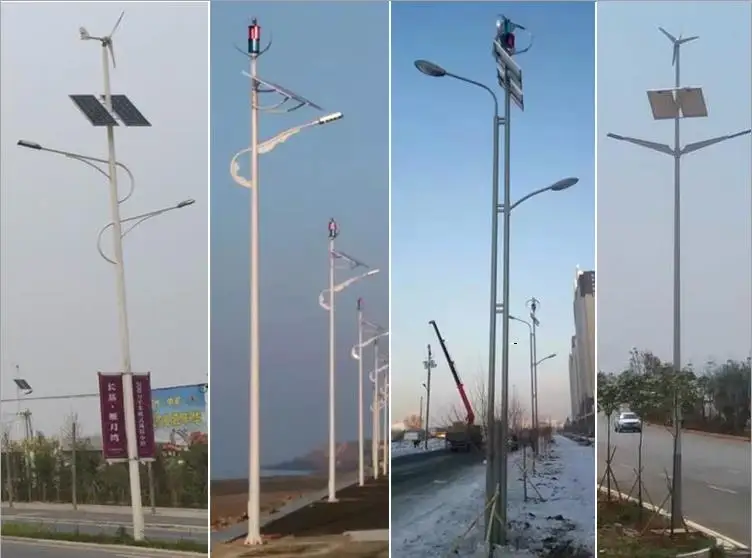

Project Case





Company showcase







Pls feel free to contact me for more information!
