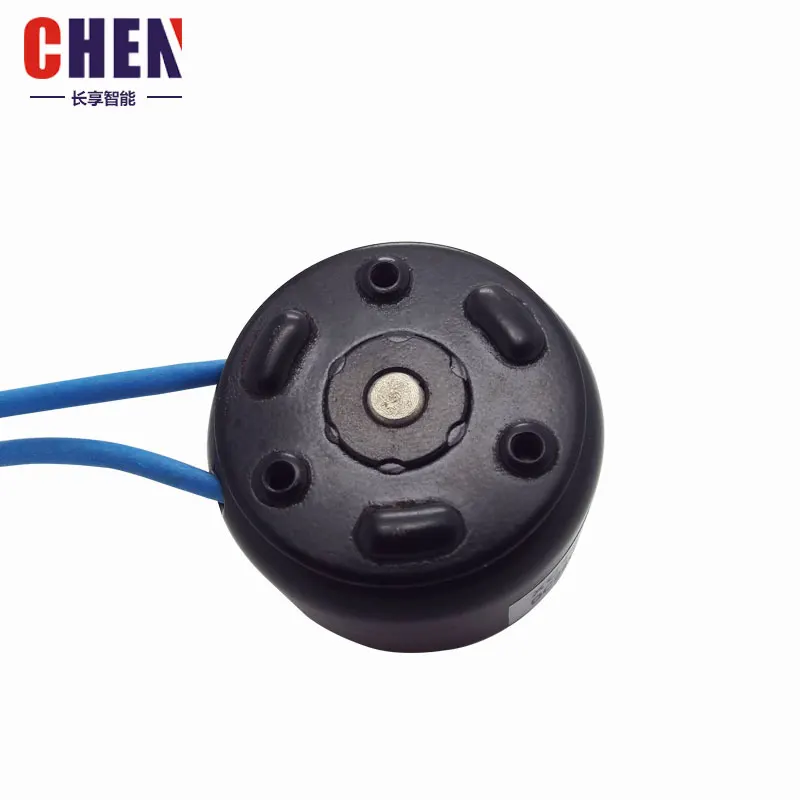

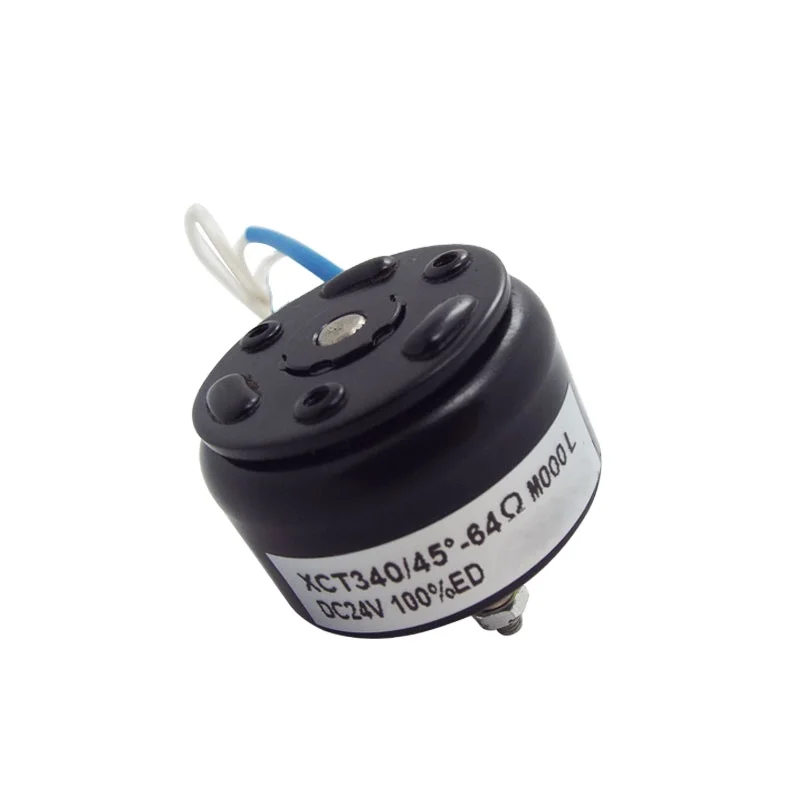

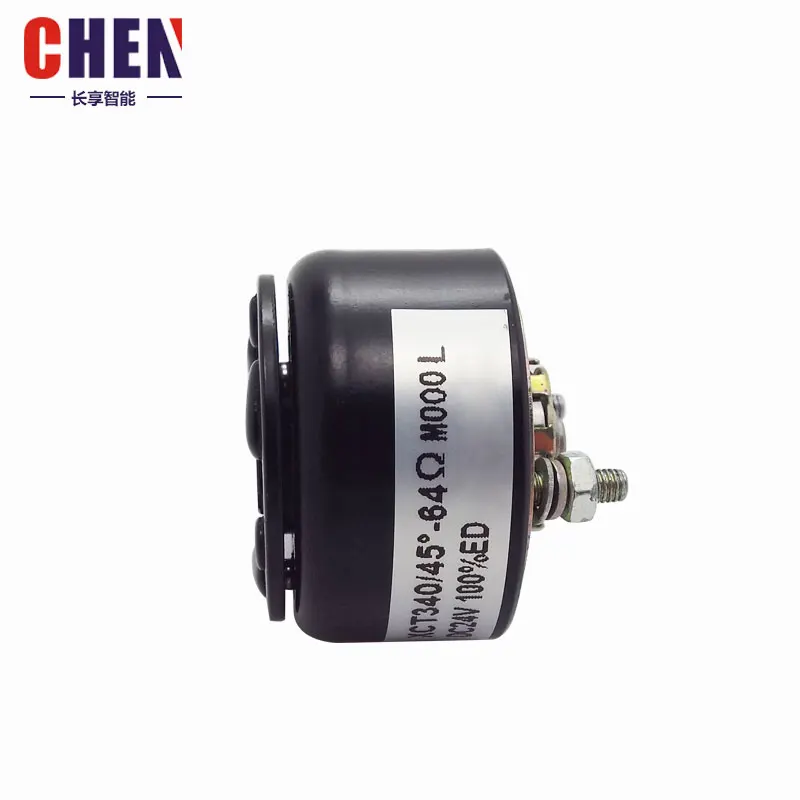

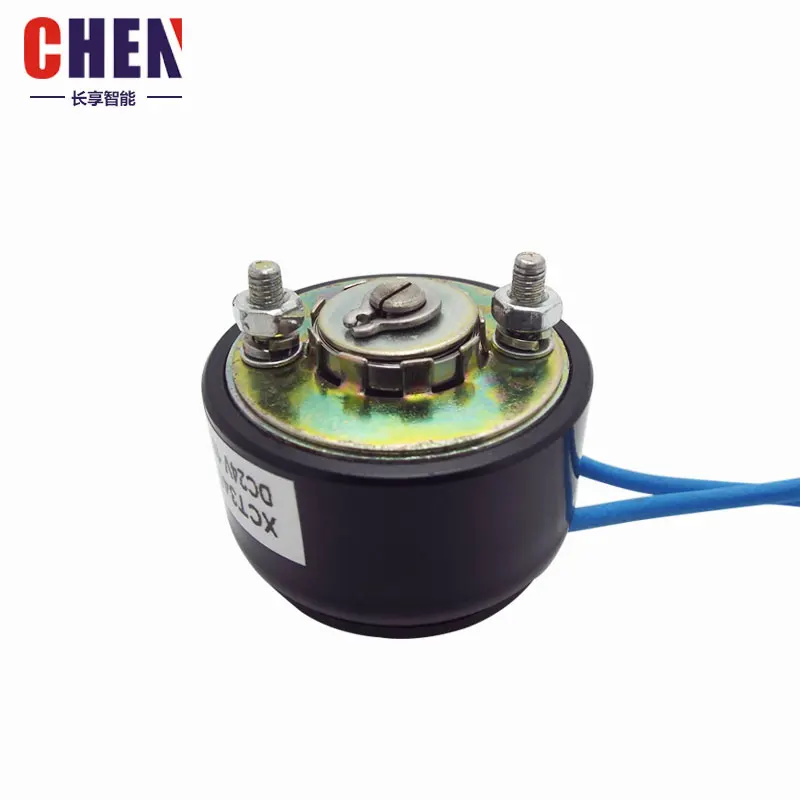

XCT340 45degree 64ohm 100% duty cycle 24V DC rotary solenoid electromagnet
Product Description
There is special slide on the shell and armature plate of rotary solenoid, steel ball rolling in the slide way, to change the axial linear motion of the solenoid into fixed direction and angle rotary motion . The contact surface of the slide and the steel ball, after the special craft processing, its hardness is greater than HRC62. The hardness layer depth is more than 0.3mm.
If your rotary motion device is composed of a click, cam, crank, connecting rod and such mechanism, then switch to the rotary solenoid can greatly simplify the original mechanism, and further improve the reliability.
Model | Dia. | Height | Angle | Torque | Specification | ||||
mm | mm | 25° | 35° | 45° | 70° | 95° | N·m |
| |
XCT300 | 29 | 25 | ◊ | ♦ | ◊ | ◊ | ◊ | 0.127 |
|
XCT340 | 34 | 30 | ♦ | ♦ | ♦ | ◊ | ◊ | 0.31 |
|
XCT400 | 40 | 34 | ♦ | ◊ | ♦ | ♦ | ◊ | 0.52 |
|
XCT490 | 49 | 43 | ♦ | ♦ | ♦ | ♦ | ◊ | 1.39 |
|
XCT491 | 49 | 43 | ♦ | ♦ | ♦ | ♦ | ◊ | 1.54 |
|
XCT590 | 59 | 55 | ♦ | ♦ | ♦ | ♦ | ◊ | 3.2 |
|
XCT591 | 59 | 61 | ♦ | ♦ | ♦ | ♦ | ◊ | 3.45 |
|
XCT700 | 70 | 67.5 | ♦ | ♦ | ◊ | ◊ | ◊ | 4.90 |
|
Note | 1. The Height is the standard size, it can be adjusted according your requirement. 2. The main body size can’t be changed, but the center shaft or style can be customer made. 3. Torque parameter table of 25 °'s products in the duty cycle of 10% the result of the work situation. Specific parameters, please refer to the specification document [PDF] described. 4. Tables for ( ◊ ) Order products because of less comprehensive, need only produce bulk orders. | ||||||||
