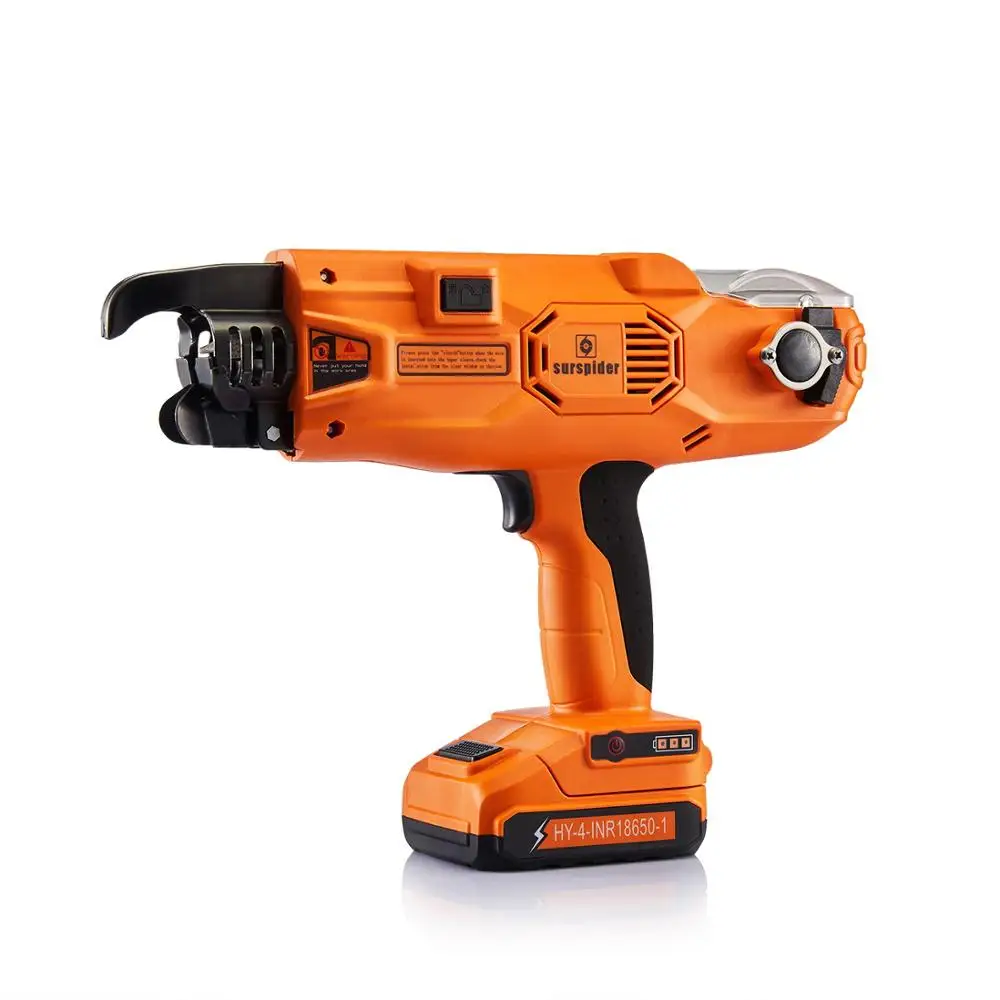

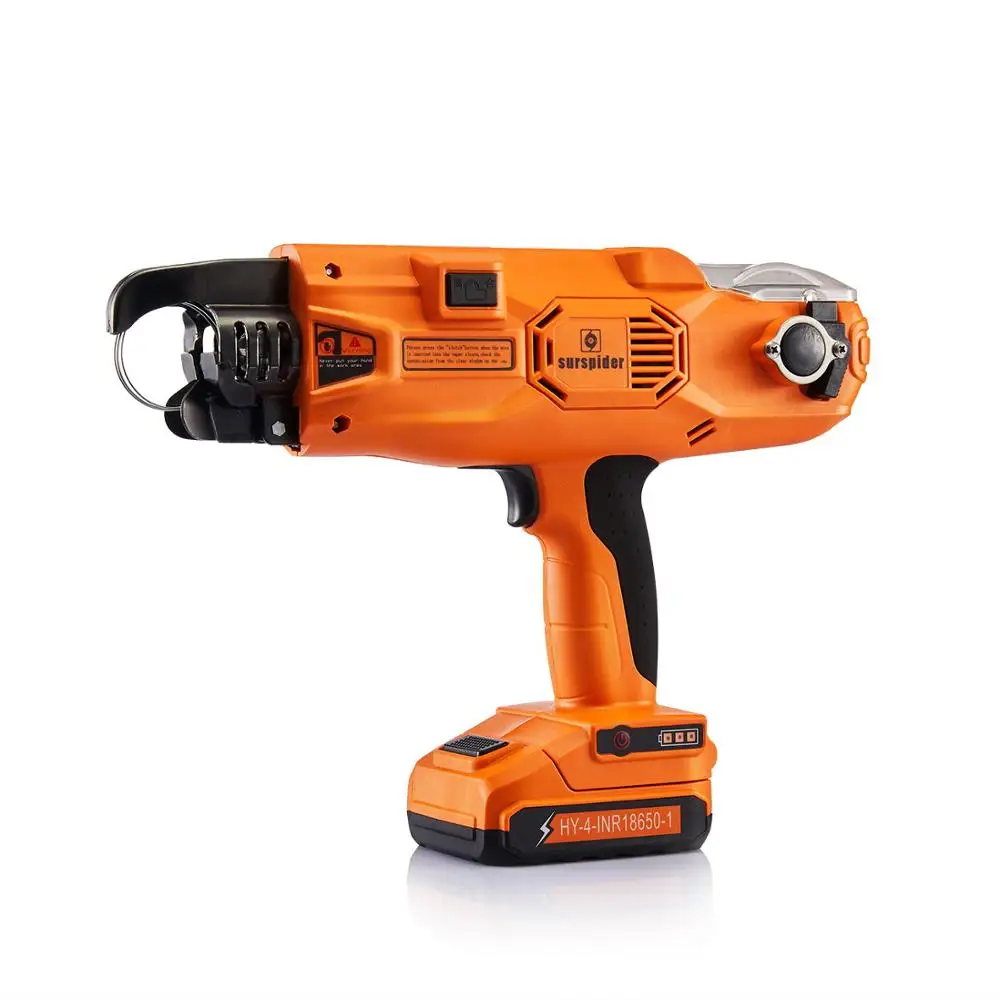

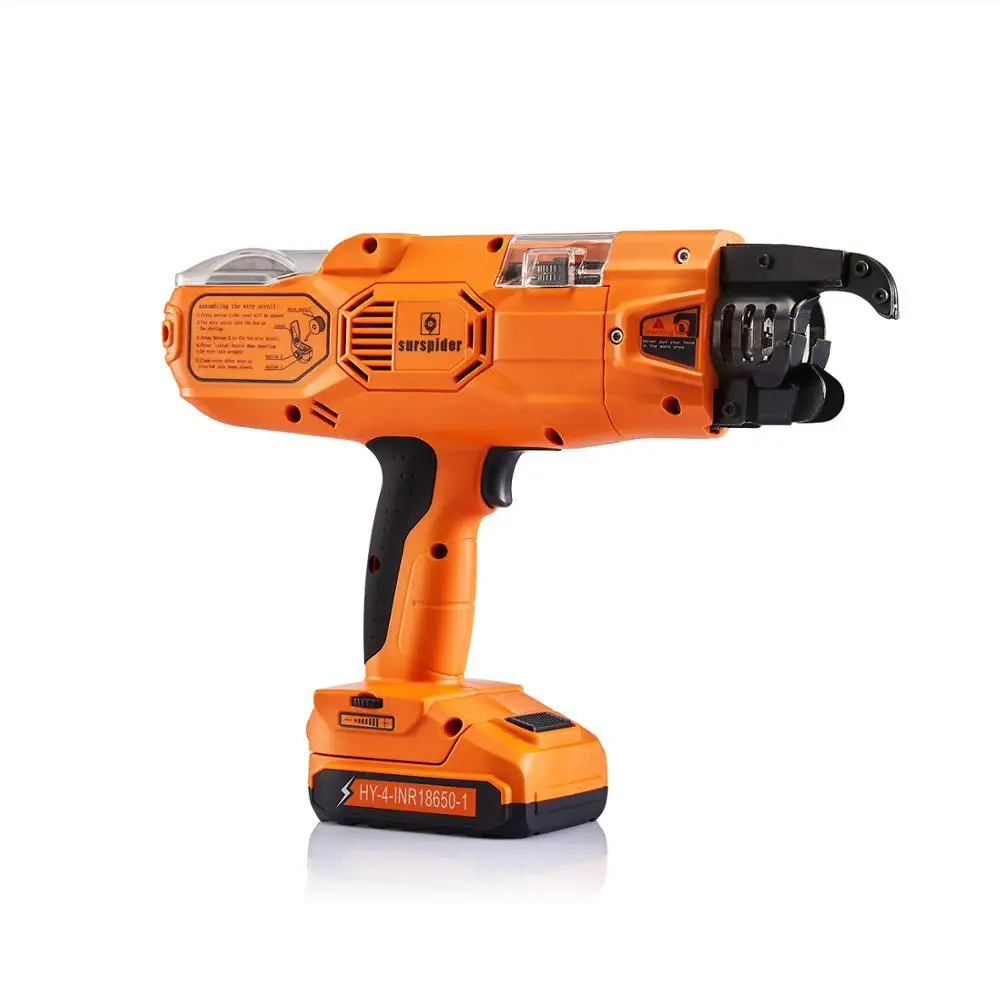

"Surspider" Intelligent Rebar Tier Make the Rebar Tying Easier, Stronger & Faster.
Rebar tier can be widely used in buidings, bridges, roads, railways, heat floor, swinning pool and even other special projects. the rebar tier take place of manual rebar tying, it imporoves the work effiency and save labor cost.
Surspider Cordless Rebar Tying Tools Parameter
Item No.
ZKZ-40A
ZKZ-25A
Dimension(mm):
315x225x68
300x225x68
Weight(kg):
1.45
1.45
Voltage (V):
14.4
14.4
Tying range(mm):
26-40
12-24
Tying speed(s):
0.8
0.8
Tying wraps :
3
2
Ties per full standard battery(pcs):
1100
2000
Ties per full advanced battery(pcs):
3500
6200
Battery
Item
Standard Battery
Advanced Battery
Voltage(V):
14.4
14.4
Battery Capacity(Ah):
2.0
6.0
Charging Time(H):
2.8
2.7
Construction Power Tool Accessories
Double Charge
Wire Coil
Model No.:
HY-CH-14.4V2.9A-1
Diameter(mm):
0.8
Input Voltage/Current:
100-240VAC
50/60HZ 0.8A
Length(Meter):
100
Net Weight:
390
Output Voltage/Current:
16.8V DC 2.9A
Ties/Scroll:
ZKZ-40A 147
ZKZ-25A 283
Advantages
21 Certificates & Patents
Invention Patent:
1. on wire Twisting mechanism of rebar tying tool. the certificate No. in China is ZL 2014 1 0787970.0.
2. on Wire sending mechanism of rebar tying tool. the certificate No. in China is ZL 2014 1 0788235.1.
Utility Moder Patent:
1. on wire scroll locking mechanism of rebar tying tool, the certificate No in China is ZL 2015 2 0248889.5.
Appearance Design patent:
1. about the portable battery pack. the certificate No. in China is Zl 2015 3 0333052.6.
2. about the rebar tying tool. the certificate No. in China is ZL 2015 5 0332805.1.
Rebar Tier certificate: CE + RoHS
1. CE on rebar tier , about the EMC Directive 2014/30/EU, the model No. is ZKZ-25A / ZKZ-40A
2. RoHS on rebar tier, about the RoHS Directive 2011/65/EU. the model is ZKZ-25A/ZKZ-40A
Li-polymer Battery Certificate: CE + RoHS
1. CE Tested according to EN55032:2012/AC:2013 & EN55024:2010, the battery model is 3-ICR18650-1.
2. CE Tested according to EN55032:2012/AC:2013 & EN55024:2010, the battery model is 3-ICR18650-3.
Double Charger for Li-ion Batery: CE
Packing List 1
Packing List

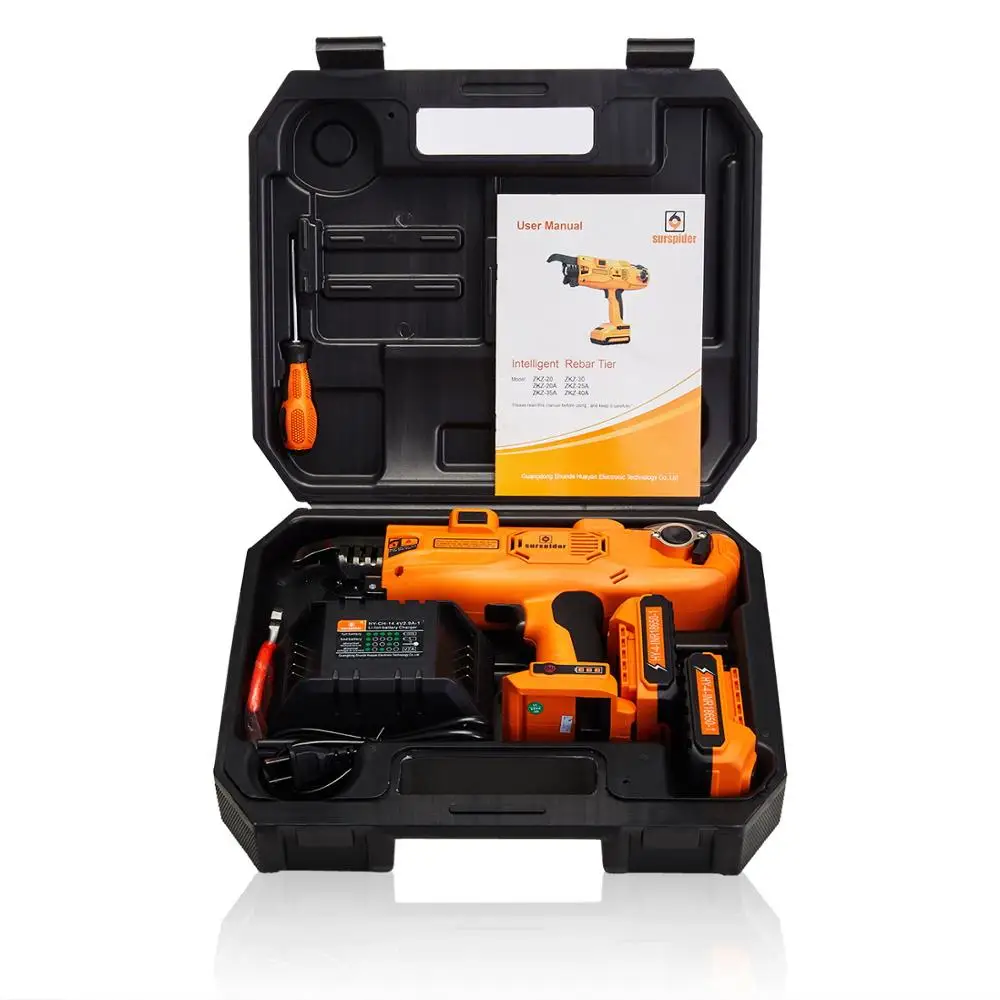

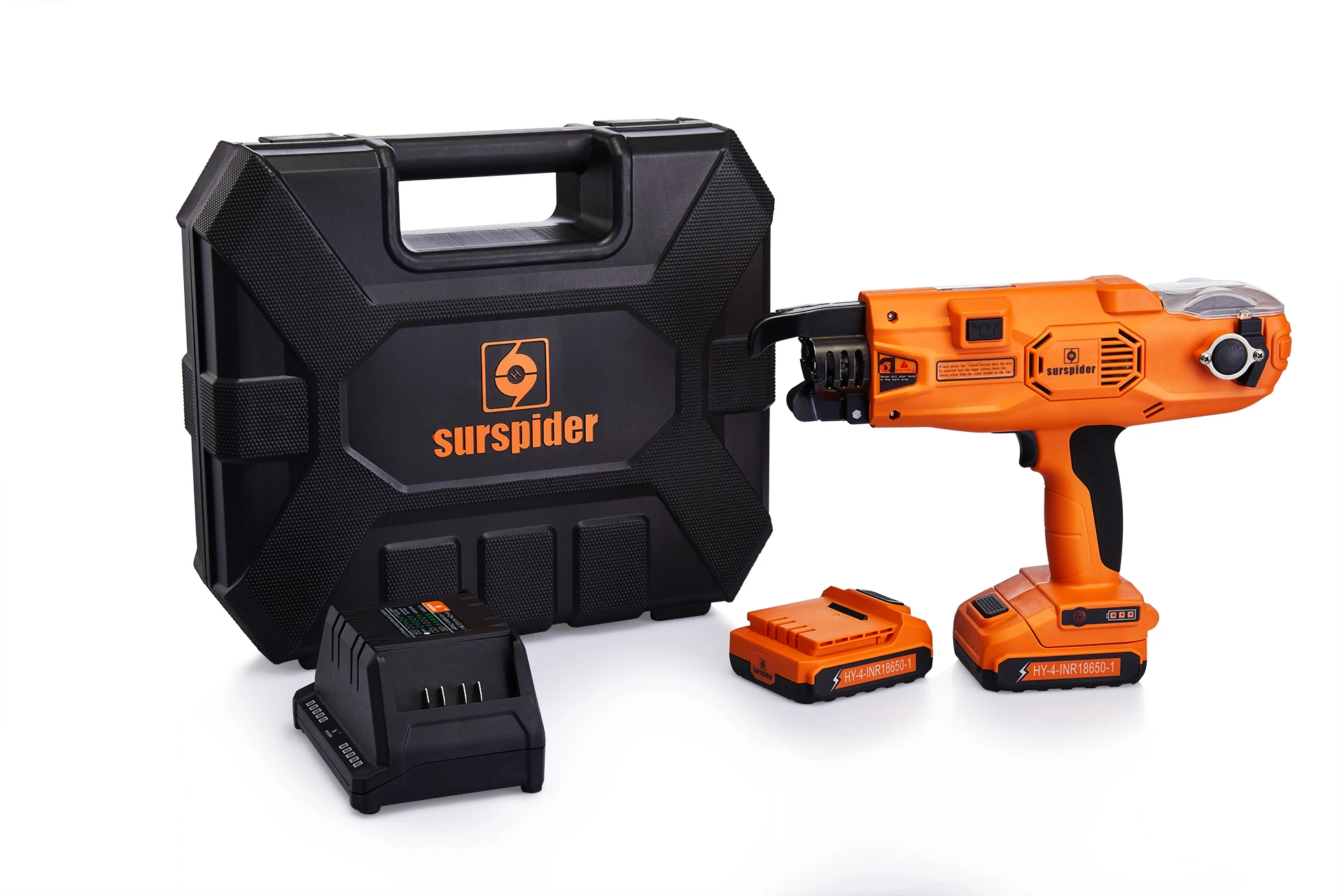

Intelligent Rebar Tying Machine Tool Standard Kit
Name
QTY
Intelligent Rebar Tier
1 pcs
Double Charger
1 pcs
Standard Battery
2 pcs
Wire Coil
1 pcs
Cutter
1 pcs
Allen Key
1 pcs
Tool Box
1 pcs
User Manual
1 pcs
OPtional Parts
Advanced Battery (Include Battery Adapter)
Tools Belt
Pry Hook
Shipping-2
Packaging--Wire Coil
Pcs/ Box
Packing Size (CM)
CBM
GW (kgs)
20 pcs/ Box
14x14x22
0.005
8.4
3 Boxes / Carton Box
23x15x45
60 Pcs
0.016
25.5
44 Cartons / Pallet
110x110x134
11 Carton Boxes / Layer
Total 4 Layers
2640 pcs
1.45
1135
Delivery Info
Delivery time:
Within 7 days for sample order if we have in stock.
