Model

SSTH-A380

Battery capacity

 3.7V 55000mAh(200WH)

Output power

Rated 200W ,Peak 250W

Input voltage

                      CC/CV 15V/2A,

DC12.6V~18V,

Vehicle 12V input,no controller

Output voltage

100V~120V 60Hz or 220V~240V 50Hz

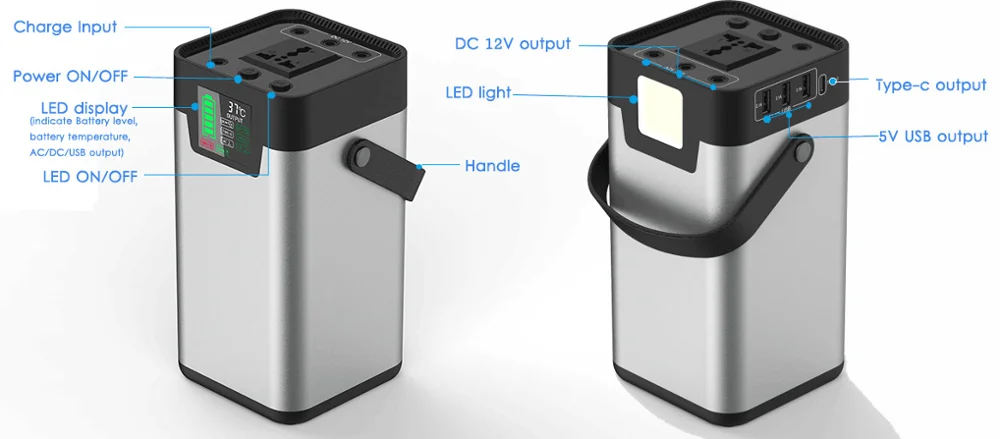

DC output

3pcs DC :12V/15A

2pcs USB :5V/2.1A

QC3.0:5V/3A ,9V/2A

1pcs TPYE-C : 5V/3A

Indicator light

         1.AC charging,The indicator light on the display is red when charging and turns green when fully charged  2. Solar energy charging. The indicator light on the display is red when charging and turns green when fully charged.

Output waveform

Pure sine wave

Solar panel charging range

12-18V/3A  50W~150W

Blackout response time

≤5ms

Overload

After overload ac output disconnect, disconnect the load, restart recovery

Short circuit

After short circuit, ac output is disconnected, load is disconnected, restart and resume

Lithium battery

Cycle life is more than 500 times

Weight

N/W1.8kg,G/W 2.0kg

Size

L105*W105*T210mm

Color

Aluminum body + black plastic frame
