Горячая окунутая гальванизированная 50*100 мм отверстие сетки Сварные Габионы коробки сварные габионных клетки
- Категория: Коробчатые габионы >>>
- Поставщик: Anping,Xinboyuan,Wire,Mesh,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 10.33 $* | 11.92 $* |
| Aug-17-2025 | 9.7 $* | 9.49 $* |
| Jul-17-2025 | 8.82 $* | 8.99 $* |
| Jun-17-2025 | 9.44 $* | 9.99 $* |
| May-17-2025 | 8.98 $* | 8.40 $* |
| Apr-17-2025 | 9.70 $* | 9.85 $* |
| Mar-17-2025 | 9.72 $* | 9.99 $* |
| Feb-17-2025 | 9.85 $* | 9.1 $* |
| Jan-17-2025 | 9.77 $* | 9.24 $* |
Характеристики
hot dipped galvanized 50*100mm mesh opening welded gabion box welded gabion cage
hot dipped galvanized 50*100mm mesh opening welded gabion box welded gabion cage

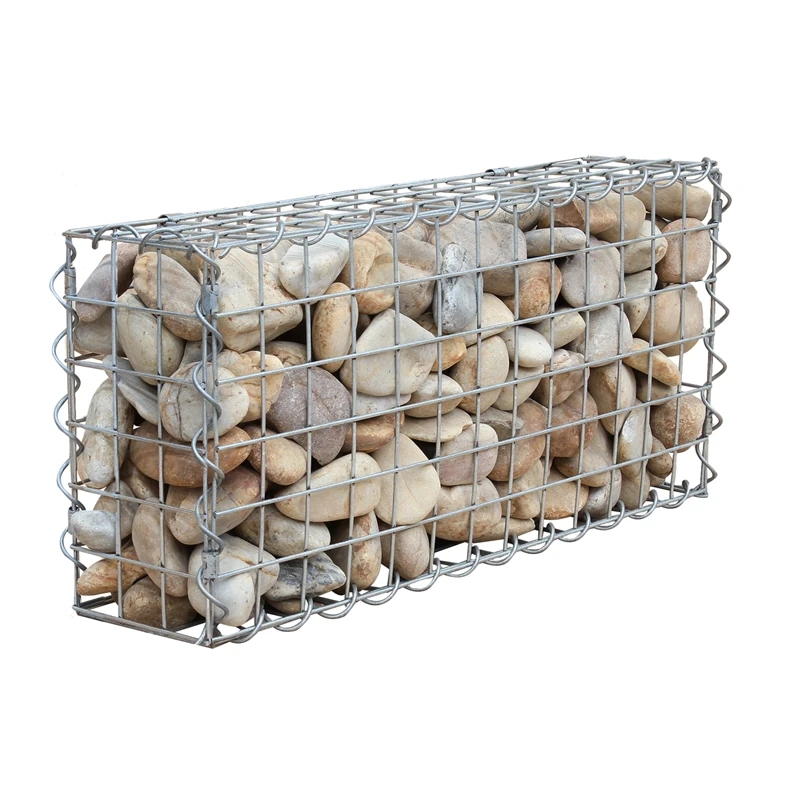

Welded Gabion box, or Welded Gabion mesh is manufactured from low carbon steel wire with high tensile strength,it is an electric fusion welded prefabricated joined grid consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing .It is electrically welded together then hot dipped galvanized or PVC coated, ensuring a longer life.
1.Material: Low carbon steel wire ; Galvanized wire,PVC coated wire
2.Surface Treatment: Hot-dipped galvanized,electric galvanized ,PVC coated

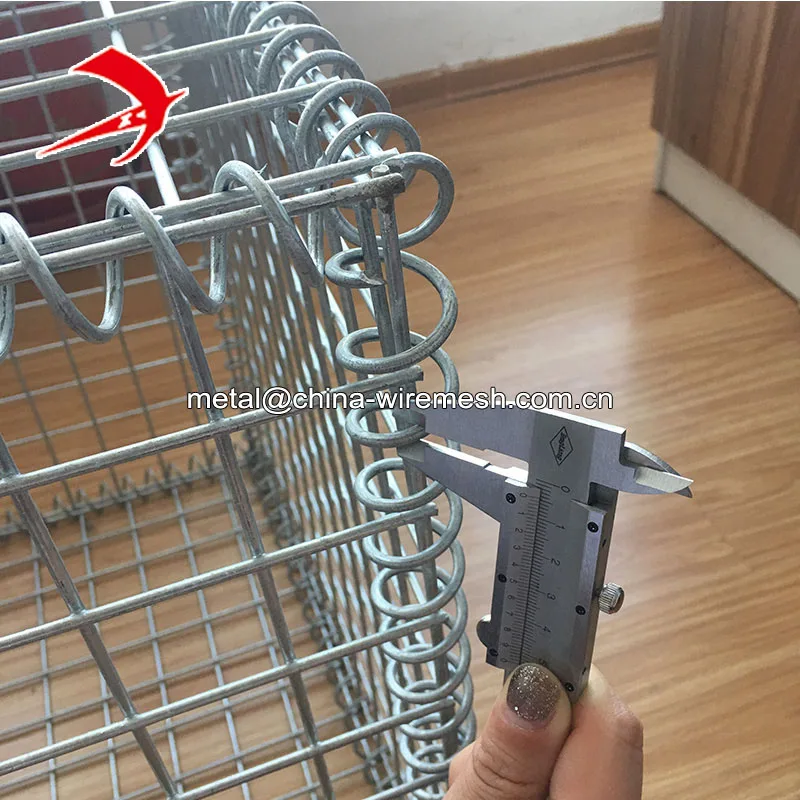

3.Welded Gabion box is composed of welded mesh panel and spring steel lacing wire.
Common Specification stone cages basket
| Common specification of Welded Gabion box | |||
| Wire diameter:2.0-5.0mm | |||
| Nominal box sizes(m) | Mesh size(mm) | No. of diaphragms(no.) | Capacity per box(m3) |
| 1x1x0.5 | 50x50 75x75 50x100 100x100 | 0 | 0.5 |
| 1x1x1 | 0 | 1.0 | |
| 1.5x1x0.5 | 0 | 0.75 | |
| 1.5x1x1 | 0 | 1.5 | |
| 2x1x0.5 | 1 | 1.0 | |
| 2x1x1 | 1 | 2.0 | |
| 3x1x0.5 | 2 | 1.5 | |
| 3x1x1 | 2 | 3.0 | |
| 4x1x0.5 | 3 | 2.0 | |
| 4x1x1 | 3 | 4.0 | |
| Remark:customized size is also available | |||
hot dipped galvanized 50*100mm mesh opening welded gabion box welded gabion cage

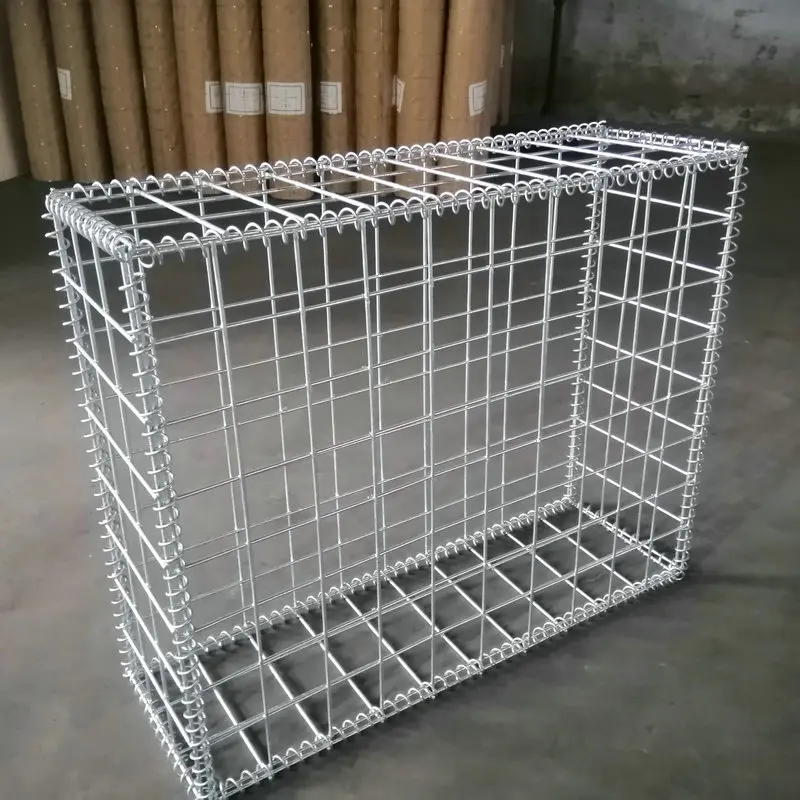

welded gabion cage
welded gabion cage workshop
Galvanized Welded gabin box/stone cages basket product application
welded gabion cage

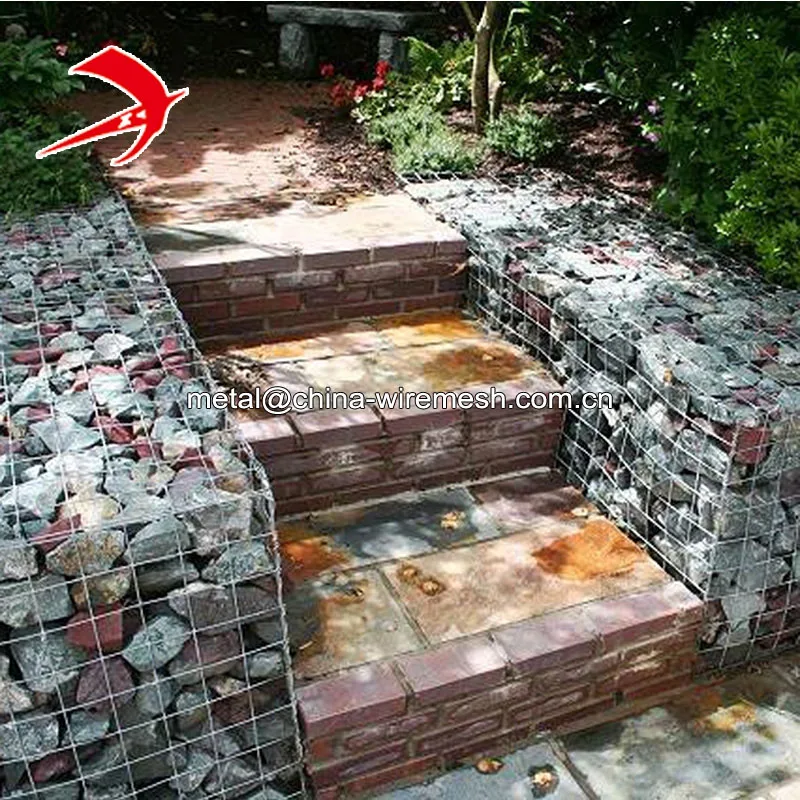

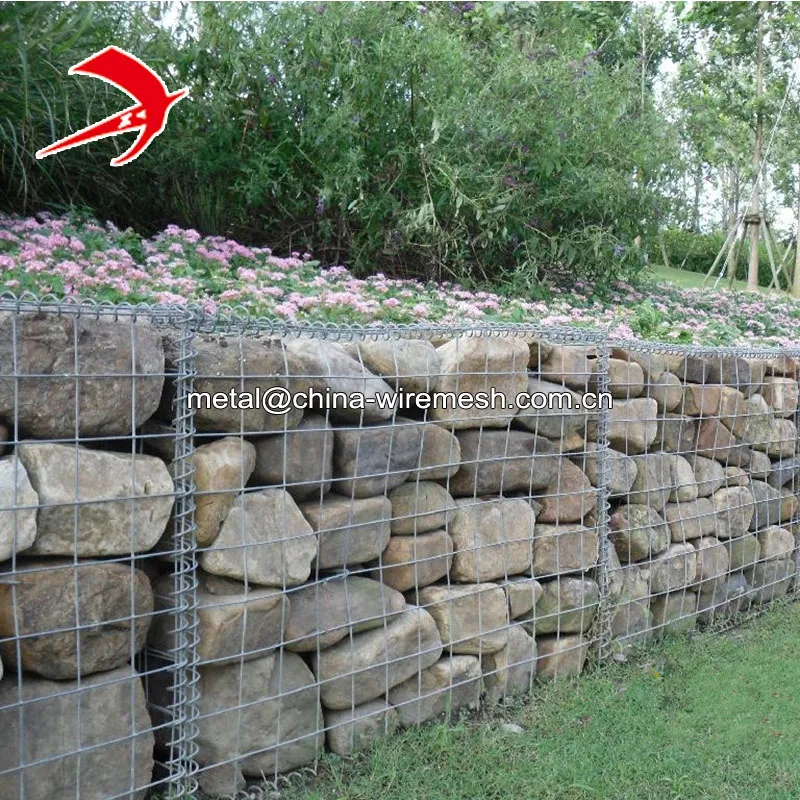

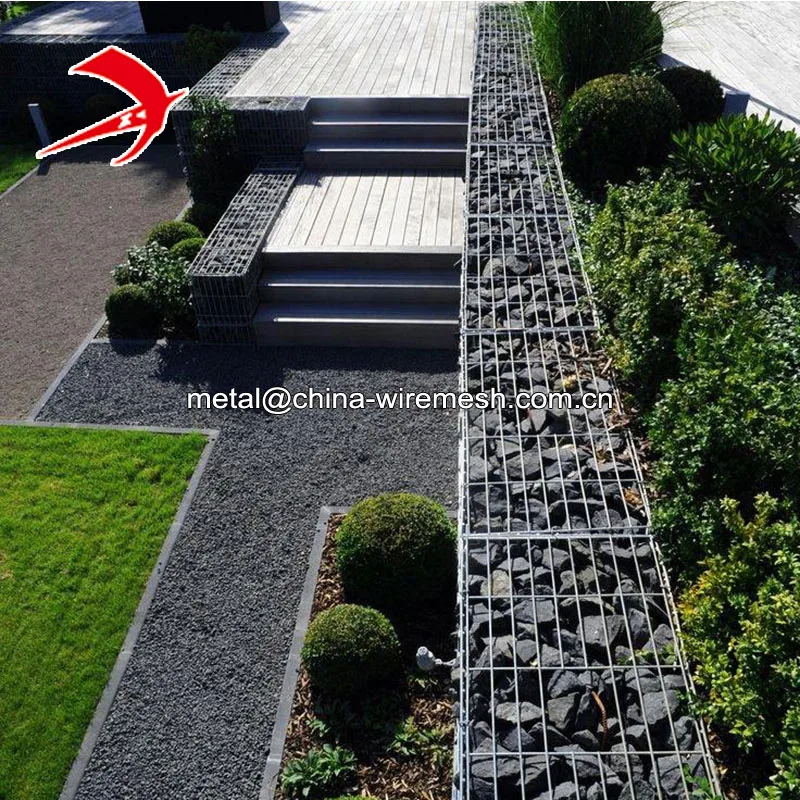

Galvanized Welded gabin box/stone cages basket can be widely used in retaining wall structure, rock fall and soil protection and so on. Welded gabions are filled on site with hard and durable stone to form mass gravity structures. And welded gabions are more quicker and simpler to be installed than woven mesh gabions.
Galvanized Welded gabin box/stone cages basket advantage
a. Easy to install
b. High zinc coating thus anti-rust and anti-corrosive
c. Low cost
d. High security
e. Can be made into various shapes for decoration
How to install Welded gabion box?
Step 1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
Step 2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
Step 3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
Step 4. Gabion box filled with graded stone by hand or with a shovel.
Step 5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
Step 6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones.
For accurate quotation, the following information would be needed:
1. Mesh size
2. Wire diameter
3. Surface treatment: hot dipped galvanized, galfan or PVC coated
4. Zinc content
5. Length, width, height
6.Quantity you need
Galvanized Gabion cage welded type stone filled gabion fence decorative welded gabion box
