36v 350w обычный велосипед преобразования Средний привод мотор комплект с фиксацией частей
- Категория: Мотор для электровелосипеда >>>
- Поставщик: Wuxi,Truckrun,Motor,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 295.6 $* | 310.3 $* |
| Aug-18-2025 | 293.50 $* | 308.70 $* |
| Jul-18-2025 | 246.65 $* | 258.20 $* |
| Jun-18-2025 | 288.20 $* | 302.29 $* |
| May-18-2025 | 250.39 $* | 263.49 $* |
| Apr-18-2025 | 283.32 $* | 297.54 $* |
| Mar-18-2025 | 280.10 $* | 294.32 $* |
| Feb-18-2025 | 278.72 $* | 292.87 $* |
| Jan-18-2025 | 275.44 $* | 289.76 $* |
Характеристики

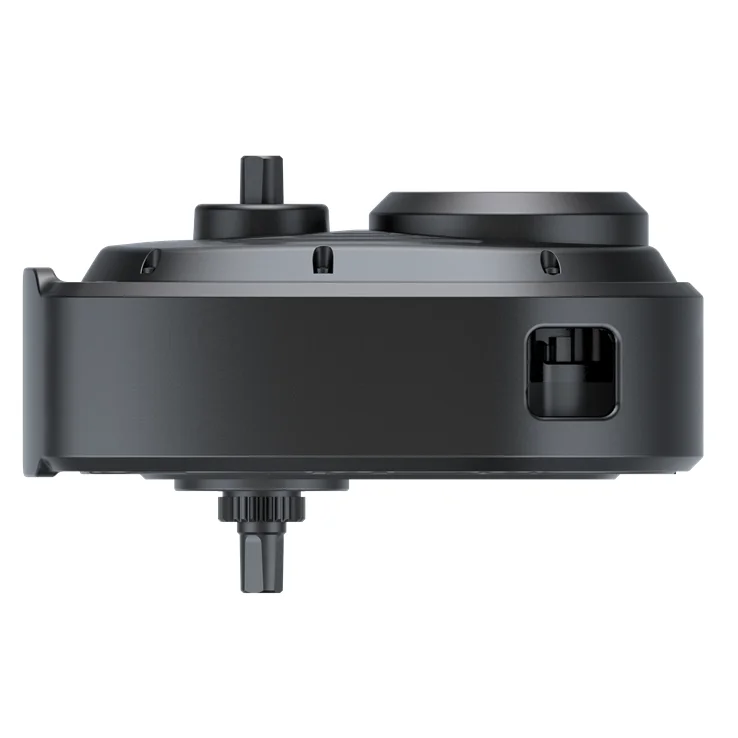

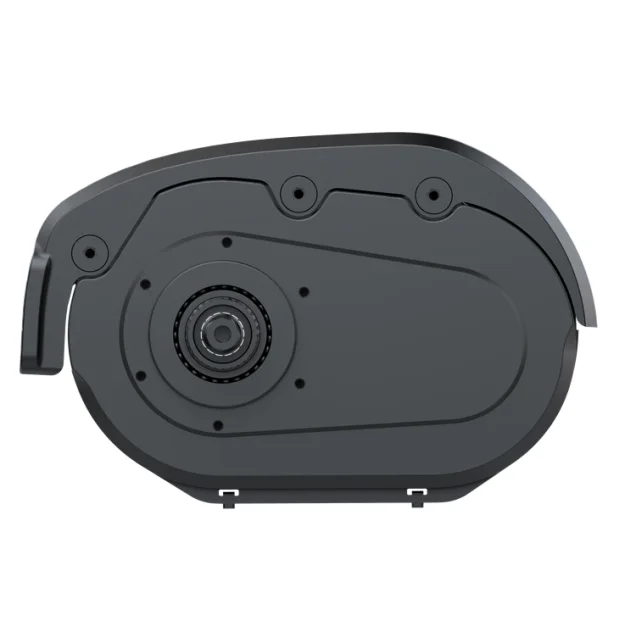

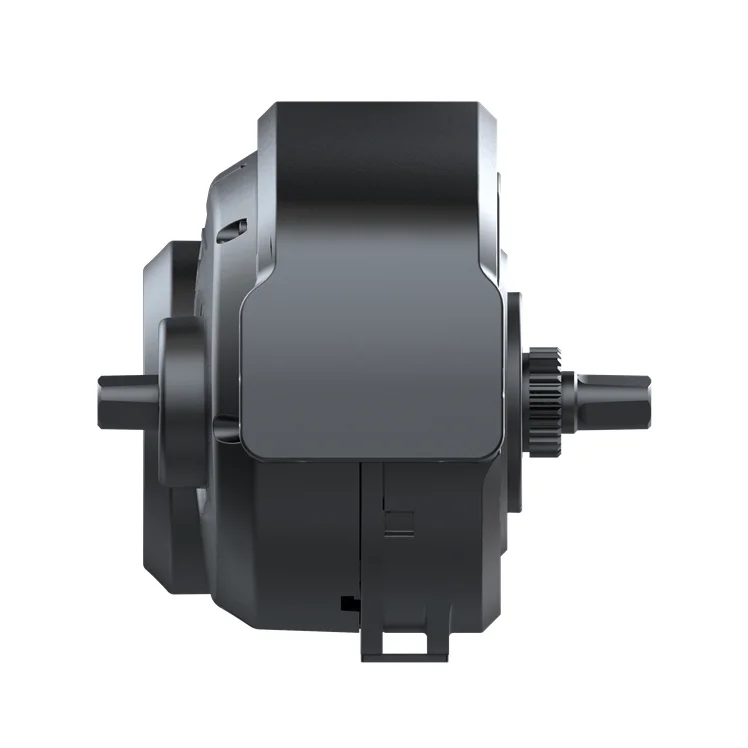

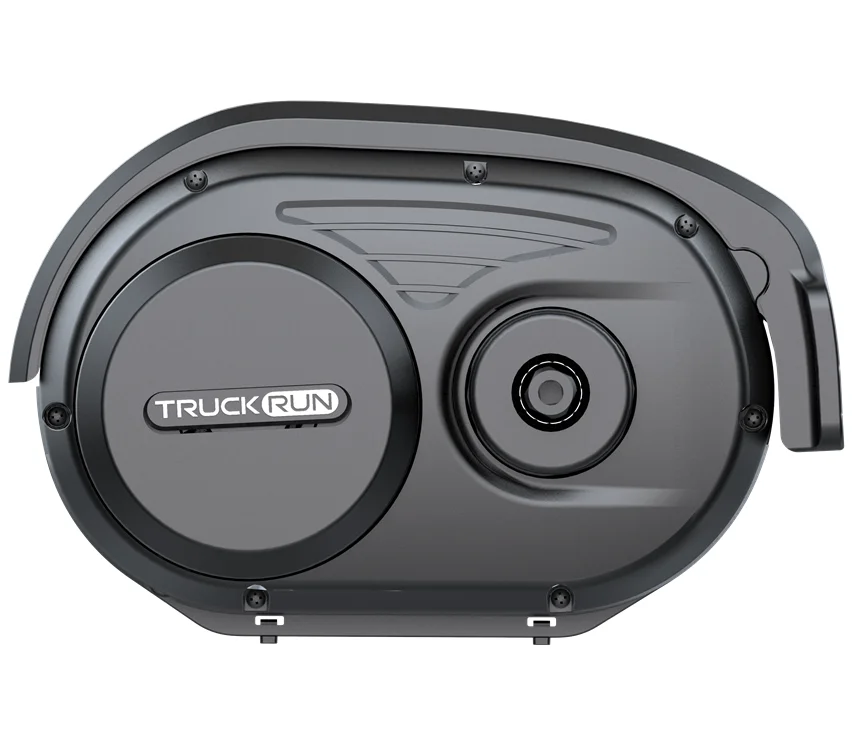

Specifications for Mid Motor M01 | ||||||
Mounting | Middle | Part name | M01 | |||
L"W"H | 205.5* 135.599mm | Noise Grade(db) | < <55 | |||
Rated Voltage | 36/48V | Color | Matte black | |||
Rated Power | 250/350W | Working Temperature | 20*C 55*C | |||
Rated Rotational Speed(RPM) | 92士5/85士5 | PAS Mode | Cadence and Torque Sensor | |||
Unloaded speed(RPM) | 101士6 | E-Brake | Optional | |||
Max Torque(N.M) | ≥100 | Lamp(DCV/W) | DCV6V3W | |||
Efficiency(%) | ≥80 | Salt Spray Test Standard(h) | 96(h) | |||
Weight | 3.6KG | Ingress Protection | IP65 | |||
Number of Matching Teeth | 38T/42T/44T/46T | Certification | EN15194/CE/ROHS | |||
Product Advantages
1 Intelligent: The motor has high-sensitivity torque sensor and speed sensor, which can achieve precise control of the whole
vehicle.
2 Powerful: The motor can provide sufficient power performance with a maximum torque of 110 N.m or more.
3 Modular design of motor assembly, vector controller, torque sensor and integrated connector is convenient for mass production.
4 The motor has the functions of braking power off and SHIFT speed power off to protect the driving system of the whole vehicle
and make it safer to ride.
vehicle.
2 Powerful: The motor can provide sufficient power performance with a maximum torque of 110 N.m or more.
3 Modular design of motor assembly, vector controller, torque sensor and integrated connector is convenient for mass production.
4 The motor has the functions of braking power off and SHIFT speed power off to protect the driving system of the whole vehicle
and make it safer to ride.
Main Features
1. Brushless, long life (bearing life), maintenance free;
2. The motor has no mechanical commutator to prevent dust from entering
the motor and has high reliability;
the motor and has high reliability;
3. Large power and simple structure;
4. Excellent starting performance, no hysteresis damping
consumption kinetic energy, strong torque climbing ability;
consumption kinetic energy, strong torque climbing ability;
5. High efficiency, low power consumption, and relatively long
mileage;
mileage;
6. High performance price ratio
7. Excellent waterproof performance.
Packaging | |
Size | 40(L) *31 (W) * 24 (D) |
Weight | 6.17KG |
Packaging Details | The normal package is CARTON box.We put four motor in one carton box. |
