Product Description

air bag.jpg

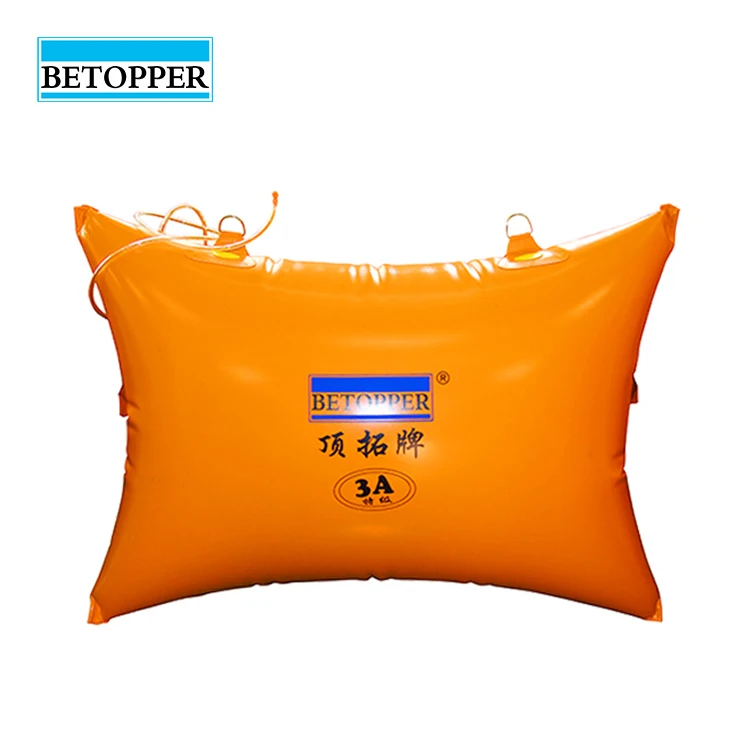

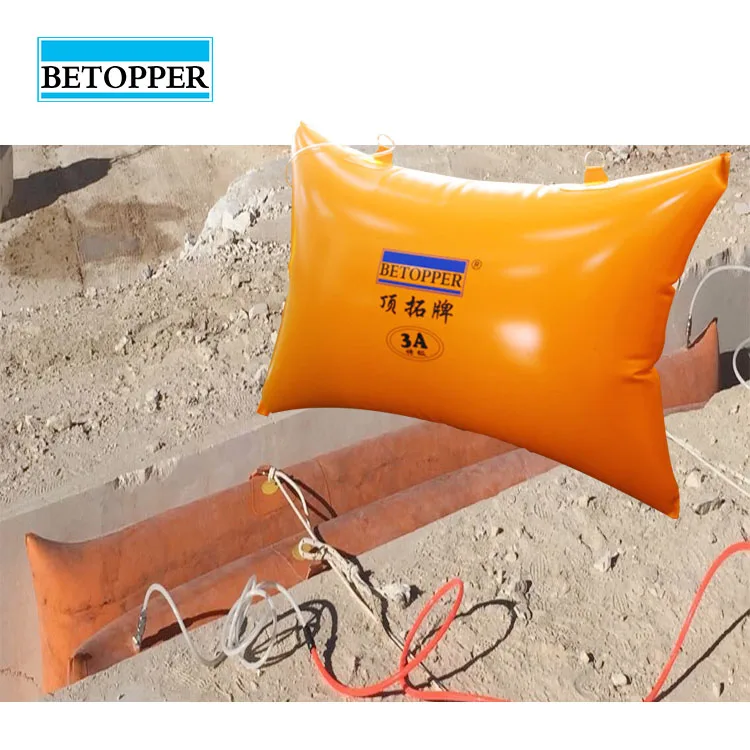

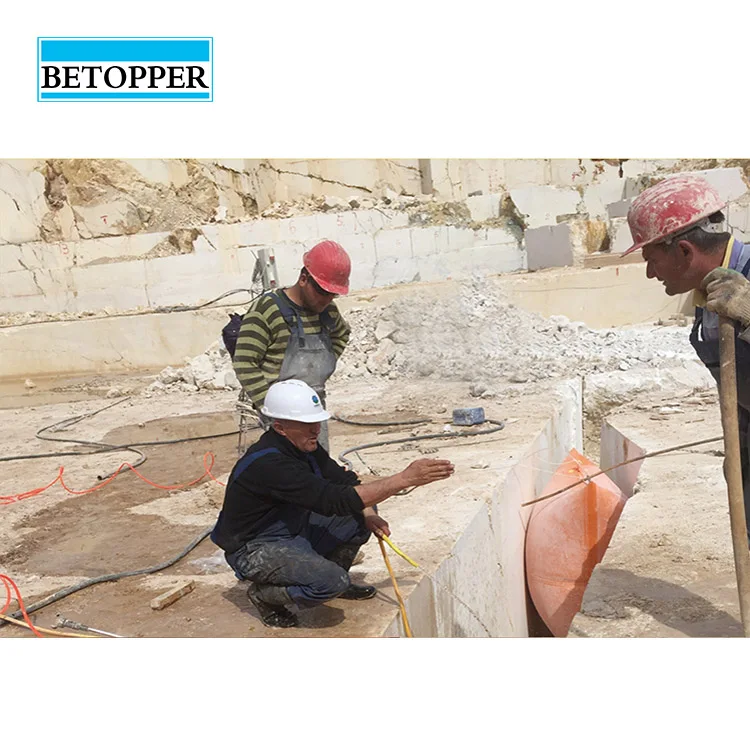

Betopper air pushing bag is displacing equipments like hydraulic jack and hydro bag in quarries of marble, granite, limestone and so on, no matter blocks cutting by wire saw, blade saw, chain saw or flame jet etc.

Technical Parameters
Model	Size(mm)	Pushing Power(ton)	Working Stroke		Net Weight(kg)
Model	Size(mm)	Pushing Power(ton)	(mm)	(inch)	1A	2A	3A	6A
DT0505	500*500	15	-	-	-	-	-	-
DT1005	1000*500	25	-	-	-	-	-	-
DT1010	1000*1000	50	600	23 3/5"	3.8	3.8	4.2	3.3
DT1015	1000*1500	75	650	25 3/5"	5.5	5.5	5.8	5.1
DT1020	1000*2000	100	660	26"	6.8	6.8	7.5	-
DT1515	1500*1500	115	850	33 1/2"	7.7	7.7	9.2	-
DT2015	2000*1500	150	940	37"	9.8	9.8	10.8	9.4
DT1818	1800*1800	165	-	-	-	-	-	-
DT2018	2000*1800	180	-	-	-	-	-	-
DT2020	2000*2000	200	1100	43 1/3"	12.8	12.8	13.8	-
DT2022	2000*2200	220	-	-	-	-	-	-
Note:We can manufacture any sizes as per your special requirements. Suitable sizes and quantity of air pushing bag must be calculated by block’s length & Width & Height.

How To Use

.jpg

Carefully clear debris from block clearance.

Choose suitable sizes and quantity of air pushing bags according to block sizes.

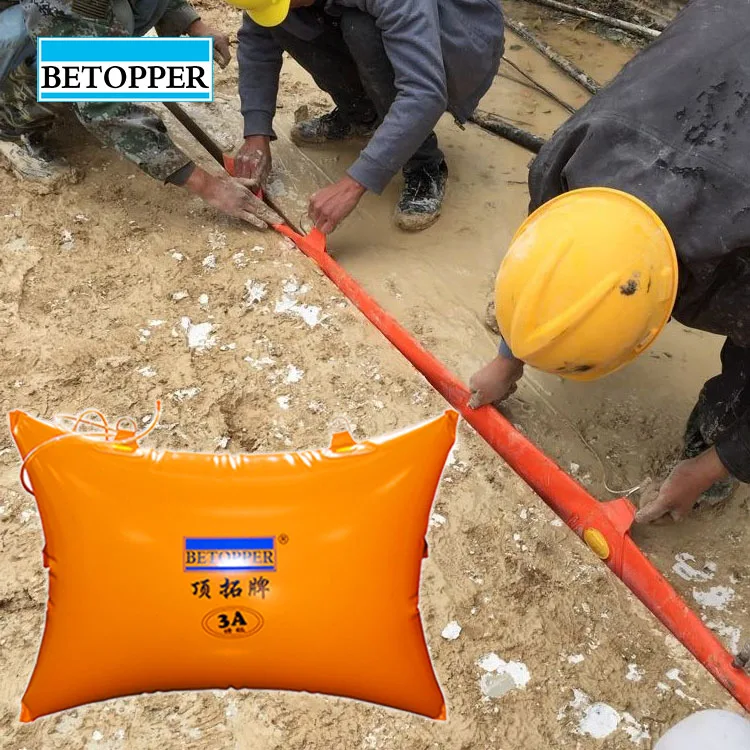

Choose best acting point,place air pushing bag into gap entirely, fix it with ropes or steel rod through handle rings of the bag.

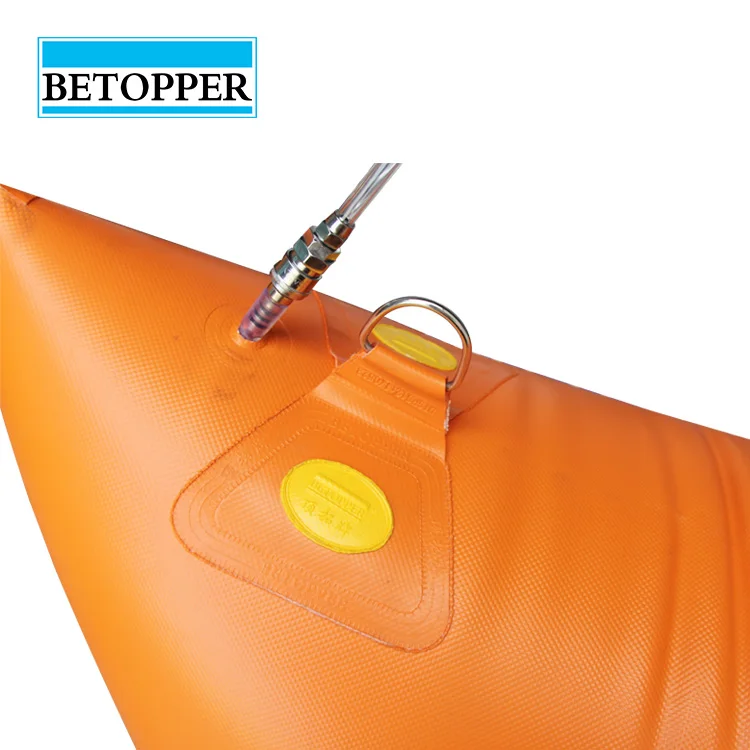

Connect air compressor,controller and air pushing bag.

Inflating air pushing bag by air compressor and keep air pressure stable at 0.3Mpa – 0.4Mpa

Continue inflating until obtaining opening of 5-10cm gap, place appropriate stones to the gap.

Overlap two same sizes air pushing bags to overturn the block.

Stop inflating, take out air pushing bag after deflating by quick air bleed-valve.

https://www.youtube.com/watch?v=SJ6efQkZcgU

Advantages

Only 7mm thick, can insert to gap very easy.

Can protect block well, and improve a block yield a lot.

Help to improve quarrying speed a lot.

Reduce excavator works and protect excavator bucket teeth well, meanwhile, also can save a lot of oil, save costs.

Can be used circularly , it can be used one to two years if protect well.

It's safty and economy.

Compare With Other Block Pushing Attachments
	Reusability	Block Yield	Usage Costs	Safety Factor	Efficiency	Portability
Betopper Air Pushing Bag	√	√	√	√	√	√
Excavator	√	×	×	√	×	×
Hydraulic Jack	√	×	×	√	×	×
Hydro Bag	×	√	×	√	√	√
