Specifications

*High quality pipe bender
*More than 10 years experience
*High efficiency and accuracy

Features

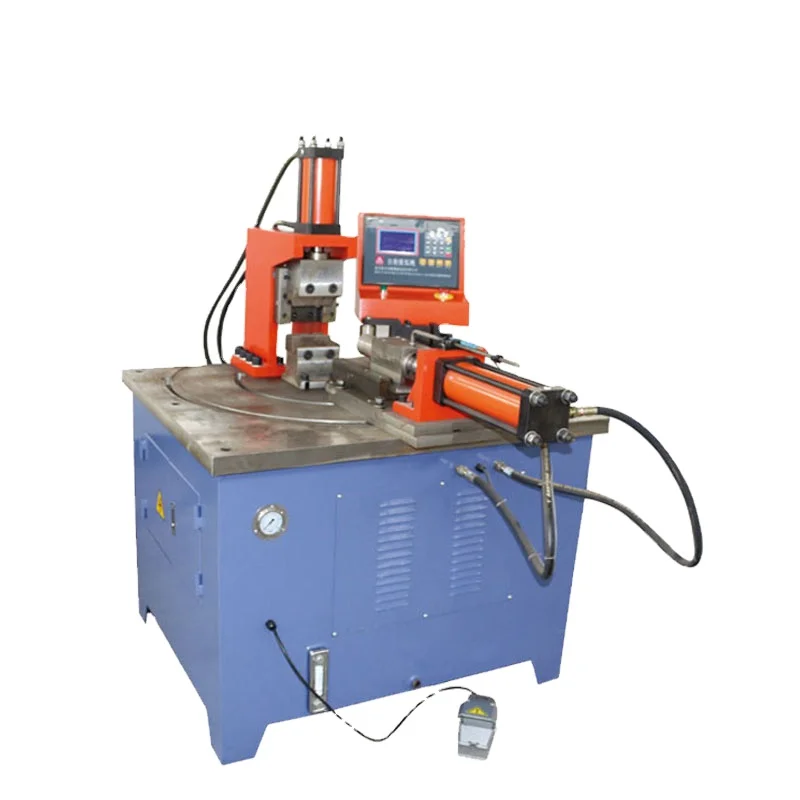

high performance single-head hydraulic pipe bending machine, NC control,
multi-groups program and multi-angles setting, makes your operation easy and convenient, widely used in blast pipe, furniture and other metal pipes processing.
1. Operate by NC, imported electric and hydraulic elements.
2. English showing and conversational operation.
3. It can adjust speed in each bend and the bending precision is high
4.16 groups of bending information can be stored.  Multiple angles can be finished once.
5. The foot switches with functions of automatic start, emergency stop and resuming. The safety is high.
6. Delicate design of the bending head makes the bending space large.
7. Suitable Materials: Steel pipe, stainless steel pipe, copper pipe, aluminum pipe and others.

model	unit	DW38NCB	DW50NCB	DW63NCB	DW75NCB	DW89NCB	DW114NCB
maxi.diameter x thickness	mm	Φ38×2	Φ50×3	Φ63×3.5	Φ75×4	Φ89×5	Φ114×15
maxi.bending radius	mm	R260	R330	R330	R400	R510	R650
mini bending radius	mm	R15	R20	R30	R30	R40	R90
maxi.bending angle	°	190°	190°	190°	190°	190°	190°
standard wear core length	mm	1600	2200	2400	2800	3800	5500
control system	Microcomputer
maxi.bender numbers	pcs	16	16	16	16	16	16
parts in store	pcs	16×16	16×16	16×16	16×16	16×16	16×16
hydraulic motor power	kw	4	5.5	7.5	7.5	11	18.5
maxi.system pressure	mpa	12	12	12	14	14	14
hydraulic system control	Solenoid valve
contain capacity	L	110	150	180	240	320	420
size	mm	2600x600x 1200	3000x700x 1300	3200x750x 1300	3650x1000x 1400	4400x1150x 1400	7500x1300x 1450
weight	kg	750	1220	1400	3500	4500	6500
