HY 1 5 'промышленный щелочной насос с двойной
- Категория: Насосы и запчасти >>>
- Поставщик: Shanghai,Haoyang,Pump,Valve,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 428.56 $* | 449.31 $* |
| Aug-16-2025 | 425.48 $* | 446.31 $* |
| Jul-16-2025 | 356.9 $* | 374.91 $* |
| Jun-16-2025 | 418.86 $* | 439.8 $* |
| May-16-2025 | 364.30 $* | 382.65 $* |
| Apr-16-2025 | 410.41 $* | 431.6 $* |
| Mar-16-2025 | 407.4 $* | 427.93 $* |
| Feb-16-2025 | 403.94 $* | 423.68 $* |
| Jan-16-2025 | 400.82 $* | 420.7 $* |
Характеристики

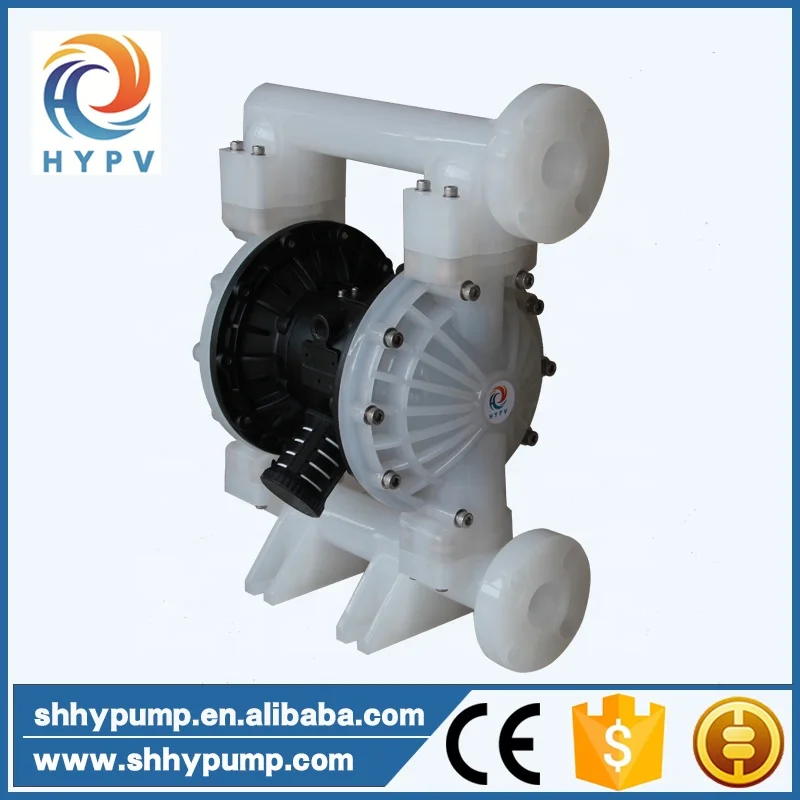

Industrial High Flow Plastic Pneumatic Double Diaphragm Pump
Product Description
| HY Air-Operated Diaphragm Pum Application |
| Mode | Max.Suction Lift (dry\\wet,m) | Max. particle diameter (mm) | Suction and discharge size (inch) | Air inlet size (inch) | Max. flow rate (L/min) | Max. air consumption (m3/min) |
| HY-15/20 | 4 \\ 7.6 | 2.5 | 1/2 3/4 | 1/4 | 57 | 0.672 |
| HY-25 | 4 \\ 8 | 4 | 1 | 1/2 | 157 | 1.7 |
| HY-40 | 5 \\ 8 | 5 | 1½ | 1/2 | 358 | 3.5 |
| HY-50 | 5 \\ 8 | 6 | 2 | 1/2 | 587 | 4.9 |
| HY-80 | 5 \\ 8 | 9.4 | 3 | 3/4 | 1060 | 9.1 |

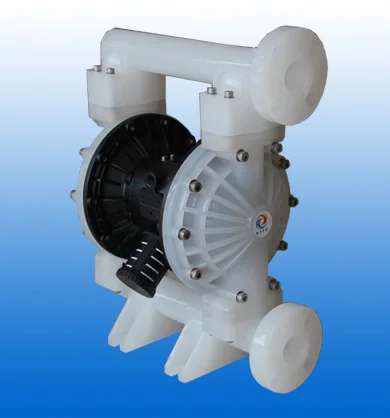

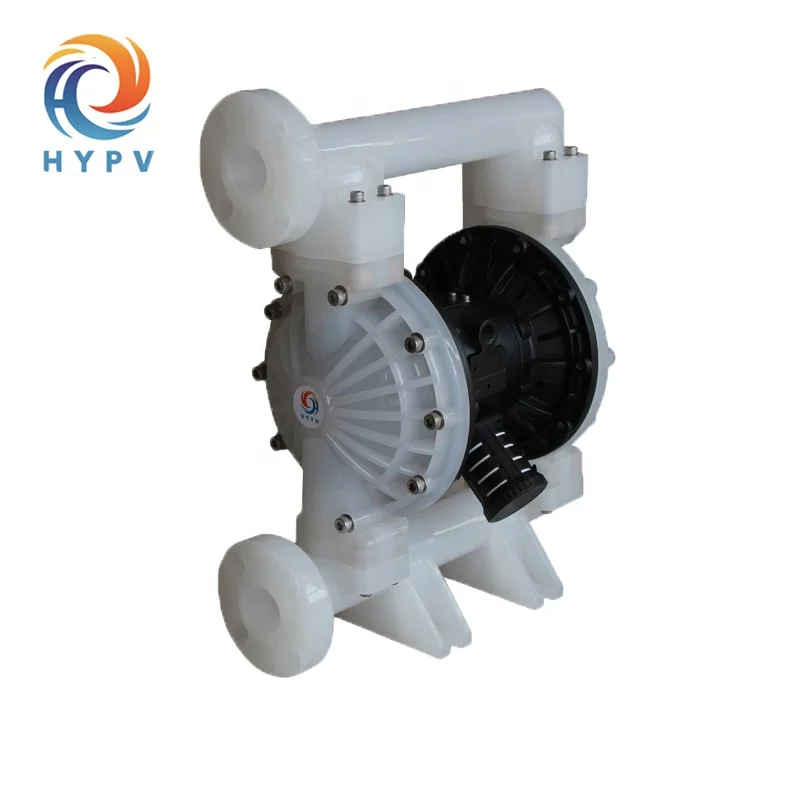

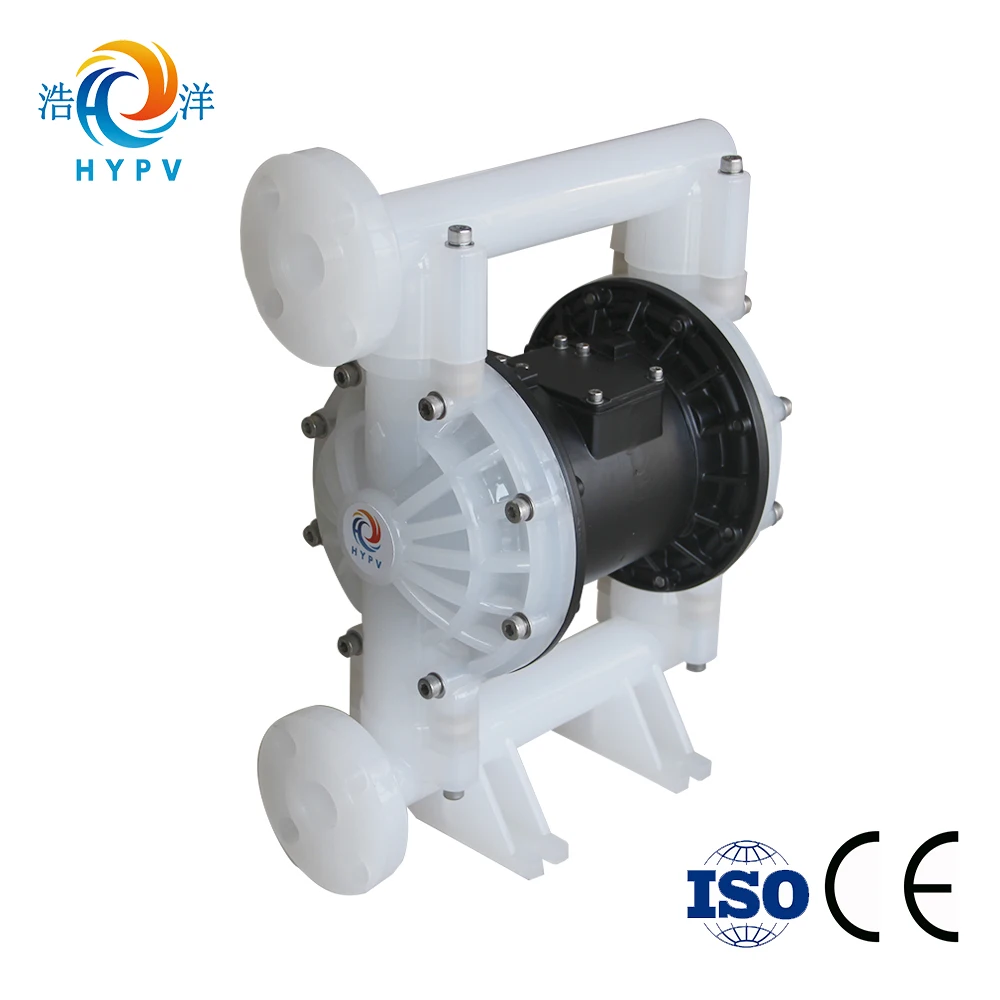

Product Show
Pneumatic Diaphragm Pump Advantages:
1. Explosion-proof, zero leak, simple operation.
2. Idling capability,Self suction, No complex control.
3. Diversity of material,no rotating parts,applicable to various erosive situations.
4. Diaphragm, ball and ball seat adopt imported materials with longer service life.
5. Modularization of main valve and air motor. No broken, easy to disassemble and repair.
| Product Marking | Function Description |
| A | Simple structure,reliable connection ,easy assembly and disassembly. |
| B | Modular design,low air consumption,no dead spots and no need lubrication. |
| C | Enhanced the chamber strength,has long_term durability. |
| D | Bolts connection design,good seal. |
| E | Adopt special grinding machine to process in high roundness and good seal. |
| F | Accurately calculatethe diaphragm moving distance to reduce the force to diaphragm. |
Product Application
Chemical Industry also known as chemical process industry ,refers to the process of chemical methods predominate in the process of chemical methods predominate in the process industry .Chemical industries are knowledges -and capital-intensive industries.
Diaphragm pump in the chemical industry to transport all kinds of emulsion and filler. latex, a variety of abrasive, corrosive agents, cleaning of mud ,oil and grease and containers, toxic ,flammable volatile liquid ,such as strong acid ,strong alkali, corrosive liquids.
Company Information
| HY Company information |
Shanghai Haoyang Pump Valve Manufacturing Co., Ltd. is located in Baoshan Industrial
Park of Shanghai City, which is specialized in the integration of development, design,
production, sales, trade and services of diaphragm pump.
The products, using simple and operating convenient, are widely used in various industries,such as petroleum, metallurgy, chemical engineering, mine, coating materials, ceramics,food & drinks, pharmacy, printing, paper making, electron, textile, architecture, furnishing,
environmental friendly, water treatment, automotive, shipbuilding and so on.
FAQ
| FAQ |
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What're your payments ?
A: T/T,Western Union,L/C etc.
3. Q: What about the package ?
A: Standard export plywood case or carton.
4. Q: How long is the warranty ?
A: According to international standards, products in standard operation is 1 year,except wearable parts.
5. Q: The use of products have?
A: The pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
The pump can suck the paint, pigment, glue and adhesive etc.
The pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
The pump can suck various toxin and flammable or volatility liquid etc.
The pump can suck various strong acid, alkali and corrosive liquid etc.
6. Q: How product quality and service?
A: Our pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
