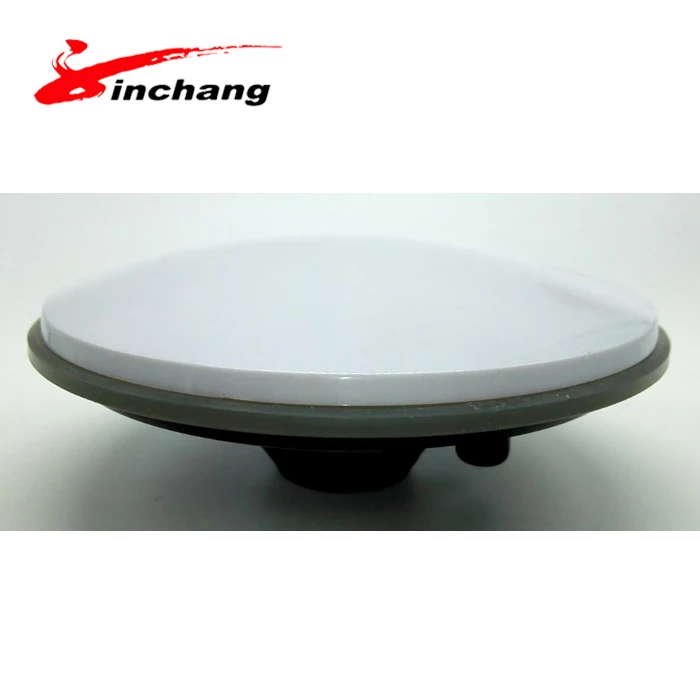

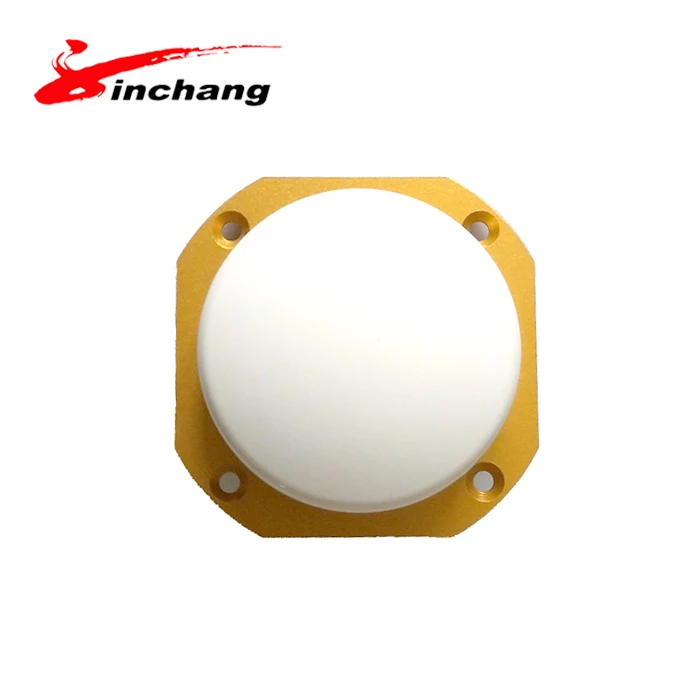

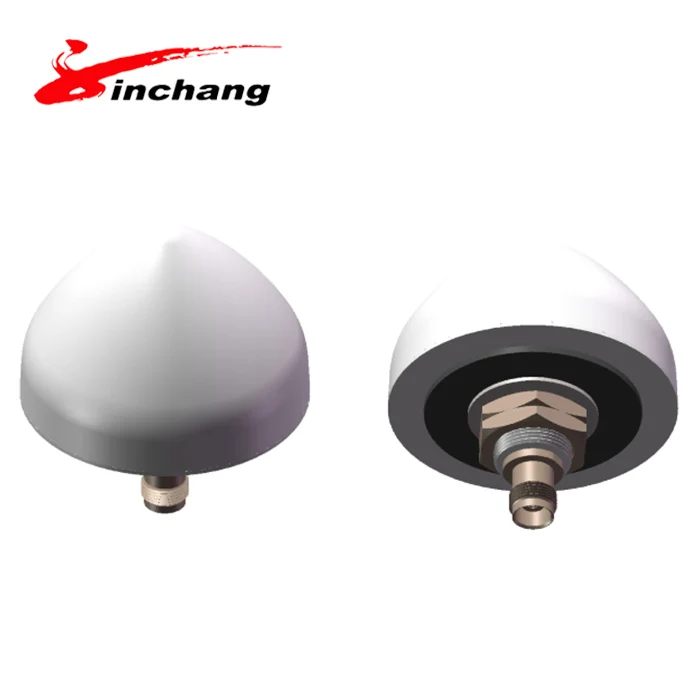

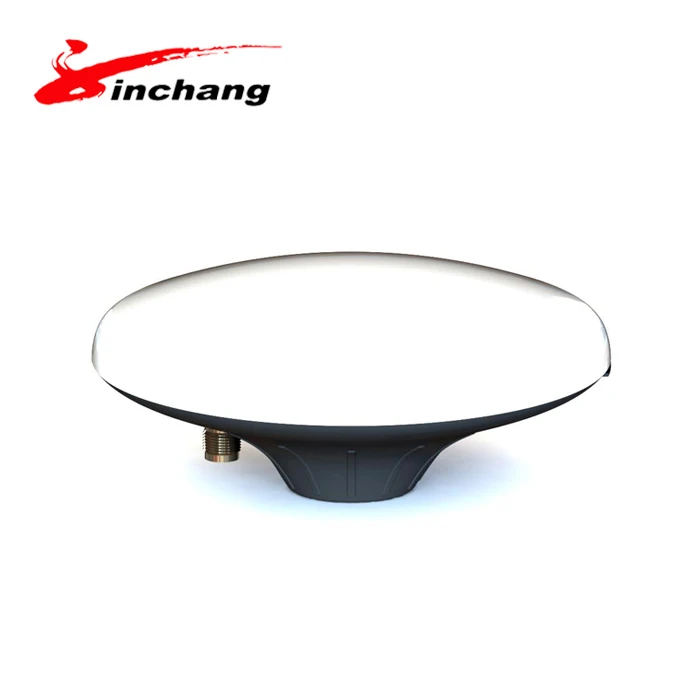

Waterproof high Gain Measurement GNSS gps RTK Receiver high precision antenna

JCA228



Item		Specifications
Antenna	Center Frequency	GPS L1/L2 GLONASS L1/L2 COMPASS B1/B2/B3 Galileo E5b/E6
	Polarization	RHCP
	Gain	≥5dBi
	V.S.W.R	<1.5
	Impendance	50Ω
	Axial Ratio	3dB(max)
LNA	Gain	40±2dB
	Noise Figure	<2.0
	Supply Voltage	2.7~3.3V DC
	Current Consumption	<45mA
	V.S.W.R	<2.0
Mechanical	Connector	TNC-K
	Mounting Method	Screwo
Environmental	Operating Temperature	-40℃~+85℃
	Relative Humidity	Up to 95%
	Ingress Protection	IP67
	Environmentally Friendly	ROHS Compliant





If you need a personalized product, we offer professional customization!



Q: Are you a manufacturer or a trading company?

A: We have been professional antenna manufacturer for 20 years.



Q: Can I get one sample?

A: Yes, sample is for free.



Q: Have GPS antenna 100% assembles well in stock?

A: No,  GPS antenna will be newly assembled according to your orders including the samples.



Q: What's the delivery time?

A: 1-4 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.



Q: Could I use my own LOGO or design on goods?

A: Yes, customized logo and design on mass production are available.



Q: What's the payment term?

A: T/T, Paypal, western union etc.



Q: Where is your factory located? Can I visit your factory?

A: Factory address: #398 Zhenye Road, Jiaxing Economic Development Zone, Nanhu District, China. Just call us, we will pick you up with no delay.



Q: How long of the warraty?

A: One year and can repair for the whole life.



If you have any questions please send message to us , we will reply in time. Thanks for you time!
