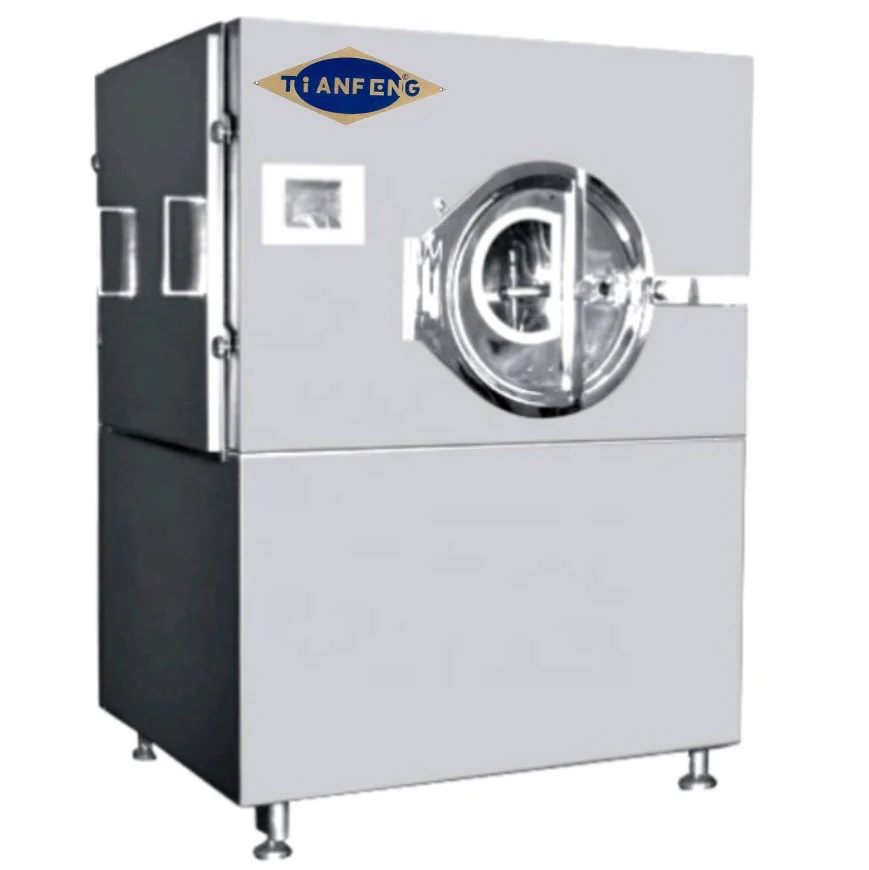

BG 40D полностью закрытые фармацевтика порошок гранулирования машина серия высокоэффективные
- Категория: >>>
- Поставщик: Shanghai,Tianfeng,Pharmaceutical,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.29 $* | 0.99 $* |
| Aug-18-2025 | 0.28 $* | 0.49 $* |
| Jul-18-2025 | 0.61 $* | 0.29 $* |
| Jun-18-2025 | 0.3 $* | 0.8 $* |
| May-18-2025 | 0.56 $* | 0.63 $* |
| Apr-18-2025 | 0.46 $* | 0.25 $* |
| Mar-18-2025 | 0.44 $* | 0.38 $* |
| Feb-18-2025 | 0.16 $* | 0.34 $* |
| Jan-18-2025 | 0.54 $* | 0.87 $* |
Характеристики
Product Description
Introduction and Features
It is an ideal equipment to bundle Chinese and Western medicine slice, slices of core for syrup coating and film coating.

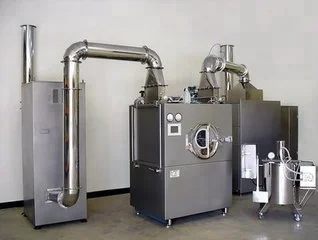

This machine is a new-type equipment developed on base of the original water---chestnut type coating machine according to GMP demand, it is mainly made up of the main machine, ventilation, arranging the wind, gushing out the liquid system.
A pot of body isolates from external world in this aircrew, the rotational speed of a pot of body carries on the infinitely variable speeds through the frequency converter, it can make the supplies even and rolling to lead the board to contain in the pan, ventilation passes purification of 300, 000 grades, arranging the wind through filtering, gushes out the liquid and uses the adjustable spray gun of high atomization, the wind is warm, slice is warm, the liquid is warm and adjustable and controllable, the course of the whole coating goes on in the airtight space. This machine-set has merits such as pollution-free, apt to wash, safeguard maintaining convenient, fabrication cost and low grade.
Main Technical Parameters:
Technical\\ Type | 40(D)E | 10D | |
Load Capacity (kg) | 40 | 10 | |
Revolutions(R/Min) | 2.0-18 | 3.0-19 | |
Machine dimensions kw | 1.1 | 0.55 | |
Machine dimensions | 1100*850 *1470 | 900*700 *1400 | |
Diameter of Coating drum mm | 780 | 500 | |
Power of Air Exhaust Cabinet Motor kw | 2.2 | 0.75 | |
Air exhaust flow m3/h | 3517 | 1285 | |
Power of Hot Air Cabinet Motor kw | 0.75 | 0.37 | |
Hot air flow m3/h | 1285 | 816 | |
Weight of Main Machine kg | 500 | 200 | |
Overall Dimensions of Air Exhaust Cabinet mm | 900*800 | 750*600 | |
Overall Dimensions of Air Exhaust Cabinet mm | 820*720 | 750*600 | |
Air | Pressure MPa | >0.39 | >0.39 |
Air Consumption m3/min | 0.2 | 0.2 | |
More products
Packaging & Shipping
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Our Services
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First screen for free, discount if more order.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
Company Information
Shanghai Tianfeng Pharmaceutical Machinery Co., Ltd. has made elaborate designs and products, on the basis of absorbing features and advantages of similar products both at home and combing with national GMP standard.We have successfully developed the brand of TDP, DP, THP, ZP, ZPW series tablet presses; CFQ, CXJ, TSG, QVC series assistant machine of tablet presses; CH, V, HD series mixers; YK, ZL, LG, HLSG series granulators; GF, Dl, CW series crushers; RXH series drying machines; BY series sugarcoating machines; ZLK series high speed granulator and various dies, which are suitable for pharmaceutical, food, chemical, electronics and metallurgy industries.
