Шаровая мельница 30tph китай самая низкая цена оптовая


Поделиться:


Цена:3 000,00 $ - 8 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 3570.88 $* 3749.51 $*
Aug-15-2025 3540.33 $* 3717.10 $*
Jul-15-2025 2970.82 $* 3119.91 $*
Jun-15-2025 3480.7 $* 3654.33 $*
May-15-2025 3030.63 $* 3182.34 $*
Apr-15-2025 3420.63 $* 3591.60 $*
Mar-15-2025 3390.68 $* 3560.22 $*
Feb-15-2025 3360.35 $* 3528.50 $*
Jan-15-2025 3330.51 $* 3497.98 $*

Характеристики



\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t


High Capacity Ore Grinding Processing Equipment Mine Machine Stone Grinder Vibration Separator Small Ball Mill

Mineral ball mill for ore is a key equipment for regrinding, it is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc.The mineral ball mill can grind ore or other materials that can be grinded either by wet process or by dry process.
(1) The hollow axis adopts the cast steel.
(2) The lining can be replaced.
(3) Mineral ball mill is an efficient tool for grinding many materials into fine powder.
(4) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.

5) There are two ways of grinding: the dry way and the wet way.
(6) Ultimate particle size depends entirely on how hard the material you're grinding is.
(7) Mineral ball mill have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, and powder various chemicals.

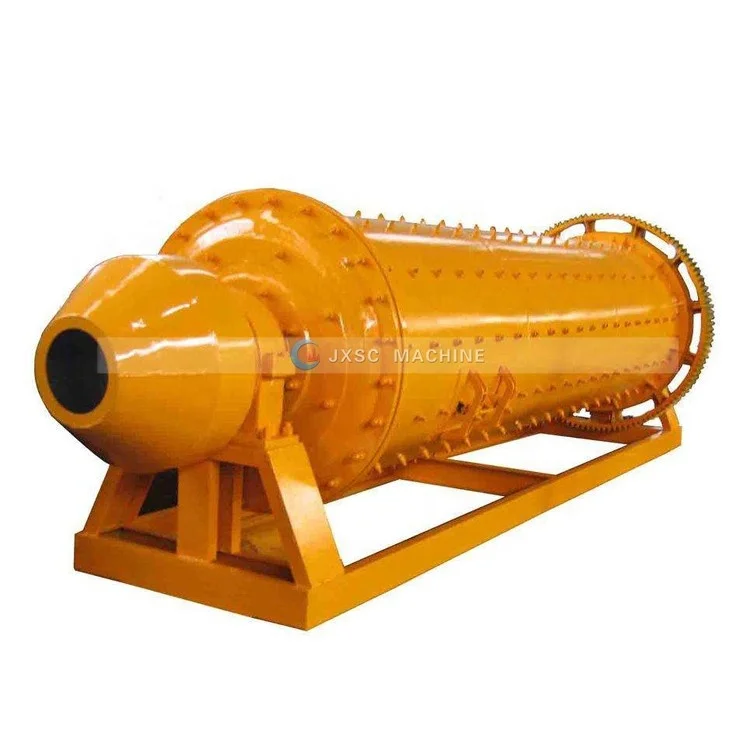

Ball mill details
This machine mainly consists of feeding device, discharge device, rotating device, transmission devices (gear box, pinion gear, motor and electric control device). The hollow shaft is made of cast steel. The liner is replaceable. The gear wheel adopts casting gear hobbing. The wear-resisting liner is inlayed in the cylinder of ball mill.

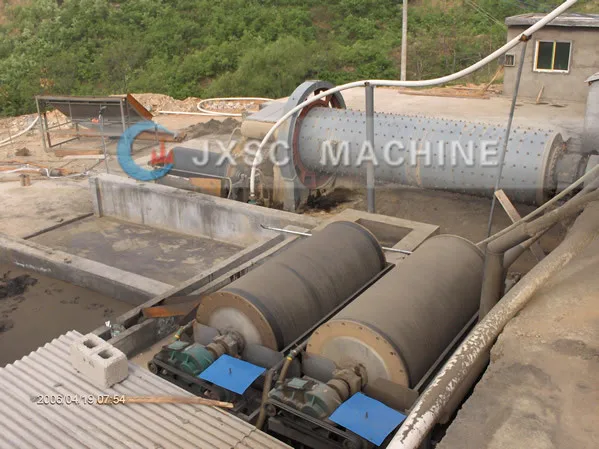

Used In Mineral Processing Plant Small Mineral Ball Mill:

Minerals are firstly crushed by jaw crusher until they are crushed to suitable sizes. They are then equally fed to a ball mill with a hoister and a feeder.

Later, they are further crushed and milled in the ball mill. Finally, fine minerals are classified by a spiral classifier with the principle that solid particles sink at different speeds in liquid.

The mineral ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft evenly. There are ladder liner, ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height to impact and grind the materials. And then the grinded materials are discharged through the discharging board.




Technical data





Model

Shell rotation speed(r/min)

Ball load
Feeding size
Discharging    size

Capacity
Motor      power

Weight
(t)
(mm)
(mm)
(t/h)
(kw)
(t)
Ø 900*1800
36-38
1.5
< =20
0.075-0.89
0.65-2
18.5
4.6
Ø 900*3000
36
2.7
< =20
0.075-0.89
1.1-3.5
22
5.6
Ø 1200*2400
36
3
< =25
0.075-0.6
1.5-4.8
30
12
Ø 1200*3000
36
3.5
< =25
0.074-0.4
1.6-5
37
12.8
Ø 1200*4500
32.4
5
< =25
0.074-0.4
1.6-5.8
55
13.8
Ø 1500*3000
29.7
7.5
< =25
0.074-0.4
2.0-5.0
75
15.6
Ø 1500*4500
27
11
< =25
0.074-0.4
3.0-5.0
110
21
Ø 1500*5700
28
12
< =25
0.074-0.4
3.5-6
130
24.7
Ø 1830*3000
25.4
11
< =25
0.074-0.4
4.0-10.0
130
28
Ø 1830*4500
25.4
15
< =25
0.074-0.4
4.5-12
155
32
Ø 1830*6400
24.1
21
< =25
0.074-0.4
6.5-15
210
34
Ø 1830*7000
24.1
23
< =25
0.074-0.4
7.5-17
245
36
Ø 2100*3000
23.7
15
< =25
0.074-0.4
6.5-36
155
34
Ø 2100*4500
23.7
24
< =25
0.074-0.4
8-43
245
42
Ø 2100*7000
23.7
26
< =25
0.074-0.4
8-48
280
50
Ø 2200*4500
21.5
27
< =25
0.074-0.4
9-45
280
48.5
Ø 2200*6500
21.7
35
< =25
0.074-0.4
14-26
380
52.8


after-sales service
We can send engineers to guide the installation and provide perfect after-sales service




Products application

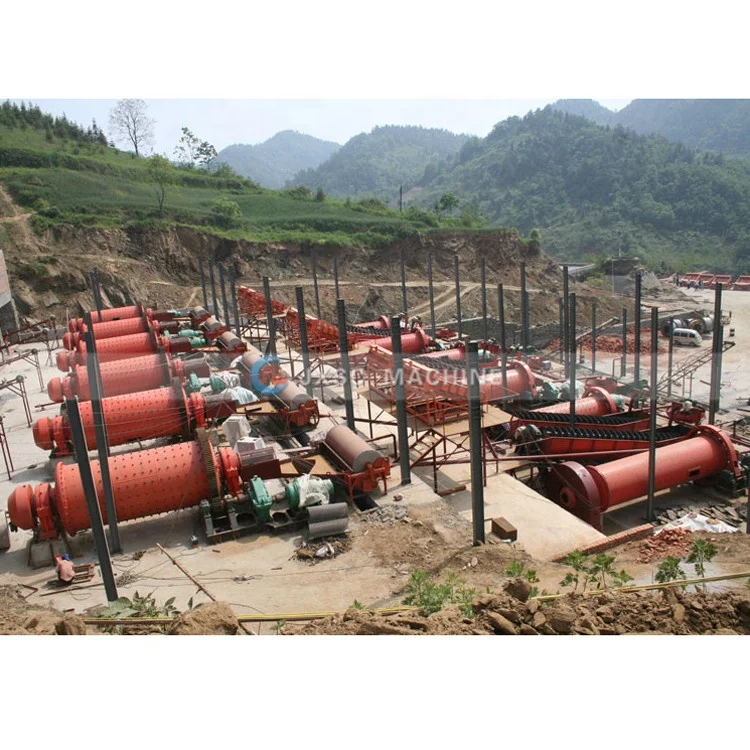

860THP Titanium mining project in Mozambique


This project is a big case,the client running a family business.they focus in gold,chrome and diamond recovery,we provide a whole processing plant for them,neary all the mining machines are involed,trommel screen washing machine,trommel screen,vibration screen,ball mills,magnetic separator,spiral chute,shaking table etc.





Ball Mills usually used for processing materials like gold,chrome,tin,coltan,diamond ,tantalite ,silica sand etc.

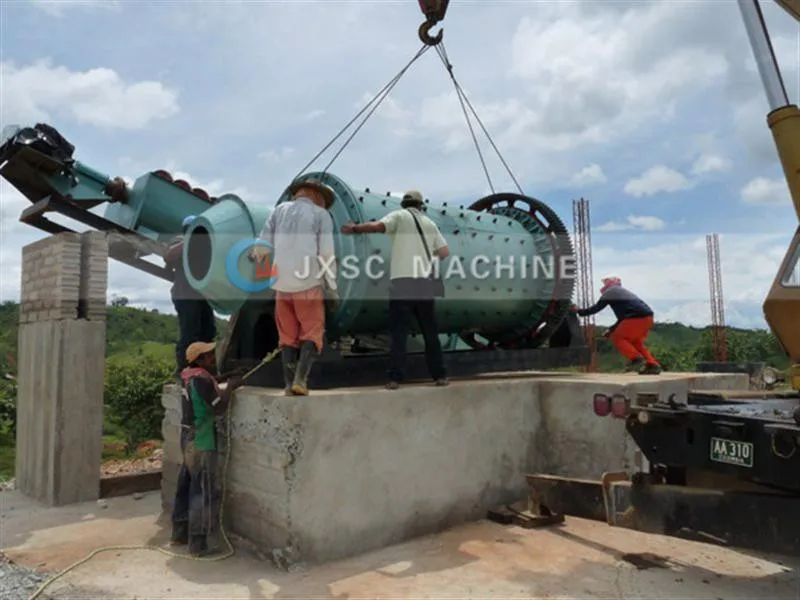

30TPH coltan mining project in Zambia
capacity;30tph
site;Zambia
mineral:coltan
feeding size;20mm
machine:hopper,ball mill,,belt conveyor,pumps,etc.





\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t

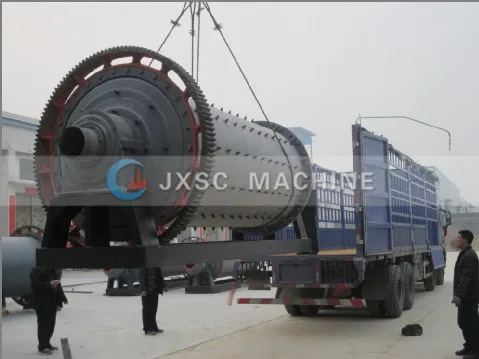

Ball mill Packing/Loading
1. Some machines spare parts would be packed in wooden boxes to avoid broken.
2. Usually the machines are fixed and loaded in container directly.





Ball mill Shipping
1. Usually our mining machines are shipped in 40'HQ or Flat Containers by sea.
2. Our mining equipments can be also shipped by air if customers request.



\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t






Jiangxi walker Machinery Co.,Ltd, is a professional manufacturer of complete set mining equipments, a sub-company of JXSC mine machinery factory in Jiangxi province. professional at providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect. As well as complete set small lab mining machines.


Our Core Advantages as below :
1.+30 years history FACTORY at mining machinery
2.Provide engineer team after sales service
3.Provide Complete set mineral processing plant
4.Provide Sample testing service in factory lab for free
5.Provide professional Mining Solution Consulting





\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t


1.How is the quality of your products?(mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.

2.Guaranteed:
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.

3.How about price?

Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.

4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.

Our service

Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.


Sales service: Send technicians to the jobsite guiding the installation and adjustment, training operators and finishing the check and accept together with you.


After-sales service: To establish long term friendship, we will reg-ularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.


Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.

Very good service help us win many clients from all over the world.
