Встроенная плата маршрутизатора WPQ865 Atheros IPQ8065 1 7 ГГц с поддержкой 802.11AC WAVE
- Категория: Макетные доски и наборы >>>
- Поставщик: Suzhou,Story,Network,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 262.89 $* | 275.71 $* |
| Aug-18-2025 | 260.45 $* | 273.76 $* |
| Jul-18-2025 | 218.46 $* | 229.27 $* |
| Jun-18-2025 | 255.69 $* | 268.47 $* |
| May-18-2025 | 222.35 $* | 233.87 $* |
| Apr-18-2025 | 251.28 $* | 264.76 $* |
| Mar-18-2025 | 249.8 $* | 261.37 $* |
| Feb-18-2025 | 246.78 $* | 258.40 $* |
| Jan-18-2025 | 244.21 $* | 256.2 $* |
Характеристики
Product Description

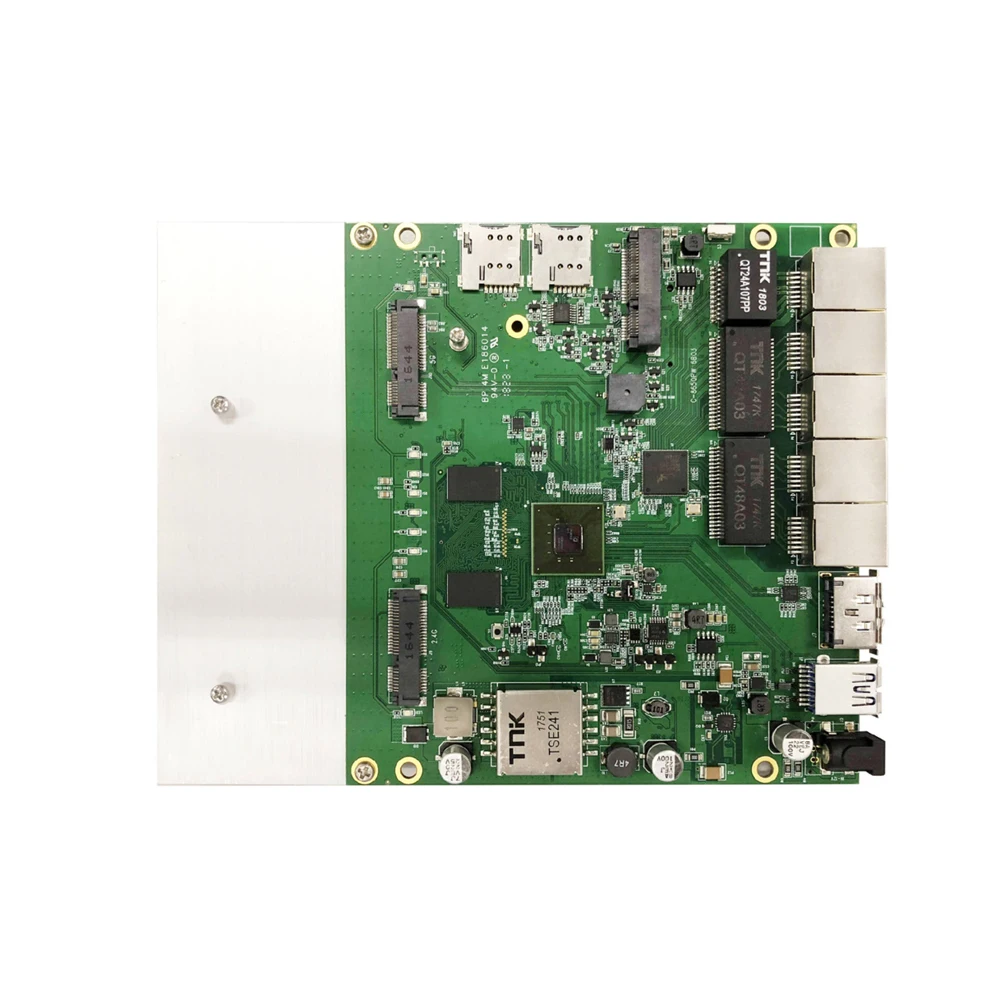

Multi-function IPQ8065 Embedded Board with 1.7GHz CPU
1x USB 3.0 / Supports 4x4 802.11ac / 5x 1Gbps Ports / 3x MiniPCIe Slots
KEY FEATURES
●Qualcomm Atheros IPQ8065 Dual Core Krait ARMv7 CPU 1.7GHz processor
●Capable of supporting 3x MiniPCIe WiFi radio modules, with 3rd slot capable of supporting LTE modules
APPLICATIONS
●Optimized for 4x4 MU-MIMO 802.11ac Module Support
●Tri Band MU-MIMO 802.11g/n/ac Access Point
●Dual Concurrent MU-MIMO 802.11a/n/ac Access Point
●Wireless Base Station
●3G/LTE AP
●Qualcomm Atheros IPQ8065 Dual Core Krait ARMv7 CPU 1.7GHz processor
●Capable of supporting 3x MiniPCIe WiFi radio modules, with 3rd slot capable of supporting LTE modules
APPLICATIONS
●Optimized for 4x4 MU-MIMO 802.11ac Module Support
●Tri Band MU-MIMO 802.11g/n/ac Access Point
●Dual Concurrent MU-MIMO 802.11a/n/ac Access Point
●Wireless Base Station
●3G/LTE AP

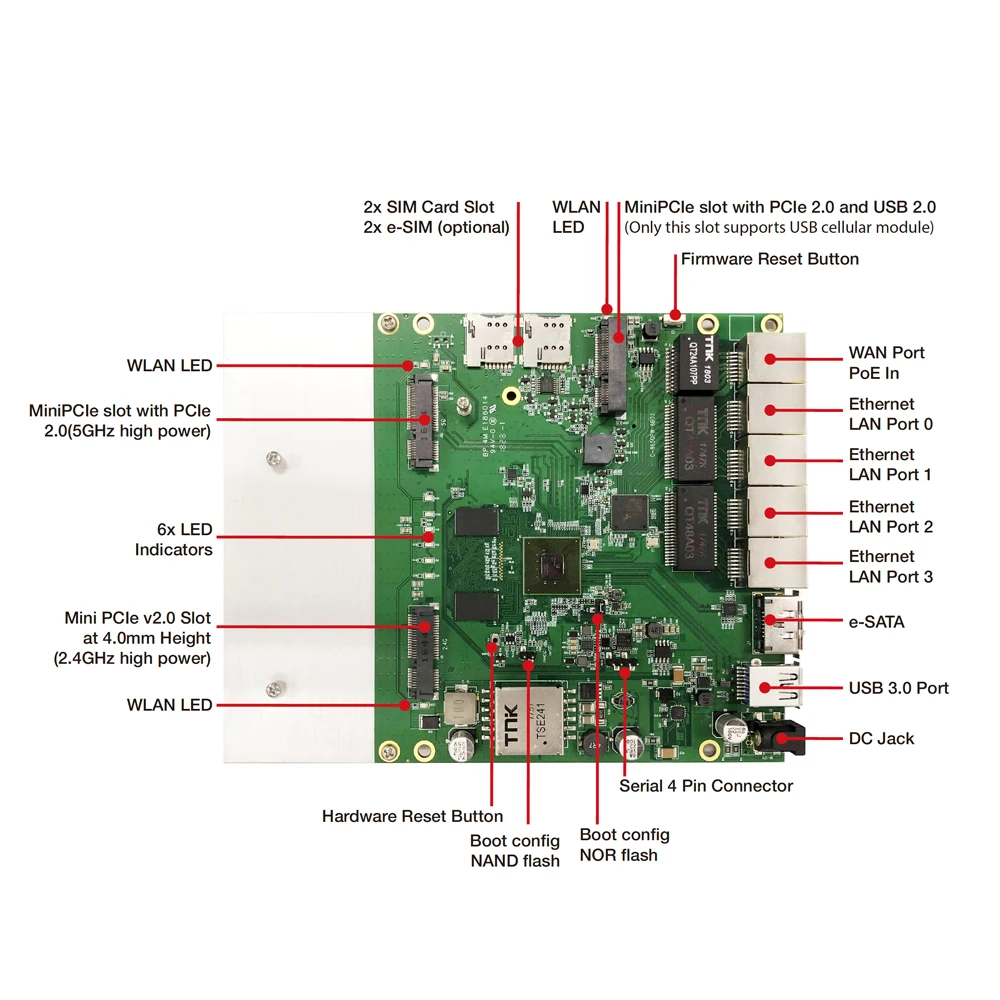

Specification
Chipset | Qualcomm Atheros IPQ8065 Dual Core Krait ARMv7 CPU 1.7GHz processor ‘Akronite’ Series |
Reference Design | Qualcomm Atheros AP161 |
System Memory | 1GB (2x 512MB) DDR3 |
NAND Flash | 256MB |
NOR Flash | 32MB |

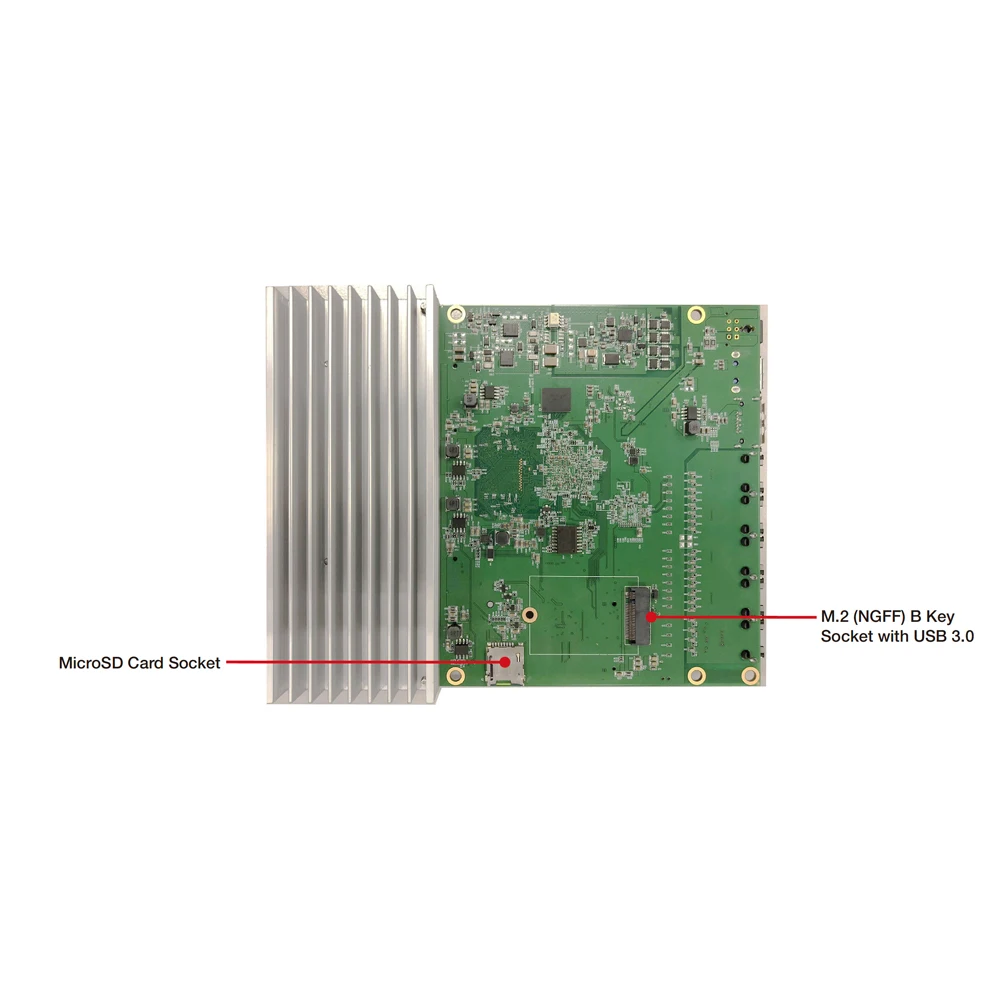

NGFF Slot | 1x M.2 (NGFF) B Key Socket with USB 3.0 |
MiniPCIe Slot | 2x MiniPCIe Slots with PCIe 2.0 1x MiniPCIe Slot with PCIe 2.0 and USB 2.0 |
Interface | 5x 1Gbps Ethernet Ports LAN RJ45 (Auto MDI-X) 1x eSATA Port 1x USB 3.0 Port 2x SIM Card Slots (Optional 2x e-SIM) 1x MicroSD Card Slot 1x Serial Port 4 Pin Connector |
Reset Button | 1x F/W Reset Button, 1x H/W Reset Button |
LED | 9x LED Indicators |
Power over Ethernet (PoE) | 1x IEEE 802.3af/at POE, 36~57V, up to 70W (4-pair power feed) on WAN Port |
DC Power | 1x DC Jack Connector: 12V |
Power Consumption (Board Only) | 4.5W |
Certification | REACH and RoHS Compliance |
Environmental Temperature | Operating: -20°C to 70°C, Storage: -40°C to 90°C |
Environmental Humidity, Non-Condensing | Operating: 5% to 95%, Storage: Max. 90% |

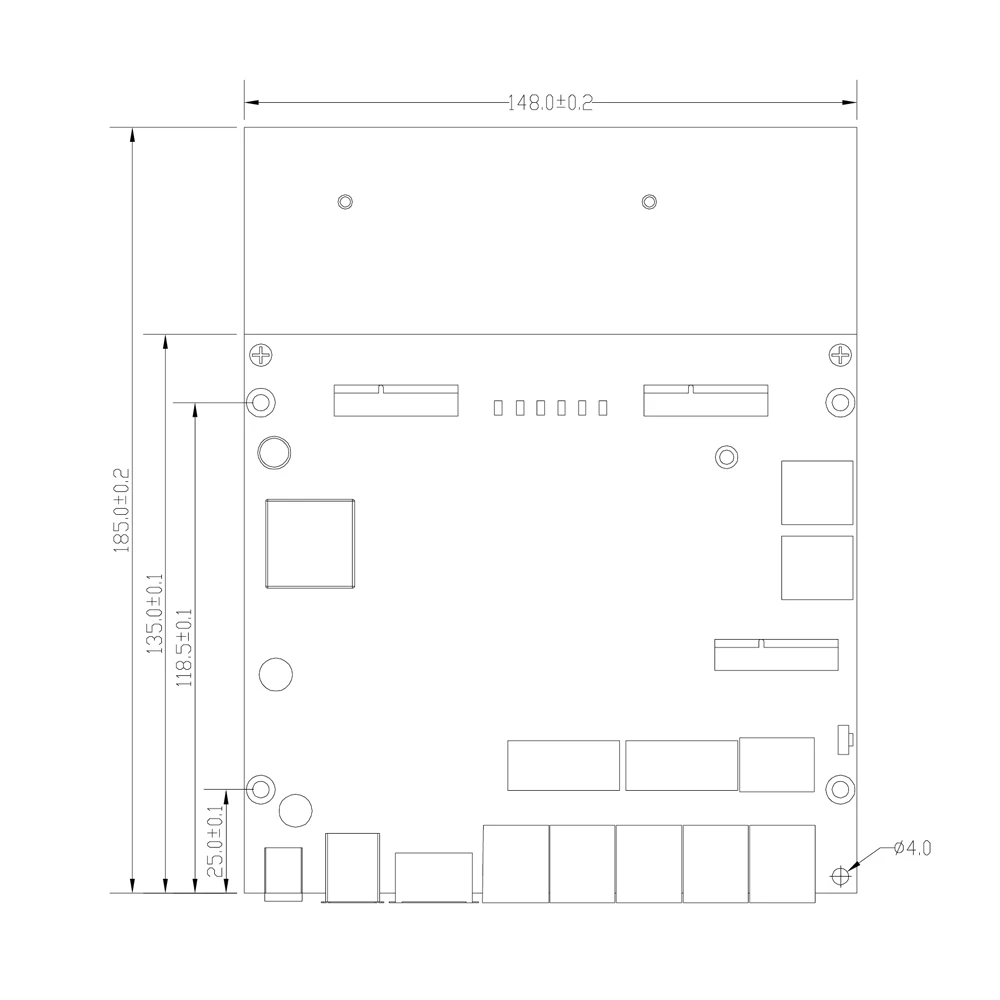

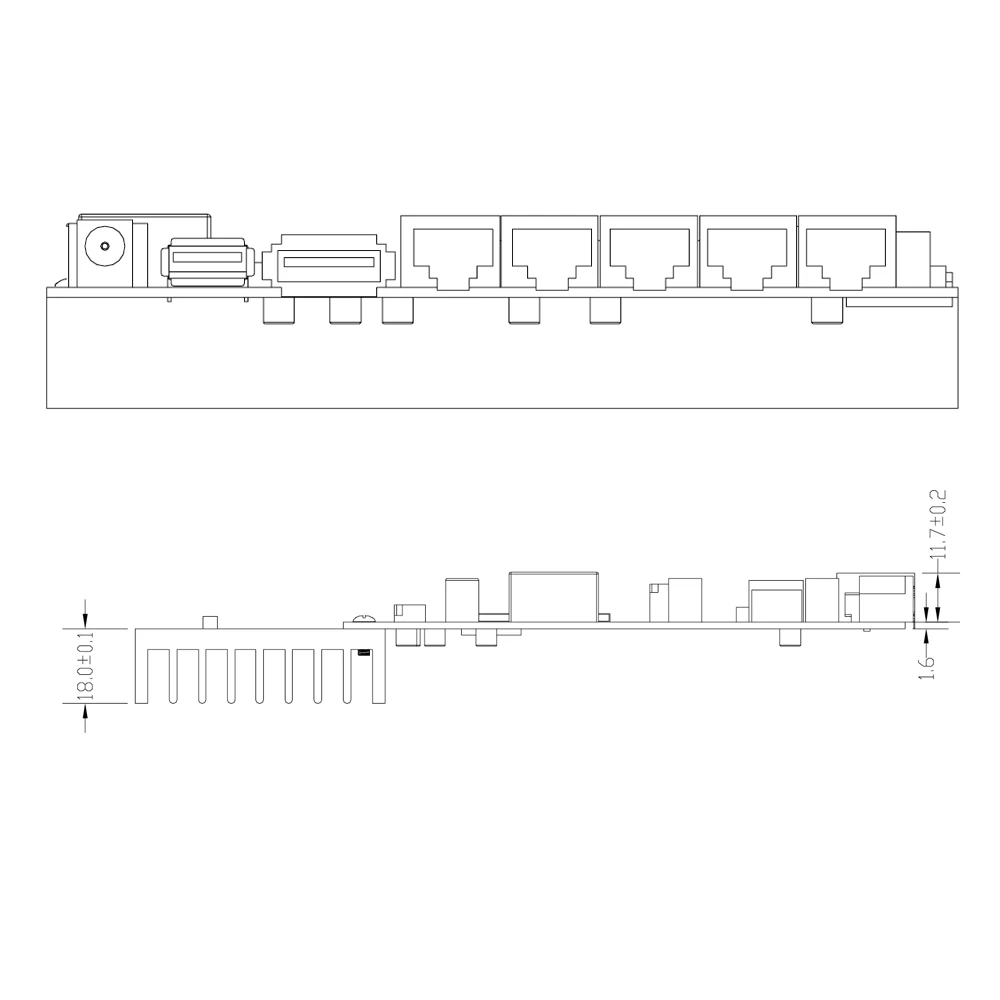

Dimensions (W x H x D) in mm | PCBA 137 x 148 x 17.5, Heatsink 60 x 148 x 30 |
Embedded Board Catalogue
802.11ax (WiFi 6)
MODEL | |||
PROCESSOR | Qualcomm Atheros IPQ8074A | Qualcomm Atheros IPQ8072A | Qualcomm Atheros IPQ8072A |
CPU SPEED | 2.2GHz | 2.2GHz | 2.2GHz |
SYSTEM MEMORY | 1GB | 512MB | 512MB |
NAND FLASH | QPIC 256MB, eMMC 8GB | 256MB | 256MB |
NOR FLASH | 32MB | 8MB | 8MB |
WIRELESS | 4x4 MU-MIMO OFDMA 802.11ax @ 2.4GHz, 2x (4x4) or 8x8 MU-MIMO OFDMA 802.11ax @ 5GHz | 4x4 MU-MIMO OFDMA 802.11ax | 4x4 MU-MIMO OFDMA 802.11ax |
OPERATING FREQUENCY | 2.4GHz and 5GHz concurrent | 2.4GHz and 5GHz concurrent | 2.4GHz and 5GHz concurrent |
THEORETICAL RATE | 1147Mbps @ 2.4GHz, 4804Mbps @ 5GHz | 1182Mbps @ 2.4GHz, 2475Mbps @ 5GHz | 1182Mbps @ 2.4GHz, 2475Mbps @ 5GHz |
WIRELESS TRANSMIT POWER (per chain) | 23dBm @ 2.4GHz, 20dBm @ 5GHz | 17dBm @ 2.4GHz, 17dBm @ 5GHz | 17dBm @ 2.4GHz, 17dBm @ 5GHz |
EXPANSION | 1x MiniPCIe Slot with PCIe 2.0 | 1x M.2 (NGFF) B Key Socket with PCIe 3.0 1x M.2 (NGFF) B Key Socket with USB 3.0 and PCIe 2.0 | 1x MiniPCIe Slot with PCIe 3.0 |
ETHERNET | 5x 1Gbps Ethernet Ports, 1x 10Gbps Ethernet Port | 3x 1Gbps Ethernet Ports, 1x 2.5Gbps Ethernet Port | 1x 1Gbps Ethernet Port, 1x 2.5Gbps Ethernet Port |
POWER OPTION | DC Jack | DC Jack | DC Jack |
POWER CONSUMPTION | TBD | 22.5W (Included Bluetooth) | 22.5W (Included Bluetooth) |
OPENWRT SUPPORT | ☑️ | ☑️ | ☑️ |
SERIAL PIN | ☑️ | ☑️ | ☑️ |
JTAG | ☑️ | ☑️ | ☑️ |
RESET BUTTON | ☑️ | ☑️ | ☑️ |
SURGE SUPPRESSOR | ❌ | ❌ | ❌ |
LED INDICATORS | ☑️ | ☑️ | ☑️ |
SIM HOLDER | ☑️ | ☑️ | ❌ |
DUAL SIM HOLDER | ☑️ | ☑️ | ❌ |
OPERATING ENVIRONMENT | -20ºC to 70ºC | -20ºC to 70ºC | -20ºC to 70ºC |
CERTIFICATION | REACH & RoHS Compliance | REACH & RoHS Compliance | REACH & RoHS Compliance |
DIMENSIONS (W x H x D) in mm | PCBA 168 x 201 x 18 (without heatsink) | 225 x 128 x 36.8 | 180 x 125 x 41.7 |
MODEL | |||
PROCESSOR | Qualcomm Atheros IPQ6018 | Qualcomm Atheros IPQ6000 | Qualcomm Atheros IPQ6018 |
CPU SPEED | 1.8GHz | 1.2GHz | 1.8GHz |
SYSTEM MEMORY | 1GB | 512MB | 1GB |
NAND FLASH | 256MB | 128MB | 256MB |
NOR FLASH | 32MB | 16MB | 32MB |
WIRELESS | 2x2 MU-MIMO OFDMA 802.11ax | 2x2 MU-MIMO OFDMA 802.11ax | 2x2 MU-MIMO OFDMA 802.11ax |
OPERATING FREQUENCY | 2.4GHz and 5GHz concurrent | 2.4GHz and 5GHz concurrent | 2.4GHz and 5GHz concurrent |
THEORETICAL RATE | 573Mbps @ 2.4GHz, 1201Mbps @ 5GHz | 573Mbps @ 2.4GHz, 1201Mbps @ 5GHz | 573Mbps @ 2.4GHz, 1201Mbps @ 5GHz |
WIRELESS TRANSMIT POWER (per chain) | 20dBm @ 2.4GHz, 20dBm @ 5GHz | 20dBm @ 2.4GHz, 20dBm @ 5GHz | 23dBm @ 2.4GHz, 23dBm @ 5GHz |
EXPANSION | 1x M.2 (NGFF) B Key Socket with PCIe 3.0, 1x M.2 (NGFF) B Key Socket with USB 3.0 | ❌ | 1x M.2 (NGFF) E Key Socket with PCIe 3.0 |
ETHERNET | 4x 1Gbps Ethernet Ports, 1x 2.5Gbps Ethernet Port | 2x 1Gbps Ethernet Ports | 5x 1Gbps Ethernet Ports, 1x 2.5Gbps Ethernet Port |
POWER OPTION | DC Jack | DC Jack | DC Jack |
POWER CONSUMPTION | 17.5W (Including Bluetooth) | 13W | 17W (Max) |
OPENWRT SUPPORT | ☑️ | ☑️ | ☑️ |
SERIAL PIN | ☑️ | ☑️ | ☑️ |
JTAG | ☑️ | ❌ | ☑️ |
RESET BUTTON | ☑️ | ❌ | ☑️ |
SURGE SUPPRESSOR | ❌ | ❌ | ❌ |
LED INDICATORS | ☑️ | ☑️ | ❌ |
SIM HOLDER | ☑️ | ❌ | ❌ |
DUAL SIM HOLDER | ☑️ | ❌ | ❌ |
OPERATING ENVIRONMENT | -20ºC to 70ºC | -20ºC to 60ºC | -20ºC to 70ºC |
CERTIFICATION | REACH & RoHS Compliance | REACH & RoHS Compliance | REACH & RoHS Compliance |
DIMENSIONS (W x H x D) in mm | 210 x 132 x 51 (With Heatsink) | (Diameter) 100 x (Height) 23.5 (Without Heatsink) | 219 x 150 x 16.5 (Without Heatsink) |
802.11ac Wave 2 (WiFi 5)
MODEL | WSB419 Wasabi-A | |||||
PROCESSOR | Qualcomm Atheros IPQ4019 | Qualcomm Atheros IPQ4019 | Qualcomm Atheros IPQ4028 | |||
CPU SPEED | 710MHz | 710MHz | 710MHz | |||
SYSTEM MEMORY DDR3 | 256MB (Up to 1GB) | 256MB (Up to 1GB) | 256MB | |||
NAND FLASH | 128MB | 128MB | 128MB | |||
NOR FLASH | 16MB | 16MB | 32MB | |||
WIRELESS | 2x2 MU-MIMO 802.11ac Wave 2 | 2x2 MU-MIMO 802.11ac Wave 2 | 2x2 MU-MIMO 802.11ac Wave 2 | |||
OPERATING FREQUENCY | 2.4GHz and 5GHz concurrent | 2.4GHz and 5GHz concurrent | 2.4GHz and 5GHz concurrent | |||
THEORETICAL RATE | 400Mbps @ 2.4GHz, 867Mbps @ 5GHz | 400Mbps @ 2.4GHz, 867Mbps @ 5GHz | 400Mbps @ 2.4GHz, 867Mbps @ 5GHz | |||
WIRELESS TRANSMIT POWER (per chain) | 23dBm @ 2.4GHz, 23dBm @ 5GHz | 23dBm @ 2.4GHz, 23dBm @ 5GHz | 20dBm @ 2.4GHz, 16dBm @ 5GHz | |||
EXPANSION | 2x MiniPCIe Slots with USB 3.0 | N.A | 1x M.2 (NGFF) B Key Socket with USB 3.0 | |||
ETHERNET | 2x 1Gbps Ethernet Ports | Supports 1Gbps Ethernet on main board | 2x 1Gbps Ethernet Ports | |||
POWER OPTION | DC Jack, IEEE 802.3af/at | Power drawn from main board | DC Jack, Passive PoE 24V or IEEE 802.3af/at | |||
POWER CONSUMPTION | 12W (Max) | 12W (Max) | 19W | |||
OPENWRT SUPPORT | ☑️ | ☑️ | ☑️ | |||
SERIAL PIN | ☑️ | ❌ | ☑️ | |||
JTAG | ☑️ | ❌ | ☑️ | |||
RESET BUTTON | ☑️ | ❌ | ☑️ | |||
SURGE SUPPRESSOR | ❌ | ❌ | ☑️ | |||
LED INDICATORS | ☑️ | ❌ | ☑️ | |||
SIM HOLDER | ☑️ | ❌ | ☑️ | |||
DUAL SIM HOLDER | ❌ | ❌ | ☑️ | |||
OPERATING ENVIRONMENT | -20ºC to 70ºC | -20ºC to 70ºC | -20ºC to 70ºC | |||
CERTIFICATION | REACH & RoHS Compliance | REACH & RoHS Compliance | CE, FCC, REACH & RoHS Compliance | |||
DIMENSIONS (W x H x D) in mm | 120 x 105 x 15 | 40 x 58 x 5.5 | PCBA with heatsink below, 117 x 105 x 32 | |||
MODEL | ||||||
PROCESSOR | Qualcomm Atheros IPQ8065 | Qualcomm Atheros IPQ8064 | ||||
CPU SPEED | 1.7GHz | 1.4GHz | ||||
SYSTEM MEMORY DDR3 | 1GB | 1GB | ||||
NAND FLASH | 256MB | 256MB | ||||
NOR FLASH | 32MB | 32MB | ||||
WIRELESS | N.A | N.A | ||||
OPERATING FREQUENCY | N.A | N.A | ||||
THEORETICAL RATE | N.A | N.A | ||||
WIRELESS TRANSMIT POWER (per chain) | N.A | N.A | ||||
EXPANSION | 2x MiniPCIe Slots with PCIe 2.0 1x MiniPCIe Slot with PCIe 2.0 and USB 2.0 1x M.2 (NGFF) B Key Socket with USB 3.0 | 2x MiniPCIe Slots with PCIe 2.0 1x MiniPCIe Slot with PCIe 2.0 and USB 2.0 | ||||
ETHERNET | 5x 1Gbps Ethernet Ports | 5x 1Gbps Ethernet Ports | ||||
POWER OPTION | DC Jack, IEEE 802.3af/at | IEEE 802.3af/at | ||||
POWER CONSUMPTION (board only) | 4.5W | 4.65W | ||||
OPENWRT SUPPORT | ☑️ | ☑️ | ||||
SERIAL PIN | ☑️ | ☑️ | ||||
JTAG | ❌ | ☑️ | ||||
RESET BUTTON | ☑️ | ☑️ | ||||
SURGE SUPPRESSOR | ☑️ | ☑️ | ||||
LED INDICATORS | ☑️ | ☑️ | ||||
SIM HOLDER | ☑️ | ☑️ | ||||
DUAL SIM HOLDER | ☑️ | ☑️ | ||||
OPERATING ENVIRONMENT | -20ºC to 70ºC | -20ºC to 70ºC | ||||
CERTIFICATION | REACH & RoHS Compliance | CE, REACH & RoHS Compliance | ||||
DIMENSIONS (W x H x D) in mm | PCBA 137 x 148 x 17.5, heatsink 60 x 148 x 30 | 159 x 168 x 15.1 | ||||
802.11n (WiFi 4)
MODEL | ||||
PROCESSOR | Qualcomm Atheros QCA9563 | Qualcomm Atheros QCA9558 | Qualcomm Atheros QCA9563 | Qualcomm Atheros QCA9531 |
CPU SPEED | 775MHz | 700MHz | 775MHz | 650MHz |
SYSTEM MEMORY DDR2 | 128MB | 128MB | 128MB | 128MB |
NAND FLASH | ❌ | ❌ | ❌ | ❌ |
NOR FLASH | 16MB | 16MB | 16MB | 16MB |
WIRELESS | 3x3 MIMO 802.11n | 3x3 MIMO 802.11n | 3x3 MIMO 802.11n | 2x2 MIMO 802.11n |
OPERATING FREQUENCY | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz |
THEORETICAL RATE | 450Mbps | 450Mbps | 450Mbps | 300Mbps |
WIRELESS TRANSMIT POWER (per chain) | 23dBm | 23dBm | 30dBm | 23dBm |
EXPANSION | 1x MiniPCIe Slot with PCIe 1.1 and USB 2.0 | 1x MiniPCIe Slot with PCIe1.1 and USB 2.0 | 1x MiniPCIe Slot with PCIe1.1 and USB 2.0 | 1x MiniPCIe Slot with PCIe1.1 and USB 2.0 |
ETHERNET | 2x 1Gbps Ethernet Ports | 2x 1Gbps Ethernet Ports | 2x 1Gbps Ethernet Ports | 2x Fast Ethernet Ports |
POWER OPTION | DC Jack, Passive PoE 24V or IEEE 802.3af/at | DC Jack, Passive PoE min 48V, IEEE 802.3af/at | DC Jack, Passive PoE 36~56V, IEEE 802.3af/at | DC Jack, Passive PoE 24V or IEEE 802.3af/at |
POWER CONSUMPTION (board only) | 9.96W (Max) | 8.6W (Max) | 19.8W (Max) | 6.9W (Max) |
OPENWRT SUPPORT | ☑️ | ☑️ | ☑️ | ☑️ |
SERIAL PIN | ☑️ | ☑️ | ☑️ | ☑️ |
JTAG | ☑️ | ☑️ | ☑️ | ☑️ |
RESET BUTTON | ☑️ | ☑️ | ☑️ | ☑️ |
SURGE SUPPRESSOR | ☑️ | ☑️ | ☑️ | ☑️ |
LED INDICATORS | ☑️ | ☑️ | ☑️ | ☑️ |
SIM HOLDER | ☑️ | ❌ | ☑️ | Optional |
DUAL SIM HOLDER | ❌ | ❌ | ❌ | ❌ |
OPERATING ENVIRONMENT | -20ºC to 70ºC | -20ºC to 70ºC | -20ºC to 70ºC | -20ºC to 70ºC |
CERTIFICATION | REACH & RoHS Compliance | REACH & RoHS Compliance | REACH & RoHS Compliance | FCC, CE, REACH & RoHS Compliance |
DIMENSIONS (W x H x D) in mm | 117 x 105 x 17.7 | 117 x 105 x 17 | 117 x 105 x 17.7 | 117 x 105 x 17 |
MODEL | ||
PROCESSOR | Qualcomm Atheros AR9344 | Qualcomm Atheros AR9342 |
CPU SPEED | 560MHz | 560MHz |
SYSTEM MEMORY DDR2 | 128MB | 64MB |
NAND FLASH | ❌ | ❌ |
NOR FLASH | 16MB | 16MB |
WIRELESS | 2x2 MIMO 802.11n | 2x2 MIMO 802.11n |
OPERATING FREQUENCY | 2.4GHz | 5GHz |
THEORETICAL RATE | 300Mbps | 300Mbps |
WIRELESS TRANSMIT POWER (per chain) | 23dBm | 23dBm |
EXPANSION | 1x MiniPCIe Slot with PCIe1.1 and USB 2.0 | 1x MiniPCIe Slot with PCIe1.1 and USB 2.0 |
ETHERNET | 2x 1Gbps Ethernet Ports | 2x Fast Ethernet Ports |
POWER OPTION | DC Jack, Passive PoE 24V or IEEE 802.3af/at | DC Jack, Passive PoE 24V or IEEE 802.3af/at |
POWER CONSUMPTION (board only) | 7W (Max) | 5W (Max) |
OPENWRT SUPPORT | ☑️ | ☑️ |
SERIAL PIN | ☑️ | ☑️ |
JTAG | ☑️ | ☑️ |
RESET BUTTON | ☑️ | ☑️ |
SURGE SUPPRESSOR | ☑️ | ☑️ |
LED INDICATORS | ☑️ | ☑️ |
SIM HOLDER | ❌ | ❌ |
DUAL SIM HOLDER | ❌ | ❌ |
OPERATING ENVIRONMENT | -20ºC to 70ºC | -20ºC to 70ºC |
CERTIFICATION | FCC, CE , REACH & RoHS Compliance | FCC, CE, REACH & RoHS Compliance |
DIMENSIONS (W x H x D) in mm | 117 x 105 x 17 | 105 x 95 x 18 |
