Характеристики

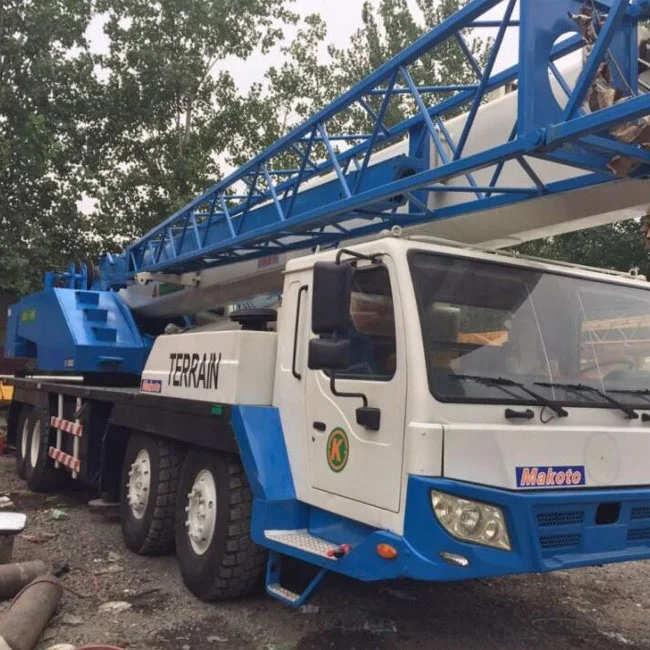

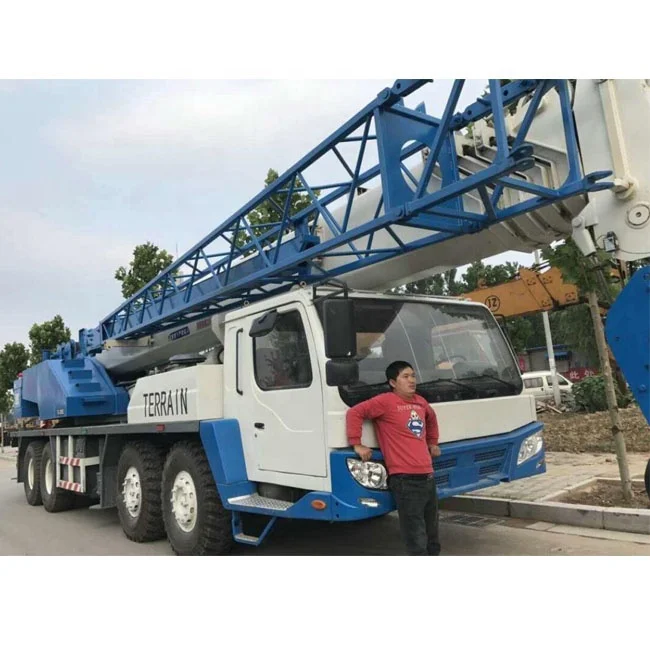

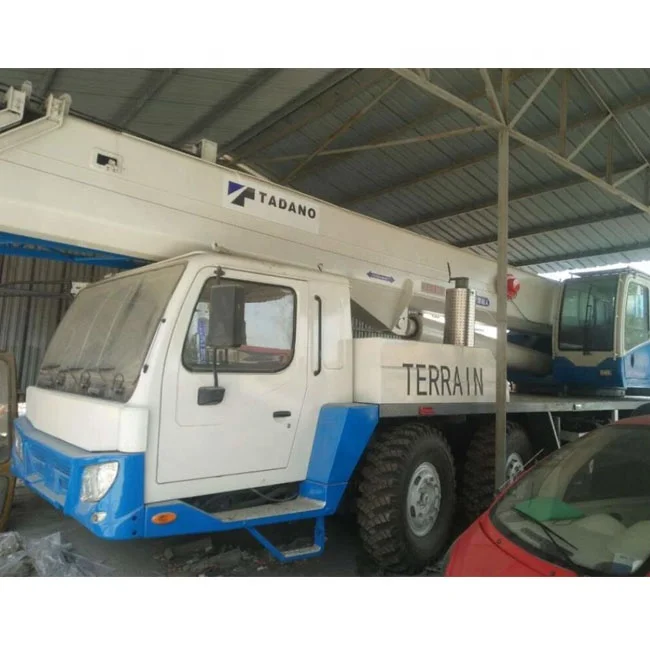

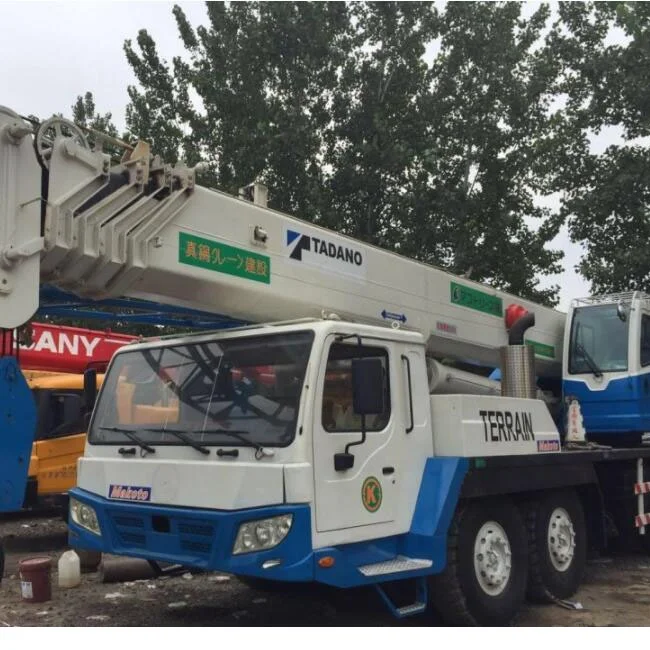

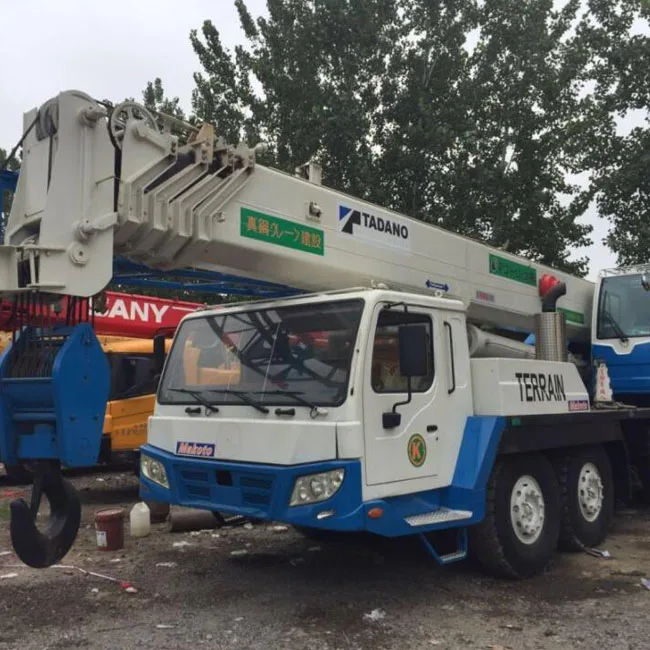

Truck Cranes 65 T/Used Tadano Crane 65 Ton Gt650e with Reasonable Price

Product Description

Excellent and stable chassis performance / chassis system
Double-axle drive is used, providing good trafficability and comfortableness under complex road condition with reliable traveling performance.
Engine has the multimode power output function, which reduces power consumption.
The use of tipping over early-warning technology provides high stability and safety of the overall operation.

Ultra long, super strong and highly sensitive load lifting capacity
Five-section boom of high strength steel structure and optimized U-shaped section reduces weight significantly with higher safety rates. Jib mounting angles are 0°, 15°and 30°, which ensures fast and convenient change-over between different operating conditions so as to improving working efficiency of the machine.

Highly efficient, stable, energy-saving and adjustable hydraulic system
Hydraulic system load feedback and constant power control is applied to provide strong lifting capacity and good micromobility.
Unique steering buffer design is adopted to ensure stable braking operation.

Safe, stable, advanced and intelligent electric control system
Self-developed controller SYMC specially for engineering machinery is configured. The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness and high reliability. Timely feedback of data information can achieve the monitoring of the overall working status in realtime.
The load moment limiter equipped with the comprehensive intelligent protection system is used with accuracy within ±5% to provide a comprehensive logic and interlock control, thus ensuring more safe and reliable operation.

Parameters

Dimension	Unit	TADANO
Overall length, width, height	mm	12600×2500×3650
Wheel base	mm	1420+2420+1800+1420+1505
Weight		1000000
Total weight in travel	kg	54900 58000
Axle load
Axle 1	kg	7500 7500
Axle 2	kg	7500 7500
Axle 3	kg	8300 10000
Axle 4	kg	12000 12500
Axle 5	kg	12000 12500
Axle 6	kg	7600 8000
Power
Engine rated power	kW/(r/min)	360/1800 (306/1900)
Engine rated torque	N.m/(r/min)	2200/1300 (2010/1200)
Engine rated speed	r/min	1800 (1900)
Min. ground clearance	mm	310
Travel
Approach angle	°	20
Departure angle	°	14
Braking distance (at 30km/h)	m	≤10
Max. grade ability	%	40
Min. turning diameter	m	24
Fuel consumption for 100km	L	70
Main performance
Max. rated total lifting capacity	m	100
Min. rated working radius		3
Turning radius at turntable tail
Counterweight	mm	4200
Aux. winch	mm	4590
Max. lifting torque		3450
Base boom	kN.m	3450(4m×88t)
Fully extended boom	kN.m	1950(24m×7.1t)
Fully extended boom+ jib	kN.m	1230(19.2m×6t)
Outrigger span (full extension)
Longitudinal	m	7.56
Lateral	m	7.6
Lifting height
Base boom	m	13.5
Fully extended boom	m	50.9
Fully extended boom+ jib	m	70.4
Boom length	m	13.5
Fully extended boom	m	51
Fully extended boom+ jib	m	51+18.1+4
Working speed
Jib setting angle	°	0,15,30
Boom luffing time	s	75
Boom
Boom telescoping time
Full extension	s	160
Max. swing speed	r/min	2
Outrigger extension/retraction time
Outrigger beam in extension/retraction	s	25/15
Outrigger jack in extension/retraction	s	45/25
Lifting speed (single rope, layer 4)
Main winch	m/min	105
Aux. winch	m/min	104
