YT-Q10P2 машина для горячего клея облицовки кромок по
- Категория: Gluing Machines >>>
- Поставщик: Quanzhou,Yongtai,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1904.59 $* | 1999.25 $* |
| Aug-16-2025 | 1888.55 $* | 1982.56 $* |
| Jul-16-2025 | 1584.68 $* | 1663.52 $* |
| Jun-16-2025 | 1856.3 $* | 1949.74 $* |
| May-16-2025 | 1616.41 $* | 1697.66 $* |
| Apr-16-2025 | 1824.58 $* | 1915.36 $* |
| Mar-16-2025 | 1808.65 $* | 1898.62 $* |
| Feb-16-2025 | 1792.68 $* | 1882.4 $* |
| Jan-16-2025 | 1776.53 $* | 1865.68 $* |
Характеристики
Product Description
Product Application

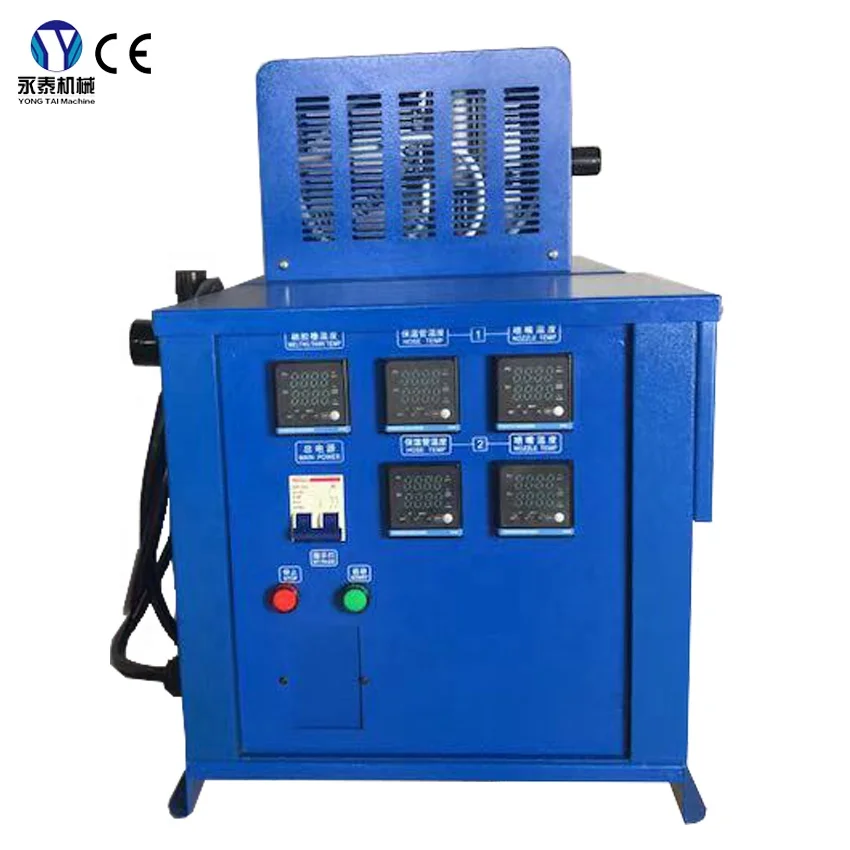

1.Applicator temperature is exactly controlled by electronic P.I.D numeric controller to avoid carbonization inside the tank.
2.Open tank to better protect security, add hot melt adhesive at any time.
3. The gear pump independent suspension system,convinent for maintenace.
4.Gear pump and piston pump for requirement. The precise flow control valves.
5. Modularizing design helps to change various size gear pump or handle the return valve easily.
6. Multi-layer stainless steel filter net can effectively filter the impure matter and prolong the machine life.
SPECIFICATIONS FOR 10KGS (L) HOT MELT GLUE MACHINE | ||||||||||
ITEM | UNIT | YT-M10P2 | YT-M10P3 | YT-M10P4 | YT-Q10P2 | |||||
VOLTAGE | V | 220 | 220 | 220 | 220 | |||||
POWER | WATT | 3800 | 3800 | 3800 | 3600 | |||||
TANK CAPACITY | L | 10 | 10 | 10 | 10 | |||||
MAX.MELTING RATE | KG/HOUR | 15 | 15 | 15 | 15 | |||||
MAX.OPERATION TEMP | ℃ | 200 | 200 | 200 | 200 | |||||
AIR PRESSUER | KG/CM² | 4-6 | 4-6 | 4-6 | 4-6 | |||||
DIMENSION: L×W×H | MM | 720×550×470 | 720×550×470 | 720×550×470 | 720×380×470 | |||||
WEIGHT | KG | 50 | 50 | 50 | 45 | |||||
MAX.CPS | CPS | 12000 | 12000 | 12000 | 12000 | |||||
PUMP TYPE | GEAR PUMP | GEAR PUMP | GEAR PUMP | PISTON PUMP | ||||||
HOSE OUTPUT | PCS | 2 | 3 | 4 | 2 | |||||
MOTOR POWER | WATT | 200 | 200 | 200 | 200 | |||||
Main Features
This machine is mainly used in: carton packaging, medical and health supplies, car lights, car interiors, filter, toys, arts and crafts. also the machine with the hot melt laminating machine and coating machine, is widely used in the diaper, sanitary towel, package, shoes, furniture , tapes, labels, stickers and the mattress production line etc.
Certifications
Detailed Images
Machine Parts

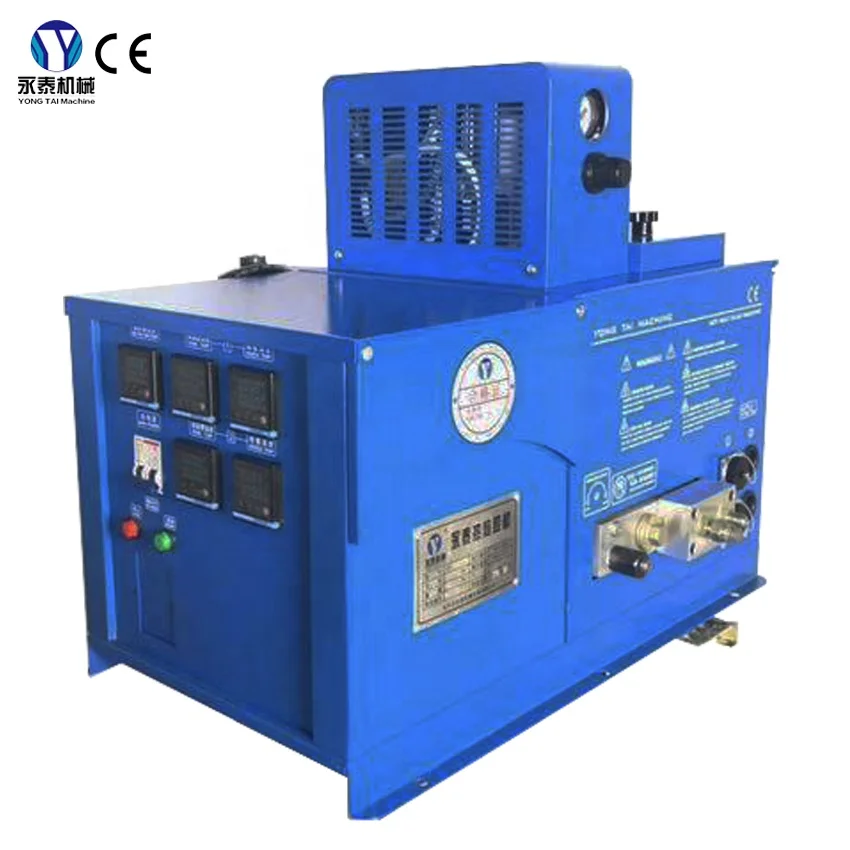

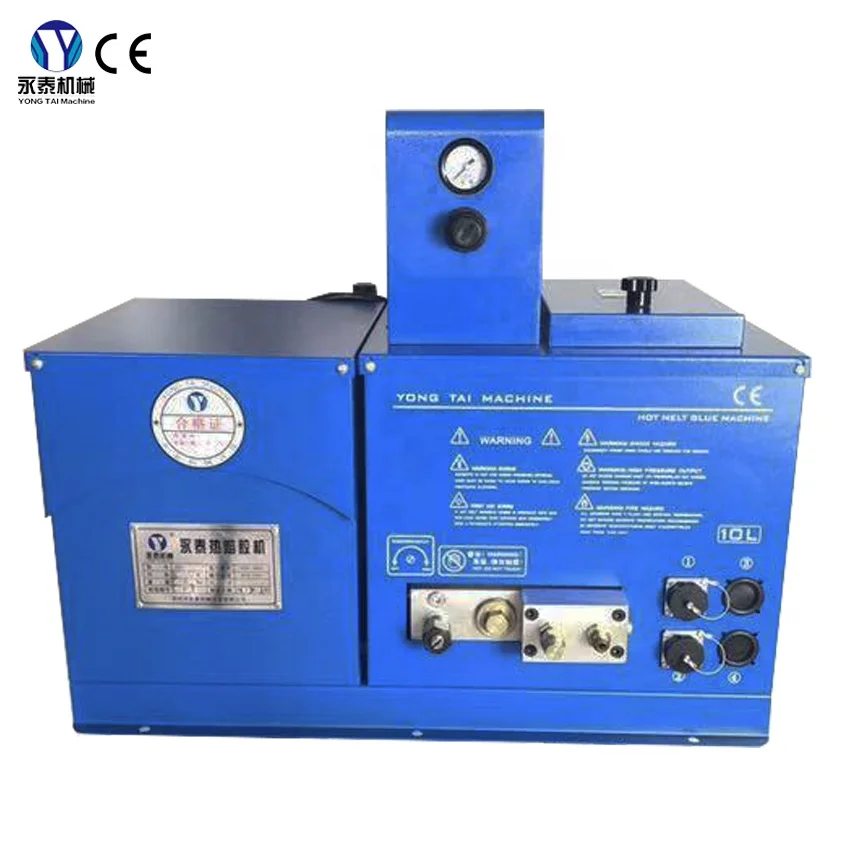

Name: YT-M10P2
Brand:YONGTAI
Original:CHINA
The machine is with 10kgs glue tank, can connect with 2 glue hoses and 2 glue guns.
Main Features

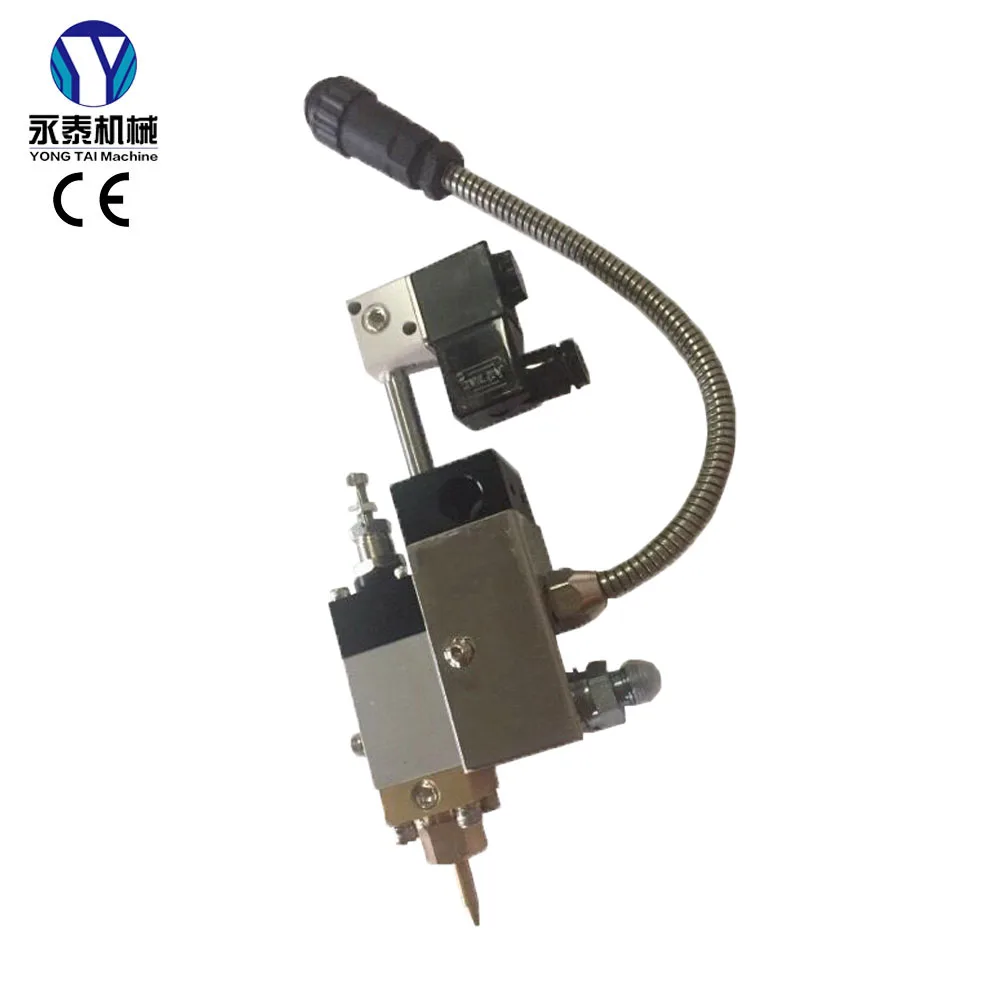

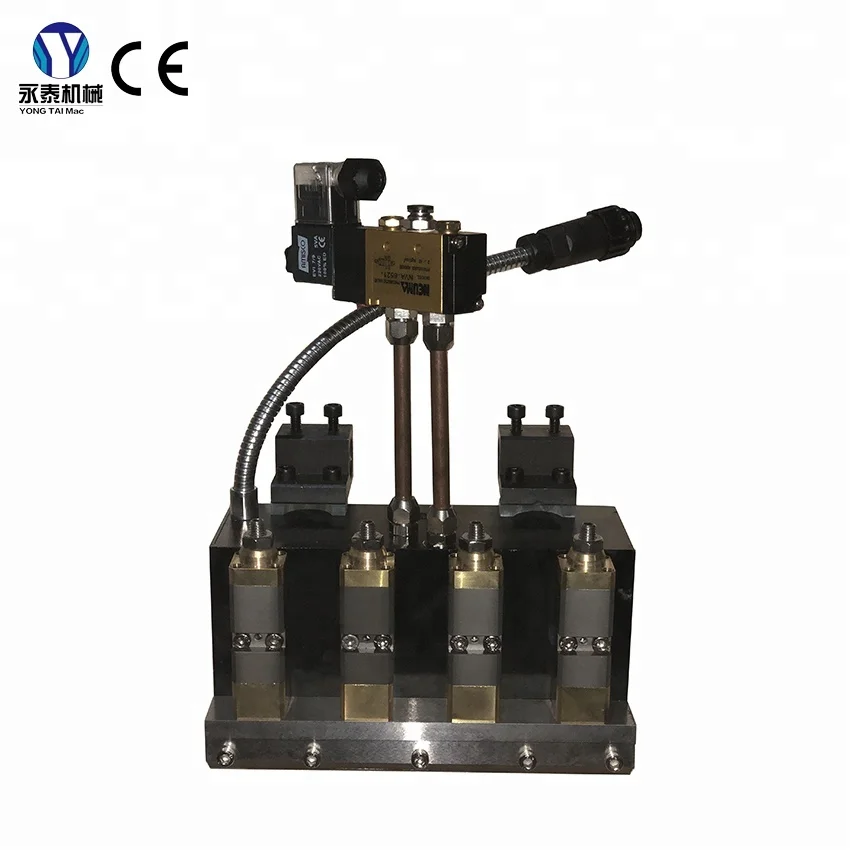

Name: 10KGS GLUE MACHINE WITH AUTOMATIC NOZZLE
Brand: YONGTAI
Original: CHINA
The machine can connect with automatic glue nozzle, the gun can make according the client's inquiry.
Machine Parts
Name: YT-H003
Brand:YONGTAI
Original:CHINA
The machine need to connect with hose.the hose length can make according the client's inquiry.
Main Features

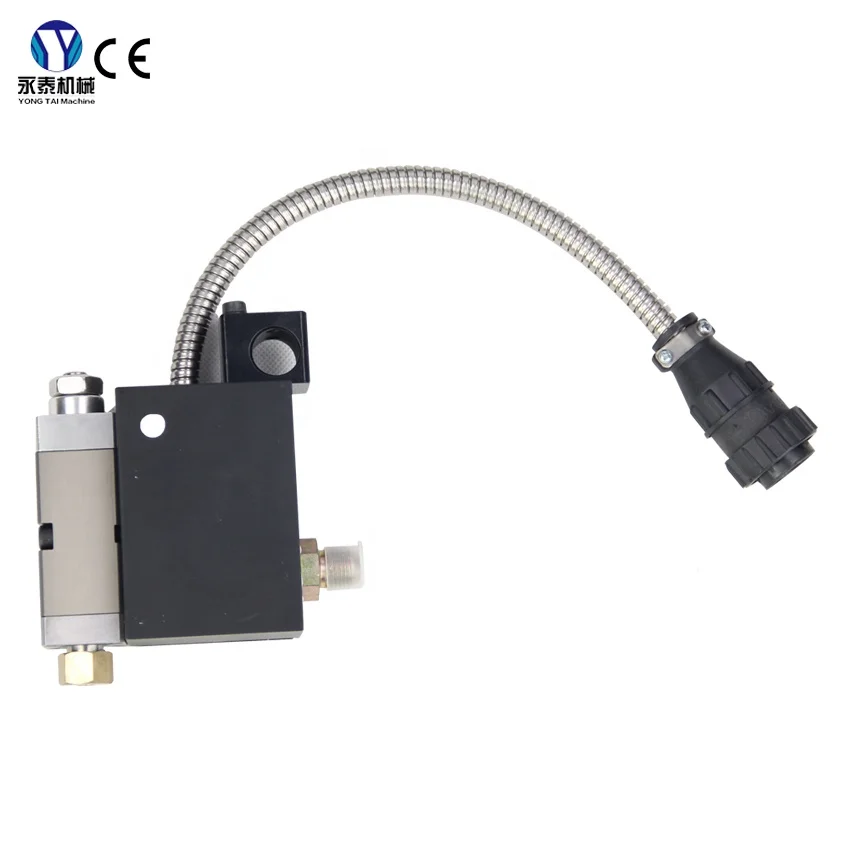

Name: 10KGS GLUE MACHINE WITH HAND GUN
Brand: YONGTAI
Original: CHINA
The machine can connect with hand gun. The gun can make according client's inquiry.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 79 (L) * 62 (W) * 60 (H) CM | |
Weight | 100KGS | |
Packaging Details | The normal package is wooden box. | |
