Нержавеющая сталь гигиеническая санитарная асептическая. Пищевой образец клапана для автоматического отбора
- Категория: Needle Valves >>>
- Поставщик: Wenzhou,Rifeng,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 70.2 $* | 71.68 $* |
| Jul-19-2025 | 57.25 $* | 58.42 $* |
| Jun-19-2025 | 69.88 $* | 70.79 $* |
| May-19-2025 | 68.93 $* | 69.32 $* |
| Apr-19-2025 | 54.58 $* | 55.75 $* |
| Mar-19-2025 | 67.80 $* | 68.33 $* |
| Feb-19-2025 | 67.88 $* | 68.54 $* |
| Jan-19-2025 | 66.29 $* | 67.89 $* |
Характеристики
Company Information
Wenzhou Rifeng Technology Co.,Ltd, set design, develop, manufacturing and sales service in one of profesional valve and pipe fittings supplier. It's seated "China valve city" Wenzhou binhai economic development zone. Covers an area of 50 acres, the existing staff of nearly 200 people, containing 20 engineers, and 50 professional technicians.
Our company series including Sanitary manual ball valve, pneumatic ball valve. electric ball valve, Sanitary manual butterfly valve, pneumatic butterfly valves, electric butterfly valve, Sanitary manual diaphragm valve, pneumatic diaphragm valve, globe/reversing valve, manual and penumatic control valve, safety valve, mixing valve, special valve, pump series, Irrigation equipment series, pipe fittings series etc, Products all adopt different polish, materials and industrial standard.
Our company strive to become to be the leader of the high-end valves! Become the first-class brand sanitary valve industry!

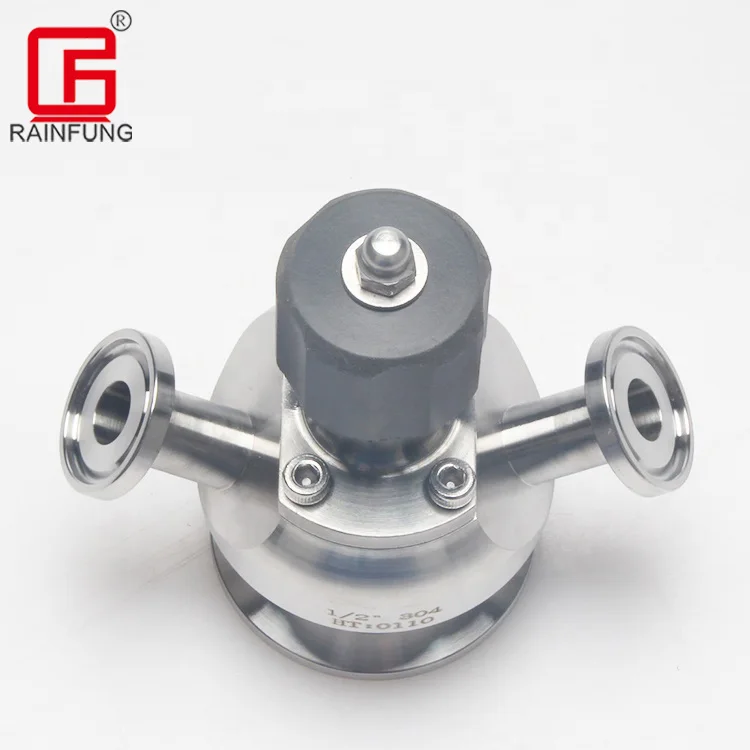

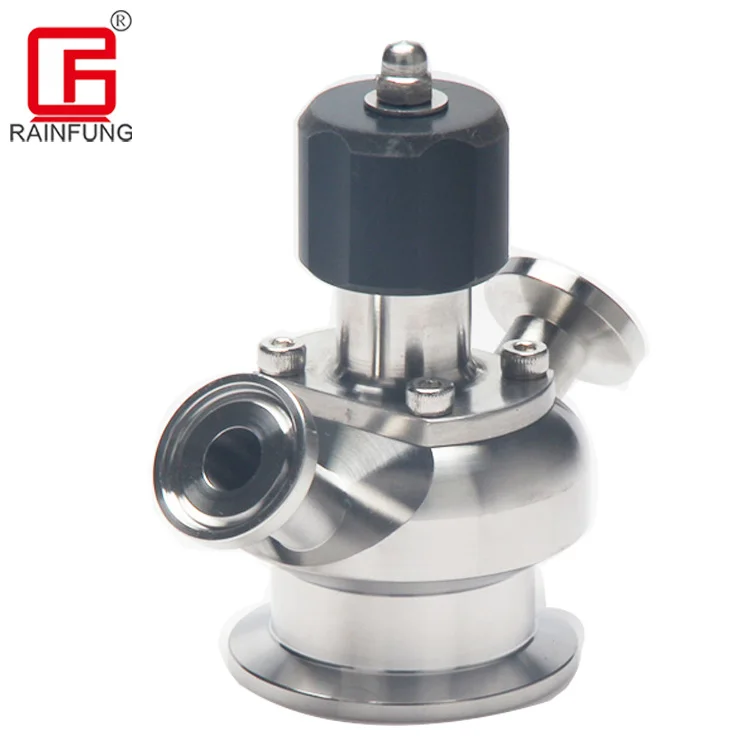

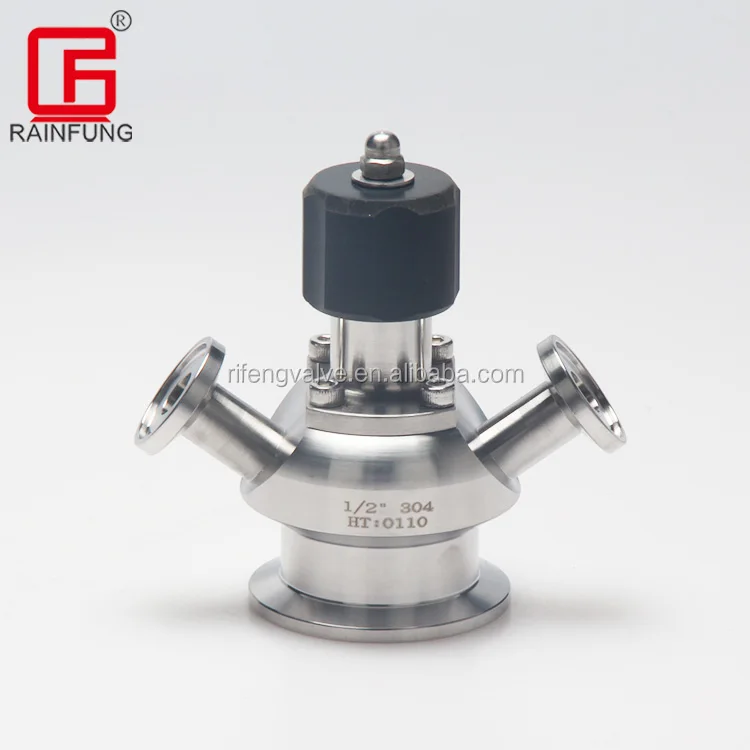

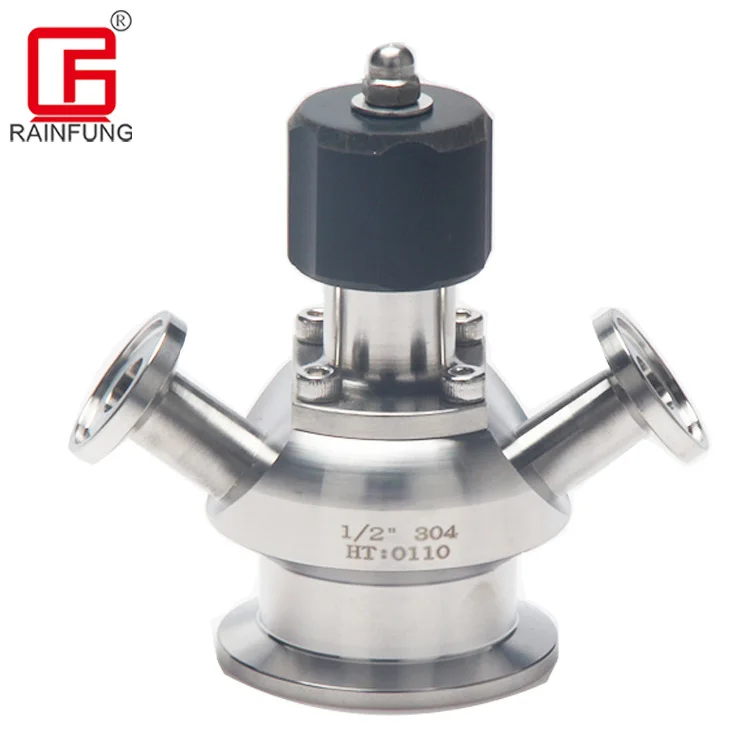

Product Description
Applications:
It's mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tankor popeline to drain away the remains.
The aseptic sampling valve is deaigned for sterilization before and after each sampling. It's applied to beer, milk, beverage, fruit juice and pharmacy industries etc.
Operating Principles:
Open: Sampling, The manual valve is opened by rotating the handle or by activating the lever. The stem and the membrane are then retracted, allowing liquid to pass.
Close: Sterilizing, The built in spring closes the valve and keeps the channel open between the hoses though reverse process in order to sterilize. If using by steam, a small pressure relief valve on the outlet is recommended.
Design Features:
Standard design: The aseptic sampling valve consists of three parts, a valve body, a handle and a membrane. The rubber membrane is placed on the stem of hte valve and works as a wtretchable plug.
| Standard design: | The aseptic sampling valve consists of three parts, a valve body, a handle and a membrane. The rubber membrane is placed on the stem of hte valve and works as a wtretchable plug. |
| Material: | Valve body 316L, Handle 304, Diaphragm EPDM,PTFE,VMQ. |
| Max working pressure: | 6 bar. Max temperature: 120°C(EPDM) , 130°C(PTFE) |
| Max sterilization temperature: | dry steam: 121-134°C. Steam must be use dry, because the condensate water will damange hte diaphragm, We suggested to customer, after 100 times sampling or sterilization, should be replace the diaphragm. |
| Connections: | Weld, Clamp, Thread, Hose pipe, Boss |
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q:The Industries We Serve?
A:We hope to make business with companies from all over the world. And for now, our products have been exported to especially in Europe, Russia, America, Australia,Peru,South Asia,Middle East and so on.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: How about the packing?
A: Normally, we have carton for packaging then packing the cartons in the plywood case.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can you do OEM?
A: Yes
Q:How can you guarantee the quality of products?
A:First of all, We have the numerical control device to manufacture products accurately. Then our quality inspectors will test products one by one to make sure every product or fitting we sell is qualified.
Q:What is your price level?
A:Quick return and small profit. Never make price reduction at the reputation of quality.
