Пневматические плоские/круглые позолотный пресс машины TH-160D для

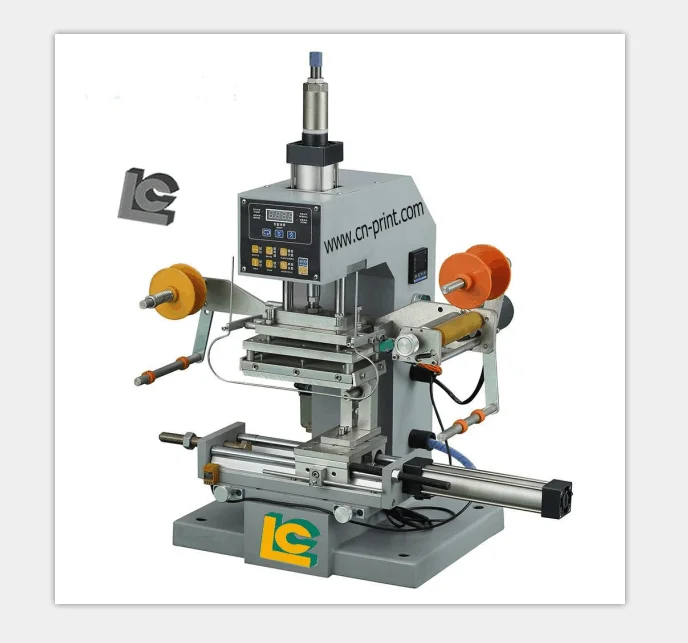

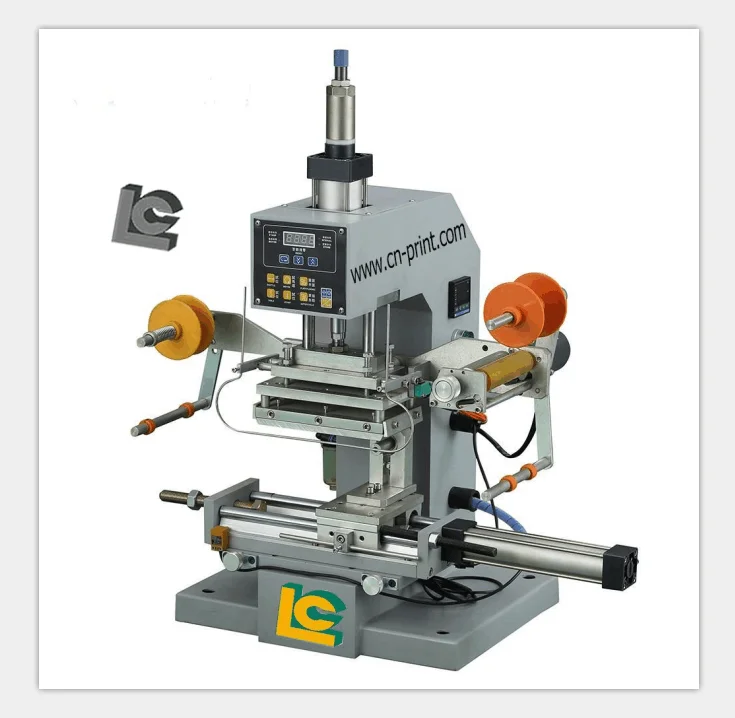

The Cylinder & Flat hot foil  stamping machine is fit for stamping on the surface of plane and round objects with pretty quality . like pens, cups, bottles, lipstick,lippie,desktop style ,easy operation, small volum.

it.is fast speed and low energy consumption.Mainly applied to the field of craft,fabric handbag,leather,paper and plastic.

 Characteristics

1. Stamping temperature adjustable range from room temperature to 300C.
2. Stamping pressure is adjustable to install.
3. Automatic rear-and-front worktable ensures safe and quick operation.
4. Worktable capable of slight adjustment to rear-and-front, left-and-right and rotation.
5. The height of the stamping head adjustable accordingly.
6. Automatic foil feeding and rolling with adjustable function.

parameter

1.    Name:Pneumatic Plane/ Round Hot Stamping Machines

2.       model:TH-160D

3.       product shape:Plane/ round

4.       Impression area: (Plane)100*160mm

  5. (round,Cylinder ,) Φ50*90mm

6  Power Supply:220V/50Hz
6.  Electrothermal Power::900W
7.  Air Pressure:0.5-0.7
8.  operation:Pneumatic

9.  system control:automatic

10  workbench:can be adjusted

11.  Stamping foil winding length - < 120 mm

12.  Stamping speed: 600 PCS/H

13.   Machine Outline Dimensions: L630*W:580*H580

14    Package by plywooden case  Weight:85KG


Price Terms-- EXW OR Express by DHL
Payment Terms --T/T Payment.
Packing --PlyWooden case
Lead Time --5 days after confirm PO
SKU --10 SET
Cubic Meter –0.4

 In theory, manual,pneumatic and hydraulic hot stamping machine have the same Principle,that is to say the object will be hot stamped by the same way of heat tranfer by the machine. One difference is there have 2 types: manual and automatic;Another is the different size of the stamping pattern.Manual was fit for the object with low requirement effect and small stamping area.To the contrary, the first-class effection and large stamping area will be done by both pneumatic and hydraulic.What is more,they are fit for stamping the object with high quality.In a word,

Packaging Detail:wooden case Delivery

Detail:within 7 days after payment

1 The guarantee time is 1 years, and maintain is lifelong. During this time, if any work piece dose not work well and which is not caused by worker and can not control naturally, the supplier provide it free of charge, but the carrier cost must be in buyer's side. And the machines have matched an urgent foot switch.

 2 The supplier must make sure the machine all work well before package.

 3 we will provide the working video after delivery the machines.

 4 Welcome your engineers to come to our factory for training.
