Резервуар для топлива битума ASME IMDG шении ccs ISO 40
- Категория: Контейнеры-цистерны >>>
- Поставщик: Tianjin,Cimic,Imp&,Exp,Co.,ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 10353.97 $* | 10871.19 $* |
| Aug-19-2025 | 10266.41 $* | 10779.99 $* |
| Jul-19-2025 | 8613.71 $* | 9044.53 $* |
| Jun-19-2025 | 10092.43 $* | 10597.37 $* |
| May-19-2025 | 8787.39 $* | 9226.96 $* |
| Apr-19-2025 | 9918.32 $* | 10414.36 $* |
| Mar-19-2025 | 9831.11 $* | 10323.96 $* |
| Feb-19-2025 | 9744.82 $* | 10231.84 $* |
| Jan-19-2025 | 9657.86 $* | 10140.51 $* |
Характеристики
Packaging & Shipping
1.0DESIGN SPECIFICATION

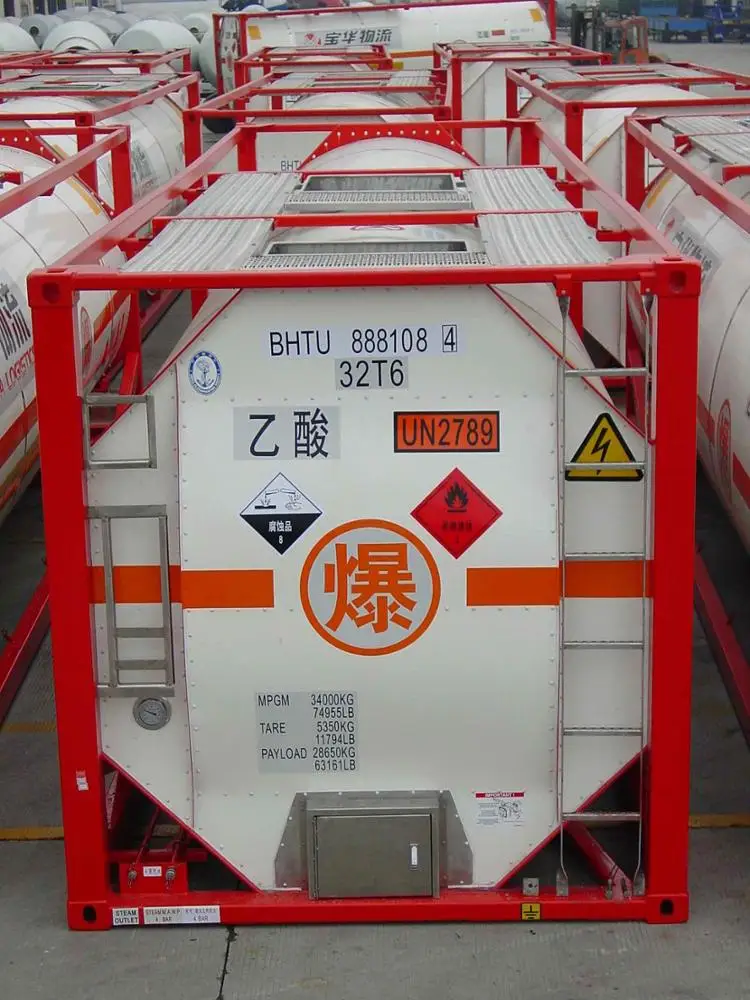

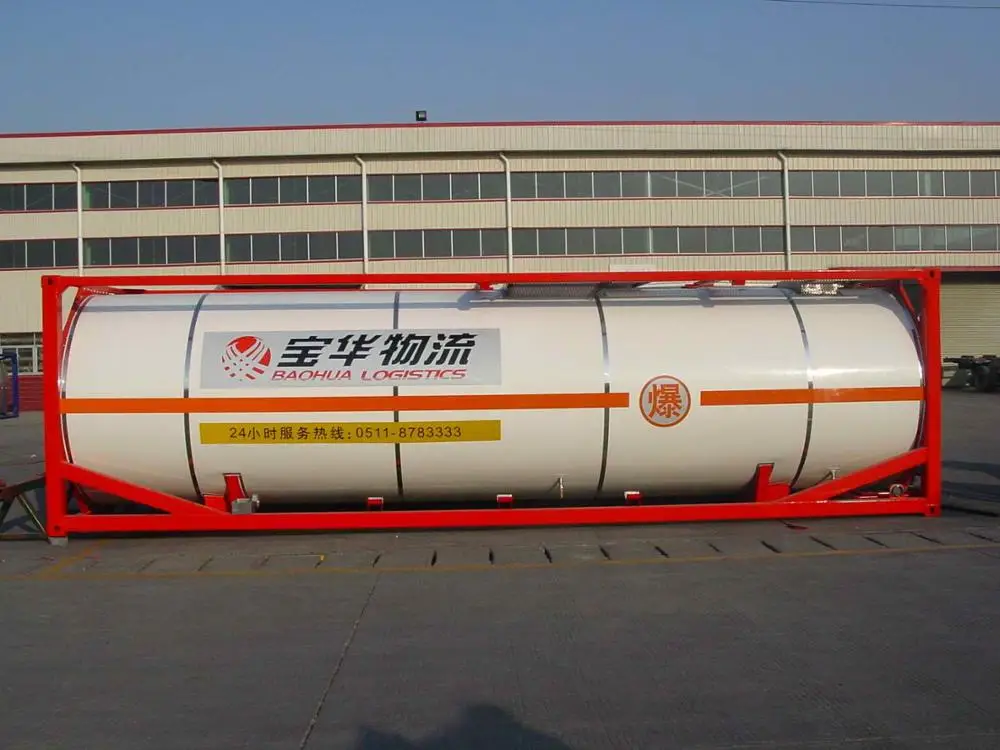

TANK TYPE : 20ft ISO universal Collar (set out) tank.
CAPACITY : 25,000 litres -1 +1.5%.
TARE : 5,360 kg±3%
MAX GROSS : 36,000 kg.
PRODUCTS : General purpose liquids.
MAWP : 4 bar.
TEST PRESSURE : 6 bar.
EXTERNAL PRESSURE : 0.41 bar.
VESSEL DESIGN TEMP. : -40℃ to 130℃.
TYPE APPROVALS : UN portable tank (T11 IMDG, US DOT CFR49,
ADR/RID), UIC, TIR, CSC, TC.
CLASSIFICATION : Bureau Veritas or Lloyd’s Register
2.0VESSEL
DESIGN CODE : ASMEDiv 1 where applicable.
MATERIAL : Shell Material:
SA516 Gr 70 Carbon steel .Shell 8mm
Include corrosion allowance: 1.0mm
Ends Material:
SA516 Gr 70 Carbon steel. Shell 10mm (before forming).
Include corrosion allowance: 1.0mm
SURFACE POLISH : Base 400 mm of circumferential seams ground flush. Fillet
welds on tank fitting ground smooth where necessary.
3.0FRAME
TYPE : ISO 1496/3 (1CC) without saddles.
MATERIAL : SPA-H or equivalent.
WALKWAY : 475mm wide non-slip marine resistant grade aluminium.
One longitudinal sections full length, transverse section
Please note: This file is strictly confidential and privileged. It is intended only for the use of the intended
recipient. If you are not the intended recipient, please notify us (CIMC NANTONG) immediately. You should
not copy it, forward it or use it for any purpose or disclose the contents to any person.
4 / 6
at rear end frame, short transverse section adjacent to rear of manway box. The nutswhere is on the cross of each walkway are to be tack welded.
Our Services
The containers specified herein are manufactured under sufficient quality control, which will be approved by one of following authorized agency.
ASME, IMDG, ADR, CSC, ISO
Company Information
CIMIC Containers has the longest history. Covering the manufacture of dry cargo container, refrigerated container and special container as well as thebusinesses of modular buildings and floor. Its annual production capacity of dry cargocontainer exceeds 2.4 million TEUs and the annual production capacity of refrigerated
container surpasses 0.19 million TEUs with products being widely used in North America, Europe, Asia and other world major logistics systems.
FAQ
1. Standard and certificate:
ASME, IMDG, ADR, CSC, ISO,BV
2. Productivity
100units per day
3. Logo
Design and painting as your request
4.Payment
50% deposit , 50% before shipment
5. Guarantee
Five (5) years and be based on standard “RE 3” of the “European degree of rusting standards”. Normal wear/tear, or corrosion caused by fish oil, animal and vegetable oils, strong solvents, impact and accident is excluded.The warranty shall be applied faults or failures affecting more than 10% of the painted surface.
Decal guarantee Seven (7) years.
6. Contact information
Email : artest_zhang2004 (@)aliyun.com or 313365674 (@)qq.com
Mobile phone: 008613920482102
Whatsapp: 008613920482102
Skype: 008613920482102
