Электронная продукция оборудование для испытания калибратор влажности и температуры окружающей среды влажной тепловой
- Категория: Testing Equipment >>>
- Поставщик: Guangdong,Yuanyao,Test,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 4165.27 $* | 4373.36 $* |
| Aug-18-2025 | 4130.92 $* | 4337.30 $* |
| Jul-18-2025 | 3465.96 $* | 3638.28 $* |
| Jun-18-2025 | 4060.49 $* | 4263.59 $* |
| May-18-2025 | 3535.21 $* | 3712.69 $* |
| Apr-18-2025 | 3990.48 $* | 4190.7 $* |
| Mar-18-2025 | 3955.57 $* | 4153.77 $* |
| Feb-18-2025 | 3920.20 $* | 4116.81 $* |
| Jan-18-2025 | 3885.58 $* | 4079.66 $* |
Характеристики
Our advantages
1. Direct factory with 10+ years manufacturing experience in test equipment.
2. Professional R&D staff with more than 5 years experience in this filed.
3. ISO 9001-2015 certified manufacturer
2. Professional R&D staff with more than 5 years experience in this filed.
3. ISO 9001-2015 certified manufacturer
Products Description

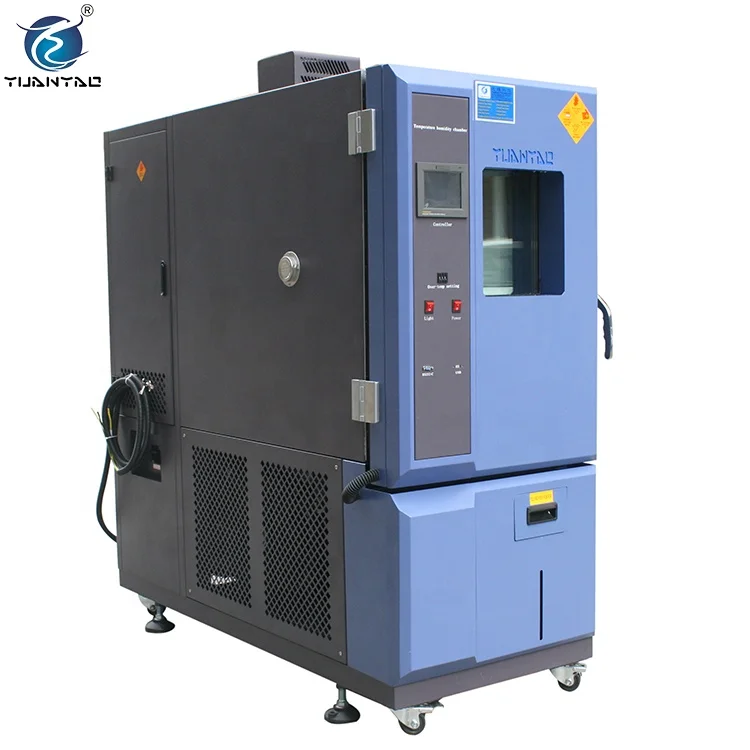

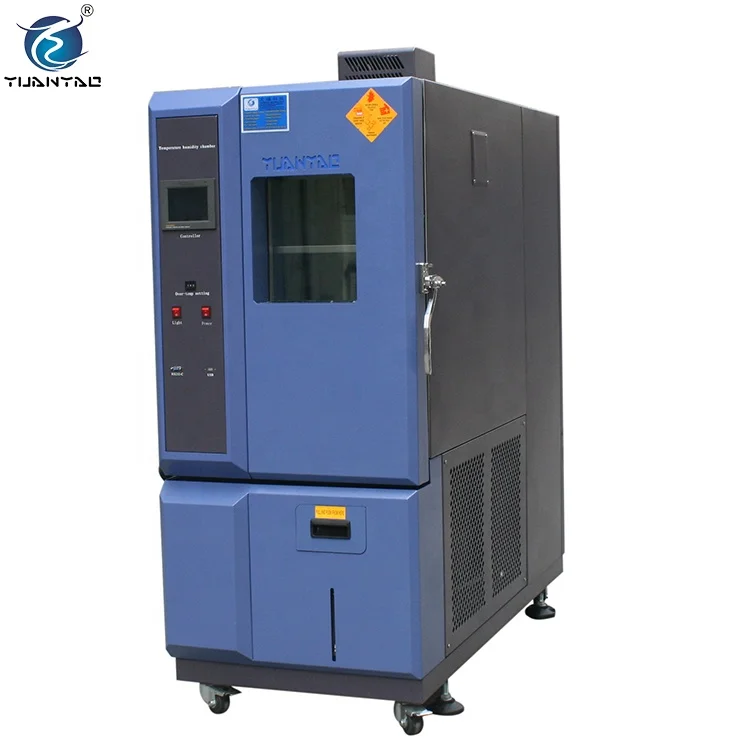

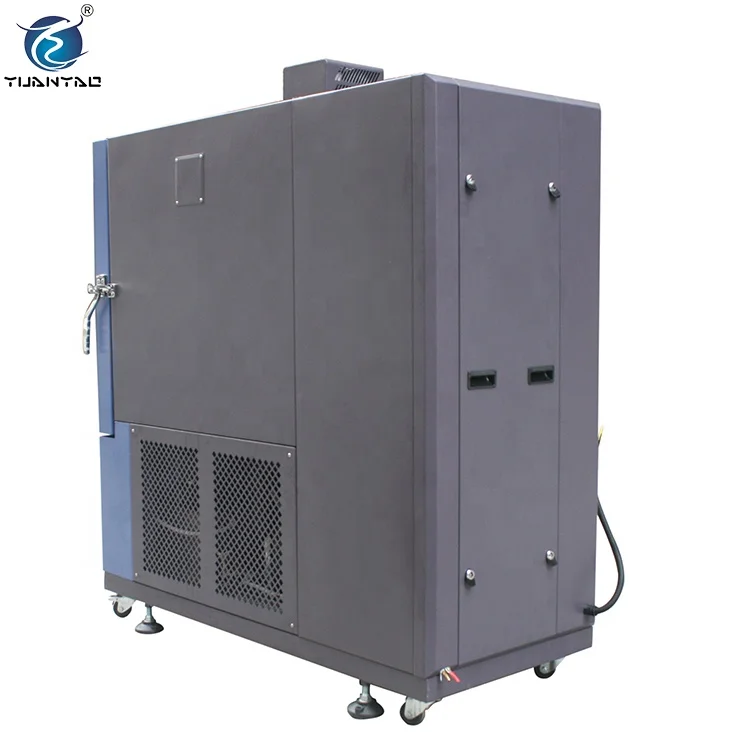

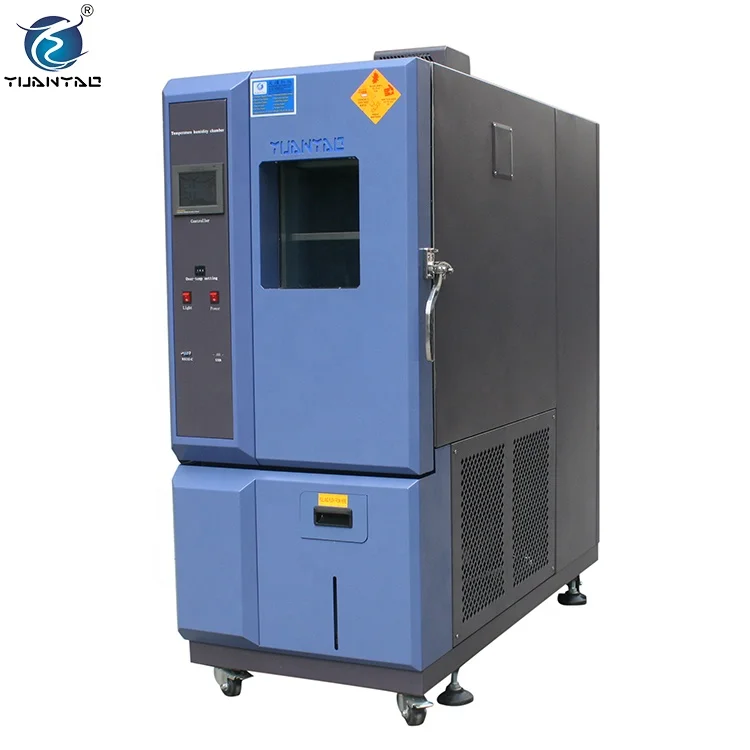

Temperature humidity test equipment can be used when constant climate conditions (temperature and/or humidity) are needed for
product testing. It also can be used for a variety of materials of high - low temperature alternating test. The test temperature,
humidity, time can be programmed. Provides conditions of temperature from -70 to +150 degree and of humidity from 20% to 98%, low
humidity 10%~98%RH is available for us..
product testing. It also can be used for a variety of materials of high - low temperature alternating test. The test temperature,
humidity, time can be programmed. Provides conditions of temperature from -70 to +150 degree and of humidity from 20% to 98%, low
humidity 10%~98%RH is available for us..
Features
* Uncover test unit weakness in a short-term test with accelerated time effect.
* Each programme can do 999 times or repeat, operation interface is English. It is with fault warning and protecting function,RS-232 communication interface, attached PC software available for far control.
* The shelves can be equipped more according to customers' requirements and the space between shelves can be adjusted.
* Independent audible and visible temperature-limiting alarm system ensures experiments run safely.
* Uncover test unit weakness in a short-term test with accelerated time effect.
* Each programme can do 999 times or repeat, operation interface is English. It is with fault warning and protecting function,RS-232 communication interface, attached PC software available for far control.
* The shelves can be equipped more according to customers' requirements and the space between shelves can be adjusted.
* Independent audible and visible temperature-limiting alarm system ensures experiments run safely.
Model | YTH-080 | YTH-150 | YTH-225 | YTH-408 | YTH-800 | YTH-1000 | |||||||||
Inner chamber size w×h×d(cm) | 40×50×40 | 50×60×50 | 50×75×60 | 60×85×80 | 100×100×80 | 100×100×100 | |||||||||
Exterior chamber size w×h×d(cm) | 90×140×95 | 100×150×105 | 100×165×115 | 110×175×135 | 150×190×135 | 150×190×155 | |||||||||
Testing temperature range | -73℃ ,-60℃,-40℃,-20℃,0℃~150℃,180℃ | ||||||||||||||
Testing humidity range | 20%RH~98%RH(10%RH~98%RH Or 5%RH~98%RH) | ||||||||||||||
Performance | Temp.humi.fluctuation | ±0.2℃,±0.5%RH | |||||||||||||
Temp.humi.uniformity | ±1.5℃;±2.5%RH(RH≤75%),±4%(RH>75%)empty load,after stabilization | ||||||||||||||
Temp.humi.resolution | 0.01℃;0.1%RH | ||||||||||||||
Heating-up time | ℃ | 10 0 15 0 | |||||||||||||
min | 30 40 | 30 40 | 30 45 | 30 45 | 30 45 | 30 45 | |||||||||
Cooling-drow time | ℃ | 0 -20 -40 -60 -70 | |||||||||||||
min | 25 40 50 70 80 | ||||||||||||||
Material | Exterior chamber material | Stainless steel+Powder coating | |||||||||||||
Interior chamber material | SUS#304 Stainless steel | ||||||||||||||
Insulation material | PU fiberglass wool | ||||||||||||||
System | Air circulation system | Cooling fan | |||||||||||||
Heating system | SUS#Stainless steel high-speed heater | ||||||||||||||
Humidification system | Surface evaporation system | ||||||||||||||
Refrigeration system | Imported tecumseh compressor+ fin type evaporator+air(water)cooling system | ||||||||||||||
Dehumidifying system | ADP critical dew point cooling/dehumidifying method | ||||||||||||||
Controlling system | Digital electronic indicator+SSR+PID | ||||||||||||||
Other components | Multi-layer vacuum glass observation window,cable port(50mm), controlling status indicator lamp,chamber light,specimenloading shelf(2pcs,position adjustable) | ||||||||||||||
Safety protection device | Over-heat protection circuit breaker,compressor overload protection, control system overload protection,humidifying system overload protection indicator lamp | ||||||||||||||
Power supply | AC 1 phase 220V;3 phase 380V 60/50Hz | ||||||||||||||
Customization service | Non-standard or special requirements are all welcome | ||||||||||||||
Optional Accessories
1. Low humi. Dehumidifying system
2. Inner glass door with manual operating ports
3. Temp./ humi. Recorder
4. Pure water treatment device
5. Reverse osmosis water purifier
6. RS-485 interface can be linked to PC and achieve multi-level control and recording software management.
7. LN2 / LCO2 fast cooling-down system
1. Low humi. Dehumidifying system
2. Inner glass door with manual operating ports
3. Temp./ humi. Recorder
4. Pure water treatment device
5. Reverse osmosis water purifier
6. RS-485 interface can be linked to PC and achieve multi-level control and recording software management.
7. LN2 / LCO2 fast cooling-down system
