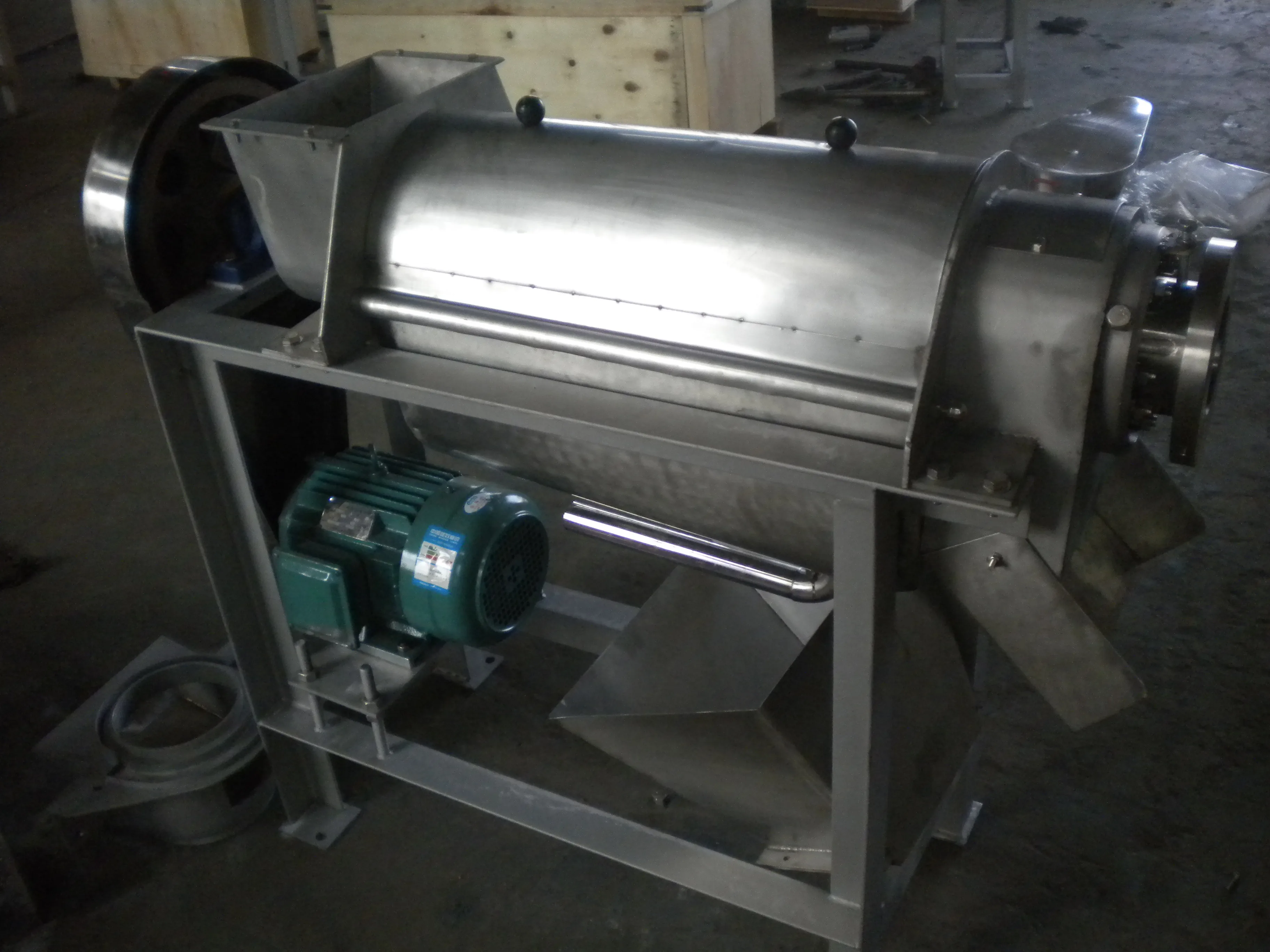

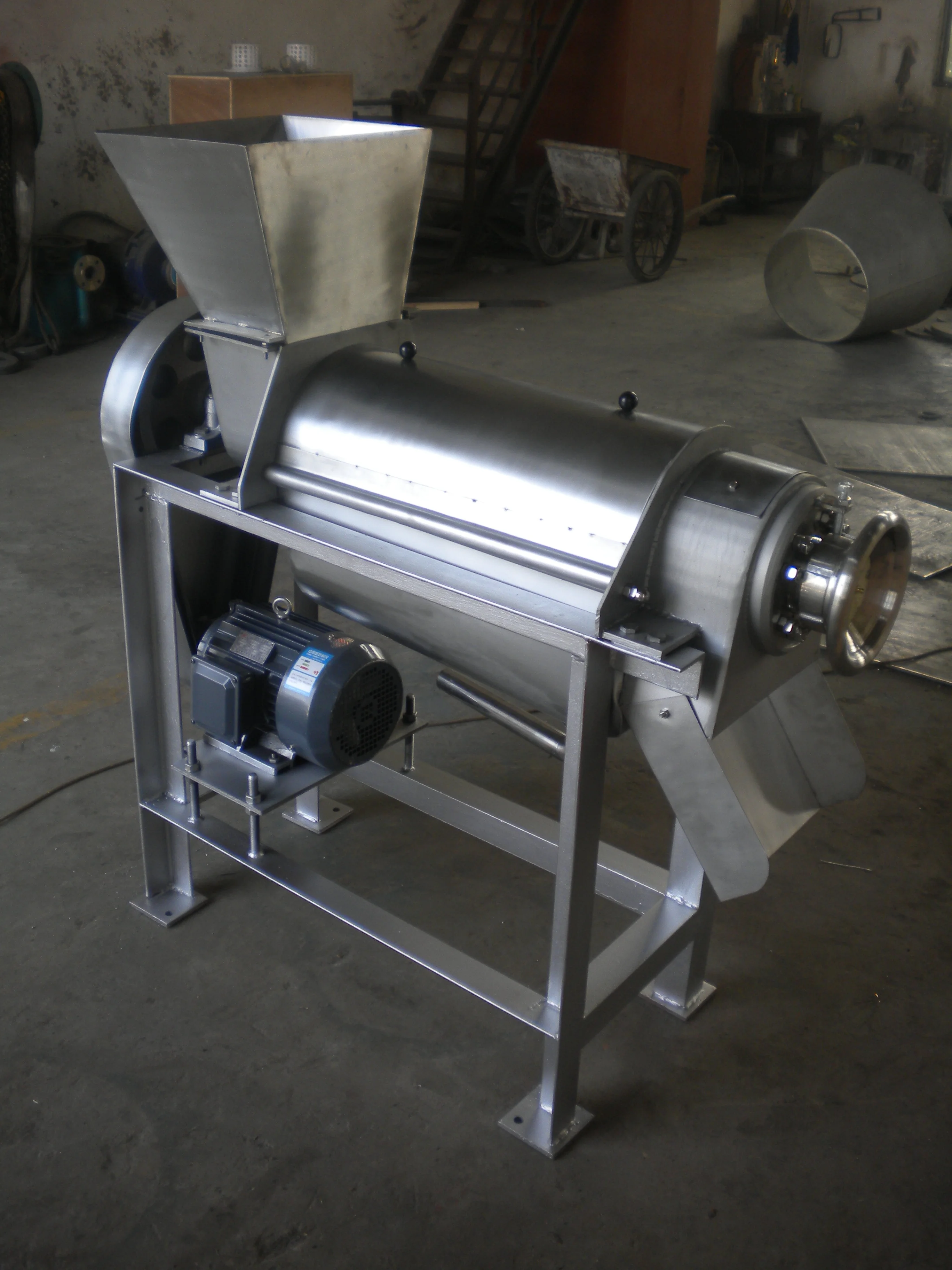

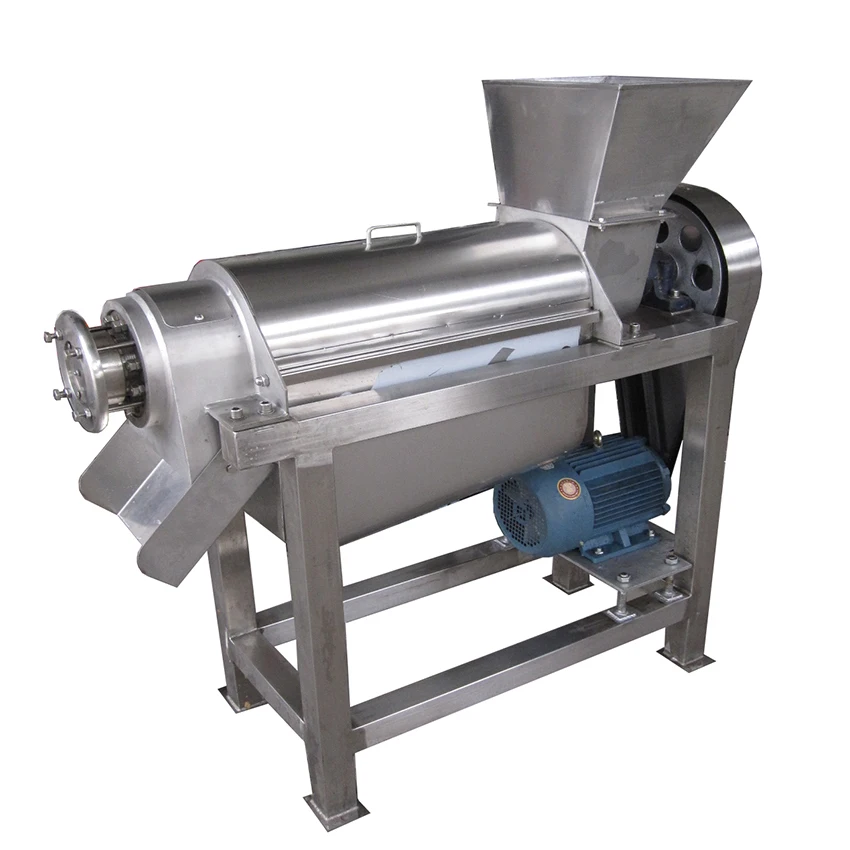

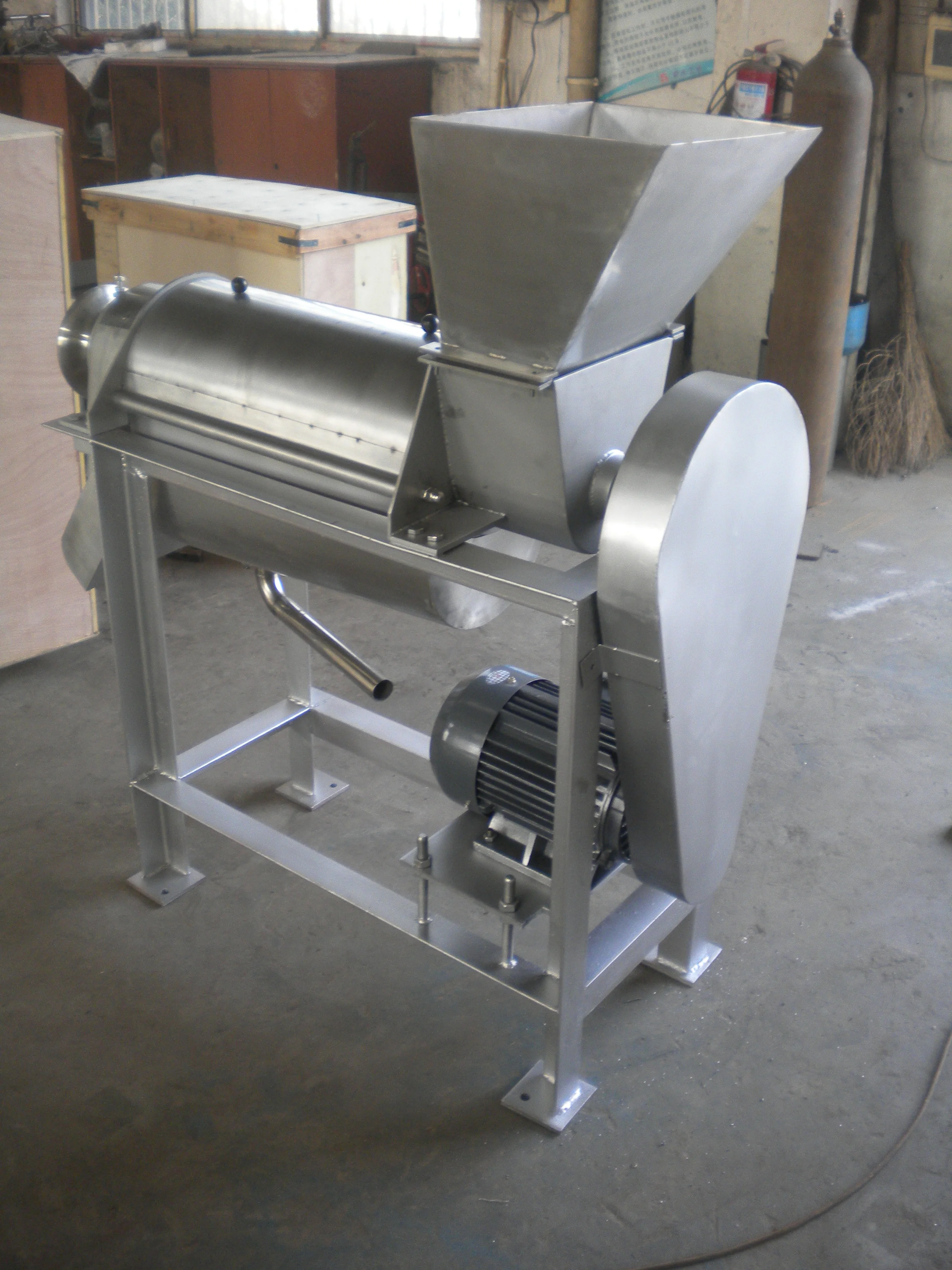

1500kg/h industrial fresh juice making machine/juice maker/juice extractor

Product introduction:

1. Application

Can be used to make potato,pineapple,apple and orange juice and others

2.Advantage of machine:

1. 304 Stainless steel,Safe oxidation resistance

2. Screw juice extractor

3. Motor protection,Energy saving save electricity

4. Easy operation,easy-clean

3.Technical parameters

Product Name	304 Stainless steel juicer machine
Type	OC1.5T
screw diameter(mm)	175
Capacity(kg/h)	1500kg/h
Speed of screw juicer(r.p.m)	380
Power(kw)	4
Screen clearance(mm)	0.6
Dimensions(mm)	1300*450*1357

4. Working principle of equipment

The main component of this equipment is a spiral slag outlet direction along the bottom diameter increase gradually and the pitch decreases, when the material is the spiral propulsion, because the spiral cavity volume reduction, squeeze the material.

5. Installation operation and maintenance

1. The machine much be installed horizontal,fixed with anchor bolts

2. When start the machine,should adjust the indenter to make the cyclic annular interval to max,then reduced.When up to the requirements,fixed the bearing seat position with the brake.

3. The feeding material must be uniform, hard foreign matter is strictly forbidden to enter the hopper, so as not to damage the mesh

4. After work,must wash the screen mesh with the water ans brush.,and according the production condition,add one time to clean the mesh.After extractor,should clean all the machine with hot water.









Company information:

Henan Ocean Machiery Equipment Co.,Ltd., an ISO9001 certified and High-tech Enterprise established more than 10 years ago, is a professional manufacturer specialized in R&D, production and sales  of Mechanical Equipment products such as Snack Food Processing Machine, Fruit and advantage Machine, Food & Packaging Machine, Water well drilling rig and Poultry Equivalents,ect.,which are widely sold worldwide and we have been recognize by our customers year after year.













Our workshop:

Packing & shipment:

After-sale servive:

1.Warranty

All the products have one year guarrantee.

2.Training

We provide training to make sure every customer can install and operate the machines.

3. Spare parts

We provide all spare parts for all machine in lifetime use.

4.Standby Servive

We are always ready to help. Just let us know whenever you have questions or problems.

FAQ:

Question 1: Can I print my Logo on the machine?

Answer: Yes, sure.

Question 2: Can you customize the machine for me ?

Answer: Yes, we can customize according to customer's requirements

Question 3: What shall we do if  breakdown occurs?

Answer: Please informed us once the breakdown occurs. During warranty period, if breakdown occurs, we shall respond in time after receiving the notification of the buyer.  We shall handle failure over the telephone/ fax or arrange relevant personnel to the site according to the buyer’s requirements.
