YT-LS210 сильная клейкая бытовая машина для производства Ловушки мышей и
- Категория: Gluing Machines >>>
- Поставщик: Quanzhou,Yongtai,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 11305.3 $* | 11870.95 $* |
| Aug-15-2025 | 11210.62 $* | 11771.0 $* |
| Jul-15-2025 | 9405.74 $* | 9875.77 $* |
| Jun-15-2025 | 11020.1 $* | 11571.98 $* |
| May-15-2025 | 9595.53 $* | 10075.23 $* |
| Apr-15-2025 | 10830.45 $* | 11372.30 $* |
| Mar-15-2025 | 10735.72 $* | 11272.43 $* |
| Feb-15-2025 | 10640.47 $* | 11172.19 $* |
| Jan-15-2025 | 10545.56 $* | 11072.2 $* |
Характеристики
Product Description
Product Application

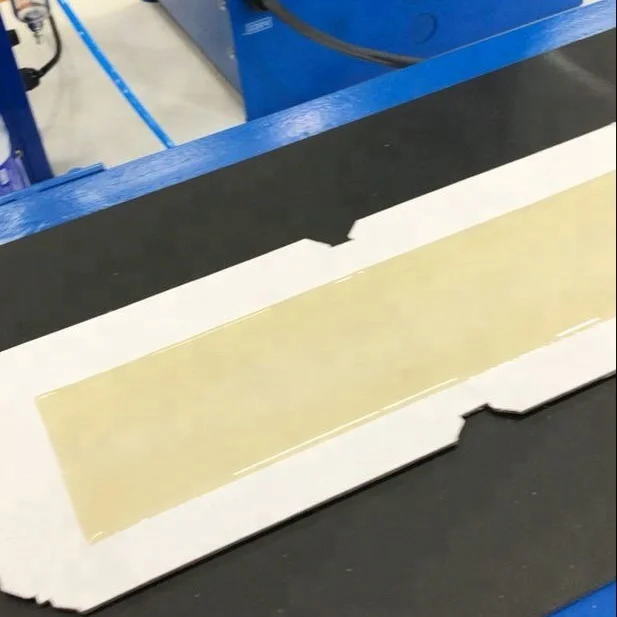

This machine is designed for making Rat traps on boards with hot melt adhesive.
Specification: | ||
Board size Min. and Max. | 10" max. width and 4" min. width | |
Coating size | 210mm (Max.) X 100mm (Min.) | |
Max. Machine Speed | 30 Pcs/min @ 28gms per pad | |
Main Motor | 2 KW (VFD adjusted speed) | |
Max Gluing Width | 210 mm | |
Glue Tank Capacity | 30 kg | |
Machine Size | 1000x700x1400mm | |
Power Requirement | 10 Kw, 380V, 50HZ, 3 Phase | |
a) Glue melt tank
1. The glue pump speed is controlled by gear motor
2. Temperature of each layer is controlled by PID system independently
3. Max. temperature is 220℃
4. Melt glue speed: 45kg/hr
5. Heating power: app. 6 KW
6. Main Motor:0.4KW
b) Hot Hose
1. A 3m length hot melt hose provided.
2. 220V AC , 900 w power.

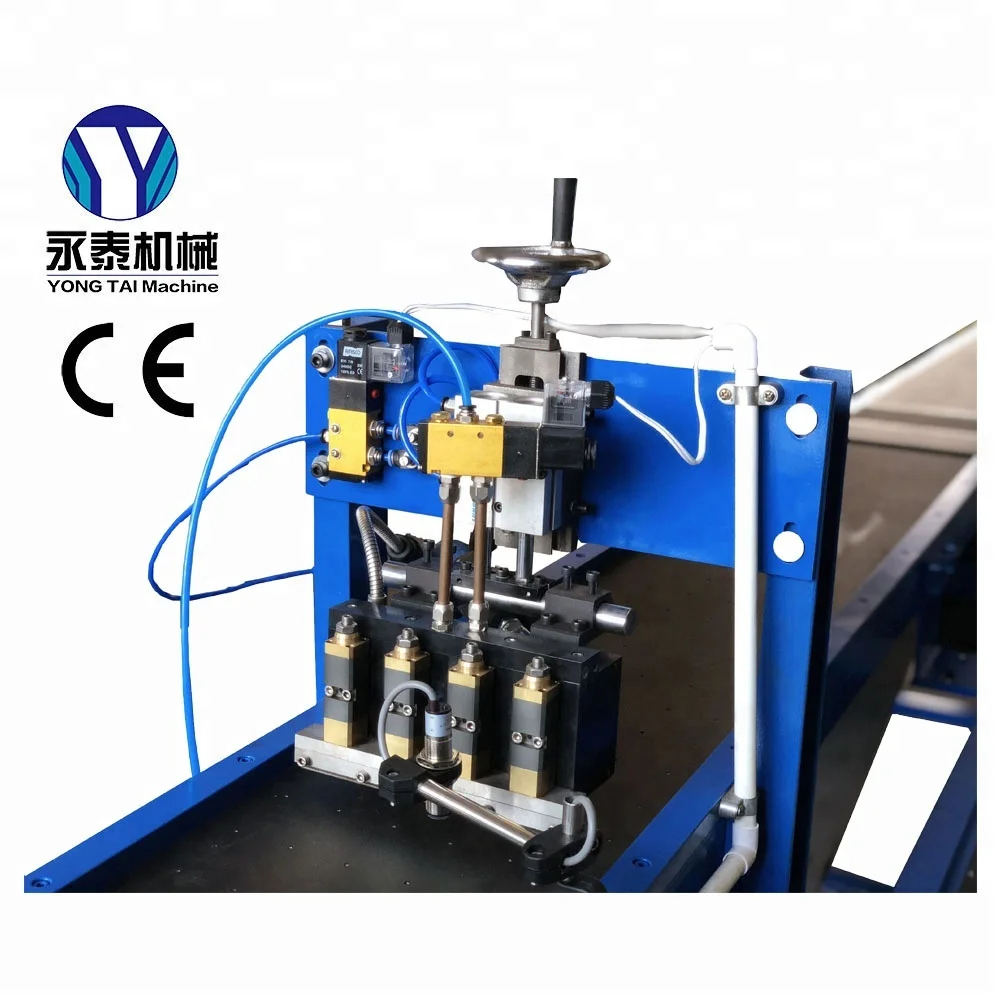

c) Slot die 210mm
1. Coating head: use 3 valves Independent control
2. Mounted on Pneumatic piston for up – down moment
3. Coating width adjustment with shimps insert
4. Levelling in transfers direction to conveyor is provided.
d) Auto Feeder
1. An automatic system for feeding one board at a time is provided.
2. An adjustable edge guiding scale provided for change in size.
3. A PVC belt conveyer belt provided for carrying the board.
e) Transmission part
1. Main motor: 2 KW 1 set
2. Negative pressure fan power: 1.1KW 1 set
3. Main machine driven by use of belt, chain and gear to transmit.
f) Pneumatic control part
1. Cylinder on slot die, feeding and stopping with head: diameter 50mm for each
2. Suitable solenoid valves, flow control and connectors.
g) Electric part
1. Main machine VFD: 2 KW; 1 piece
2. Glue tank VFD: 1 KW; 1 piece
3. Temperature controller: digital PID
4. Heaters: 8KW
5. Touch screen: 10" 1set
6. PLC: 1 set
Certifications
Detailed Images
Machine Parts
Name:YT-LS210
Brand: YONGTAI MACHINE
Original: Fujian,China
Main Features
Name:YT-M20P2
Brand: YONGTAI MACHINE
Original: Fujian,China
Machine Parts
Name: YT-M30P2
Brand: YONGTAI MACHINE
Original:Fujian,China
Main Features

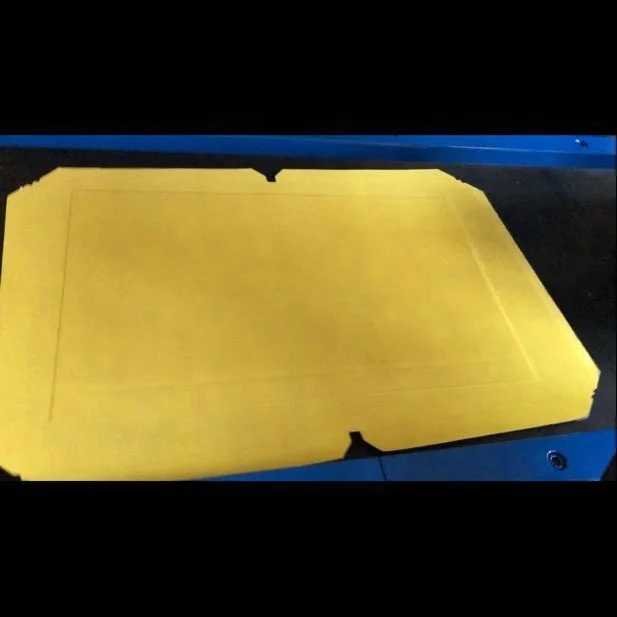

Name: Rats trap board
Brand: YONGTAI MACHINE
Original: Fujian,China
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 1100 (L) * 800 (W) *1600(D) | |
Weight | 100kgs | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
