Морская навигационная Антенна bnc rg58 5

Описание и отзывы

Трекер стоимости

Характеристики





Dielectric antenna specification

Center frequency: 1575MHz+/-5 MHz V. S. W. R: <1.5 Band width: CF±5MHz Impendence: 50 ohm Gain: ≥28DB Polarization: RHCP

Lna specification

Lna gain (without cable): 42±2dB Filter Insertion Loss: <3dB Noise figure: <1.3 Current Consumption: 18~35mA Dc voltage: 3~5V DC

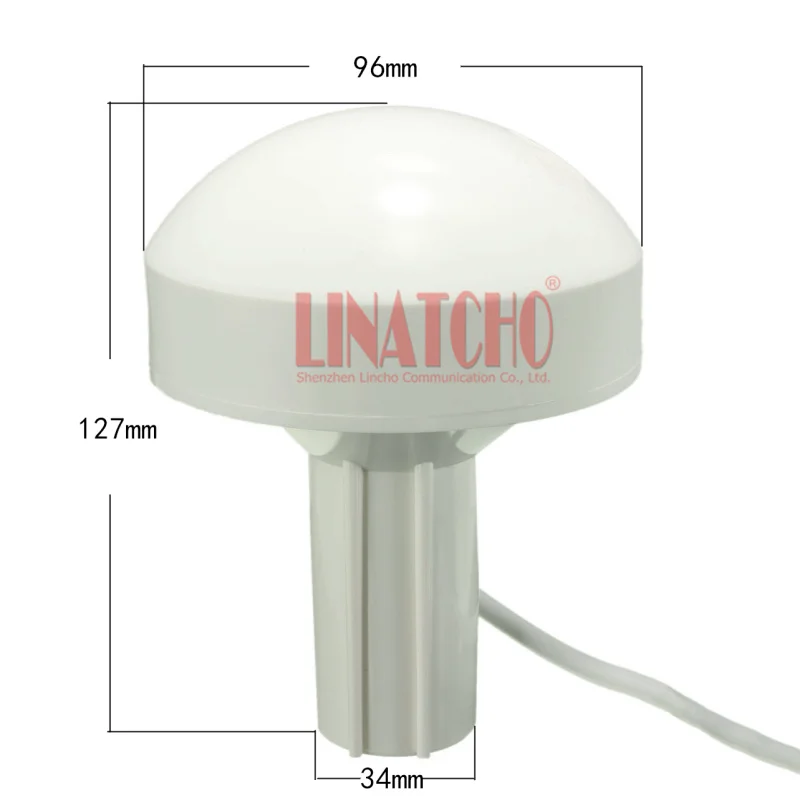

Mechanical specification

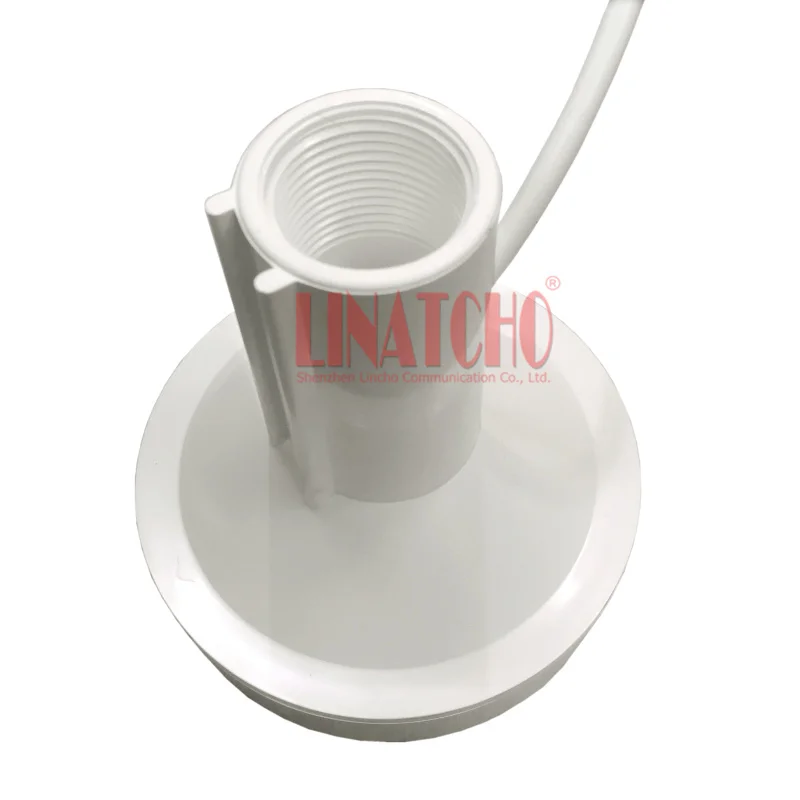

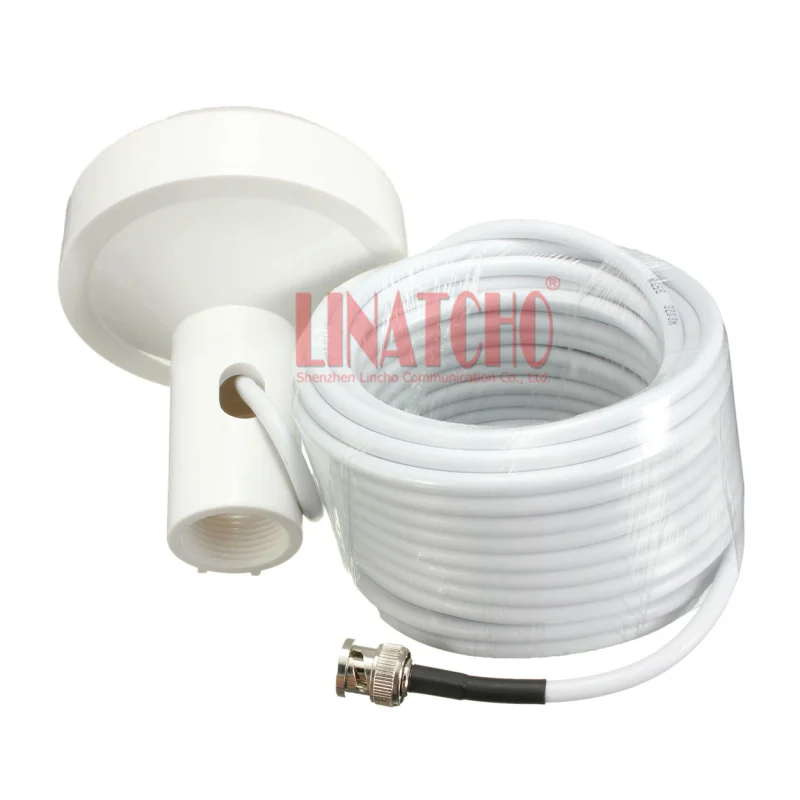

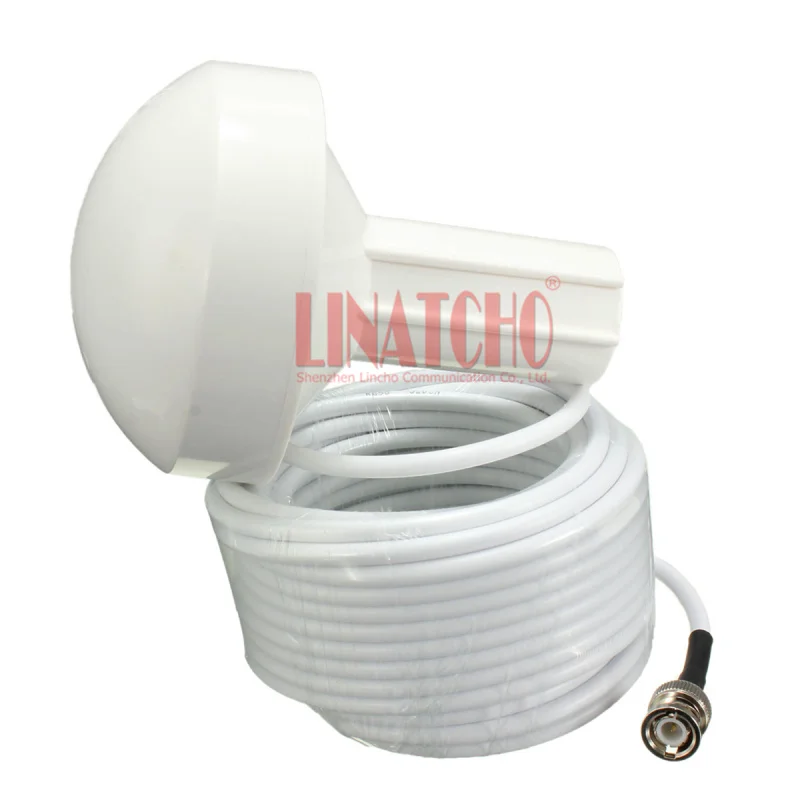

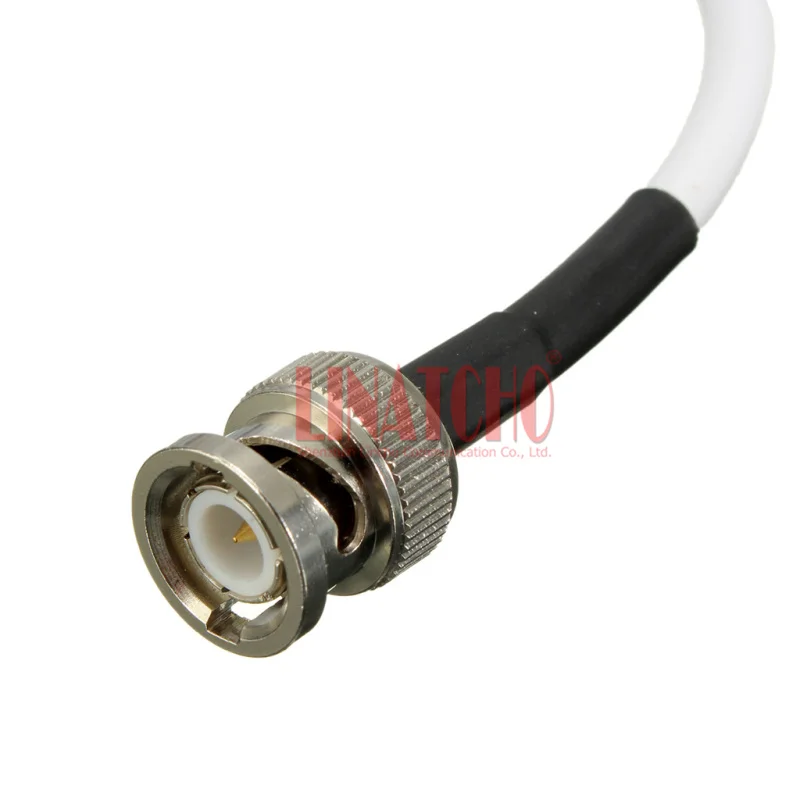

Weight: 335g Cable: SYV-50-3 Cable Length: 5 meters (can be customized) Connector: BNC male Mounting base: screw thread connection ( G3/4 )

Environmental specification

Working temp: -40~+60 Storage temp: -50~+85 Vibration sine sweep: 1g(0-p)10~50~10hz each axis Humidity: 95%~100%rh Weatherproof: 100%



GPS antenna with BNC Plug connector compatibility:

Abarten: GPS Chart Navigator 951XW;
Furuno: GN-80 GPS Receiver AU-12-5B;
Garmin: GPS 100, GPS 100AVD, GPS 100STD, GPS 120, GPS 120XL, GPS 125 Sounder, GPS 128, GPS 15, GPS 152, GPS 45, GPS45XL, GPS 48 GPSMAP 225, GPS 50, GPS 65, GPS 75, GPS 89, GPS 90, GPS92, GPS 95XL, GPS II MAP 205, GPS II Plus, GPS III, GPS III Pilot, GPSIII Plus, GPS V, GPSCOM 170, GPSMAP 130, GPSMAP 135 Sounder, GPSMAP152, GPSMAP 162, GPSMAP 168 Sounder, GPSMAP 172, GPSMAP 172C, GPSMAP176, GPSMAP 176C, GPSMAP 178, GPSMAP 178C, GPSMAP 178C Sounder, GPSMAP 180, GPSMAP 182, GPSMAP 182C, GPSMAP 185 Sounder, GPSMAP 188, GPSMAP 188C, GPSMAP 192C, GPSMAP 196, GPSMAP 198C Sounder, GPSMAP 200, GPSMAP 2006C, GPSMAP 205, GPSMAP 210, GPSMAP 215, GPSMAP 220, GPSMAP 230, GPSMAP 232, GPSMAP 235 Sounder, GPSMAP 238 Sounder, GPSMAP 276C, GPSMAP 292, GPSMAP 295, GPSMAP 296, GPSMAP 298C Sounder,GPSMAP 376C, GPSMAP 378, GPSMAP 396, GPSMAP 478, GPSMAP 492, GPSMAP 496, GPSMAP 498C Sounder, NavTalk Pilot, StreetPilot ColorMap, StreetPilot III GPS;
NorthStar: GP-270ML High Resolution Graphic Receiver, GP-360ML High Resolution Graphic Receiver, GPS Chart Navigator951XD, GPS Chart Navigator 951XWD, iCOM, Active GPS Antenna AN145,Active GPS Antenna AN150, Chartplotter 925, Gold Chartplotter 6000i, GPS Antenna AN150, GPS Chart Navigator 951, GPS Chart Navigator 951X XD, GPS Chart Navigator 952X XD, GPS Chart Navigator 961, GPS ChartNavigator 962, GPS Navigator 941X XD XW, Platinum Chartplotter 6100i;
Raven Industries: Invicta GPS Receiver, Low Profile GPS Antenna;
San Jose Navigation: AIS Transceiver AIS-2;,
Synergy Systems: AR-10K GPS Antenna BNC, AR-10S GPS BNC Antenna, ART-10K GPS BNC Antenna 10001678, DB-9 GPS Sensors, DB9GPS Sensors, SynPaQ E-M12+T, SynPaQ E-SS12, SynPaQ IE-M12+ DB9 GPSSensors, SynPaQ IE-m12= EN-3 GPS Sensors, SynPaQ III-M12+ GPS Sensors, SynPaQ III-M12+ T GPS, SynPaQ III-QA GPS Sensors.





1.PACKAGE:

Natural carton package or OEM service.



2.LEADTIME:

3-5days for samples, order depand on the quantity.



3.SHIPPING METHOD:

DHL,EMS,UPS etc as you want







4.PAYMENT:

T/T, Western Union, paypal in small amount.

Our prices DO NOT include any customs duty or tax.

Please be responsible for custom tax if your local custom charge some custom tax.





5.RETURN and WARRANTY:

100% QC inspection before shipment. Accept exchange within 7 working days after you received.



Pls contact us before you return. Our service representitive will help you.



Antennas and other accessories 6 month warranty, Repeaters 1 year warranty.



6.MINIMUM ORDER:

2 pcs, Sample order and trial order are welcome.
