Ультразвуковой сканер BW Trolley ультразвуковая

What is features of our Trolley Ultrasound Scanner?

•The image can be displayed in real time, frozen, amplified, black- white reversed, up and down conversed and shift depth in real time.
• Video output is standard PAL and VGA; it is easily accessed to the equipment, such as the large screen monitor, videocassette recorder, video image printer, etc.

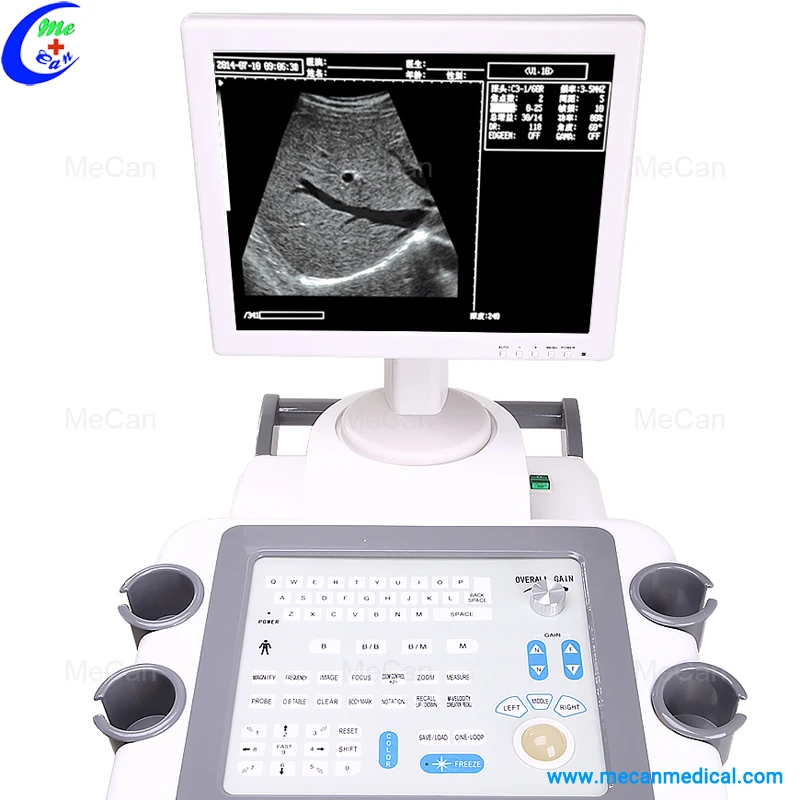

•Soft keyboard and track ball to make operation faster, convenient and flexible.

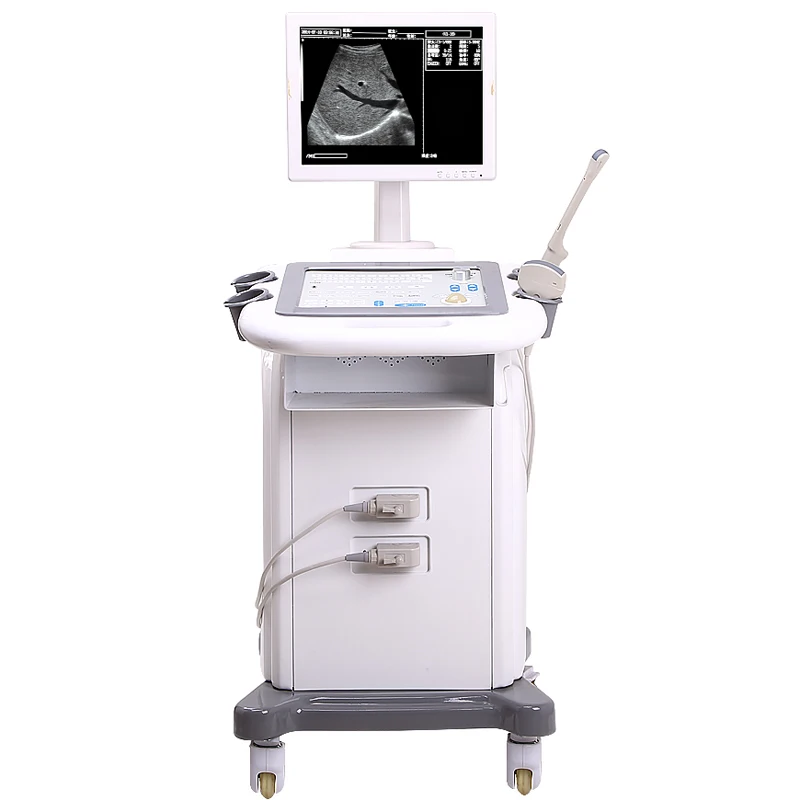

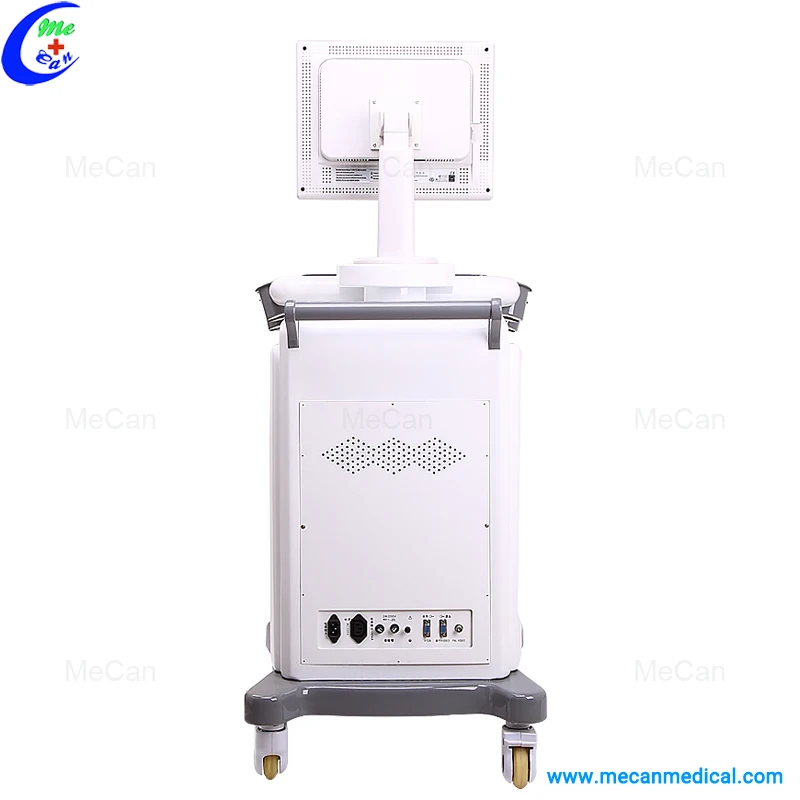

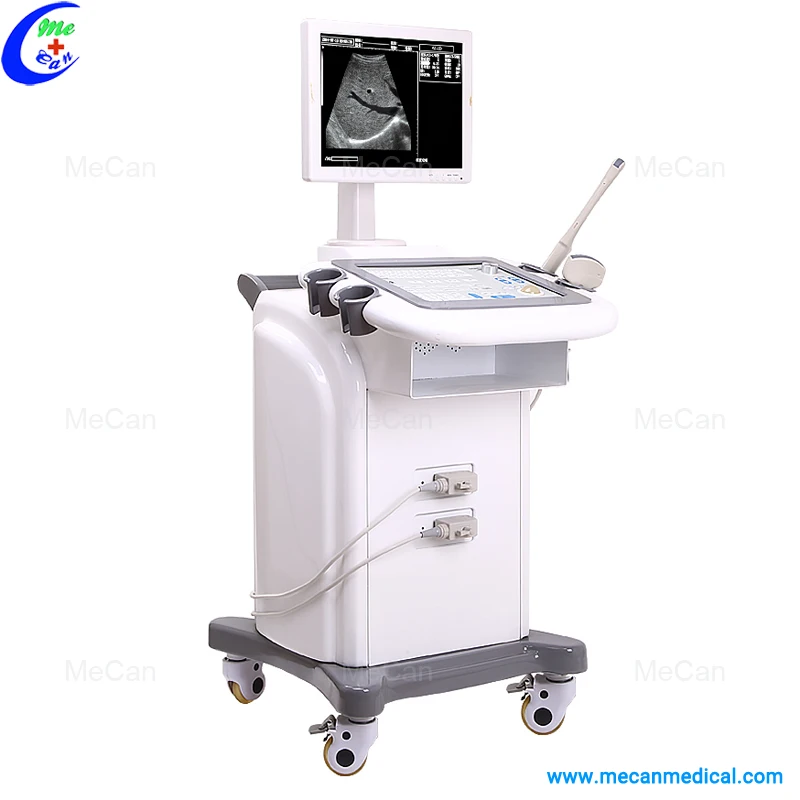

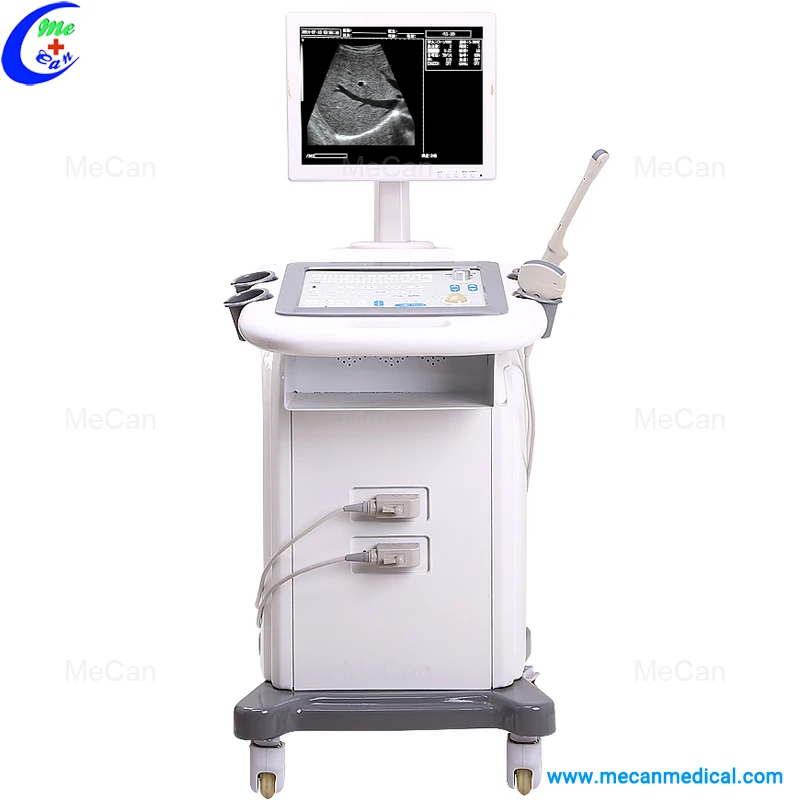

•The device is trolley structured with plastic cover. Switch power is used without working frequency transformer.
FPGA and SMT in the device make the device high integrated, small volume and light weight.
•The device passed clinical verifications of safety and diagnosis validity in its manufacturing country.
Applicable range:
The device is applicable for hospitals and clinics for examining liver, GB, spleen, kidney, pancreas, heart, bladder, uterus, etc.

What is specifications of our Trolley Ultrasound Scanner?

Display Depth (mm): ≥220
Resolution(mm):Lateral, ≤3(depth≤80), ≤4(80<depth≤130); Axial, ≤2(depth≤80), ≤3(80<depth≤130)
Dead Zone (mm): ≤5
Geometry precision (%): Horizontal: ≤15; Vertical: ≤10
Monitor screen: 15 inch LCD
Display mode: B, B+B, B+M
Image gray scales: 256 scales
Electronic focusing: 4 focuses combination randomly
Magnification: x1.0, x1.2, x1.5, x2.0
Cine-loop: 186 or 236 frames
Image storage: 20 frames
Pseudo-color unit: inside
Image reverse: left/right, black/white, up/down
Local Zoom: 2 times
Depth shift: B, B+B modes real time shift
Powder supply: 100V-130V/220V-240V, 50/60Hz
Machine dimension (mm): 510*680*1240
Standard Configuration:
•Scanner Body: 1pc

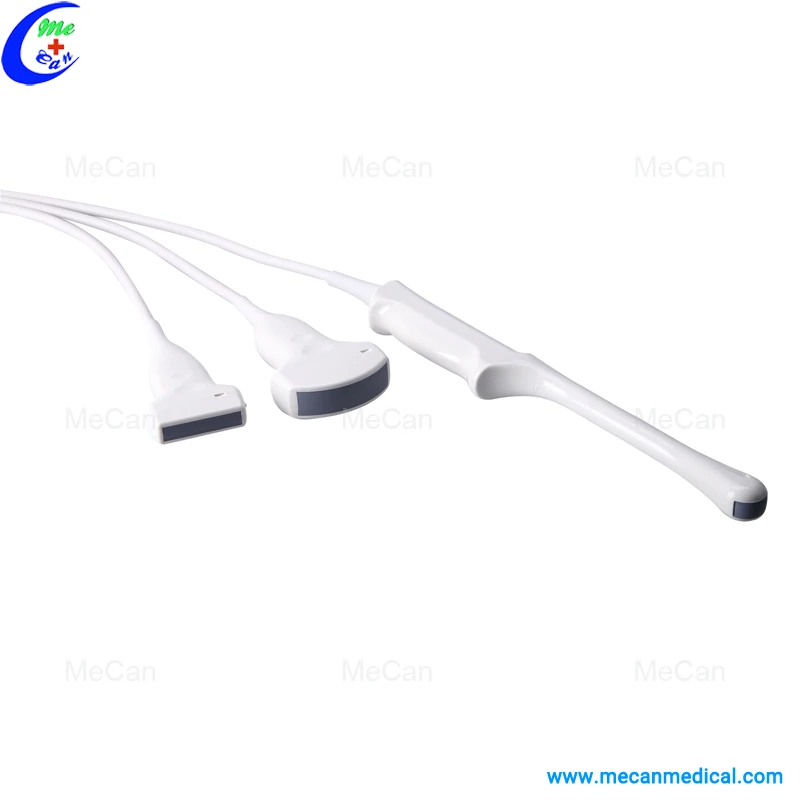

•3.5Mhz Convex Probe: 1pc
•Charger with a set of wires: 1set
•Bottle of USG gel: 1pc
•User Manual: 1pc
Optional:
•5.0MHz Micro-convex Probe
•6.5MHz Trans-vaginal Probe
•7.5MHz Linear Probe
•Video Printer
